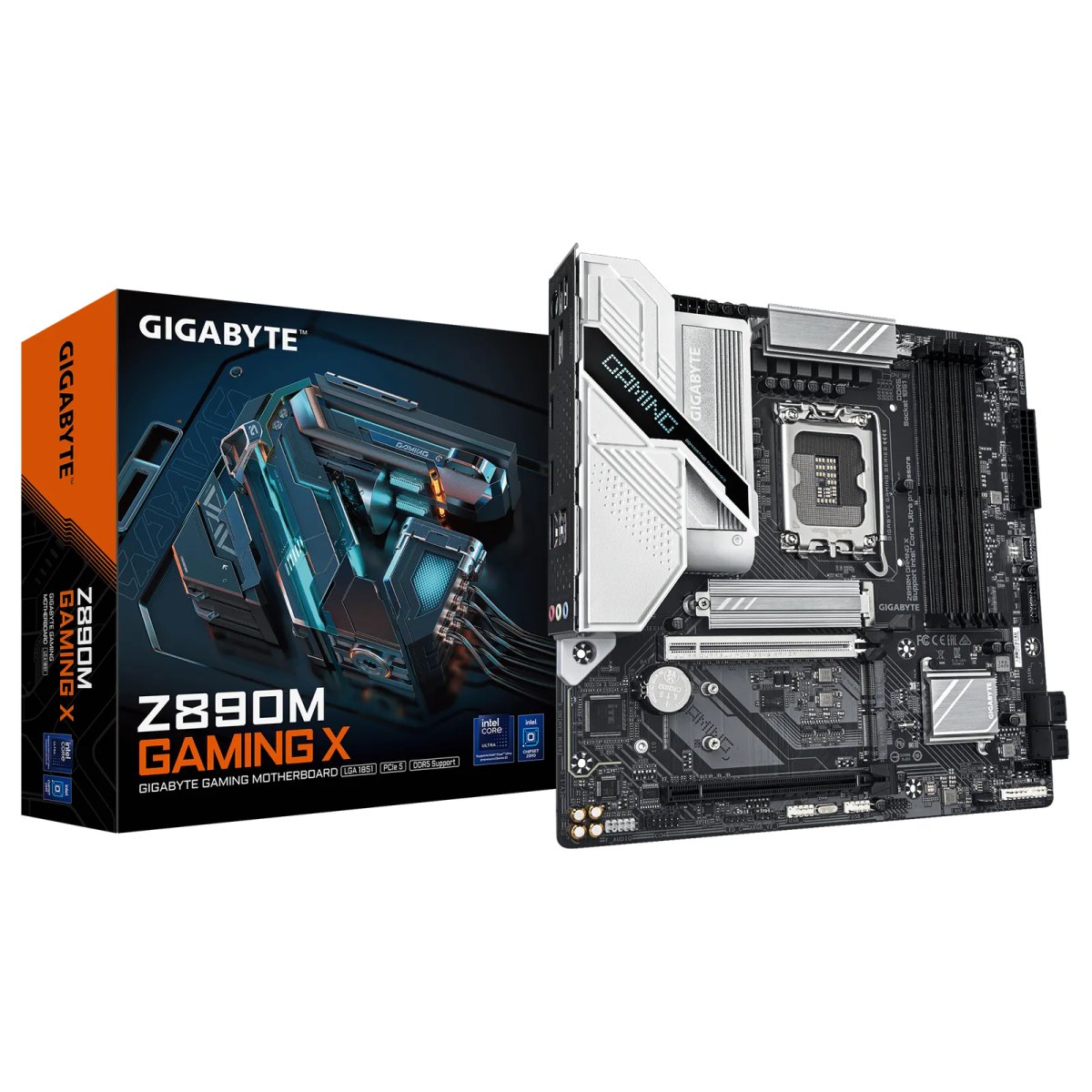

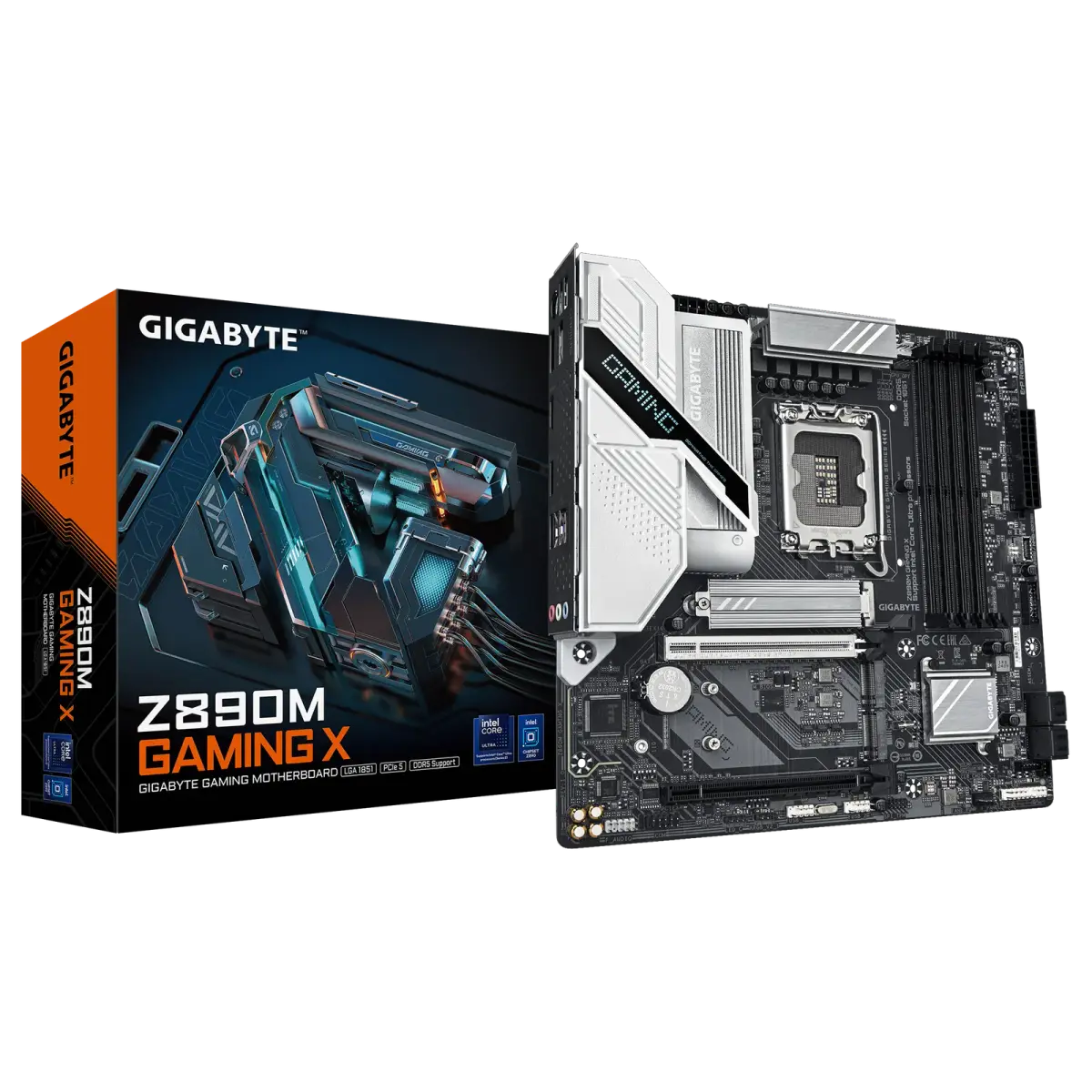

לוח אם – Gigabyte Z890M GAMING X Micro-ATX LGA1851 DDR5 - צבע שחור/לבן
חדש
מק"ט: Z890M GAMING X
לוח אם איכותי מבית Gigabyte, בעל תושבת LGA1851, ערכת שבבים Z890, תאימות לזיכרונות DDR5 ובעל יציאות תצוגה של HDMI ,DisplayPort.
₪840.00כולל מע"מ
במלאיפריסת תשלומים
₪840.00 לחודש
עד 2 תשלומים ללא ריבית
מפרט טכני
| תקופת אחריות | 3 שנים על ידי היבואן הרשמי |
| יצרן לוח אם | Gigabyte |
| תמיכה במעבדים | LGA1851 socket: Support for Intel® Core™ Ultra Processors L3 cache varies with CPU Please refer to "CPU Support List" for more information* |
| תמיכה בזיכרונות | Support for DDR5 9066(O.C) / 8933(O.C) / 8800(O.C) / 8600(O.C) / 8400(O.C) /8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400 / 6200 / 6000 / 5800 / 5600MT/s memory modules 4x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity)of system memory Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules Support CUDIMM memory module (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" for more information) |
| גרפיקה מובנית | :Integrated Graphics Processor-Intel® HD Graphics support 1x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz Support for HDMI 2.1 version and HDCP 2.3* Support for native HDMI 2.1 TMDS compatible ports** 2x DisplayPorts, supporting a maximum resolution of 4096×2304@60 Hz .Support for DisplayPort 2.1 version* (Graphics specifications may vary depending on CPU support) Support for up to triple-display at the same time |
| חריצי הרחבה | :CPU x1 PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16) The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot* :Chipset x1 PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4) |
| USB | :Chipset x1 USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header x5 USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header) x2 USB 2.0/1.1 ports on the back panel :Chipset+2 USB 2.0 Hubs x4 USB 2.0/1.1 ports available through the internal USB headers |
| ממשק אחסון | :CPU x1 M.2 connector (Socket 3, M key, type 2580/2280 PCIe 5.0 x4/x2 SSD support) (M2A_CPU) :Chipset x1 M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support)(M2Q_SB) x1 M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0×4/x2 SSD support) (M2N_SB) x4 SATA 6Gb/s connectors RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices |
| שמע | Realtek® Audio CODEC High Definition Audio 2/4/5.1/7.1-channel You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings* |
| כרטיס רשת קווי | Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| מודול תקשורת אלחוטית | ללא |
| חיבורים פנימיים | x1 24-pin ATX main power connector x1 8-pin ATX 12V power connector x1 CPU fan header x1 CPU fan/water cooling pump header x1 system fan header x1 system fan/water cooling pump header x2 addressable RGB Gen2 LED strip headers x1 RGB LED strip header x3 M.2 Socket 3 connectors x4 SATA 6Gb/s connectors x1 front panel header x1 front panel audio header x1 USB Type-C® header, with USB 3.2 Gen 1 support x1 USB 3.2 Gen 1 header x2 USB 2.0/1.1 headers x2 Thunderbolt™ add-in card connectors x1 Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) x1 serial port header x1 Clear CMOS jumper |
| חיבורים ויציאות | x1 PS/2 keyboard/mouse port x1 USB 3.2 Gen 1 ports x2 USB 2.0/1.1 ports x1 HDMI port (Note) x2 DisplayPorts (Note) x1 RJ-45 port x3 audio jacks (Note) Actual support may vary by CPU |
| BIOS | x1 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| תכונות ייחודיות | Support for GIGABYTE Control Center (GCC) Available applications in GCC may vary by motherboard model. Supported functionsof each application may also vary depending on motherboard specifications* Support for Q-Flash Support for Smart Backup |
| תוכנות מצורפות | Norton® Internet Security (OEM version) LAN bandwidth management software |
| תצורה | Micro ATX Form Factor; 24.4cm x 24.4cm |
