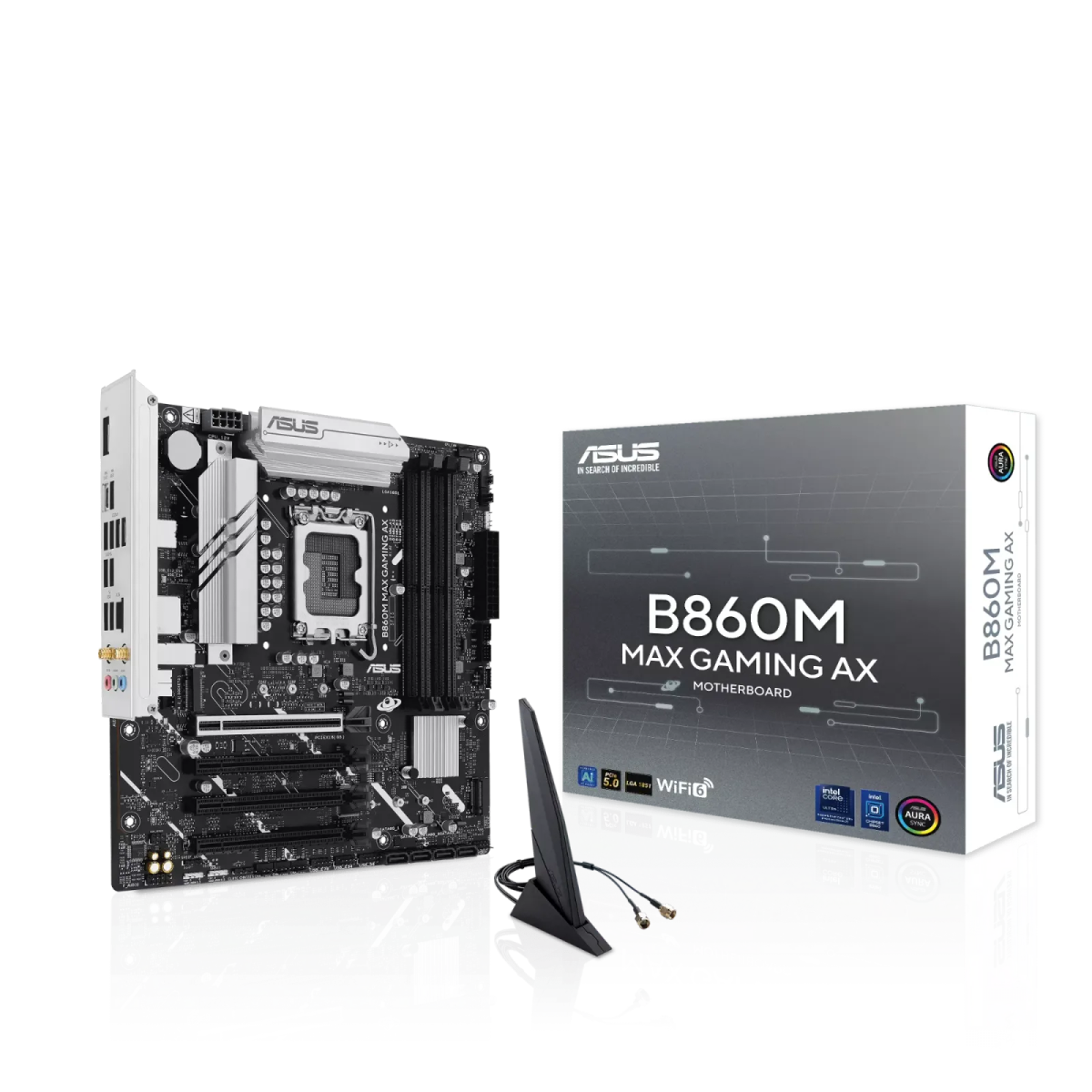

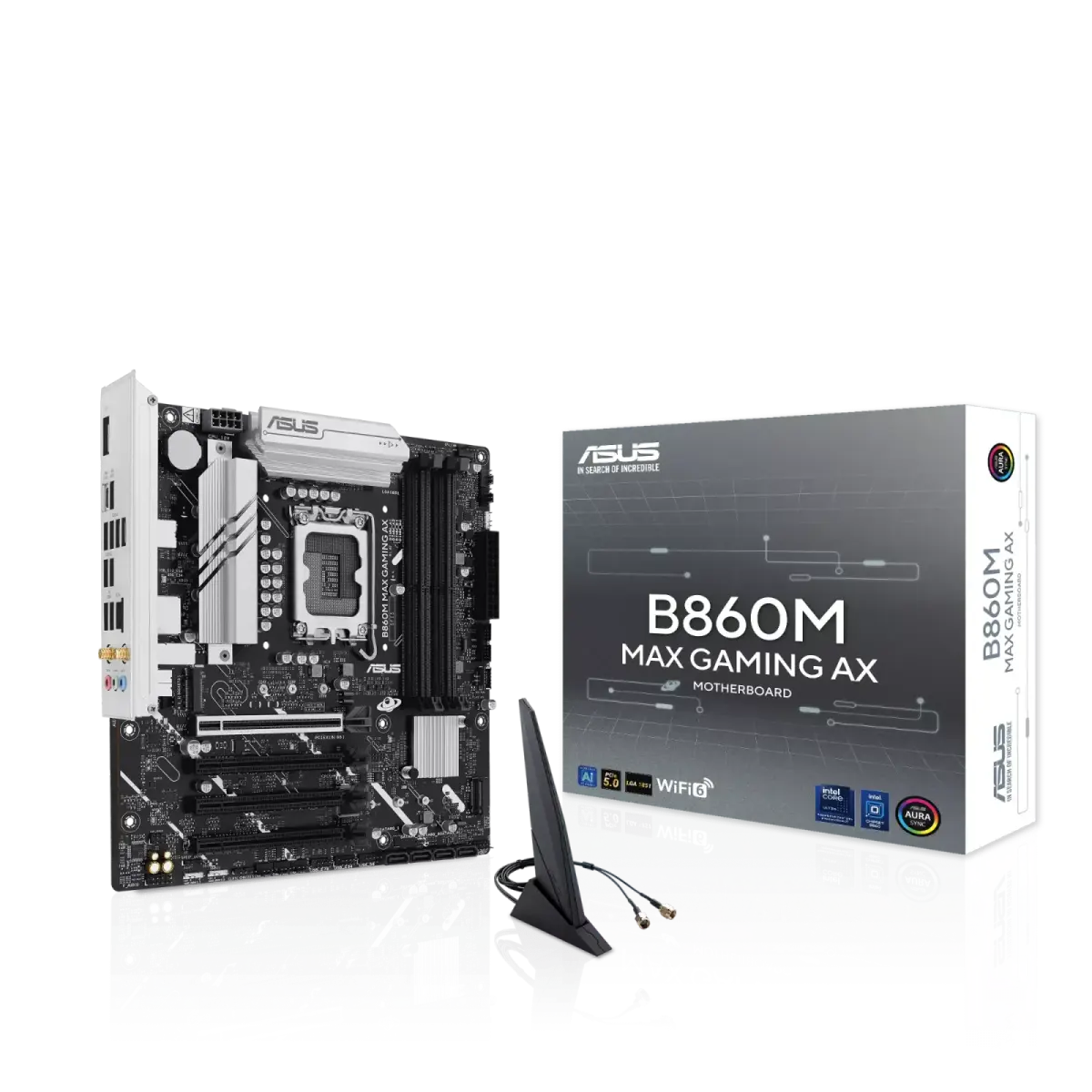

לוח אם – ASUS B860M MAX GAMING AX Micro-ATX LGA1851 DDR5 - צבע שחור/כסוף
חדש
מק"ט: 90MB1JZ0-M0EAY0
לוח אם איכותי מבית Asus, בעל תושבת LGA1851, ערכת שבבים B860, תאימות לזכרונות DDR5 ובעל יציאות תצוגה של HDMI ,DisplayPort.
₪865.00כולל מע"מ
במלאיפריסת תשלומים
₪865.00 לחודש
עד 2 תשלומים ללא ריבית
מפרט טכני
| תקופת אחריות | 3 שנים על ידי היבואן הרשמי |
| יצרן לוח אם | Asus |
| תמיכה במעבדים | Support Intel® Core™ Ultra Processors (Series 2) , LGA1851* Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0 Refer to https://www.asus.com/support/download-*center/ for CPU support list Intel® Turbo Boost Max Technology 3.0 support depends **on the CPU types |
| תמיכה בזיכרונות | 4x DIMM slots, max. 256GB, DDR5 Supports up to 8666+MT/s (OC), Non-ECC,Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)* Dual channel memory architecture DIMM Fit Supports Intel® Extreme Memory Profile (XMP) memory module ASUS Enhanced Memory Profile III(AEMPIII) Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/download-center/. Adjustments will be made based on the specifications of mass-produced memory products available on the market. Non-ECC, un-buffered DDR5 memory supports On-Die ECC function |
| גרפיקה מובנית | 1x DisplayPort** 1x USB 20Gbps port (USB Type-C®) supports DisplayPort video output**** Graphics specifications may vary between CPU types Please refer to www.intel.com for any updates. Supports max. 4K@60Hz as specified in DisplayPort 1.4** Supports max. 4K@120Hz as specified in DisplayPort 1.4*** VGA resolution support depends on processors' or graphic cards' resolution While installing the operating system, please ensure that your monitor is connected to the HDMI port on the back I/O panel or to a discrete graphics card |
| חריצי הרחבה | :Intel® Core™ Ultra Processors(series 2) 1x PCIe 5.0 x16 slot :Intel® B860 Chipset 1x PCIe 4.0 x16 slot (supports x4 mode) 2x PCIe 4.0 x16 slot (support x1 mode) - To ensure compatibility of the device installed, please refer to https://www.asus.com/support/download-center/ for the list of supported peripherals |
| USB | :Rear USB (Total 10 ports) 1x USB 20Gbps port (1 x USB Type-C® with DP Alt mode) 1x USB 10Gbps port (1 x Type-A ) 4x USB 5Gbps ports (4 x Type-A) 4x USB 2.0 ports (4 x Type-A) :Front USB (Total 9 ports) 1x USB 10Gbps connector (supports USB Type-C® ) 1x USB 5Gbps header supports 2 additional USB 5Gbps ports 3x USB 2.0 header supports 6 additional USB 2.0 ports USB Type-C® power delivery output: max. 5V/3A* USB 5G_E1 port, USB 5G_E2 port, USB 5G_E3 port and USB 5G_E4 port share the bandwidth. USB_E1 port, USB_E2 port, USB_E3 port and USB_E4 port share the bandwidth. USB_E5 port, USB_E6 port, USB_E7 port and USB_E8 port share the bandwidth |
| ממשק אחסון | :Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports Intel® Core™ Ultra Processors (Series 2) * M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) :Intel®B860 Chipset M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 modes) M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x2 modes) 4x SATA 6Gb/s ports Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10 |
| שמע | Realtek 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback Audio Features - Audio Shielding - Premium audio capacitors - Dedicated audio PCB layers A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output |
| כרטיס רשת קווי | 1 x Realtek 2.5Gb Ethernet ASUS LANGuard |
| מודול תקשורת אלחוטית | Wi-Fi 6 1x1 Wi-Fi 6 (802.11ax) Supports 2.4/5GHz frequency band Bluetooth® v5.4* The Bluetooth® version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications |
| חיבורים פנימיים | :Fan and Cooling Related 1x 4-pin CPU Fan header 1x 4-pin CPU OPT Fan header 1x 4-pin AIO Pump header 4x 4-pin Chassis Fan headers :Power Related 1x 24-pin Main Power connector 1x 8-pin +12V CPU Power connector :Storage Related 3x M.2 slots (Key M) 4x SATA 6Gb/s ports :USB 1x USB 10Gbps connector (supports USB Type-C® ) 1x USB 5Gbps header supports 2 additional USB 5Gbps ports 3x USB 2.0 header supports 6 additionalUSB 2.0 ports :Miscellaneous 3x Addressable Gen 2 headers 1x Clear CMOS header 1x Chassis Intrusion header 1x Front Panel Audio header (F_AUDIO) 1x S/PDIF Out header 1x SPI TPM header (14-1 pin) 1x 10-1 pin Front System Panel header |
| חיבורים ויציאות | 1x USB 20Gbps port (1 x USB Type-C® with DP Alt mode) 1x USB 10Gbps port (1 x Type-A) 4x USB 5Gbps ports (2 x Type-A) 4x USB 2.0 ports (4 x Type-A ) 1x DisplayPort 1x Wi-Fi module 1x Realtek 2.5Gb Ethernet port 3x Audio jacks |
| BIOS | 256(128+128) Mb Flash ROM, UEFI AMI BIOS |
| תכונות ייחודיות | ASUS 5X PROTECTION III - DIGI+ VRM (- Digital power design with DrMOS) - ESD Guards - LANGuard - Overvoltage protection - SafeSlot - Stainless-steel back I/O ASUS Q-Design - Q-Dashboard - Q-DIMM - Q-LED Core - Q-Slot ASUS Thermal Solution - VRM heatsink design ASUS EZ DIY - ProCool - Pre-mounted I/O shield Aura Sync - Addressable Gen2 headers |
| תוכנות מצורפות | ASUS Exclusive Software Armoury Crate - Aura Creator - Aura Sync - Fan Xpert 2+ - Power Saving ASUS DriverHub ASUS GlideX ASUS CPU-Z Norton 360 for Deluxe (60 Days Free Trial) WinRAR (40 Days Free Trial) UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash - ASUS UEFI BIOS EZ Mode - ASUS MyHotkey |
| אביזרים כלולים | :Cables 2x SATA 6Gb/s cables :Miscellaneous 1x ASUS WiFi moving antenna 2x Screw packages for M.2 SSD :Documentation 1x Quick start guide |
| תצורה | micro-ATX Form Factor 9.6inch x 9.6 inch (24.4 cm x 24.4 cm) |
