ראשי / רכיבי חומרה / לוחות אם / לוח אם – Gigabyte Z890M AORUS ELITE WIFI7 ICE Micro-ATX LGA1851 DDR5 – צבע לבן

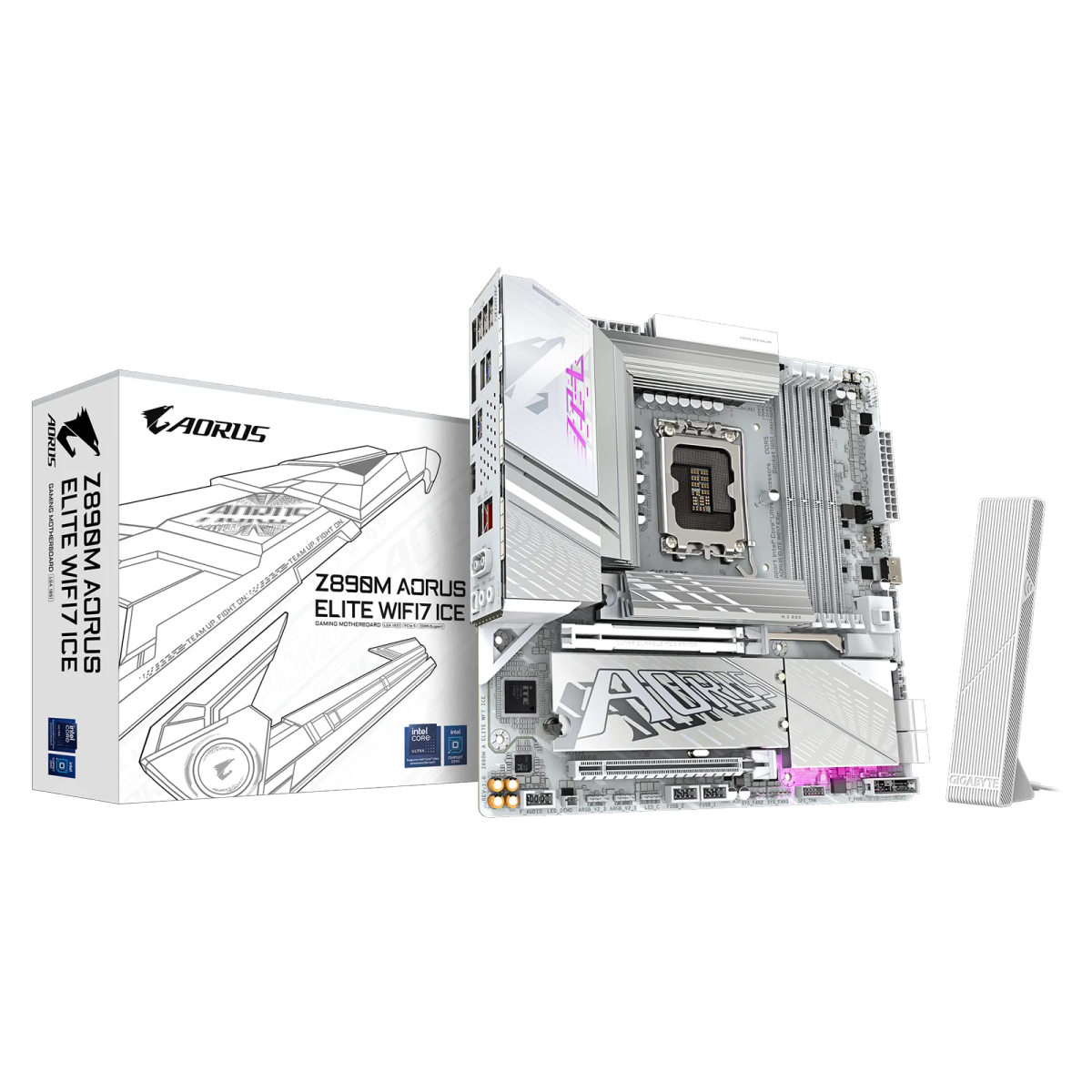

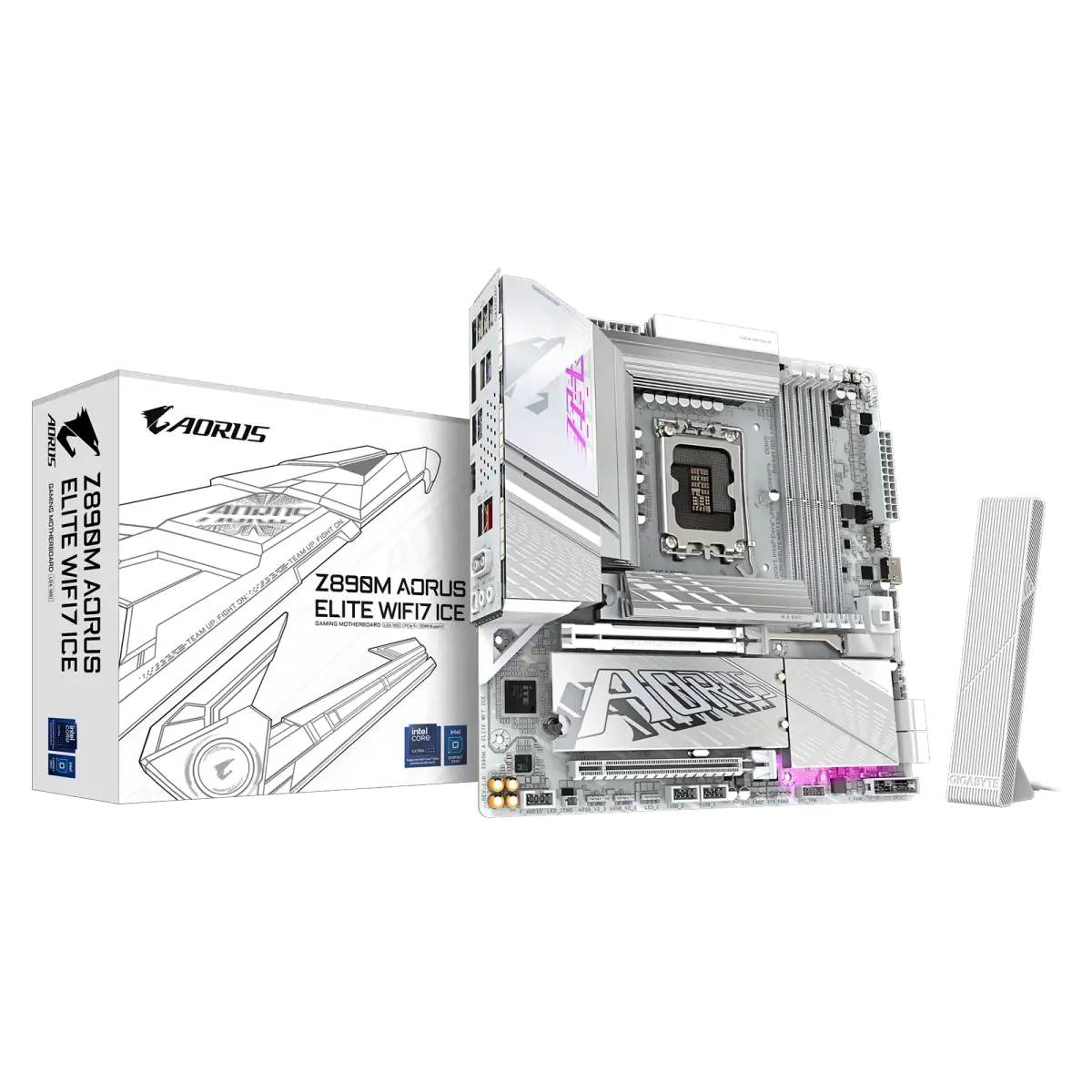

לוח אם – Gigabyte Z890M AORUS ELITE WIFI7 ICE Micro-ATX LGA1851 DDR5 – צבע לבן
חדש
מק"ט: Z890M A ELITE WF7 ICE
לוח אם איכותי מבית Gigabyte, בעל תושבת LGA1851, ערכת שבבים Z890, תאימות לזיכרונות DDR5 ובעל יציאת תצוגה של DisplayPort.
₪1,159.00כולל מע"מ
במלאיפריסת תשלומים
₪1,159.00 לחודש
עד 2 תשלומים ללא ריבית
מפרט טכני
| תקופת אחריות | 3 שנים על ידי היבואן הרשמי |
| יצרן לוח אם | Gigabyte |
| תמיכה במעבדים | LGA1851 socket: Support for Intel® Core™ Ultra Processors L3 cache varies with CPU Please refer to "CPU Support List" for more information* |
| תמיכה בזיכרונות | Support for DDR5 9200(O.C) / 9066(O.C) / 8933(O.C) / 8800(O.C) / 8600(O.C) / 8400(O.C) /8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400 / 6200 / 6000 / 5800 / 5600MT/s memory modules. Support for DDR5 6400/5600 MT/s memory modules 4x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules Support CUDIMM memory module (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" for more information) |
| גרפיקה מובנית | :Integrated Graphics Processor-Intel® HD Graphics support 1x USB4® USB Type-C® port, supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840×2160@144 Hz Support for DisplayPort 2.1 version* 1x DisplayPort, supporting a maximum resolution of 3840×2160@144 Hz Support for DisplayPort 2.1 version* 1x front HDMI port, supporting a maximum resolution of 1920×1080@30 Hz Support for HDMI 1.4 version* (Graphics specifications may vary depending on CPU support) Support for up to 3 displays at the same time |
| חריצי הרחבה | :CPU 1x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16) The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot* :Chipset 1x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4) |
| USB | :CPU 1x USB4® USB Type-C® port on the back panel :Chipset 1x USB Type-C® port with USB 3.2 Gen 2 support, available through the internal USB header 1x USB 3.2 Gen 2 Type-A port (red) on the back panel 6x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header) :Chipset+2 USB 2.0 Hubs 8x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers) |
| ממשק אחסון | :CPU 1x M.2 connector (Socket 3, M key, type 2580/2280 PCIe 5.0 x4/x2 SSD support) (M2A_CPU) 1x M.2 connector (Socket 3, M key, type 2580/2280 PCIe 4.0 x4/x2 SSD support) (M2B_CPU) :Chipset: 1x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB) 4x SATA 6Gb/s connectors RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices |
| שמע | Realtek® Audio CODEC High Definition Audio 2/4/5.1/7.1-channel You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings* Support for S/PDIF Out |
| כרטיס רשת קווי | Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| מודול תקשורת אלחוטית | MediaTek Wi-Fi 7 MT7925 (PCB rev. 1.0) – 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands – BLUETOOTH 5.4 – Support for 11be 160MHz wireless standard Realtek® Wi-Fi 7 RTL8922AE (PCB rev. 1.1) – 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands – BLUETOOTH 5.4 – Support for 11be 160MHz wireless standard (Actual data rate may vary depending on environment and equipment) Wi-Fi 7 features require Windows 11 SV3 to function properly. (There is no support driver for Windows 10.)* Wi-Fi 7 channels on 6 GHz band availability depends on individual country's regulations** |
| חיבורים פנימיים | 1x 24-pin ATX main power connector 2x 8-pin ATX 12V power connectors 1x CPU fan header 1x CPU fan/water cooling pump header 3x system fan headers 1x system fan/water cooling pump header 3x addressable RGB Gen2 LED strip headers 1x RGB LED strip header 3x M.2 Socket 3 connectors 4x SATA 6Gb/s connectors 1x front panel header 1x front panel audio header 1x USB Type-C® header, with USB 3.2 Gen 2 support 1x USB 3.2 Gen 1 header 2x USB 2.0/1.1 headers 2x Thunderbolt™ add-in card connectors (For GIGABYTE Thunderbolt™ 5 add-in card only) 1x Trusted Platform Module header (For the GC-TPM2.0 SPI V2 module only) 1x HDMI port(Note) 1x power button 1x reset button 1x Q-Flash Plus button 1x reset jumper 1x Clear CMOS jumper (Note) Actual support may vary by CPU |
| חיבורים ויציאות | 1x USB4® USB Type-C® port (DisplayPort(Note)) 1x USB 3.2 Gen 2 Type-A port (red) 4x USB 3.2 Gen 1 ports 4x USB 2.0/1.1 ports 2x antenna connectors (2T2R) 1x DisplayPort (Note) 1x RJ-45 port 1x optical S/PDIF Out connector 2x audio jacks (Note) Actual support may vary by CPU |
| BIOS | 1x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| תכונות ייחודיות | Support for GIGABYTE Control Center (GCC) Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications* Support for Q-Flash Support for Q-Flash Plus Support for Smart Backup |
| תוכנות מצורפות | Norton® Internet Security (OEM version) LAN bandwidth management software |
| תצורה | Micro ATX Form Factor; 24.4cm x 24.4cm |
