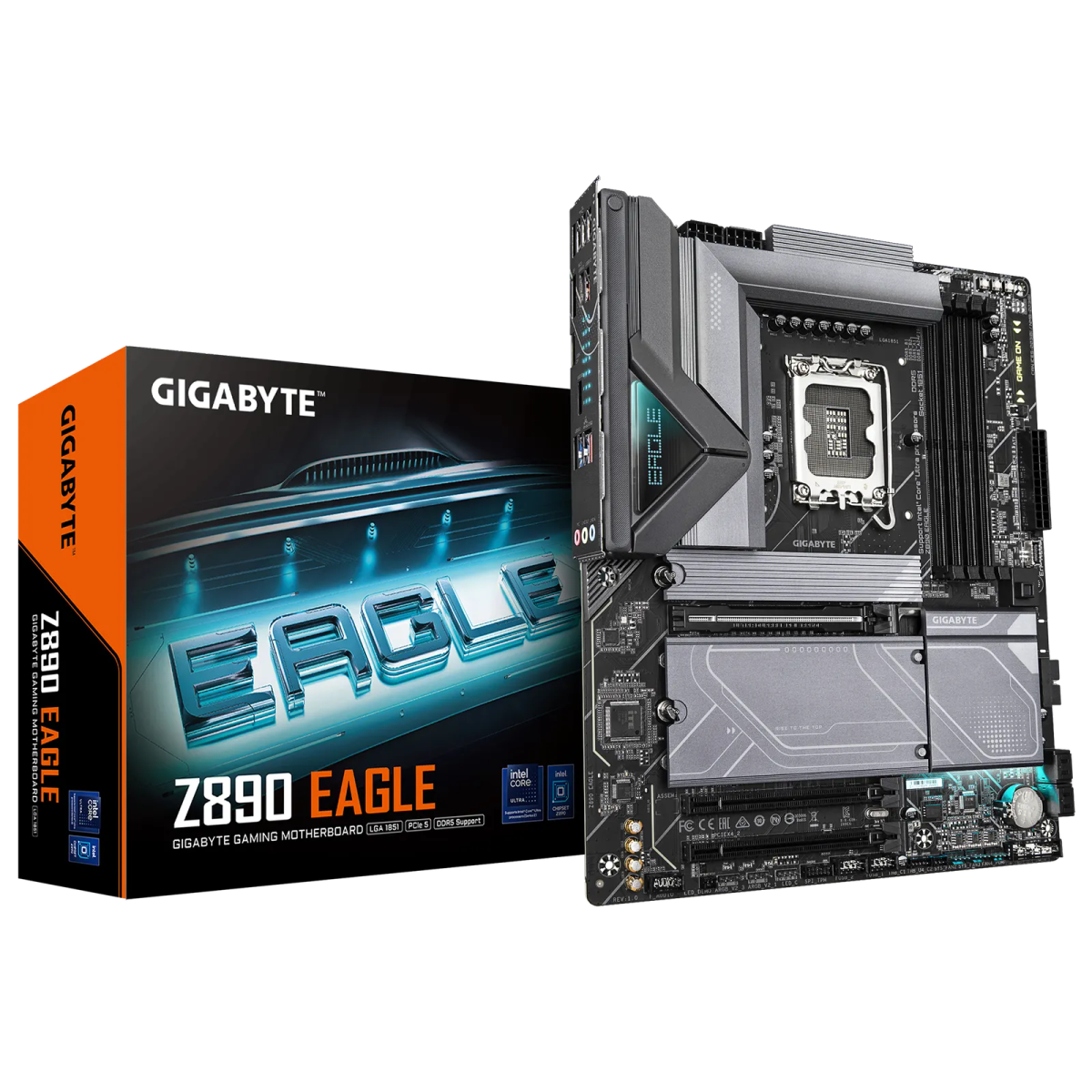

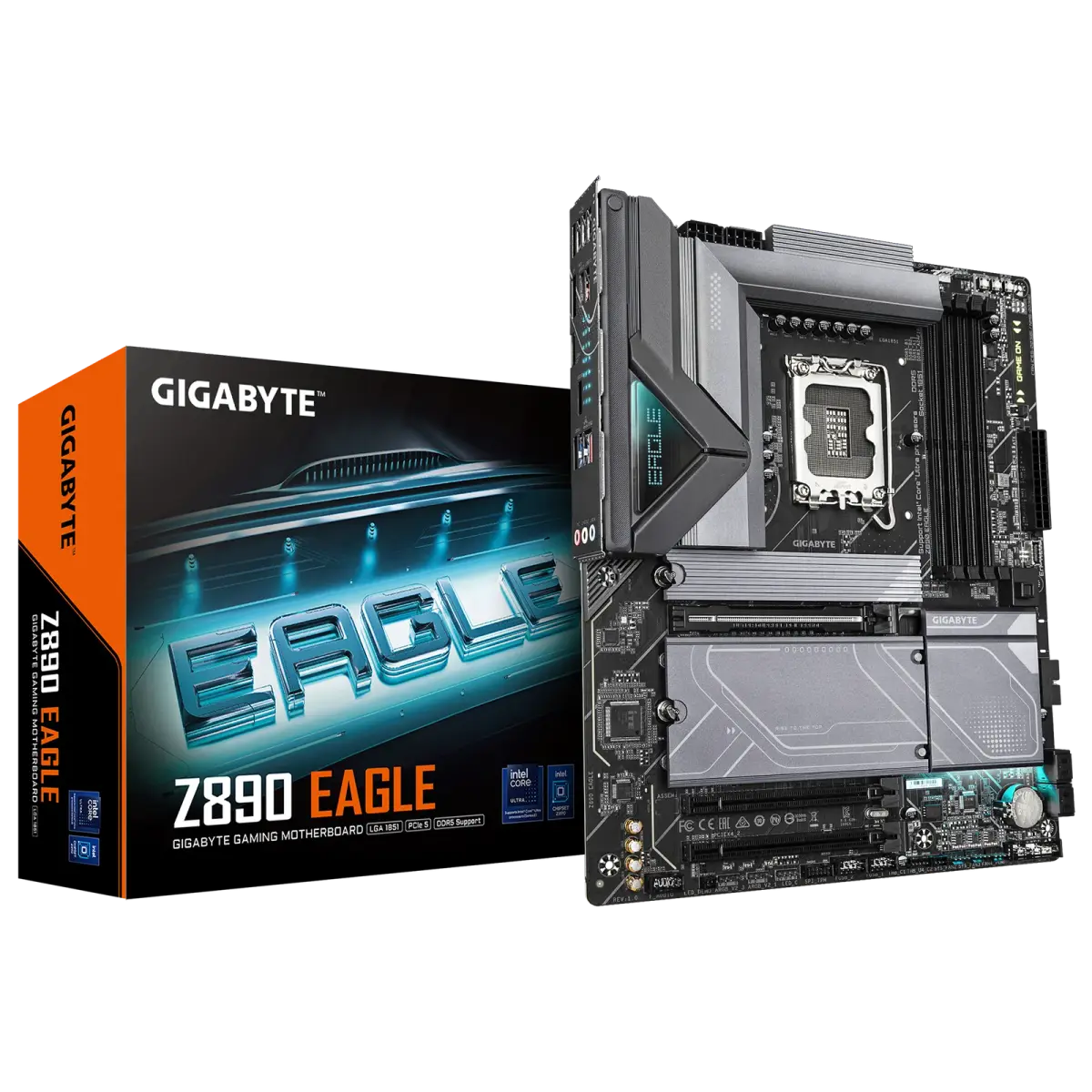

לוח אם – Gigabyte Z890 EAGLE ATX LGA1851 DDR5 - צבע שחור/אפור
חדש
מק"ט: Z890 EAGLE
לוח אם איכותי מבית Gigabyte, בעל תושבת LGA1851, ערכת שבבים Z890 ותאימות לזיכרונות DDR5 ובעל יציאת תצוגה של DisplayPort.
₪999.00כולל מע"מ
במלאיפריסת תשלומים
₪999.00 לחודש
עד 2 תשלומים ללא ריבית
מפרט טכני
| תקופת אחריות | 3 שנים על ידי היבואן הרשמי |
| יצרן לוח אם | Gigabyte |
| תמיכה במעבדים | LGA1851 socket: Support for Intel® Core™ Ultra Processors (Go to GIGABYTE's website for the latest CPU support list) L3 cache varies with CPU |
| תמיכה בזיכרונות | Support for DDR5 8800(O.C) / 8600(O.C) / 8400(O.C) / 8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400 / 6200 / 6000 / 5800 / 5600MT/s memory modules. x4 DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information) |
| גרפיקה מובנית | :Integrated Graphics Processor-Intel® HD Graphics support x1 USB4® USB Type-C® port, supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840×2160@144 Hz Support for DisplayPort 2.1 version* x1 DisplayPort, supporting a maximum resolution of 3840×2160@144 Hz Support for DisplayPort 2.1 version* (Graphics specifications may vary depending on CPU support) |
| חריצי הרחבה | :CPU x1 PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16) The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot* :Chipset x2 PCI Express x16 slots, supporting PCIe 4.0 and running at x4 (PCIEX4_1/2) |
| USB | :CPU x1 USB4® USB Type-C® port on the back panel :Chipset x1 USB Type-C® port with USB 3.2 Gen 2 support, available through the internal USB header x2 USB 3.2 Gen 2 Type-A ports (red) on the back panel x5 USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header) :Chipset+2 USB 2.0 Hubs x8 USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers) |
| ממשק אחסון | :CPU x1 M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 5.0 x4/x2 SSD support) (M2A_CPU) x1 M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2B_CPU) :Chipset x1 M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB) x1 M.2 connector (Socket 3, M key, type 22110/2280 SATA and PCIe 4.0 x4/x2 SSD support) (M2M_SB) x4 SATA 6Gb/s connectors RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices |
| שמע | Realtek® Audio CODEC High Definition Audio 2/4/5.1/7.1-channel You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings* |
| כרטיס רשת קווי | Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| מודול תקשורת אלחוטית | ללא |
| חיבורים פנימיים | x1 24-pin ATX main power connector x2 8-pin ATX 12V power connectors x1 CPU fan header x1 CPU fan/water cooling pump header x3 system fan headers x1 system fan/water cooling pump header x3 addressable RGB Gen2 LED strip headers x1 RGB LED strip header x4 M.2 Socket 3 connectors x4 SATA 6Gb/s connectors x1 front panel header x1 front panel audio header x1 USB Type-C® header, with USB 3.2 Gen 2 support x1 USB 3.2 Gen 1 header x2 USB 2.0/1.1 headers x2 Thunderbolt™ add-in card connectors x1 Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) x1 power button x1 Q-Flash Plus button x1 reset button x1 reset jumper x1 Clear CMOS jumper |
| חיבורים ויציאות | x1 USB4® USB Type-C® port (DisplayPort (Note)) x2 USB 3.2 Gen 2 Type-A ports (red) x3 USB 3.2 Gen 1 ports x4 USB 2.0/1.1 ports x1 DisplayPort (Note) x2 antenna connectors (2T2R) x1 RJ-45 port x3 audio jacks (Note) Actual support may vary by CPU |
| BIOS | x1 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| תכונות ייחודיות | Support for GIGABYTE Control Center (GCC) Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications Support for Q-Flash Support for Q-Flash Plus Support for Smart Backup |
| תוכנות מצורפות | Norton® Internet Security (OEM version) LAN bandwidth management software |
| תצורה | ATX Form Factor; 30.5cm x 24.4cm |
