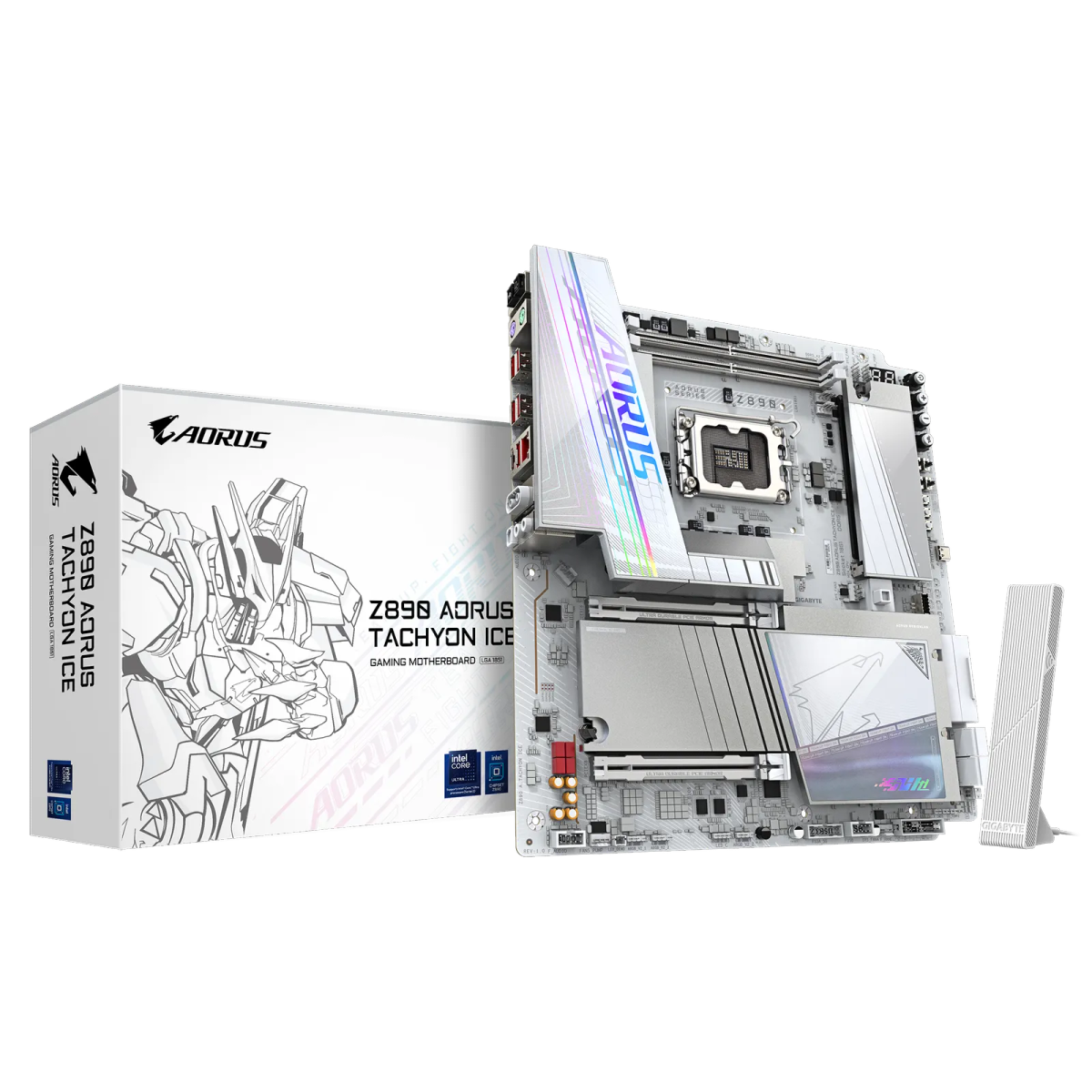

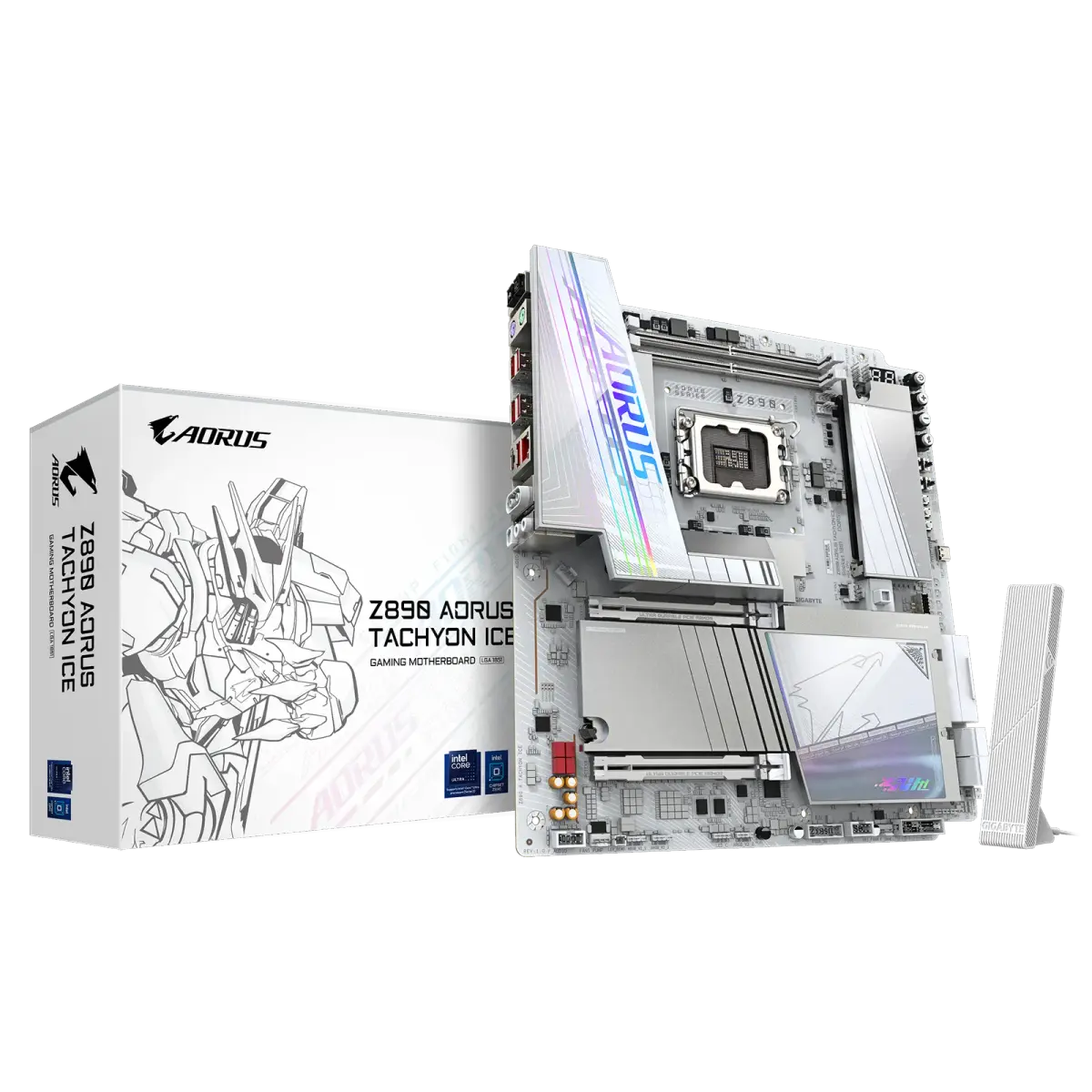

לוח אם – Gigabyte Z890 AORUS TACHYON ICE E-ATX LGA1851 DDR5 - צבע לבן
חדש
מק"ט: Z890 A TACHYON ICE
לוח אם איכותי מבית Gigabyte, בעל תושבת LGA1851, ערכת שבבים Z890, תאימות לזכרונות DDR5 ובעל יציאות תצוגה של USB Type-C.
₪1,729.00כולל מע"מ
במלאיפריסת תשלומים
₪1,729.00 לחודש
עד 4 תשלומים ללא ריבית
מפרט טכני
| תקופת אחריות | 3 שנים על ידי היבואן הרשמי |
| יצרן לוח אם | Gigabyte |
| תמיכה במעבדים | LGA1851 socket: Support for Intel® Core™ Ultra Processors (Go to GIGABYTE's website for the latest CPU support list) L3 cache varies with CPU |
| תמיכה בזיכרונות | Support for DDR5 9500(O.C) / 9466(O.C) / 9333(O.C) / 9200(O.C)/ 9066(O.C) / 8933(O.C) /8800(O.C) /8600(O.C) / 8400(O.C) /8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400 / 6200 / 6000 / 5800 / 5600MT/s memory modules 2x DDR5 DIMM sockets supporting up to 128 GB (64 GB single DIMM capacity) of system memory Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information) |
| גרפיקה מובנית | :Integrated Graphics Processor-Intel® HD Graphics support 1x Intel® Thunderbolt™ 4 connector (USB Type-C® port), supporting DisplayPort and Thunderbolt™ video outputs and a maximum resolution of 5120×2880@60 Hz with 24 bpp (via single display output) Because of the limited I/O resources of the PC architecture, the number of Thunderbolt™ devices that can be used is dependent on the number of the PCI Express devices being installed. (Refer to Chapter 2-6, "Back Panel Connectors," for more information.) Support for DisplayPort 2.1 version and HDCP 2.3* 1x front Intel® Thunderbolt™ 4 connector (USB4® USB Type-C® port), supporting DisplayPort and Thunderbolt™ video outputs When a Thunderbolt™ monitor is installed, the maximum resolution supported is 5120×2880@60 Hz with 24 bpp (single display output) When a USB4® USB Type-C® monitor is installed, the maximum resolution supported is 3840×2160@240 Hz (single display output) Support for DisplayPort 2.1 version and HDCP 2.3* (Please use a processor with integrated graphics support to ensure full Thunderbolt™ functionality. Graphics specifications may vary depending on CPU support) |
| חריצי הרחבה | :CPU 1x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16) For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot* 1x PCI Express x16 slot, supporting PCIe 5.0 and running at x8 (PCIEX8) The PCIEX8 slot shares bandwidth with the PCIEX16 slot. When the PCIEX8 slot is populated, the PCIEX16 slot operates at up to x8 mode* The PCIEX16 and PCIEX8 slots can only support a graphics card or an NVMe SSD** |
| USB | :CPU 1x USB4® USB Type-C® port onboard 1x USB Type-C® port on the back panel, with USB 3.2 Gen 2×2 support :Chipset 1x USB Type-C® port with USB 3.2 Gen 2 support, available through the internal USB header 5x USB 3.2 Gen 2 Type-A ports (red) on the back panel 2x USB 3.2 Gen 1 ports available through the internal USB header 2x USB 2.0/1.1 ports available through the internal USB header |
| ממשק אחסון | :CPU 1x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 5.0×4/x2 SSD support) (M2A_CPU) 1x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0×4/x2 SSD support) (M2B_CPU) :Chipset 1x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB) 1x M.2 connector (Socket 3, M key, type 22110/2280 SATA and PCIe 4.0×4/x2 SSD support) (M2M_SB) 4x SATA 6Gb/s connectors RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices |
| שמע | Realtek® ALC1220 CODEC The back panel line out jack supports DSD audio* High Definition Audio 2/4/5.1/7.1-channel Support for S/PDIF Out |
| כרטיס רשת קווי | Realtek® 5GbE LAN chip (5 Gbps/2.5 Gbps/1 Gbps/100 Mbps) |
| מודול תקשורת אלחוטית | Realtek® Wi-Fi 7 RTL8922AE – 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands – BLUETOOTH 5.4 – Support for 11be 160MHz wireless standard (Actual data rate may vary depending on environment and equipment.) Wi-Fi 7 features require Windows 11 SV3 to function properly. (There is no support driver for Windows 10.)* Wi-Fi 7 channels on 6 GHz band availability depends on individual country's regulations** |
| חיבורים פנימיים | 1x 24-pin ATX main power connector 2x 8-pin ATX 12V power connectors 1x CPU fan header 1x CPU fan/water cooling pump header 4x system fan headers 3x system fan/water cooling pump headers 3x addressable RGB Gen2 LED strip headers 1x RGB LED strip header 4x M.2 Socket 3 connectors 4x SATA 6Gb/s connectors 1x front panel header 1x front panel audio header 1x USB Type-C® header, with USB 3.2 Gen 2 support 1x Thunderbolt™ 4 connector (Note) (USB4® USB Type-C® port) 1x USB 3.2 Gen 1 header 1x USB 2.0/1.1 header 1x noise detection header 2x temperature sensor headers 1x Clear CMOS jumper 1x power button (PWR) 1x reset button (RST) 1x Clear CMOS button (CMOS) 1x Cold Reset button (RTY) 1x Protection Mode button (LIMP_MODE) 1x CPU Clock up button (CLK+) 1x CPU Clock down button (CLK-) 1x BIOS switch (BIOS_SW) 1x LN2 Mode switch (LN2) 1x OC Trigger switch (TGR) 1x OC Ignition switch (OC_IGNIT) 2x reserved switches (RSV_SW1/RSV_SW2) Voltage Measurement Points (Note) Actual support may vary by CPU |
| חיבורים ויציאות | 1x Q-Flash Plus button 1x Protection Mode button 1x PS/2 keyboard port 1x PS/2 mouse port 2x antenna connectors (2T2R) 1x USB Type-C® port, with USB 3.2 Gen 2×2 support 5x USB 3.2 Gen 2 Type-A ports (red) 1x RJ-45 port 1x optical S/PDIF Out connector 2x audio jacks |
| BIOS | 2x 256 Mbit flash Use of licensed AMI UEFI BIOS Support for DualBIOS™ PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| תכונות ייחודיות | Support for GIGABYTE Control Center (GCC) Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications* Support for Q-Flash Support for Q-Flash Plus Support for Smart Backup |
| תוכנות מצורפות | Norton® Internet Security (OEM version) LAN bandwidth management software |
| תצורה | E-ATX Form Factor; 30.5cm x 28.5cm |
