ראשי / רכיבי חומרה / לוחות אם / לוח אם – Gigabyte Z890 AORUS ELITE WIFI7 ATX LGA1851 DDR5 - צבע שחור

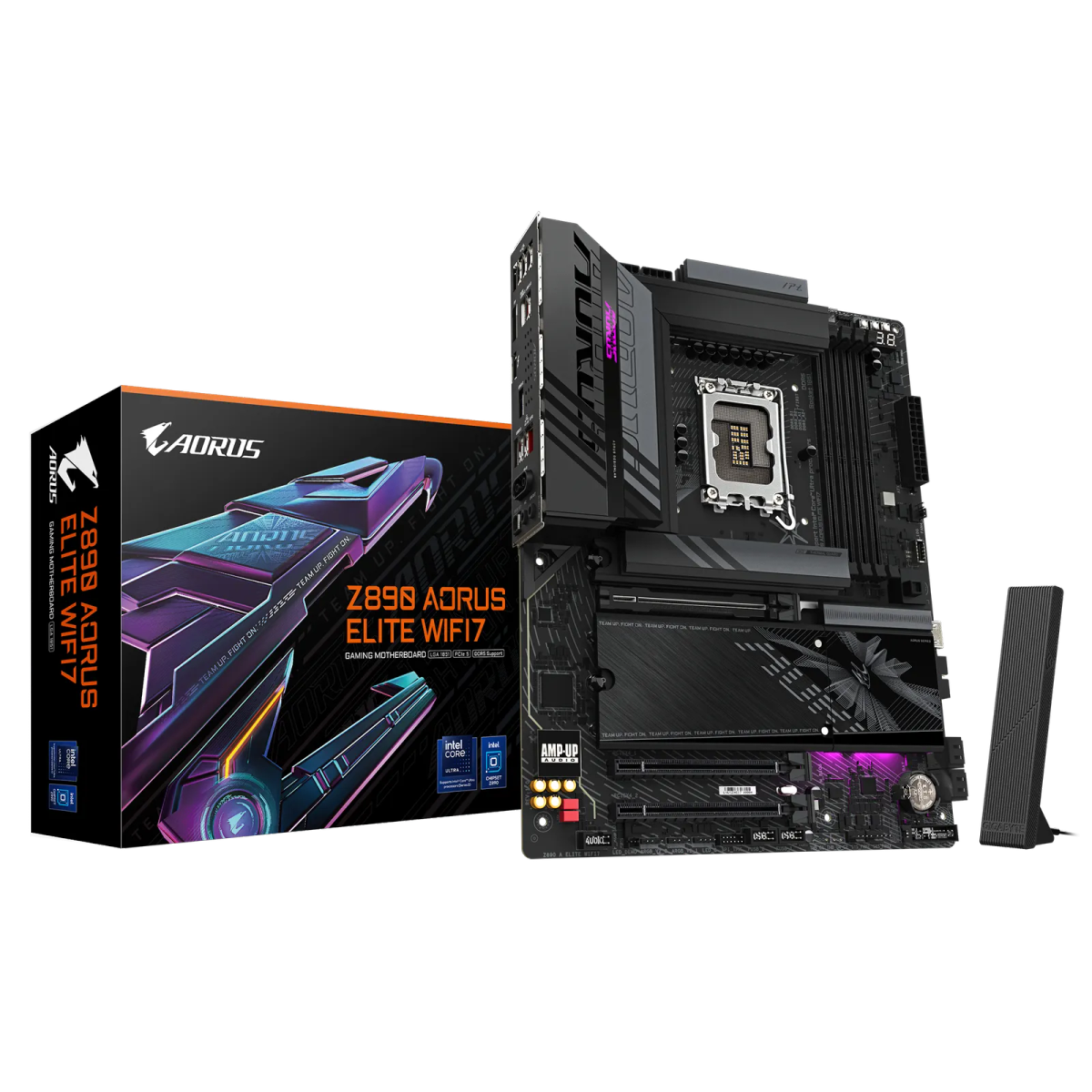

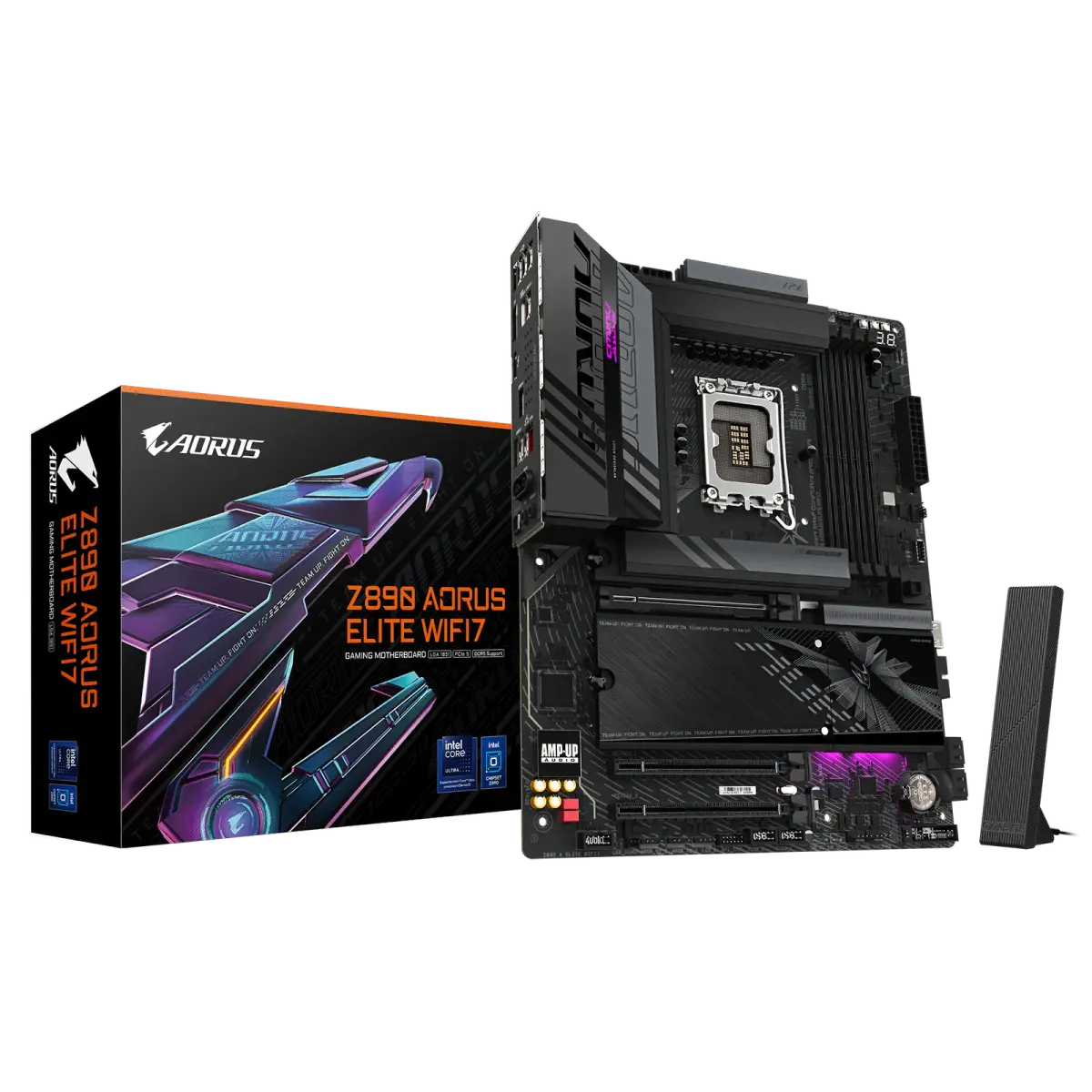

לוח אם – Gigabyte Z890 AORUS ELITE WIFI7 ATX LGA1851 DDR5 - צבע שחור
חדש
מק"ט: Z890 A ELITE WIFI7
לוח אם איכותי מבית Gigabyte, בעל תושבת LGA1851, ערכת שבבים Z890, תאימות לזיכרונות DDR5 ובעל יציאת תצוגה של DisplayPort.
₪1,119.00כולל מע"מ
אזל במלאיפריסת תשלומים
₪1,119.00 לחודש
עד 2 תשלומים ללא ריבית
מפרט טכני
| תקופת אחריות | 3 שנים על ידי היבואן הרשמי |
| יצרן לוח אם | Gigabyte |
| תמיכה במעבדים | LGA1851 socket: Support for Intel® Core™ Ultra Processors L3 cache varies with CPU Please refer to "CPU Support List" for more information* |
| תמיכה בזיכרונות | Support for DDR5 9200(O.C) / 9066(O.C) / 8933(O.C) / 8800(O.C) / 8600(O.C) / 8400(O.C) / 8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400 / 6200 / 6000 / 5800 / 5600MT/s memory modules. 4x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules Support CUDIMM memory module (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" for more information) |
| גרפיקה מובנית | :Integrated Graphics Processor-Intel® HD Graphics support 1x Intel® Thunderbolt™ 4 connector (USB4® USB Type-C® port), supporting DisplayPort and Thunderbolt™ video outputs (Please use a processor with integrated graphics support to ensure full Thunderbolt™ functionality) When a Thunderbolt™ monitor is installed, the maximum resolution supported is 5120×2880@60 Hz with 24 bpp (single display output) When a USB4® USB Type-C® monitor is installed, the maximum resolution supported is 3840×2160@240 Hz (single display output) Because of the limited I/O resources of the PC architecture, the number of Thunderbolt™ devices that can be used is dependent on the number of the PCI Express devices being installed. (Refer to Chapter 2-6, "Back Panel Connectors," for more information.) Support for DisplayPort 2.1 version and HDCP 2.3* 1x front HDMI port, supporting a maximum resolution of 1920×1080@30 Hz Support for HDMI 1.4 version* 1x DisplayPort, supporting a maximum resolution of 4096×2304@60 Hz Support for DisplayPort 2.1 version and HDCP 2.3* (Graphics specifications may vary depending on CPU support) Support for up to triple-display at the same time |
| חריצי הרחבה | :CPU 1x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16) The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot* :Chipset 2x PCI Express x16 slots, supporting PCIe 4.0 and running at x4 (PCIEX4_1, PCIEX4_2) |
| USB | :CPU - 1x Intel® Thunderbolt™ 4 (USB Type-C®) ports on the back panel Support up to 40Gbps with Thunderbolt devices* Support up to 20Gbps with USB4 devices* Support up to 10Gbps with USB 3.2 devices* :Chipset - 1x USB Type-C® port with USB 3.2 Gen 2 support, available through the internal USB header - 2x USB 3.2 Gen 2 Type-A ports (red) on the back panel - 5x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header) :Chipset+2 USB 2.0 Hubs - 8x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers) |
| ממשק אחסון | :CPU - 1x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 5.0 x4/x2 SSD support) (M2A_CPU) - 1x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2B_CPU) :Chipset - 1x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB) - 1x M.2 connector (Socket 3, M key, type 22110/2280 SATA and PCIe 4.0 x4 SSD support) (M2M_SB) - 4x SATA 6Gb/s connectors RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices |
| שמע | Realtek® ALC1220 CODEC The back panel line out jack supports DSD audio High Definition Audio 2/4/5.1/7.1-channel You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings Support for S/PDIF Out |
| כרטיס רשת קווי | Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| מודול תקשורת אלחוטית | MediaTek Wi-Fi 7 MT7925 (PCB rev. 1.0) – 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands – BLUETOOTH 5.4 – Support for 11be 160MHz wireless standard Realtek® Wi-Fi 7 RTL8922AE (PCB rev. 1.1) – 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands – BLUETOOTH 5.4 – Support for 11be 160MHz wireless standard (Actual data rate may vary depending on environment and equipment) Wi-Fi 7 features require Windows 11 SV3 to function properly. (There is no support driver for Windows 10.)* Wi-Fi 7 channels on 6 GHz band availability depends on individual country's regulations** |
| חיבורים פנימיים | 1x 24-pin ATX main power connector 2x 8-pin ATX 12V power connectors 1x CPU fan header 1x CPU fan/water cooling pump header 3x system fan headers 1x system fan/water cooling pump header 3x addressable RGB Gen2 LED strip headers 1x RGB LED strip header 4x M.2 Socket 3 connectors 4x SATA 6Gb/s connectors 1x front panel header 1x front panel audio header 1x USB Type-C® header, with USB 3.2 Gen 2 support 1x USB 3.2 Gen 1 header 2x USB 2.0/1.1 headers 1x Trusted Platform Module header (For the GC-TPM2.0 SPI V2 module only) 1x HDMI port (Note) 1x power button 1x reset button 1x Q-Flash Plus button 1x reset jumper 1x Clear CMOS jumper (Note) Actual support may vary by CPU |
| חיבורים ויציאות | 1x Intel® Thunderbolt™ 4 (Note 2) connector (USB4® USB Type-C® port) 2x USB 3.2 Gen 2 Type-A ports (red) 3x USB 3.2 Gen 1 ports 4x USB 2.0/1.1 ports 2x antenna connectors (2T2R) 1x DisplayPort (Note 1) 1x RJ-45 port 1x optical S/PDIF Out connector 2x audio jacks (Note 1) Actual support may vary by CPU. (Note 2) Please use a processor with integrated graphics support to ensure full Thunderbolt™ functionality |
| BIOS | 1x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| תכונות ייחודיות | Support for GIGABYTE Control Center (GCC) Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications* Support for Q-Flash Support for Q-Flash Plus Support for Smart Backup |
| תוכנות מצורפות | Norton® Internet Security (OEM version) LAN bandwidth management software |
| תצורה | ATX Form Factor; 30.5cm x 24.4cm |
