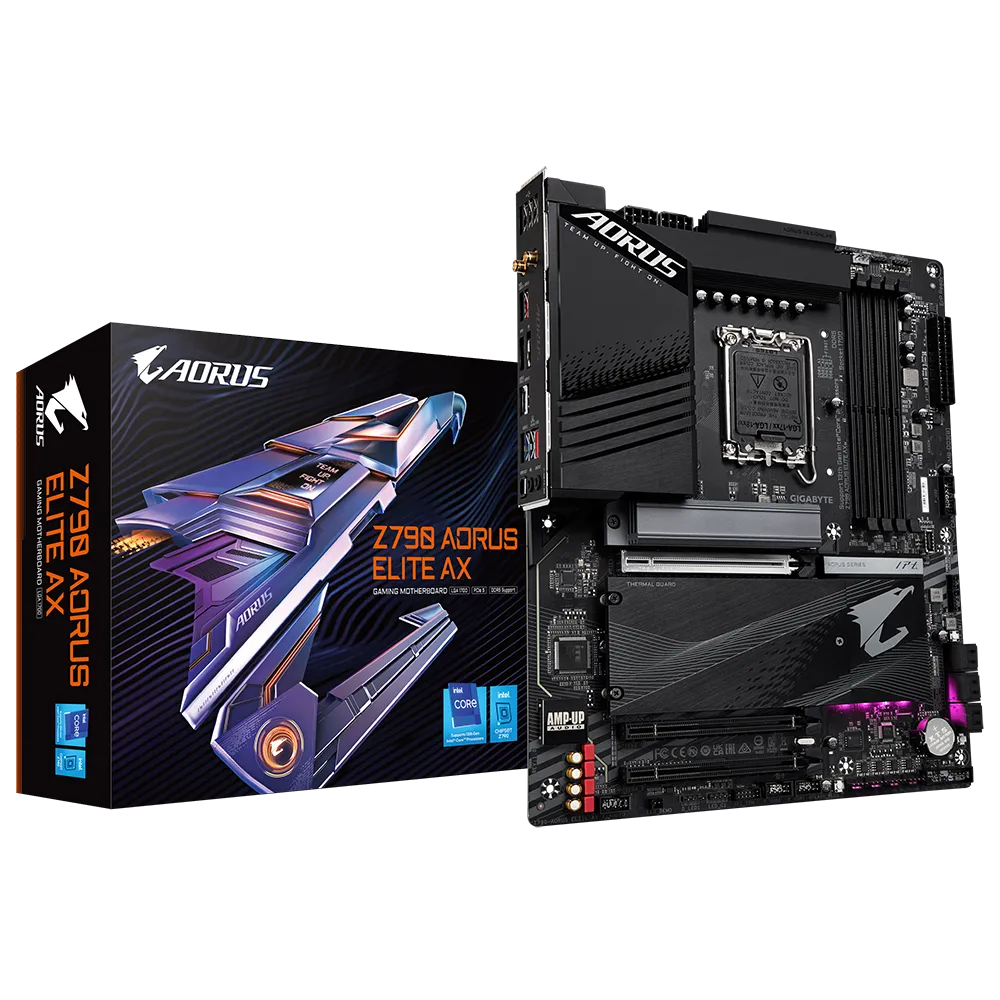

לוח אם – Gigabyte Z790 AORUS ELITE AX ATX LGA1700 DDR5 - צבע שחור
חדש
מק"ט: Z790 AORUS ELITE AX
לוח אם איכותי מבית Gigabyte, בעל תושבת LGA1700, ערכת שבבים Z790 ותאימות לזיכרונות DDR5 ובעל יציאות תצוגה של HDMI ,DisplayPort.
₪1,030.00כולל מע"מ
במלאיפריסת תשלומים
₪1,030.00 לחודש
עד 2 תשלומים ללא ריבית
מפרט טכני
| תקופת אחריות | 3 שנים על ידי היבואן הרשמי |
| יצרן לוח אם | Gigabyte |
| תמיכה במעבדים | LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors L3 cache varies with CPU (Please refer "CPU Support List" for more information) |
| תמיכה בזיכרונות | Support for DDR5 7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 memory modules 4x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" for more information) |
| גרפיקה מובנית | :Integrated Graphics Processor-Intel® HD Graphics support 1x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz Support for HDMI 2.1 version and HDCP 2.3* Support native HDMI 2.1 TMDS compatible ports** 1x DisplayPort, supporting a maximum resolution of 4096×2304@60 Support for DisplayPort 1.2 version and HDCP 2.3* (Graphics specifications may vary depending on CPU support) |
| חריצי הרחבה | :CPU 1x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16) For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot* :Chipset 2x PCI Express x16 slots, supporting PCIe 4.0 and running at x4 (PCIEX4_1/PCIEX4_2) |
| USB | :Chipset 1x USB Type-C® port on the back panel, with USB 3.2 Gen 2×2 support 1x USB Type-C® port with USB 3.2 Gen 2 support, available through the internal USB header 2x USB 3.2 Gen 2 Type-A ports (red) on the back panel 5x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header) :Chipset+2 USB 2.0 Hubs 8x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers) |
| ממשק אחסון | :CPU 1x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) :Chipset 2x M.2 connectors (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB, M2Q_SB) 1x M.2 connector (Socket 3, M key, type 22110/2280 SATA and PCIe 4.0 x4 SSD support) (M2M_SB) 6x SATA 6Gb/s connectors RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices Refer to "2-8 Internal Connectors," for the installation notices for the M.2 and SATA connectors* |
| שמע | Realtek® Audio CODEC High Definition Audio 2/4/5.1/7.1-channel You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings Support for S/PDIF Out |
| כרטיס רשת קווי | Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| מודול תקשורת אלחוטית | Intel® Wi-Fi 6E AX211 WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands BLUETOOTH 5.3 Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate Actual data rate may vary depending on environment and equipment* Bluetooth version may change with updates. See the Wi-Fi chip vendor's website for details* |
| חיבורים פנימיים | 1x 24-pin ATX main power connector 2x 8-pin ATX 12V power connectors 1x CPU fan header 1x water cooling CPU fan header 3x system fan headers 1x system fan/water cooling pump header 2x addressable LED strip headers 2x RGB LED strip headers 4x M.2 Socket 3 connectors 6x SATA 6Gb/s connectors 1x front panel header 1x front panel audio header 1x USB Type-C® header, with USB 3.2 Gen 2 support 1x USB 3.2 Gen 1 header 2x USB 2.0/1.1 headers 2x Thunderbolt™ add-in card connectors 1x Trusted Platform Module header (For the GC-TPM2.0 SPI V2 module only) 1x reset button 1x Q-Flash Plus button 1x Clear CMOS button 1x reset jumper 1x Clear CMOS jumper |
| חיבורים ויציאות | 1x USB Type-C® port, with USB 3.2 Gen 2×2 support 2x USB 3.2 Gen 2 Type-A ports (red) 3x USB 3.2 Gen 1 ports 4x USB 2.0/1.1 ports 2x SMA antenna connectors (2T2R) 1x HDMI port (Note) 1x DisplayPort (Note) 1x RJ-45 port 1x optical S/PDIF Out connector 2x audio jacks (Note) Actual support may vary by CPU |
| BIOS | 1x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| תכונות ייחודיות | Support for GIGABYTE Control Center (GCC) Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications* Support for Q-Flash Support for Q-Flash Plus Support for Smart Backup |
| תוכנות מצורפות | Norton® Internet Security (OEM version) LAN bandwidth management software Service discontinued as a result of contract termination by the software provider* |
| תצורה | ATX Form Factor; 30.5cm x 24.4cm |
