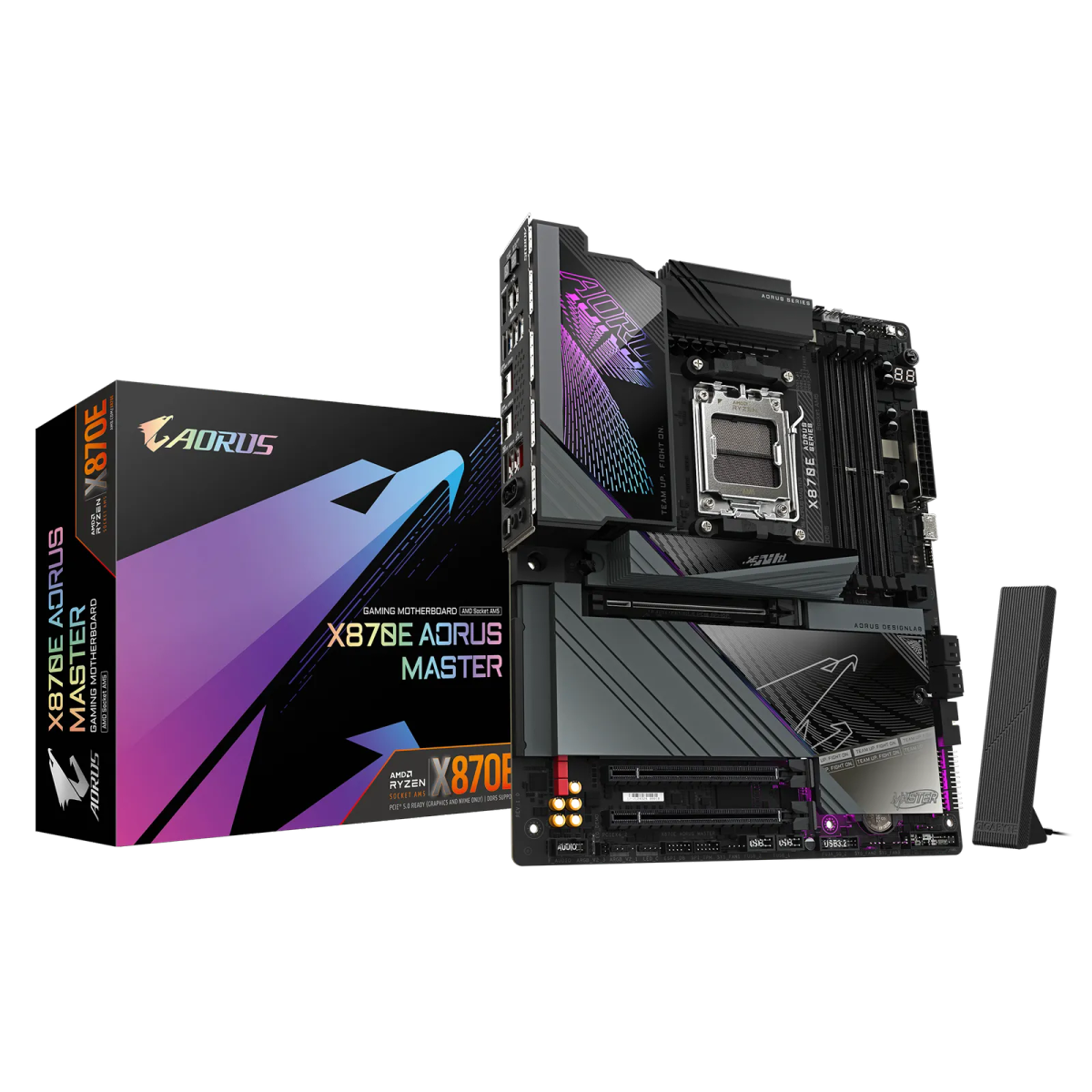

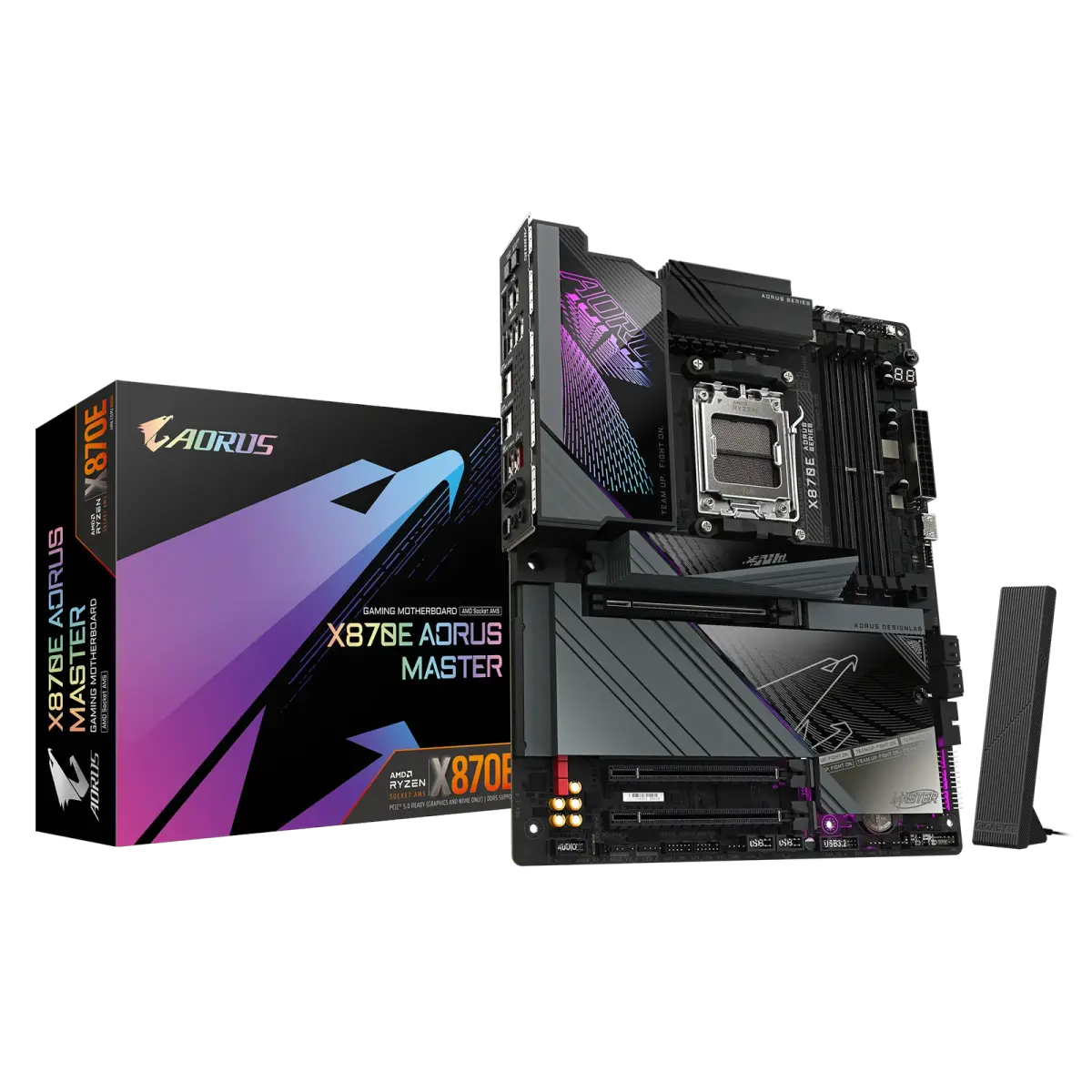

לוח אם – Gigabyte X870E AORUS MASTER ATX AM5 DDR5 - צבע שחור
חדש
מק"ט: X870E AORUS MASTER
לוח אם איכותי מבית Gigabyte, בעל תושבת AM5, ערכת שבבים X870 ותאימות לזיכרונות DDR5 ובעל יציאת תצוגה של HDMI.
₪1,995.00כולל מע"מ
במלאיפריסת תשלומים
₪1,995.00 לחודש
עד 4 תשלומים ללא ריבית
מפרט טכני
| תקופת אחריות | 3 שנים על ידי היבואן הרשמי |
| יצרן לוח אם | Gigabyte |
| תמיכה במעבדים | :AMD Socket AM5, support for AMD Ryzen™ 9000 Series Processors AMD Ryzen™ 8000 Series Processors AMD Ryzen™ 7000 Series Processors (Go to GIGABYTE's website for the latest CPU support list) |
| תמיכה בזיכרונות | Support for DDR5 8600(OC) / 8400(OC) / 8200(OC) / 8000(OC) / 7800(OC) / 7600(OC) / 7200(OC) / 7000(OC) / 6800(OC) / 6666(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules x4 DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory Dual channel memory architecture Support for ECC and non-ECC Un-buffered DIMM memory modules Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information) |
| גרפיקה מובנית | :Integrated Graphics Processor with AMD Radeon™ Graphics support+ASMedia USB4® Controller x2 USB4® USB Type-C® ports, supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840×2160@240 Hz Support for DisplayPort 1.4 version and HDR* :Integrated Graphics Processor with AMD Radeon™ Graphics support x1 HDMI port, supporting a maximum resolution of 4096×2160@60 Hz Support for HDMI 2.1 version, HDCP 2.3, and HDR* Support for native HDMI 2.1 TMDS compatible ports** x1 Front HDMI port, supporting a maximum resolution of 1920×1080@30 Hz Support for HDMI 1.4 version* Graphics specifications may vary depending on CPU support |
| חריצי הרחבה | :x1 PCI Express x16 slot (PCIEX16), integrated in the CPU AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x16 mode The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot* The PCIEX16 slot shares bandwidth with the M2B_CPU and M2C_CPU connectors* The PCIEX16 slot operates at up to x8 mode when a device is installed in the M2B_CPU or M2C_CPU connector AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode :Chipset x1 PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4_1) x1 PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4_2) |
| USB | :CPU+ASMedia USB4® controller x2 USB4® USB Type-C® ports on the back panel :CPU x1 USB 3.2 Gen 2 Type-A port (red) on the back panel Chipset+USB 3.2 Gen 1 Hub x4 USB 3.2 Gen 1 ports on the back panel :Chipset x1 USB Type-C® port with USB 3.2 Gen 2×2 support, available through the internal USB header x3 USB 3.2 Gen 2 Type-A ports (red) on the back panel x4 USB 3.2 Gen 1 ports available through the internal USB headers x6 USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers) |
| ממשק אחסון | :x1 M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs :x2 M.2 connectors (M2B_CPU, M2C_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs The M2B_CPU and M2C_CPU connectors become unavailable when an AMD Ryzen™ 8000 Series-Phoenix 1/Phoenix 2 processor is used* x1 M.2 connector (M2D_SB), integrated in the Chipset, supporting Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSDs x4 SATA 6Gb/s connectors RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices RAID 5 is only available on AMD Ryzen™ 9000 Series Processors* RAID 0, RAID 1, and RAID 10 support for SATA storage devices |
| שמע | Realtek® ALC1220 CODEC The back panel line out jack supports DSD audio* Support for DTS:X® Ultra High Definition Audio 2/4/5.1/7.1-channel You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings* Support for S/PDIF Out |
| כרטיס רשת קווי | Realtek® 5GbE LAN chip (5 Gbps/2.5 Gbps/1 Gbps/100 Mbps) Qualcomm® Wi-Fi 7 QCNCM865 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands BLUETOOTH 5.3 Support for 11be 320MHz wireless standard (Actual data rate may vary depending on environment and equipment.) Wi-Fi 7 features require Windows 11 SV3 to function properly. (There is no support driver for Windows 10.)* Wi-Fi 7 channels on 6 GHz band availability depends on individual country's regulations** |
| מודול תקשורת אלחוטית | Qualcomm® Wi-Fi 7 QCNCM865 - 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands - BLUETOOTH 5.4 - Support for 11be 320MHz wireless standard (Actual data rate may vary depending on environment and equipment.) Wi-Fi 7 features require Windows 11 SV3 to function properly. (There is no support driver for Windows 10.) Wi-Fi 7 channels on 6 GHz band availability depends on individual country's regulations. Bluetooth version may change with updates. See the Wi-Fi chip vendor's website for details |
| חיבורים פנימיים | x1 24-pin ATX main power connector x2 8-pin ATX 12V power connectors x1 CPU fan header x1 CPU fan/water cooling pump header x4 system fan headers x2 system fan/water cooling pump headers x4 addressable RGB Gen2 LED strip headers x1 RGB LED strip header x4 M.2 Socket 3 connectors x4 SATA 6Gb/s connectors x1 front panel header x1 front panel audio header x1 USB Type-C® header, with USB 3.2 Gen 2×2 support x2 USB 3.2 Gen 1 headers x2 USB 2.0/1.1 headers x1 noise detection header x1 Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) x1 HDMI port (Note) x1 power button x1 reset button x1 reset jumper x1 Clear CMOS jumper x2 temperature sensor headers Voltage Measurement Points (Note) Actual support may vary by CPU |
| חיבורים ויציאות | x1 Q-Flash Plus button x1 Clear CMOS button x1 HDMI port (Note) x2 USB4® USB Type-C® ports (DisplayPorts (Note)) x4 USB 3.2 Gen 2 Type-A ports (red) x4 USB 3.2 Gen 1 ports x2 USB 2.0/1.1 ports x1 RJ-45 port x2 antenna connectors (2T2R) x2 audio jacks x1 optical S/PDIF Out connector (Note) Actual support may vary by CPU |
| BIOS | x1 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| תכונות ייחודיות | Support for GIGABYTE Control Center (GCC) Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. Support for Q-Flash Support for Q-Flash Plus Support for Smart Backup |
| תוכנות מצורפות | Norton® Internet Security (OEM version) LAN bandwidth management software Service discontinued as a result of contract termination by the software provider |
| תצורה | ATX Form Factor; 30.5cm x 24.4cm |
