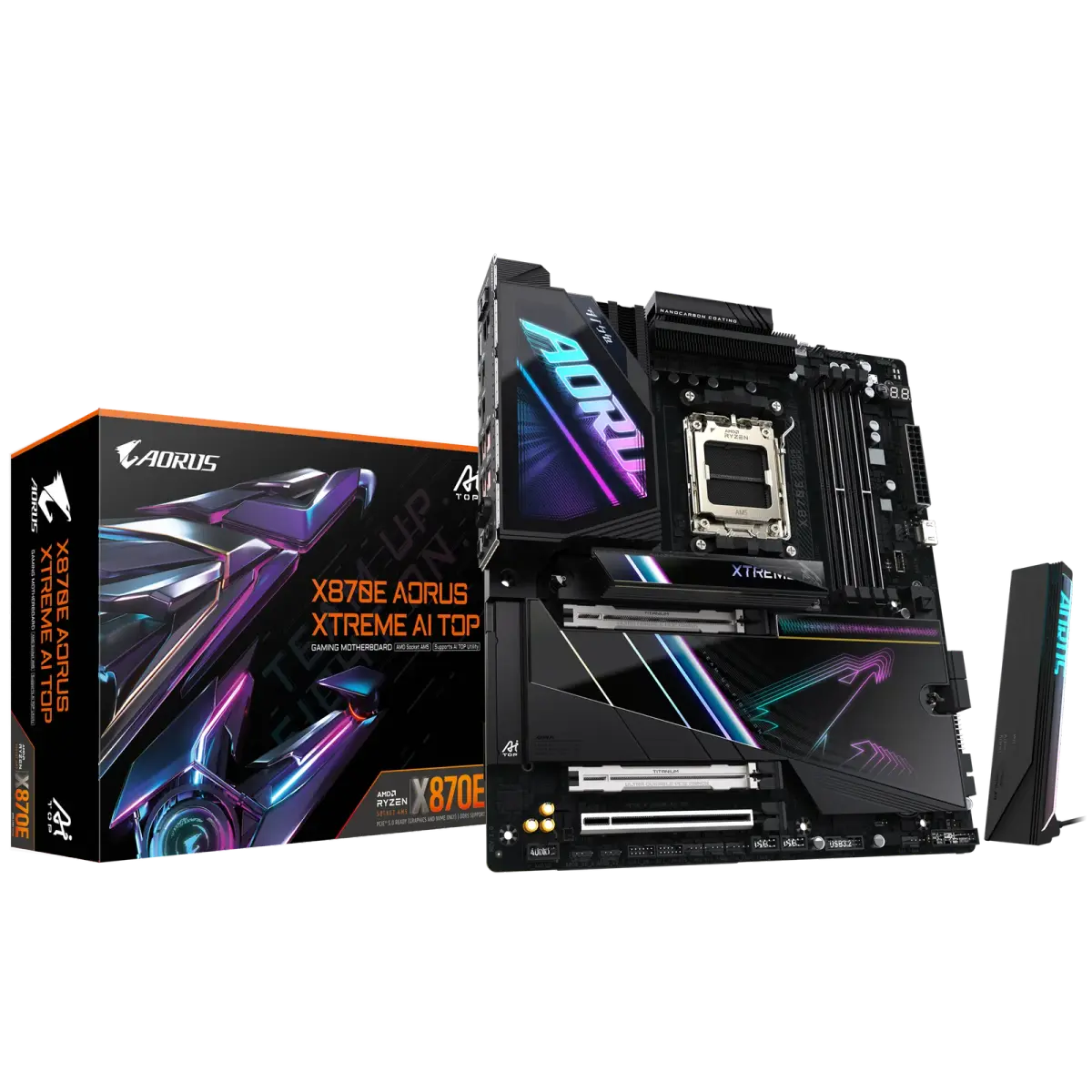

לוח אם – Gigabyte X870E AORUS XTREME AI TOP E-ATX AM5 DDR5 - צבע שחור
חדש
מק"ט: X870E A XTR X AI TOP 1.1
לוח אם איכותי מבית Gigabyte, בעל תושבת AM5, ערכת שבבים X870 ותאימות לזיכרונות DDR5 ובעל יציאת תצוגה של HDMI.
משלוח חינם לבית הלקוח
₪4,990.00כולל מע"מ
בדרך · צפוי 01.10פריסת תשלומים
₪4,990.00 לחודש
עד 10 תשלומים ללא ריבית
מפרט טכני
| תקופת אחריות | 3 שנים על ידי היבואן הרשמי |
| יצרן לוח אם | Gigabyte |
| תמיכה במעבדים | :AMD Socket AM5, support for AMD Ryzen™ 9000 Series Processors AMD Ryzen™ 8000 Series Processors AMD Ryzen™ 7000 Series Processors Please refer to "CPU Support List" for more information* |
| תמיכה בזיכרונות | Support for DDR5 8800(O.C.) / 8600(O.C) / 8400(O.C) /8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C) / 6200(O.C) / 6000(O.C) / 5800(O.C) / 5600(O.C) / 5200 / 4800 MT/s memory modules. 4x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity)of system memory Dual channel memory architecture Support for ECC and non-ECC Un-buffered DIMM memory modules Support forAMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules (The CPU andmemory configurationmay affect the supportedmemory types, datarate (speed), and number of DRAM modules, please refer to "Memory Support List" for more information) |
| גרפיקה מובנית | Integrated Graphics Processor with AMD Radeon™ Graphics support+ASMedia USB4® Controller: - 2x USB4® USB Type-C® ports, supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840x2160@240 Hz Support for DisplayPort 1.4 version and HDR* Integrated Graphics Processor with AMD Radeon™ Graphics support - 1x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz Support for HDMI 2.1 version, HDCP 2.3, and HDR* Support for native HDMI 2.1 TMDS compatible ports** - 1x Front HDMI port, supporting a maximum resolution of 1920x1080@30 Hz Support for HDMI 1.4 version* (Graphics specifications may vary depending on CPU support) |
| חריצי הרחבה | :1x PCI Express x16 slot (PCIEX16), integrated in the CPU AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x16 mode AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode The PCIEX8 slot shares bandwidth with the PCIEX16 slot. When the PCIEX8 slot is populated, the PCIEX16 slot operates at up to x8 mode The PCIEX16 and PCIEX8 slots can only support a graphics card or an NVMe SSD If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot :1x PCI Express x16 slot (PCIEX8), integrated in the CPU AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x8 mode The PCIEX8 slot becomes unavailable when an AMD Ryzen™ 8000 Series-Phoenix 1/Phoenix 2 processor is used :Chipset - 1x PCI Express x16 slot, supporting PCIe 4.0 and running at x2 (PCIEX2) The PCIEX2 slot shares bandwidth with the M2E_SB connector. The PCIEX2 slot becomes unavailable when a device is installed in the M2E_SB connector |
| USB | :CPU+ASMedia USB4® controller - 2x USB4® USB Type-C® ports on the back panel :CPU - 1x USB 3.2 Gen 2 Type-A port (red) on the back panel :Chipset - 1x USB Type-C® port with USB 3.2 Gen 2x2 support, available through the internal USB header - 5x USB 3.2 Gen 2 Type-A ports (red) on the back panel - 4x USB 3.2 Gen 1 ports available through the internal USB headers - 6x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers) |
| ממשק אחסון | 1x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs 2x M.2 connectors (M2D_SB, M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSDs 1x M.2 connector (M2E_SB), integrated in the Chipset, supporting Socket 3, M key, type 22110/2280 PCIe 4.0 x2 SSDs 4x SATA 6Gb/s connectors RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices RAID 5 is only available on AMD Ryzen™ 9000 Series Processors RAID 0, RAID 1, and RAID 10 support for SATA storage devices |
| שמע | Realtek® ALC1220 CODEC The front panel line out jack supports DSD audio* ESS ES9118 DAC chip Support for DTS:X® Ultra High Definition Audio 2/4/5.1-channel You can change the functionality of an audio jack using the audio software. To configure 5.1-channel audio, access the audio software for audio settings. Support for S/PDIF Out |
| כרטיס רשת קווי | 2x Marvell® AQtion AQC113C 10GbE LAN chips (10 Gbps/5 Gbps/2.5 Gbps/1 Gbps/100 Mbps) |
| מודול תקשורת אלחוטית | Qualcomm® Wi-Fi 7 QCNCM865 (PCB rev. 1.0) - 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands - BLUETOOTH 5.4 - Support for 11be 320MHz wireless standard (Actual data rate may vary depending on environment and equipment) MediaTek Wi-Fi 7 MT7927, RZ738 (PCB rev. 1.1) - 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands - BLUETOOTH 5.4 - Support for 11be 320MHz wireless standard (Actual data rate may vary depending on environment and equipment) Wi-Fi 7 features require Windows 11 SV3 to function properly. (There is no support driver for Windows 10.) Wi-Fi 7 channels on 6 GHz band availability depends on individual country's regulations. Bluetooth version may change with updates. See the Wi-Fi chip vendor's website for details |
| חיבורים פנימיים | 1x 24-pin ATX main power connector 2x 8-pin ATX 12V power connectors 1x CPU fan header 1x CPU fan/water cooling pump header 4x system fan headers 4x system fan/water cooling pump headers 3x addressable RGB Gen2 LED strip headers 1x RGB LED strip header 4x SATA 6Gb/s connectors 4x M.2 Socket 3 connectors 2x temperature sensor headers 1x front panel header 1x front panel audio header 1x USB Type-C® header, with USB 3.2 Gen 2x2 support 2x USB 3.2 Gen 1 headers 2x USB 2.0/1.1 headers 1x noise detection header 1x HDMI port (Note) 1x Trusted PlatformModule header (For the GC-TPM2.0 SPI V2 module only) 1x power button 1x reset button 1x reset jumper 1x Clear CMOS jumper Voltage Measurement Points (Note) Actual support may vary by CPU |
| חיבורים ויציאות | 1x Q-Flash Plus button 1x Clear CMOS button 1x HDMI port (Note) 2x USB4® USB Type-C® ports (DisplayPorts (Note)) 6x USB 3.2 Gen 2 Type-A ports (red) 2x USB 2.0/1.1 ports 2x RJ-45 ports 2x antenna connectors (2T2R) 1x optical S/PDIF Out connector 2x audio jacks (Note) Actual support may vary by CPU |
| BIOS | 1x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| תכונות ייחודיות | Support for GIGABYTE Control Center (GCC) Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications Support for Q-Flash Support for Q-Flash Plus Support for Smart Backup |
| תוכנות מצורפות | Norton® Internet Security (OEM version) LAN bandwidth management software Service discontinued as a result of contract termination by the software provider |
| תצורה | E-ATX Form Factor; 30.5cm x 26.9cm |
