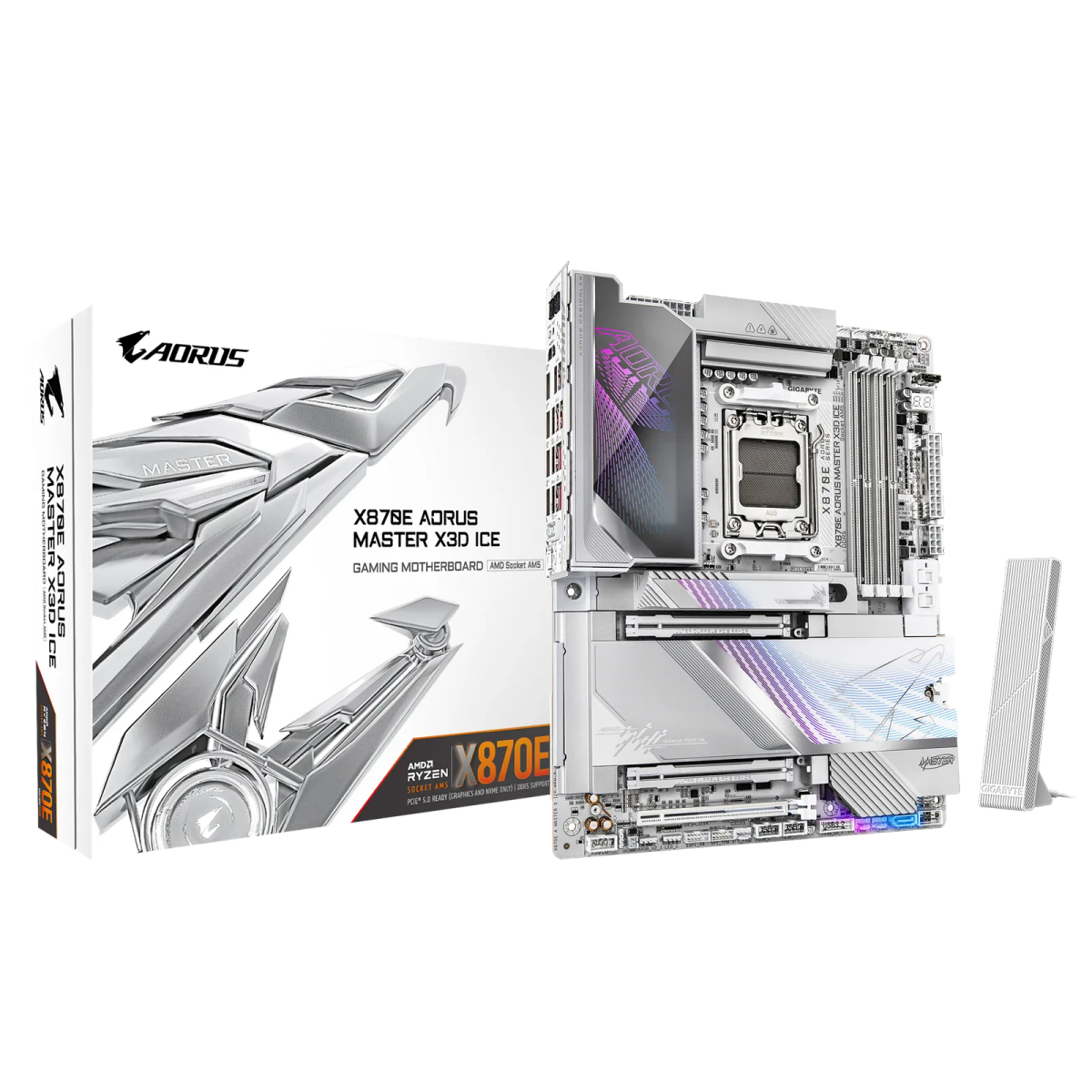

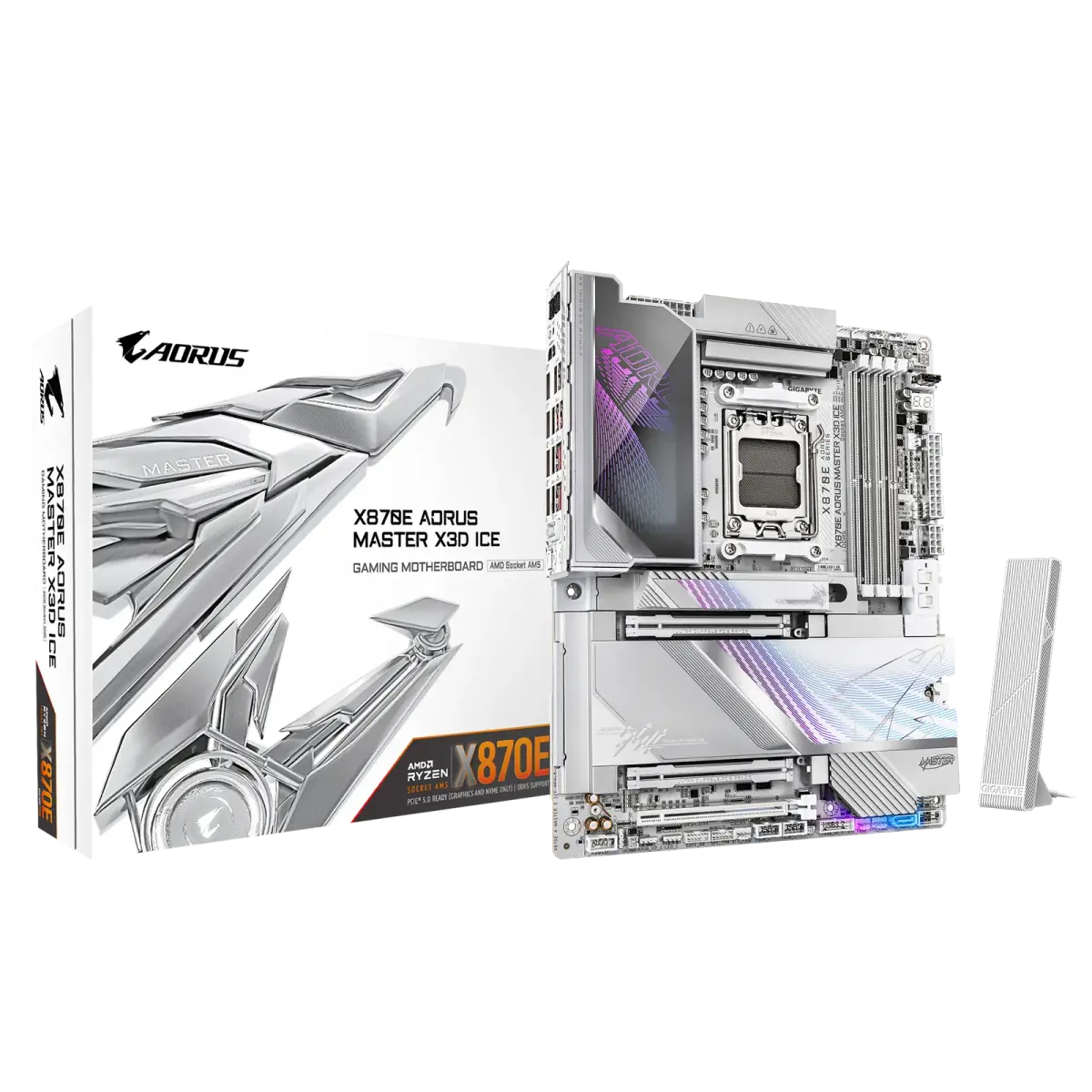

לוח אם – Gigabyte X870E AORUS MASTER X3D ICE ATX AM5 DDR5 – צבע לבן
חדש
מק"ט: X870E A MASTER X ICE
לוח אם איכותי מבית Gigabyte, בעל תושבת AM5, ערכת שבבים X870, תאימות לזיכרונות DDR5 ובעל יציאת תצוגה של HDMI.
₪2,260.00כולל מע"מ
במלאיפריסת תשלומים
₪2,260.00 לחודש
עד 5 תשלומים ללא ריבית
מפרט טכני
| תקופת אחריות | 3 שנים על ידי היבואן הרשמי |
| יצרן לוח אם | Gigabyte |
| תמיכה במעבדים | :AMD Socket AM5, support for AMD Ryzen™ 9000 Series Processors AMD Ryzen™ 8000 Series Processors AMD Ryzen™ 7000 Series Processors (Go to GIGABYTE's website for the latest CPU support list) |
| תמיכה בזיכרונות | Support for DDR5 9000(O.C) / 8800(O.C) / 8600(O.C) / 8400(O.C) / 8200(O.C.)/ 8000(O.C) / 7800(O.C) / 7600(O.C) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C) / 6200(O.C) / 6000(O.C) / 5600(O.C) / 5200 / 4800 MT/s memory modules. 4x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory Dual channel memory architecture Support for non-ECC Un-buffered DIMM memory modules Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information) |
| גרפיקה מובנית | :Integrated Graphics Processor with AMD Radeon™ Graphics support+ASMedia USB4® Controller 2x USB4® USB Type-C® ports, supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840×2160@240 Hz Support for DisplayPort 1.4 version and HDR* :Integrated Graphics Processor with AMD Radeon™ Graphics support 1x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz Support for HDMI 2.1 version, HDCP 2.3, and HDR* Support for native HDMI 2.1 TMDS compatible ports** 1x front HDMI port, supporting a maximum resolution of 1920×1080@30 Hz Support for HDMI 1.4 version* (Graphics specifications may vary depending on CPU support) |
| חריצי הרחבה | :1x PCI Express x16 slot (PCIEX16), integrated in the CPU AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x16 mode AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode The PCIEX8 slot shares bandwidth with the PCIEX16 slot. When the PCIEX8 slot is populated, the PCIEX16 slot operates at up to x8 mode* The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot* :1x PCI Express x16 slot (PCIEX8), integrated in the CPU AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x8 mode The PCIEX8 slot becomes unavailable when an AMD Ryzen™ 8000 Series-Phoenix 1/ Phoenix 2 processor is used* :Chipset 1x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4) The PCIEX4 slot shares bandwidth with the M2D_SB connector. The PCIEX4 slot becomes unavailable when a device is installed in the M2D_SB connector* |
| USB | :CPU+ASMedia USB4® controller 2x USB4® USB Type-C® ports on the back panel :CPU 1x USB 3.2 Gen 2 Type-A port (red) on the back panel :Chipset+USB 3.2 Gen 1 Hub 4x USB 3.2 Gen 1 ports available through the internal USB headers :Chipset 1x USB Type-C® port on the back panel, with USB 3.2 Gen 2×2 support 1x USB Type-C® port on the back panel, with USB 3.2 Gen 2 support 1x USB Type-C® port with USB 3.2 Gen 2×2 support, available through the internal USB header (Supports up to 65W PD 3.0/QC 4+ fast charging) For precautions regarding the fast charging function, refer to "USB Type-C® Header" in Chapter 2-7, "Internal Connectors* 6x USB 3.2 Gen 2 Type-A ports (red) on the back panel 4x USB 2.0/1.1 ports available through the internal USB headers |
| ממשק אחסון | :1x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2580/2280 SSDs AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs :M.2 connector (M2B_CPU), integrated in the CPU, supporting Socket 3, M key, type 2280 SSDs AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs The M2B_CPU connector shares bandwidth with the ASMedia USB4® controller. When a device is installed in the M2B_CPU connector, both the M2B_CPU connector and the USB4 ports supported by the ASMedia USB4® controller operate at up to x2 bandwidth. When using an AMD Ryzen™ 8000 Series-Phoenix 1 or Phoenix 2 processor, the USB4 ports supported by the ASMedia USB4® controller operates at up to x2 bandwidth, and the M2B_CPU connector becomes unavailable 2x M.2 connectors (M2C_SB, M2D_SB), integrated in the Chipset, supporting Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSDs 1x M.2 connector (M2E_SB), integrated in the Chipset, supporting Socket 3, M key, type 2280 PCIe 4.0 x2 SSDs 2x SATA 6Gb/s connectors RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices RAID 5 is only available on AMD Ryzen™ 9000 Series Processors* RAID 0 and RAID 1 support for SATA storage devices |
| שמע | Realtek® ALC1220 CODEC The front panel line out jack supports DSD audio* ESS ES9118 DAC chip Support for DTS:X® Ultra High Definition Audio 2/4/5.1-channel You can change the functionality of an audio jack using the audio software. To configure 5.1-channel audio, access the audio software for audio settings* Support for S/PDIF Out |
| כרטיס רשת קווי | Realtek® 5GbE LAN chip (5 Gbps/2.5 Gbps/1 Gbps/100 Mbps) (LAN1) Realtek® 10GbE LAN chip (10 Gbps/5 Gbps/2.5 Gbps/1 Gbps/100 Mbps) (LAN2) |
| מודול תקשורת אלחוטית | MediaTek Wi-Fi 7 MT7927, RZ738 – 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands – BLUETOOTH 5.4 – Support for 11be 320MHz wireless standard (Actual data rate may vary depending on environment and equipment.) Wi-Fi 7 features require Windows 11 SV3 to function properly. (There is no support driver for Windows 10.)* Wi-Fi 7 channels on 6 GHz band availability depends on individual country's regulations** Bluetooth version may change with updates. See the Wi-Fi chip vendor’s website for details*** |
| חיבורים פנימיים | 1x 24-pin ATX main power connector 2x 8-pin ATX 12V power connectors 1x PCIe power connector 1x CPU fan header 1x CPU fan/water cooling pump header 4x system fan headers 1x system fan extension cable header (can extend three system fan headers through one cable) 1x system fan/water cooling pump header 4x addressable RGB Gen2 LED strip headers 1x RGB LED strip header 5x M.2 Socket 3 connectors 2x SATA 6Gb/s connectors 1x front panel header 1x front panel audio header 1x speaker header 1x USB Type-C® header, with USB 3.2 Gen 2×2 support 2x USB 3.2 Gen 1 headers 2x USB 2.0/1.1 headers 1x noise detection header 1x Trusted Platform Module header (For the GC-TPM2.0 SPI V2 module only) 1x HDMI port (Note) 1x chassis intrusion header 1x reset jumper 1x Clear CMOS jumper 2x temperature sensor headers (Note) Actual support may vary by CPU |
| חיבורים ויציאות | 1x Q-Flash Plus button 1x Clear CMOS button 1x reset button 1x power button 1x HDMI port (Note) 2x USB4® USB Type-C® ports (DisplayPorts (Note)) 1x USB Type-C® port, with USB 3.2 Gen 2 support 1x USB Type-C® port, with USB 3.2 Gen 2×2 support 7x USB 3.2 Gen 2 Type-A ports (red) 2x RJ-45 ports 2x antenna connectors (2T2R) 2x audio jacks 1x optical S/PDIF Out connector (Note) Actual support may vary by CPU |
| BIOS | 1x 512 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| תכונות ייחודיות | Support for GIGABYTE Control Center (GCC) Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications* Support for Q-Flash Support for Q-Flash Plus Support for Smart Backup |
| תוכנות מצורפות | Norton® Internet Security (OEM version) |
| תצורה | ATX Form Factor; 30.5cm x 24.4cm |
