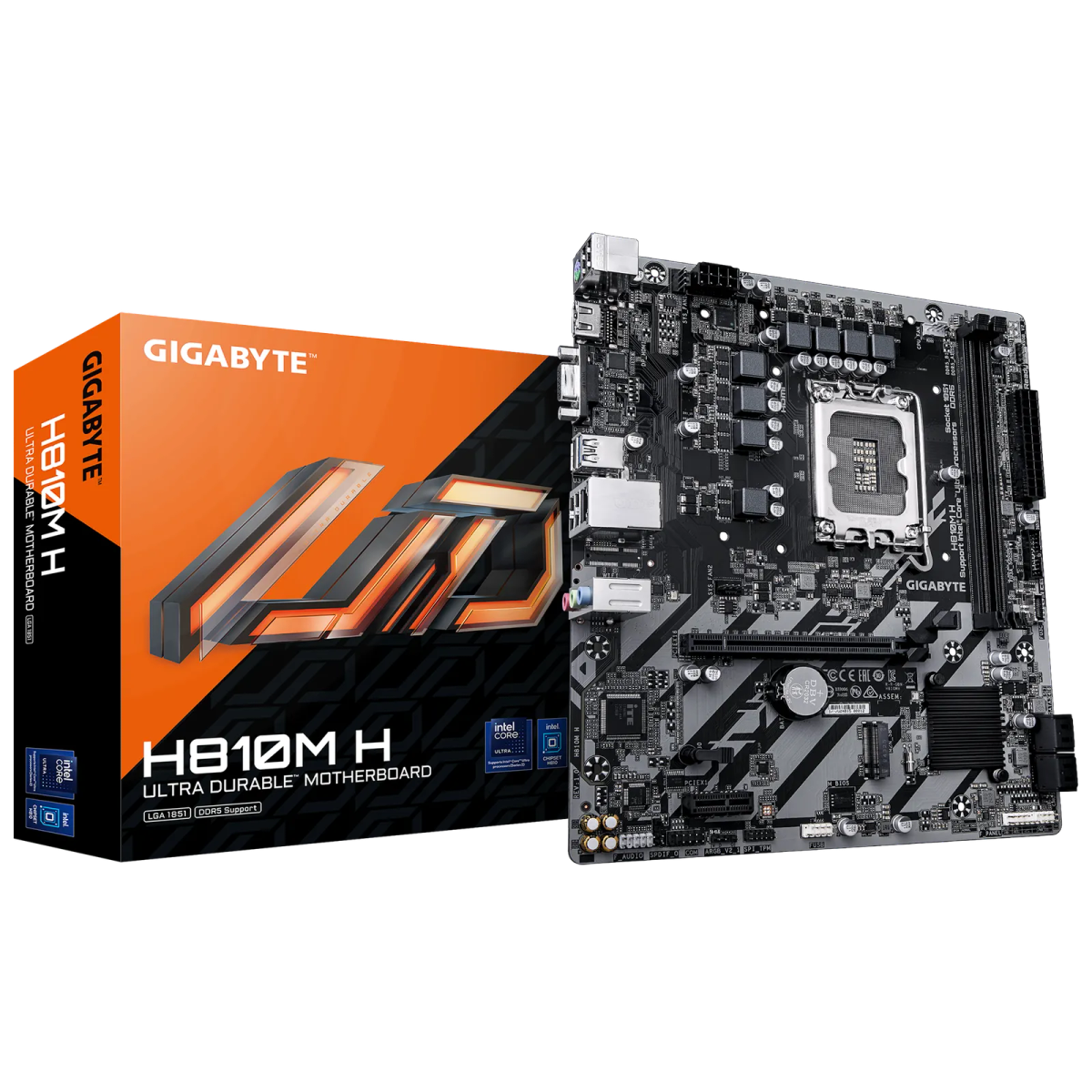

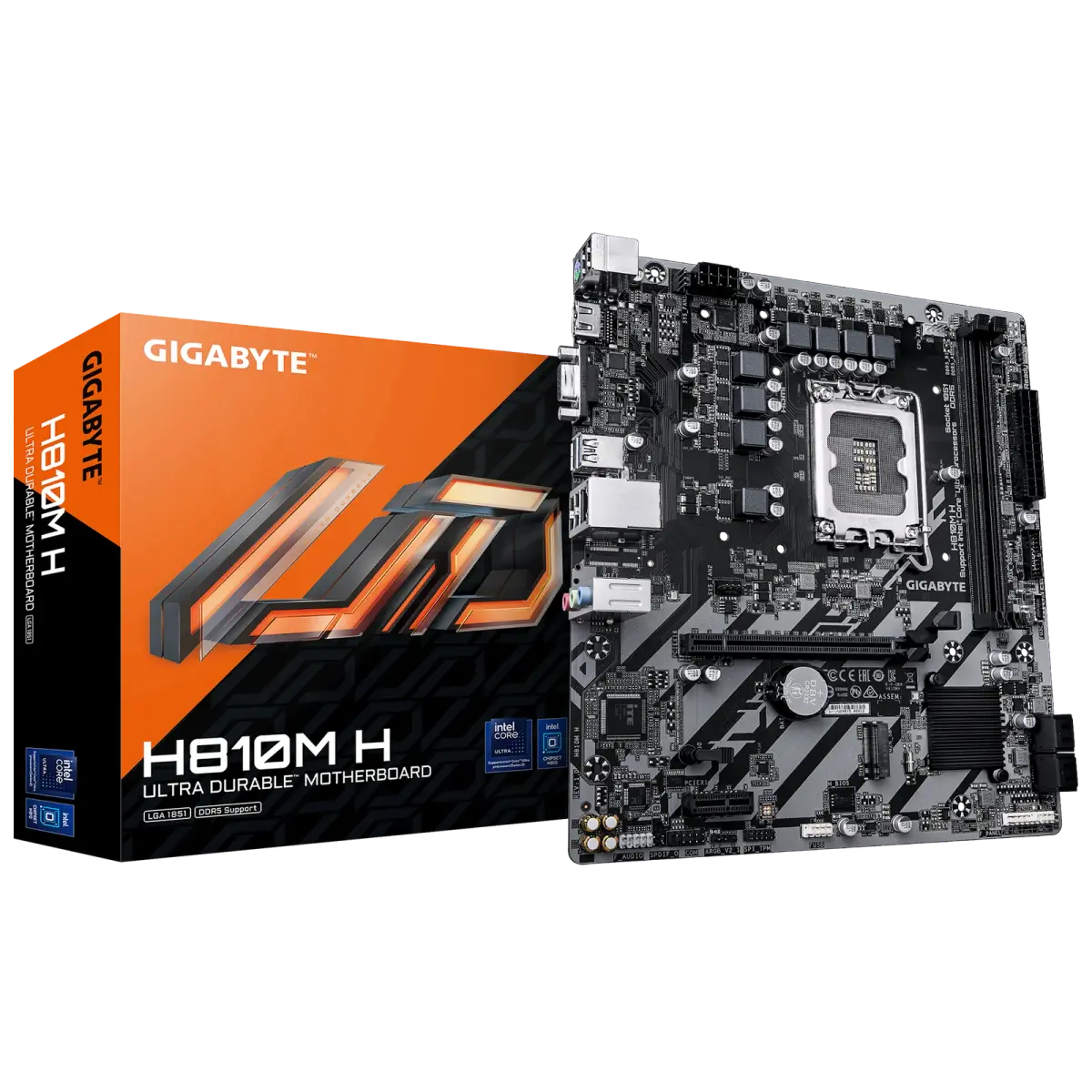

לוח אם – Gigabyte H810M H Micro-ATX LGA1851 DDR5 - צבע שחור
חדש
מק"ט: H810M H 1.0
לוח אם איכותי מבית Gigabyte, בעל תושבת LGA1851, ערכת שבבים H810, תאימות לזיכרונות DDR5 ובעל יציאות תצוגה של HDMI ,VGA.
משלוח חינם לבית הלקוח
₪439.00כולל מע"מ
במלאיפריסת תשלומים
₪439.00 לחודש
עד 1 תשלומים ללא ריבית
מפרט טכני
| תקופת אחריות | 3 שנים על ידי היבואן הרשמי |
| יצרן לוח אם | Gigabyte |
| תמיכה במעבדים | LGA1851 socket: Support for Intel® Core™ Ultra Processors (Go to GIGABYTE's website for the latest CPU support list) L3 cache varies with CPU |
| תמיכה בזיכרונות | Support for DDR5 6400/5600 MT/s memory modules 2x DDR5 DIMM sockets supporting up to 128 GB (64 GB single DIMM capacity) of system memory Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information) |
| גרפיקה מובנית | :Integrated Graphics Processor-Intel® HD Graphics support 1x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz Support for HDMI 2.1 version and HDCP 2.3* 1x D-Sub port, supporting a maximum resolution of 1920×1200@60 Hz (Graphics specifications may vary depending on CPU support) |
| חריצי הרחבה | :CPU 1x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16) The PCIEX16 slot can only support a graphics card or an NVMe SSD* :Chipset 1x PCI Express x1 slot, supporting PCIe 3.0 and running at x1 (PCIEX1) |
| USB | :Chipset 1x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header 3x USB 3.2 Gen 1 ports (1 ports on the back panel, 2 ports available through the internal USB header) 3x USB 2.0/1.1 ports (1 ports on the back panel, 2 ports available through the internal USB header) :Chipset+USB 2.0 Hub 4x USB 2.0/1.1 ports on the back panel |
| ממשק אחסון | :Chipset 1x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) 4x SATA 6Gb/s connectors |
| שמע | Realtek® Audio CODEC High Definition Audio 2/4/5.1/7.1-channel You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings* Support for S/PDIF Out |
| כרטיס רשת קווי | Realtek® GbE LAN chip (1 Gbps/100 Mbps/10 Mbps) |
| מודול תקשורת אלחוטית | ללא |
| חיבורים פנימיים | 1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector 1x CPU fan header 2x system fan headers 2x addressable RGB Gen2 LED strip headers 1x M.2 Socket 3 connector 4x SATA 6Gb/s connectors 1x front panel header 1x front panel audio header 1x S/PDIF Out header 1x USB Type-C® header, with USB 3.2 Gen 1 support 1x USB 3.2 Gen 1 header 1x USB 2.0/1.1 header 1x Trusted Platform Module header (For the GC-TPM2.0 SPI V2 module only) 1x serial port header 1x Clear CMOS jumper |
| חיבורים ויציאות | 1x PS/2 keyboard/mouse port 1x HDMI port (Note) 1x D-Sub port 1x USB 3.2 Gen 1 port 5x USB 2.0/1.1 ports 1x RJ-45 port 3x audio jacks (Note) Actual support may vary by CPU |
| BIOS | 1x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| תכונות ייחודיות | Support for GIGABYTE Control Center (GCC) Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications* Support for Q-Flash Support for Smart Backup |
| תוכנות מצורפות | Norton® Internet Security (OEM version) LAN bandwidth management software Service discontinued as a result of contract termination by the software provider* |
| תצורה | Micro ATX Form Factor; 24.4cm x 21.5cm |
