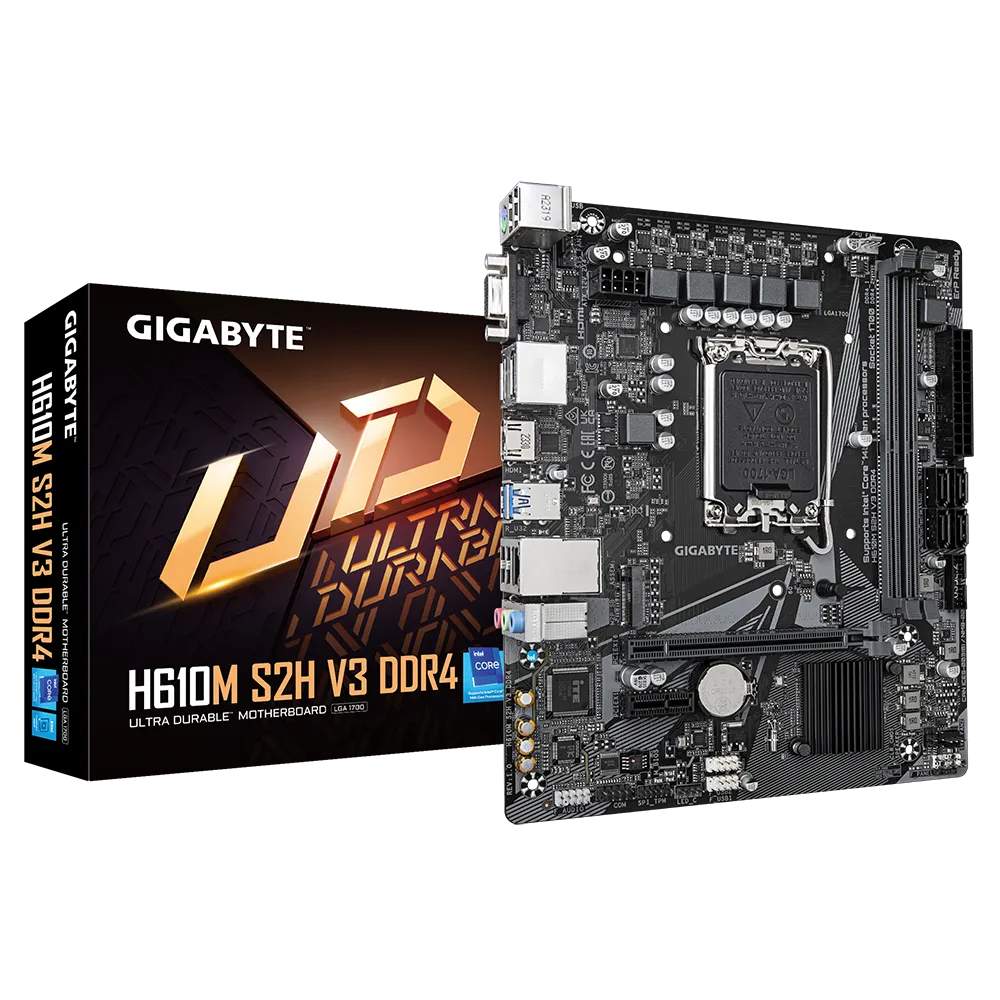

לוח אם – Gigabyte H610M S2H V3 Micro-ATX LGA1700 DDR4 - צבע שחור
חדש
מק"ט: H610M S2H V3 DDR4
לוח אם איכותי מבית Gigabyte, בעל תושבת LGA1700, ערכת שבבים H610, תאימות לזיכרונות DDR4 ובעל יציאות תצוגה של HDMI ,DisplayPort ,VGA.
₪355.00כולל מע"מ
במלאיפריסת תשלומים
₪355.00 לחודש
עד 1 תשלומים ללא ריבית
מפרט טכני
| תקופת אחריות | 3 שנים על ידי היבואן הרשמי |
| יצרן לוח אם | Gigabyte |
| תמיכה במעבדים | LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors L3 cache varies with CPU |
| תמיכה בזיכרונות | Support for DDR4 3200/3000/2933/2666/2400/2133 MT/s memory modules 2x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information) |
| גרפיקה מובנית | :Integrated Graphics Processor-Intel® HD Graphics support 1x D-Sub port, supporting a maximum resolution of 1920×1200@60 Hz 1x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz .Support for HDMI 2.1 version and HDCP 2.3* .Support native HDMI 2.1 TMDS compatible ports** 2x DisplayPorts, supporting a maximum resolution of 4096×2304@60 Hz Support for DisplayPort 1.2 version and HDCP 2.3* (Graphics specifications may vary depending on CPU support) Support for up to triple-display at the same time |
| חריצי הרחבה | :CPU 1x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 :Chipset 1x PCI Express x1 slot, supporting PCIe 3.0 and running at x1 |
| USB | :Chipset 4x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header) 4x USB 2.0/1.1 ports on the back panel :Chipset+USB 2.0 Hub 4x USB 2.0/1.1 ports available through the internal USB headers |
| ממשק אחסון | :Chipset 1x M.2 connector (Socket 3, M key, type 2280/2260 PCIe 3.0 x4/x2 SSD support) 4x SATA 6Gb/s connectors |
| שמע | Realtek® Audio CODEC High Definition Audio 2/4/5.1/7.1-channel .You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings* |
| כרטיס רשת קווי | Realtek® GbE LAN chip (1 Gbps/100 Gbps/10 Mbps |
| מודול תקשורת אלחוטית | ללא |
| חיבורים פנימיים | 1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector 1x CPU fan header 2x system fan headers 1x M.2 Socket 3 connector 4x SATA 6Gb/s connectors 1x RGB LED strip header 1x front panel header 1x front panel audio header 1x speaker header 1x USB 3.2 Gen 1 header 2x USB 2.0/1.1 headers 1x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 / GC-TPM2.0 SPI V2 module only) 1x serial port header 1x Clear CMOS jumper 1x chassis intrusion header |
| חיבורים ויציאות | 1x PS/2 keyboard/mouse port 1x D-Sub port 2x DisplayPorts 1x HDMI port 2x USB 3.2 Gen 1 ports 4x USB 2.0/1.1 ports 1x RJ-45 port 3x audio jacks |
| BIOS | 1x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| תכונות ייחודיות | Support for APP Center .Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications* @BIOS – EasyTune – Smart Backup – System Information Viewer – Support for Q-Flash |
| תוכנות מצורפות | Norton® Internet Security (OEM version) LAN bandwidth management software |
| תצורה | Micro ATX Form Factor; 22.3cm x 19.3cm |
