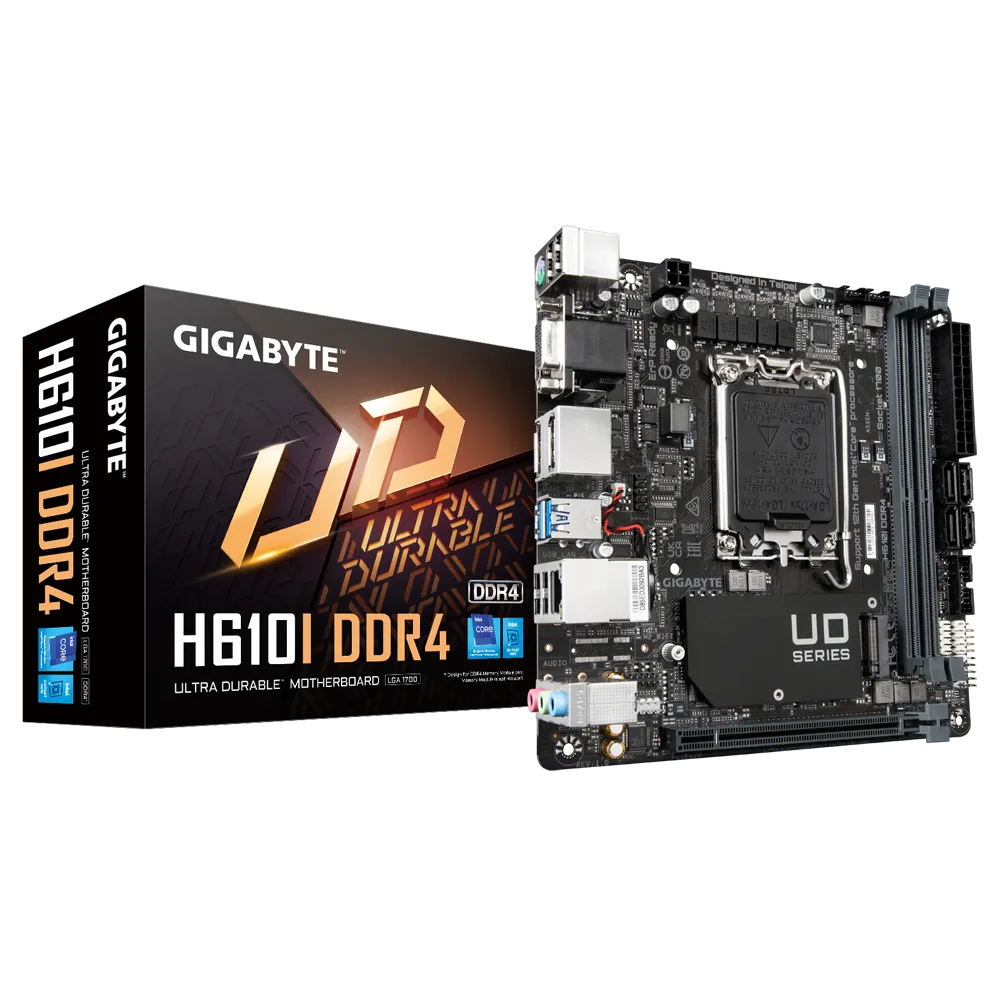

לוח אם – Gigabyte H610i DDR4 Mini-ITX LGA1700 - צבע שחור
חדש
מק"ט: H610i DDR4
לוח אם איכותי מבית Gigabyte, בעל תושבת LGA1700, ערכת שבבים H610, תאימות לזיכרונות DDR4 ובעל יציאות תצוגה של HDMI ,DisplayPort, VGA.
₪490.00כולל מע"מ
במלאיפריסת תשלומים
₪490.00 לחודש
עד 1 תשלומים ללא ריבית
מפרט טכני
| תקופת אחריות | 3 שנים על ידי היבואן הרשמי |
| יצרן לוח אם | Gigabyte |
| תמיכה במעבדים | LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors* L3 cache varies with CPU Please refer to "CPU Support List" for more information* |
| תמיכה בזיכרונות | Support for DDR4 3200/3000/2933/2666/2400/2133 MHz memory modules 2x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules (Please refer "Memory Support List" for more information) |
| גרפיקה מובנית | :Integrated Graphics Processor-Intel® HD Graphics support 1x D-Sub port, supporting a maximum resolution of 1920×1200@60 Hz 1x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz Support for HDMI 2.1 version and HDCP 2.3* Support native HDMI 2.1 TMDS compatible ports** 1x DisplayPort, supporting a maximum resolution of 4096×2304@60 Hz Support for DisplayPort 1.2 version and HDCP 2.3* 1x DisplayPort, supporting a maximum resolution of 4096×2304@60 Hz Support for DisplayPort 1.2 version* (Graphics specifications may vary depending on CPU support) Support for up to 3 displays at the same time |
| חריצי הרחבה | 1x PCI Express x16 slot, running at x16 (The PCIEX16 slot conforms to PCI Express 4.0 standard) |
| USB | :Chipset 4x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header) 4x USB 2.0/1.1 ports on the back panel :Chipset+USB 2.0 Hub 4x USB 2.0/1.1 ports available through the internal USB headers |
| ממשק אחסון | :Chipset 1x M.2 connector (Socket 3, M key, type 2280 PCIe 3.0 x4/x2 SSD support) 4x SATA 6Gb/s connectors |
| שמע | Realtek® Audio CODEC High Definition Audio 2/4/5.1/7.1-channel To configure 7.1-channel audio, you need to open the audio software and select Device advanced settings > Playback Device to change the default setting first. Please visit GIGABYTE's website for details on configuring the audio software |
| כרטיס רשת קווי | Intel® GbE LAN chip (1 Gbps/100 Mbps) |
| מודול תקשורת אלחוטית | ללא |
| חיבורים פנימיים | 1x 24-pin ATX main power connector 1x 4-pin ATX 12V power connector 1x CPU fan header 2x system fan headers 1x RGB LED strip header 1x M.2 Socket 3 connector 4x SATA 6Gb/s connectors 1x front panel header 1x front panel audio header 1x USB 3.2 Gen 1 header 2x USB 2.0/1.1 headers 1x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) 2x serial port headers 1x Clear CMOS jumper 1x chassis intrusion header |
| חיבורים ויציאות | 1x PS/2 keyboard/mouse port 2x USB 3.2 Gen 1 ports 4x USB 2.0/1.1 ports 1x D-Sub port 2x DisplayPorts 1x HDMI 2.0 port 1x RJ-45 port 3x audio jacks |
| BIOS | 1x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| תכונות ייחודיות | Support for APP Center Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications* @BIOS EasyTune Ambient LED Smart Backup System Information Viewer Support for Q-Flash Support for Xpress Install |
| תוכנות מצורפות | Norton® Internet Security (OEM version) LAN bandwidth management software |
| תצורה | Mini-ITX Form Factor; 17.0cm x 17.0cm |
