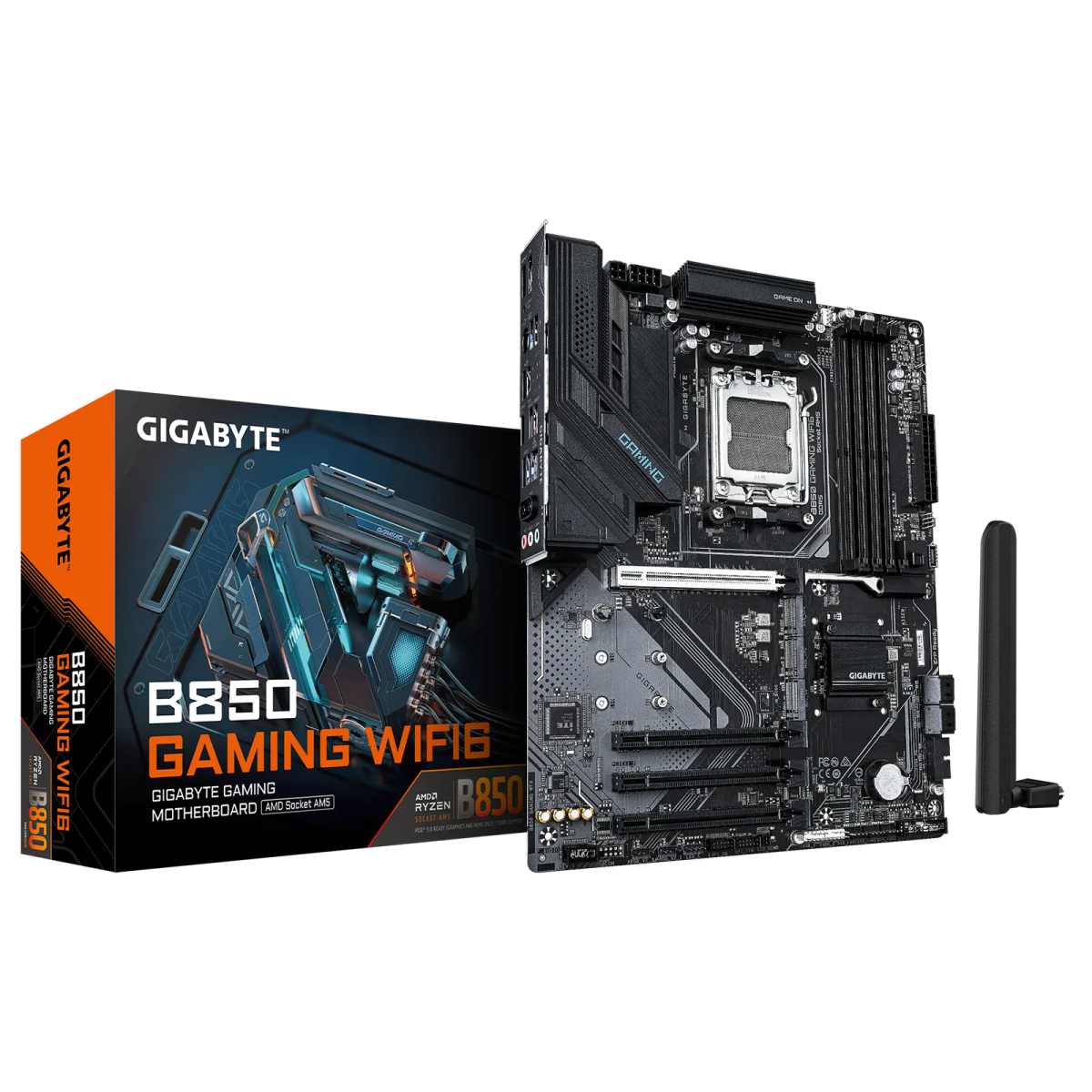

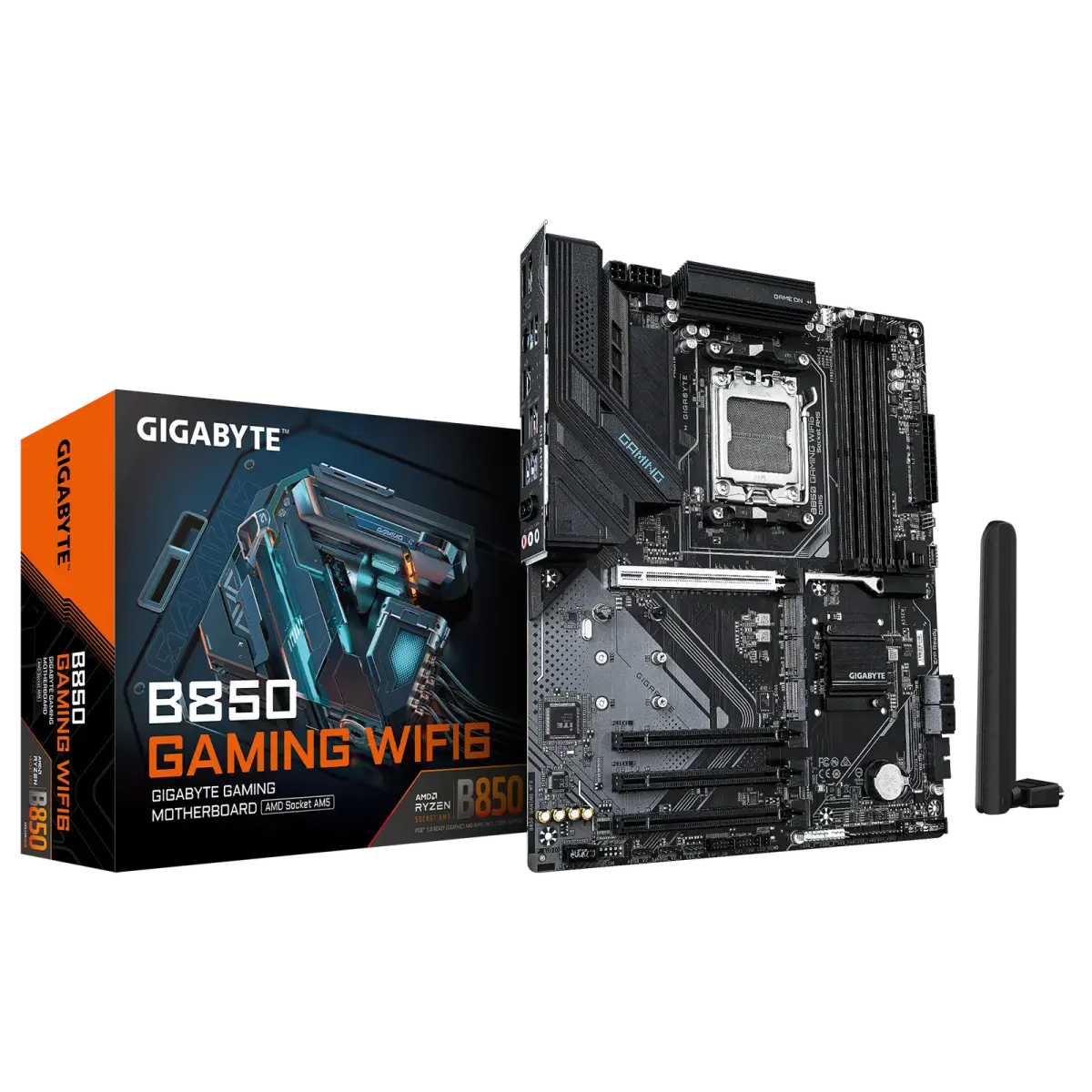

לוח אם – Gigabyte B850 GAMING WIFI6 AM5 DDR5 - צבע שחור
חדש
מק"ט: B850 GAMING WF6
לוח אם איכותי מבית Gigabyte, בעל תושבת AM5, ערכת שבבים B850, תאימות לזיכרונות DDR5 ובעל יציאות תצוגה של HDMI ,DisplayPort.
₪739.00כולל מע"מ
במלאיפריסת תשלומים
₪739.00 לחודש
עד 1 תשלומים ללא ריבית
מפרט טכני
| תקופת אחריות | 3 שנים על ידי היבואן הרשמי |
| יצרן לוח אם | Gigabyte |
| תמיכה במעבדים | AMD Socket AM5, support for: AMD Ryzen™ 9000 Series Processors/ AMD Ryzen™ 8000 Series Processors/ AMD Ryzen™ 7000 Series Processors (Go to GIGABYTE's website for the latest CPU support list) |
| תמיכה בזיכרונות | Support for DDR5 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C) / 6200(O.C) / 6000(O.C) / 5800(O.C) / 5600(O.C) / 5200 / 4800 / 4400 MT/s memory modules 4x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity)of system memory Dual channel memory architecture Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information) |
| גרפיקה מובנית | :Integrated Graphics Processor with AMD Radeon™ Graphics support 1x DisplayPort, supporting a maximum resolution of 3840×2160@144 Hz Support for DisplayPort 1.4 version and HDR* 1x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz Support for HDMI 2.1 version, HDCP 2.3, and HDR* Support for native HDMI 2.1 TMDS compatible ports** (Graphics specifications may vary depending on CPU support) |
| חריצי הרחבה | :1x PCI Express x16 slot (PCIEX16), integrated in the CPU AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x16 mode AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot* :Chipset 3x PCI Express x16 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_1, PCIEX1_2, PCIEX1_3) |
| USB | :CPU 1x USB Type-C® port on the back panel, with USB 3.2 Gen 1 support 2x USB 3.2 Gen 2 Type-A ports (red) on the back panel :Chipset 1x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header 4x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header) 4x USB 2.0/1.1 ports on the back panel :Chipset+USB 2.0 Hub 4x USB 2.0/1.1 ports available through the internal USB headers |
| ממשק אחסון | :1x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs :1x M.2 connector (M2B_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs AMD Ryzen™ 9000/7000 Series Processors support PCIe 4.0 x4/x2 SSDs AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x2 SSDs 1x M.2 connector (M2C_SB), integrated in the Chipset, supporting Socket 3, M key, type 22110/2280 PCIe 4.0 x2 SSDs 4x SATA 6Gb/s connectors RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices RAID 5 is only available on AMD Ryzen™ 9000 Series Processors* RAID 0, RAID 1, and RAID 10 support for SATA storage devices |
| שמע | Realtek® Audio CODEC High Definition Audio 2/4/5.1/7.1-channel You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings* |
| כרטיס רשת קווי | Realtek® GbE LAN chip (1 Gbps/100 Mbps/10 Mbps) |
| מודול תקשורת אלחוטית | Realtek® Wi-Fi 6 RTL8851BE – WIFI a, b, g, n, ac, ax, supporting 2.4/5 GHz carrier frequency bands – BLUETOOTH 5.3 – Support for 11ax 80MHz wireless standard (Actual data rate may vary depending on environment and equipment) |
| חיבורים פנימיים | 1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector 1x 4-pin ATX 12V power connector 1x CPU fan header 1x CPU fan/water cooling pump header 3x system fan headers 1x system fan/water cooling pump header 3x addressable RGB Gen2 LED strip headers 1x RGB LED strip header 3x M.2 Socket 3 connectors 4x SATA 6Gb/s connectors 1x front panel header 1x front panel audio header 1x USB Type-C® header, with USB 3.2 Gen 1 support 1x USB 3.2 Gen 1 header 2x USB 2.0/1.1 headers 1x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) 1x reset jumper 1x Clear CMOS jumper |
| חיבורים ויציאות | 1x DisplayPort (Note) 1x HDMI port (Note) 1x Q-Flash Plus button 4x USB 2.0/1.1 ports 1x PS/2 keyboard/mouse port 2x USB 3.2 Gen 2 Type-A ports (red) 1x USB Type-C® port, with USB 3.2 Gen 1 support 1x RJ-45 port 2x USB 3.2 Gen 1 ports 2x antenna connectors (2T2R) 3x audio jacks (Note) Actual support may vary by CPU |
| BIOS | 1x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| תכונות ייחודיות | Support for GIGABYTE Control Center (GCC) Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications* Support for Q-Flash Support for Q-Flash Plus Support for Smart Backup |
| תוכנות מצורפות | Norton® Internet Security (OEM version) LAN bandwidth management software |
| תצורה | ATX Form Factor; 30.5cm x 24.4cm |
