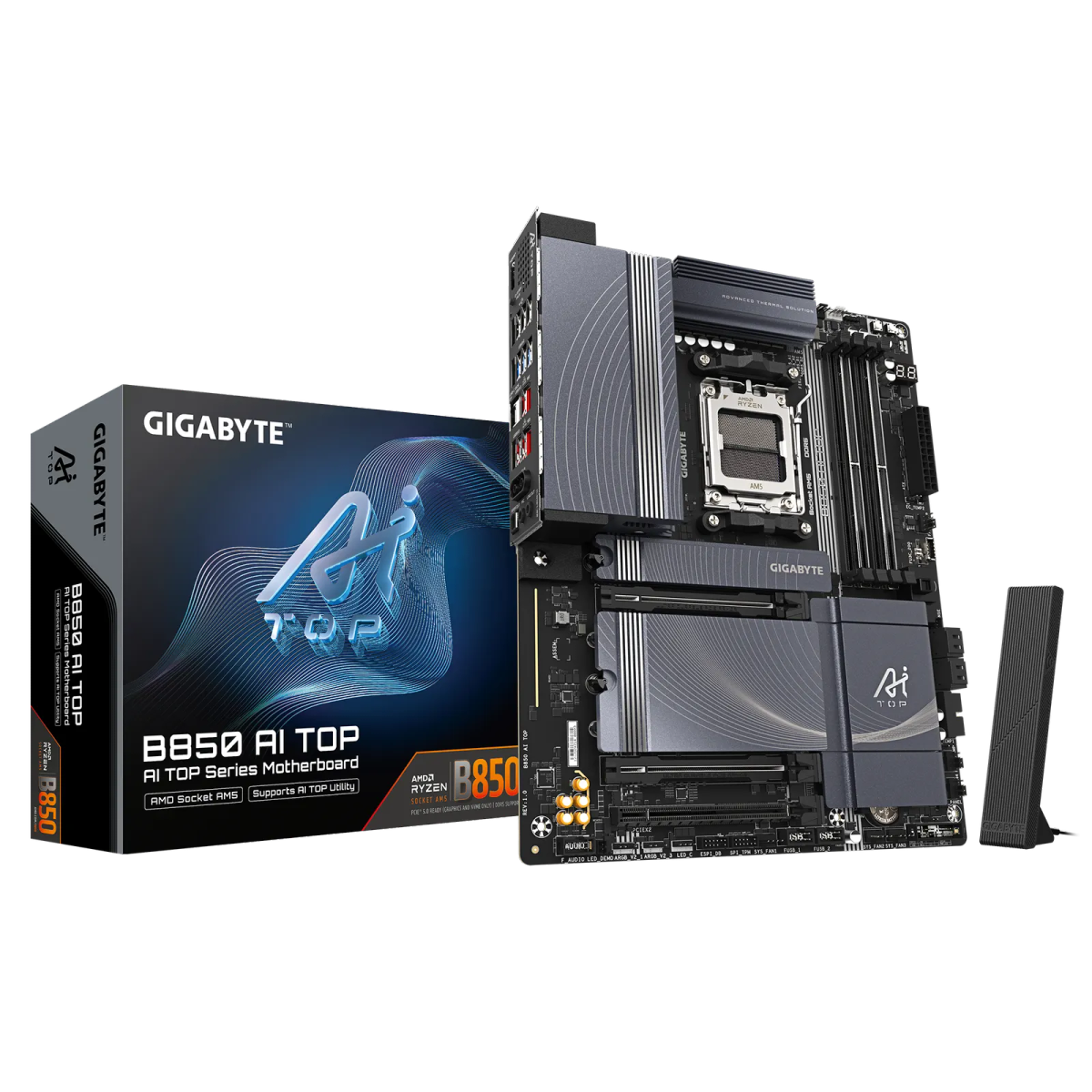

לוח אם – Gigabyte B850 AI TOP ATX AM5 DDR5 - צבע שחור/כחול
חדש
מק"ט: B850 AI TOP
לוח אם איכותי מבית Gigabyte, בעל תושבת AM5, ערכת שבבים B850, תאימות לזיכרונות DDR5 ובעל יציאת תצוגה של HDMI.
₪1,725.00כולל מע"מ
במלאיפריסת תשלומים
₪1,725.00 לחודש
עד 4 תשלומים ללא ריבית
מפרט טכני
| תקופת אחריות | 3 שנים על ידי היבואן הרשמי |
| יצרן לוח אם | Gigabyte |
| תמיכה במעבדים | :AMD Socket AM5, support for AMD Ryzen™ 9000 Series Processors AMD Ryzen™ 8000 Series Processors AMD Ryzen™ 7000 Series Processors (Go to GIGABYTE's website for the latest CPU support list) |
| תמיכה בזיכרונות | Support for DDR5 8600(OC)/ 8400(OC)/ 8000(OC)/ 7800(OC)/ 7600(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5600(OC)/ 5200/ 4800 MT/s memory modules 4x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory Dual channel memory architecture Support for ECC and non-ECC Un-buffered DIMM memory modules Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information) |
| גרפיקה מובנית | :Integrated Graphics Processor with AMD Radeon™ Graphics support 1x USB Type-C® port (Note) with DisplayPort video output, supporting a maximum resolution of 3840×2160@144 Hz. Support for DisplayPort 1.4 version and HDR* 1x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz Support for HDMI 2.1 version and HDCP 2.3, and HDR* Support for native HDMI 2.1 TMDS compatible ports** (Graphics specifications may vary depending on CPU support) (Note) This USB Type-C® port supports up to 40 Gbps when using AMD Ryzen™ 8000 series processors, and up to 10 Gbps when using AMD Ryzen™ 9000/7000 series processors |
| חריצי הרחבה | :1x PCI Express x16 slot (PCIEX16), integrated in the CPU AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x16 mode AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode The PCIEX8 slot shares bandwidth with the PCIEX16 slot. When the PCIEX8 slot is populated, the PCIEX16 slot operates at up to x8 mode* The PCIEX16 and PCIEX8 slots can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot* :1x PCI Express x16 slot (PCIEX8), integrated in the CPU AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x8 mode The PCIEX8 slot become unavailable when an AMD Ryzen™ 8000 Series-Phoenix 1/ Phoenix 2 processor is used* :Chipset 1x PCI Express x16 slot, supporting PCIe 4.0 and running at x2 (PCIEX2) The PCIEX2 slot shares bandwidth with the M2C_SB connector. The PCIEX2 slot becomes unavailable when a device is installed in the M2C_SB connector* |
| USB | :CPU 3x USB 3.2 Gen 2 Type-A ports (red) on the back panel 1x USB Type-C® port (Note) on the back panel :CPU+USB 2.0 Hub 4x USB 2.0/1.1 ports on the back panel :Chipset 1x USB Type-C® port with USB 3.2 Gen 2×2 support, available through the internal USB header 2x USB 3.2 Gen 1 ports available through the internal USB header 4x USB 2.0/1.1 ports available through the internal USB headers :Chipset+USB 3.2 Gen 1 Hub 4x USB 3.2 Gen 1 ports on the back panel (Note) This USB Type-C® port supports up to 40 Gbps when using AMD Ryzen™ 8000 series processors, and up to 10 Gbps when using AMD Ryzen™ 9000/7000 series processors |
| ממשק אחסון | :1x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type, type 25110/22110/2580/2280 SSDs AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs :1x M.2 connector (M2B_CPU), integrated in the CPU, supporting Socket 3, M key, type, type 25110/22110/2580/2280 SSDs AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x2 SSDs 1x M.2 connector (M2C_SB), integrated in the Chipset, supporting Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0 x2 SSDs 4x SATA 6Gb/s connectors RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices RAID 5 is only available on AMD Ryzen™ 9000 Series Processors* RAID 0, RAID 1, and RAID 10 support for SATA storage devices |
| שמע | Realtek® ALC1220 CODEC The back panel line out jack supports DSD audio* High Definition Audio 2/4/5.1/7.1-channel You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings* Support for S/PDIF Out |
| כרטיס רשת קווי | 2x Marvell® AQtion AQC113C 10GbE LAN chips (10 Gbps/5 Gbps/2.5 Gbps/1 Gbps/100 Mbps) |
| מודול תקשורת אלחוטית | Realtek® Wi-Fi 7 RTL8922AE – 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands – BLUETOOTH 5.4 – Support for 11be 160MHz wireless standard (Actual data rate may vary depending on environment and equipment) Wi-Fi 7 features require Windows 11 SV3 to function properly. (There is no support driver for Windows 10.)* Wi-Fi 7 channels on 6 GHz band availability depends on individual country's regulations** |
| חיבורים פנימיים | 1x 24-pin ATX main power connector 2x 8-pin ATX 12V power connectors 1x CPU fan header 1x CPU fan/water cooling pump header 4x system fan headers 2x system fan/water cooling pump headers 3x addressable RGB Gen2 LED strip headers 1x RGB LED strip header 4x SATA 6Gb/s connectors 3x M.2 Socket 3 connectors 1x front panel header 1x front panel audio header 1x USB Type-C® header, with USB 3.2 Gen 2×2 support 1x USB 3.2 Gen 1 header 2x USB 2.0/1.1 headers 1x noise detection header 1x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) 1x power button 1x reset button 1x reset jumper 1x Clear CMOS jumper 2x temperature sensor headers |

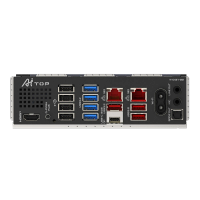

| חיבורים ויציאות | 1x Q-Flash Plus button 2x SMA antenna connectors (2T2R) 1x HDMI port (Note 1) 1x USB Type-C® port (Note 2) (DisplayPort (Note 1)) 3x USB 3.2 Gen 2 Type-A ports (red) 4x USB 3.2 Gen 1 ports 4x USB 2.0/1.1 ports 2x RJ-45 ports 1x optical S/PDIF Out connector 2x audio jacks (Note 1) Actual support may vary by CPU. (Note 2) This USB Type-C® port supports up to 40 Gbps when using AMD Ryzen™ 8000 series processors, and up to 10 Gbps when using AMD Ryzen™ 9000/7000 series processors |
| BIOS | 1x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| תכונות ייחודיות | Support for GIGABYTE Control Center (GCC) Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications* Support for Q-Flash Support for Q-Flash Plus Support for Smart Backup |
| תוכנות מצורפות | Norton® Internet Security (OEM version) LAN bandwidth management software Service discontinued as a result of contract termination by the software provider* |
| תצורה | ATX Form Factor; 30.5cm x 24.4cm |
