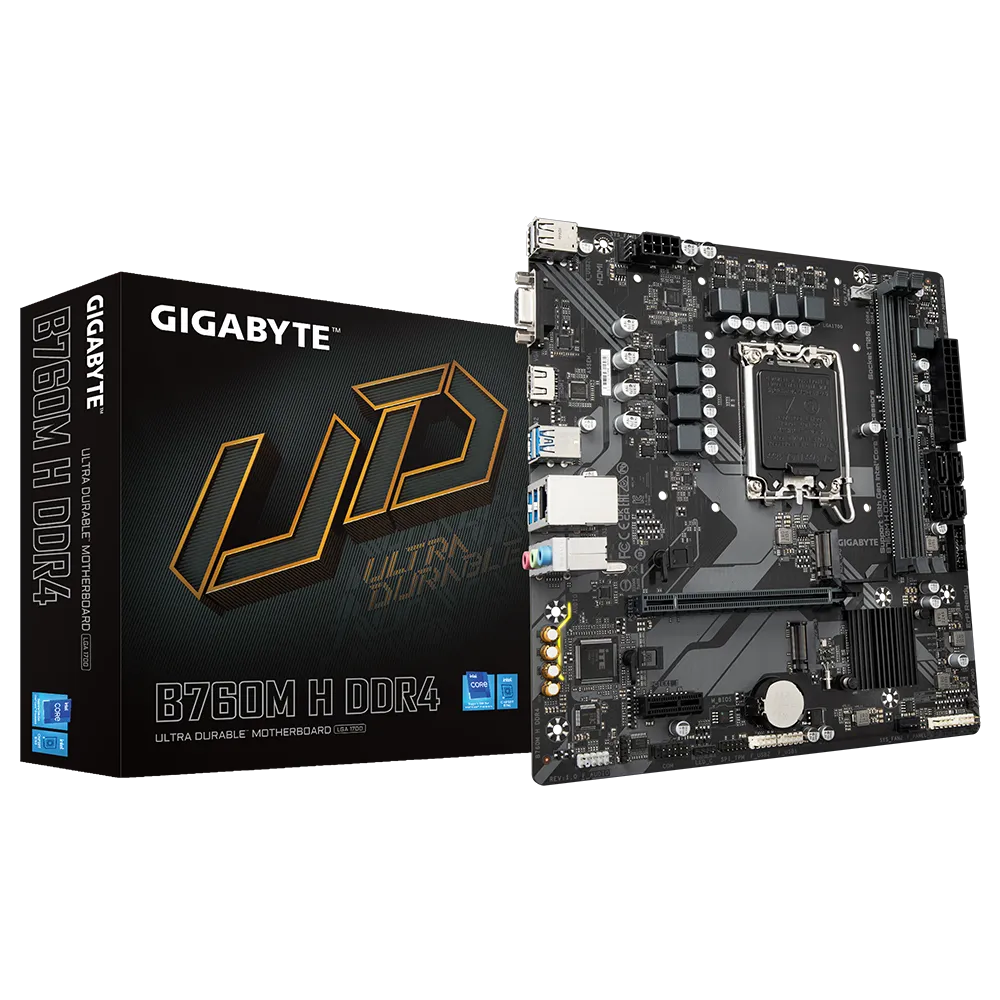

לוח אם – Gigabyte B760M H Micro-ATX LGA1700 DDR4 - צבע שחור
חדש
מק"ט: B760M H DDR4
לוח אם איכותי מבית Gigabyte, בעל תושבת LGA1700, ערכת שבבים B760, תאימות לזיכרונות DDR4 ובעל יציאות תצוגה של HDMI ,VGA.
₪399.00כולל מע"מ
במלאיפריסת תשלומים
₪399.00 לחודש
עד 1 תשלומים ללא ריבית
מפרט טכני
| תקופת אחריות | 3 שנים על ידי היבואן הרשמי |
| יצרן לוח אם | Gigabyte |
| תמיכה במעבדים | LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors L3 cache varies with CPU (Please refer to "CPU Support List" for more information) |
| תמיכה בזיכרונות | Support for DDR4 3200/3000/2933/2666/2400/2133 MT/s memory modules 2x DDR4 DIMM sockets supporting up to 64GB (32 GB single DIMM capacity) of system memory Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules (Please refer "Memory Support List" for more information) |
| גרפיקה מובנית | :Integrated Graphics Processor-Intel® HD Graphics support 1x D-Sub port, supporting a maximum resolution of 1920×1200@60 Hz 1x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz Support for HDMI 2.1 version and HDCP 2.3* Support native HDMI 2.1 TMDS compatible ports** (Graphics specifications may vary depending on CPU support) |
| חריצי הרחבה | :CPU 1x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 .The PCIEX16 slot can only support a graphics card or an NVMe SSD* :Chipset 1x PCI Express x1 slot, supporting PCIe 3.0 and running at x1 |
| USB | :Chipset 6x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header) 6x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers) |
| ממשק אחסון | :CPU 1x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) :Chipset 1x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB) 4x SATA 6Gb/s connectors RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices |
| שמע | Realtek® Audio CODEC High Definition Audio 2/4/5.1/7.1-channel .You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings* Support for S/PDIF Out |
| כרטיס רשת קווי | Realtek® GbE LAN chip (1 Gbps/100 Mbps) |
| מודול תקשורת אלחוטית | ללא |
| חיבורים פנימיים | 1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector 1x CPU fan header 2x system fan headers 1x RGB LED strip header 2x M.2 Socket 3 connectors 4x SATA 6Gb/s connectors 1x front panel header 1x front panel audio header 1x S/PDIF Out header 1x USB 3.2 Gen 1 header 2x USB 2.0/1.1 headers 1x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) 1x serial port header 1x Clear CMOS jumper |
| חיבורים ויציאות | 2x USB 2.0/1.1 ports 1x D-Sub port 1x HDMI port 4x USB 3.2 Gen 1 ports 1x RJ-45 port 3x audio jacks |
| BIOS | 1x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| תכונות ייחודיות | Support for GIGABYTE Control Center (GCC) .Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications* Support for Q-Flash |
| תוכנות מצורפות | Norton® Internet Security (OEM version) LAN bandwidth management software |
| תצורה | Micro ATX Form Factor; 23.0cm x 21.5cm |
