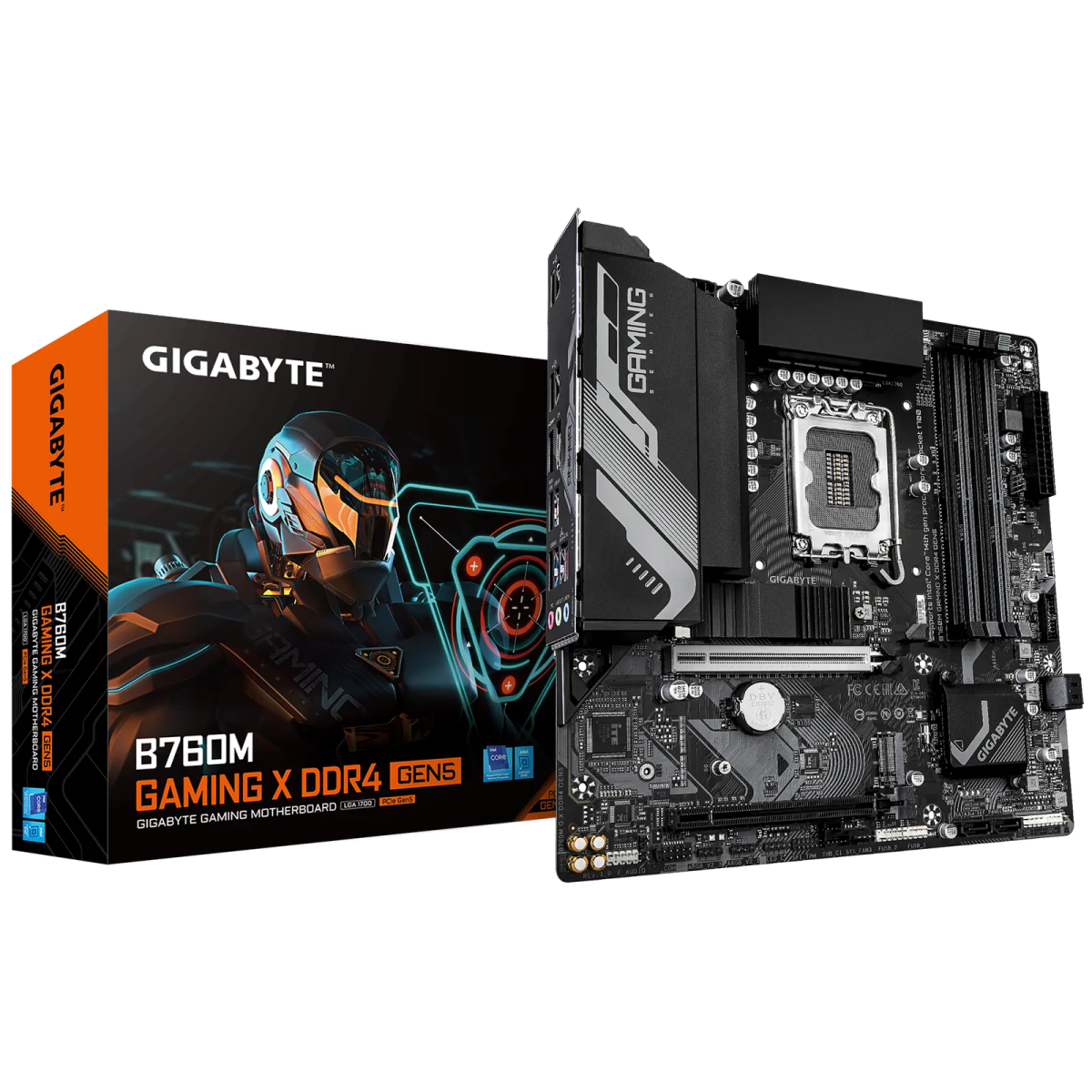

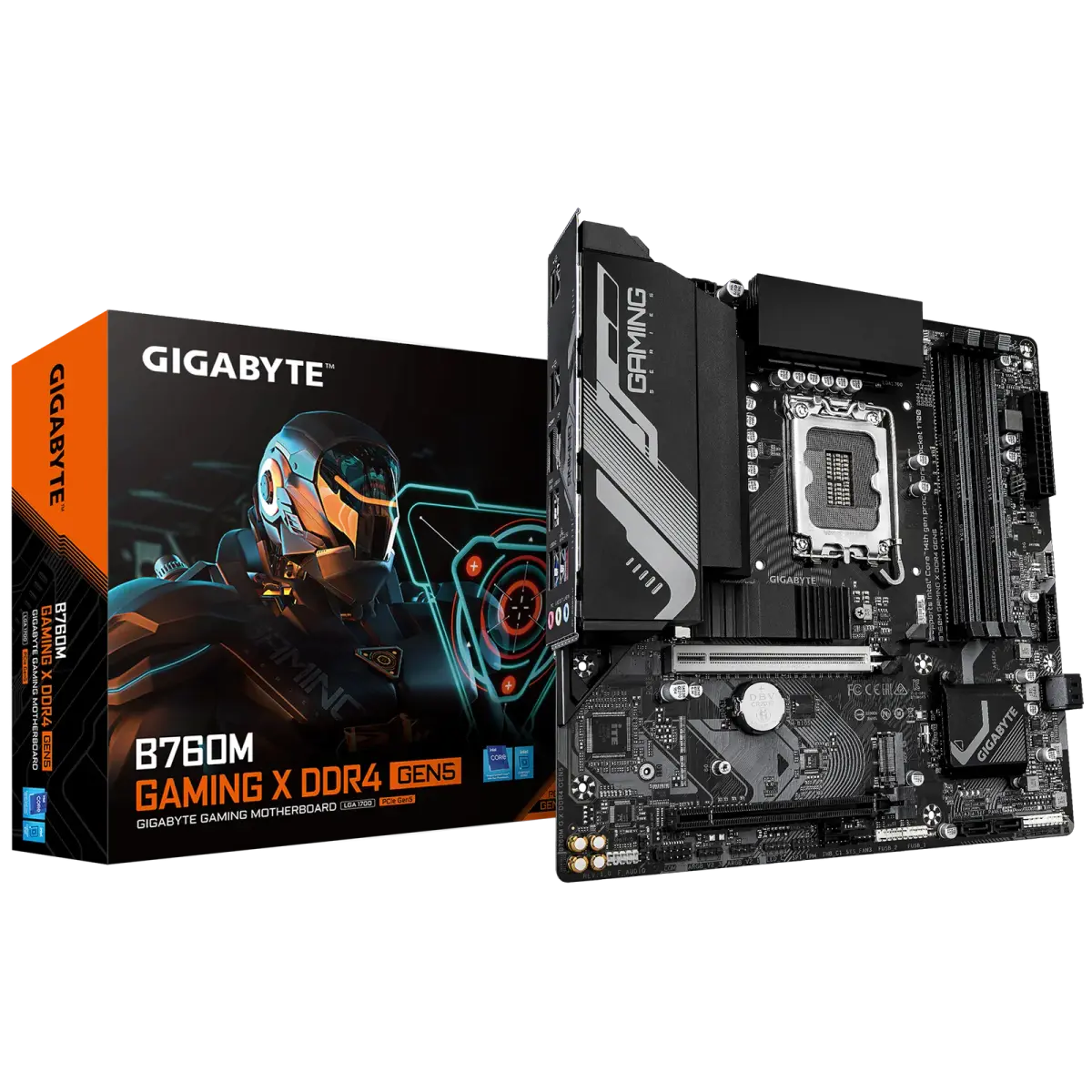

לוח אם – Gigabyte B760M GAMING X DDR4 GEN5 Micro-ATX LGA1700 - צבע שחור
חדש
מק"ט: B760M GAMING X DDR4 GEN5
לוח אם איכותי מבית Gigabyte, בעל תושבת LGA1700, ערכת שבבים B760, תאימות לזיכרונות DDR4 ובעל יציאות תצוגה של HDMI ,DisplayPort.
₪559.00כולל מע"מ
במלאיפריסת תשלומים
₪559.00 לחודש
עד 1 תשלומים ללא ריבית
מפרט טכני
| תקופת אחריות | 3 שנים על ידי היבואן הרשמי |
| יצרן לוח אם | Gigabyte |
| תמיכה במעבדים | LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors (Go to GIGABYTE's website for the latest CPU support list) L3 cache varies with CPU |
| תמיכה בזיכרונות | Support for DDR4 5333(O.C.)/ 5133(O.C.)/ 5000(O.C.)/ 4933(O.C.)/ 4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3800(O.C.)/ 3733(O.C.)/ 3666(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3300(O.C.)/ 3200/ 3000/ 2933/ 2666/ 2400/ 2133 MT/s memory modules 4x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information) |
| גרפיקה מובנית | :Integrated Graphics Processor-Intel® HD Graphics support 1x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz Support for HDMI 2.1 version and HDCP 2.3* Support native HDMI 2.1 TMDS compatible ports** 1x DisplayPort, supporting a maximum resolution of 4096×2304@60 Hz Support for DisplayPort 1.2 version and HDCP 2.3* (Graphics specifications may vary depending on CPU support) |
| חריצי הרחבה | :CPU 1x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16) The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot* :Chipset 1x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4) |
| USB | :Chipset 1x USB Type-C® port with USB 3.2 Gen 2 support, available through the internal USB header 5x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header) 1x USB 2.0/1.1 port on the back panel :Chipset+2 USB 2.0 Hubs 8x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers) |
| ממשק אחסון | :CPU 1x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) :Chipset 1x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB) 4x SATA 6Gb/s connectors RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices |
| שמע | Realtek® Audio CODEC High Definition Audio 2/4/5.1/7.1-channel You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings* Support for S/PDIF Out |
| כרטיס רשת קווי | Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| מודול תקשורת אלחוטית | ללא |
| חיבורים פנימיים | 1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector 1x CPU fan header 3x system fan headers 3x addressable LED strip headers 1x RGB LED strip header 2x M.2 Socket 3 connectors 4x SATA 6Gb/s connectors 1x front panel header 1x front panel audio header 1x S/PDIF Out header 1x USB Type-C® header, with USB 3.2 Gen 2 support 1x USB 3.2 Gen 1 header 2x USB 2.0/1.1 headers 2x Thunderbolt™ add-in card connectors 1x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) 1x serial port header 1x Q-Flash Plus button 1x reset jumper 1x Clear CMOS jumper |
| חיבורים ויציאות | 3x USB 3.2 Gen 1 ports 5x USB 2.0/1.1 ports 2x antenna connectors (2T2R) 1x HDMI port (Note) 1x DisplayPort (Note) 1x RJ-45 port 3x audio jacks (Note) Actual support may vary by CPU |
| BIOS | 1x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| תכונות ייחודיות | Support for GIGABYTE Control Center (GCC) Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications* Support for Q-Flash Support for Q-Flash Plus Support for Smart Backup |
| תוכנות מצורפות | Norton® Internet Security (OEM version) LAN bandwidth management software |
| תצורה | Micro ATX Form Factor; 24.4cm x 24.4cm |
