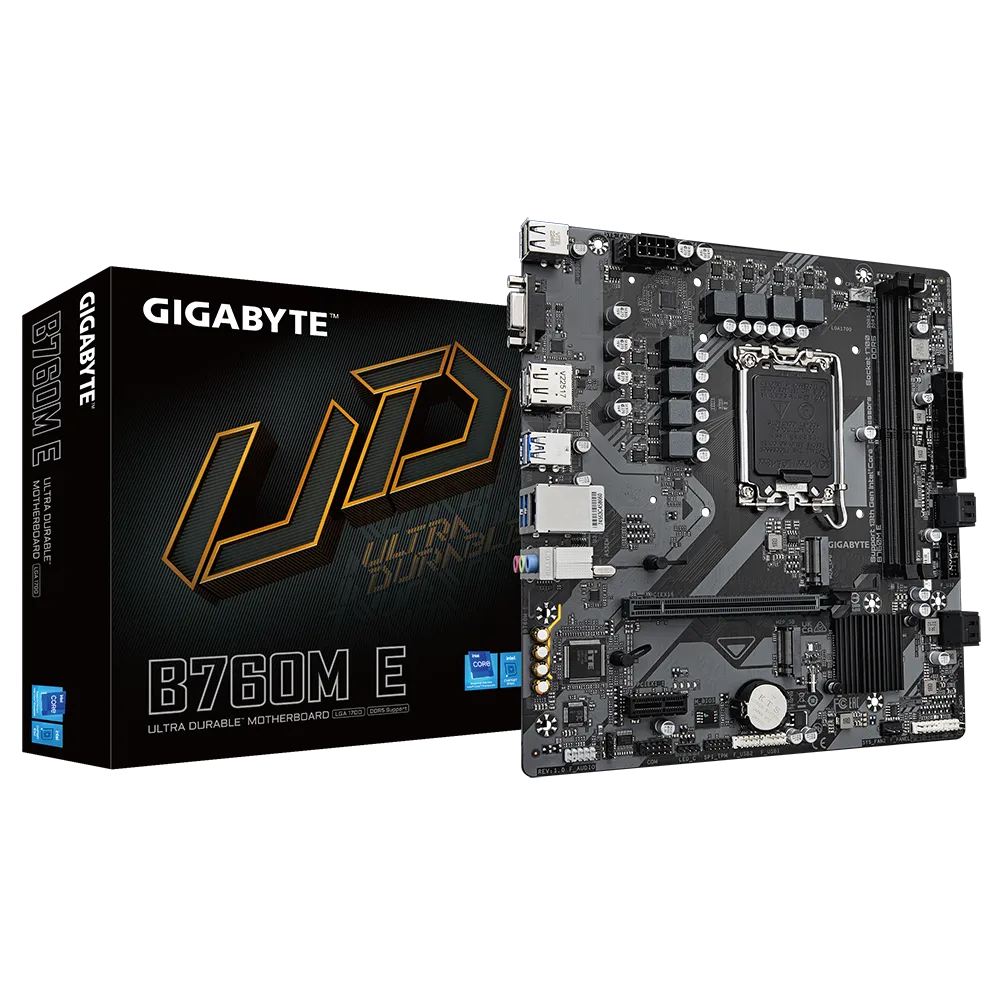

לוח אם – Gigabyte B760M E Micro-ATX LGA1700 DDR5 - צבע שחור
חדש
מק"ט: B760M E
לוח אם איכותי מבית Gigabyte, בעל תושבת LGA1700, ערכת שבבים B760, תאימות לזיכרונות DDR5 ובעל יציאות תצוגה של HDMI ,VGA ,DisplayPort.
₪359.00כולל מע"מ
במלאיפריסת תשלומים
₪359.00 לחודש
עד 1 תשלומים ללא ריבית
מפרט טכני
| תקופת אחריות | 3 שנים על ידי היבואן הרשמי |
| יצרן לוח אם | Gigabyte |
| תמיכה במעבדים | LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors L3 cache varies with CPU (Please refer "CPU Support List" for more information) |
| תמיכה בזיכרונות | Support for DDR5 7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/s memory modules 2x DDR5 DIMM sockets supporting up to 128 GB (64 GB single DIMM capacity) of system memory Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" for more information) |
| גרפיקה מובנית | :Integrated Graphics Processor-Intel® HD Graphics support 1x D-Sub port, supporting a maximum resolution of 1920×1200@60 Hz 1x DisplayPort, supporting a maximum resolution of 4096×2304@60 Hz Support for DisplayPort 1.2 version and HDCP 2.3* 1x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz .Support for HDMI 2.1 version and HDCP 2.3* .Support native HDMI 2.1 TMDS compatible ports** (Graphics specifications may vary depending on CPU support) Support for up to triple-display at the same time |
| חריצי הרחבה | :CPU 1x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 The PCIEX16 slot can only support a graphics card or an NVMe SSD* :Chipset – 1x PCI Express x1 slot, supporting PCIe 3.0 and running at x1 |
| USB | :Chipset – 6x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header) – 6x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers) |
| ממשק אחסון | :CPU 1x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support)(M2A_CPU) :Chipset 1x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support)(M2P_SB) 4x SATA 6Gb/s connectors RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage device |
| שמע | Realtek® Audio CODEC High Definition Audio 2/4/5.1/7.1-channel You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings Support for S/PDIF Out |
| כרטיס רשת קווי | Realtek® GbE LAN chip (1 Gbps/100 Mbps/10 Mbps) |
| מודול תקשורת אלחוטית | ללא |
| חיבורים פנימיים | 1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector 1x CPU fan header 2x system fan headers 1x RGB LED strip header 2x M.2 Socket 3 connectors 4x SATA 6Gb/s connectors 1x front panel header 1x front panel audio header 1x S/PDIF Out header 1x USB 3.2 Gen 1 header 2x USB 2.0/1.1 headers 1x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) 1x serial port header 1x Clear CMOS jumper |
| חיבורים ויציאות | 2x USB 2.0/1.1 ports 1x D-Sub port 1x DisplayPort 1x HDMI port 4x USB 3.2 Gen 1 ports 1x RJ-45 port 3x audio jacks |
| BIOS | 1x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| תכונות ייחודיות | Support for GIGABYTE Control Center (GCC) Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications Support for Q-Flash |
| תוכנות מצורפות | Norton® Internet Security (OEM version) LAN bandwidth management software |
| תצורה | Micro ATX Form Factor; 23.0cm x 21.5cm |
