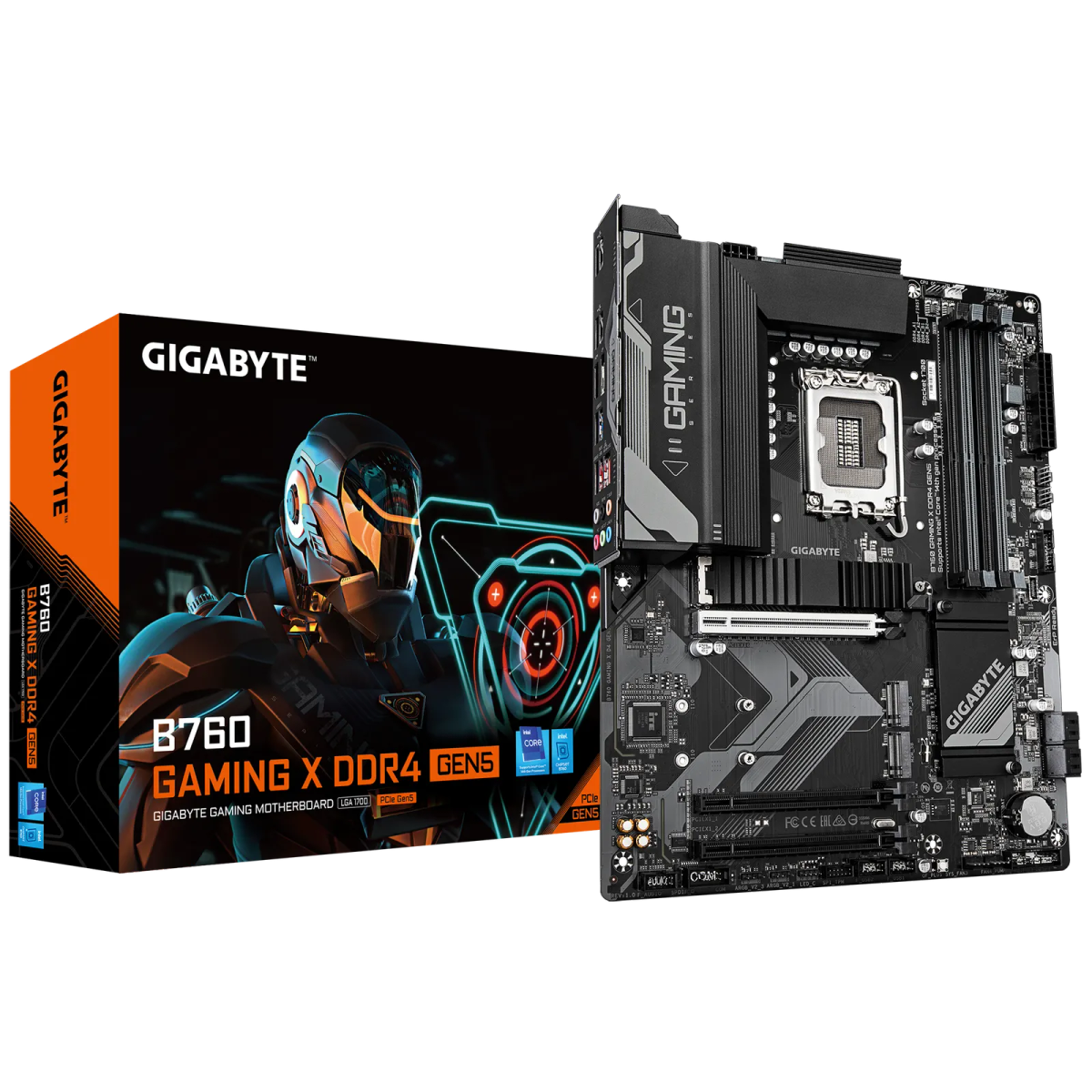

לוח אם – Gigabyte B760 GAMING X DDR4 GEN5 ATX LGA1700 DDR4 - צבע שחור
חדש
מק"ט: B760 GAMING XD4 GEN5
לוח אם איכותי מבית Gigabyte, בעל תושבת LGA1700, ערכת שבבים B760, תאימות לזיכרונות DDR4 ובעל יציאות תצוגה של HDMI ,DisplayPort.
₪575.00כולל מע"מ
במלאיפריסת תשלומים
₪575.00 לחודש
עד 1 תשלומים ללא ריבית
מפרט טכני
| תקופת אחריות | 3 שנים על ידי היבואן הרשמי |
| יצרן לוח אם | Gigabyte |
| תמיכה במעבדים | LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors (Go to GIGABYTE's website for the latest CPU support list) L3 cache varies with CPU |
| תמיכה בזיכרונות | Support for DDR4 5333(O.C.)/ 5133(O.C.)/ 5000(O.C.)/ 4933(O.C.)/ 4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3800(O.C.)/ 3733(O.C.)/ 3666(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3300(O.C.)/ 3200/ 3000/ 2933/ 2666/ 2400/ 2133 MT/s memory modules 4x DDR DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules (Please refer "Memory Support List" for more information) |
| גרפיקה מובנית | Integrated Graphics Processor-Intel® HD Graphics support - 1x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz Support for DisplayPort 1.2 version and HDCP 2.3* - 1x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz Support for HDMI 2.1 version and HDCP 2.3* Support for native HDMI 2.1 TMDS compatible ports** (Graphics specifications may vary depending on CPU support) |
| חריצי הרחבה | :CPU - 1x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16) The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot :Chipset - 2x PCI Express x16 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_1, PCIEX1_2) |
| USB | :Chipset - 1x USB Type-C® port with USB 3.2 Gen 2 support, available through the internal USB header - 1x USB 3.2 Gen 2 Type-A port (red) on the back panel - 4x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header) - 1x USB 2.0/1.1 port on the back panel :Chipset+2 USB 2.0 Hubs - 8x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers) |
| ממשק אחסון | :CPU - 1x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) :Chipset - 2x M.2 connectors (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB, M2M_SB) - 4x SATA 6Gb/s connectors RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices |
| שמע | Realtek® Audio CODEC High Definition Audio 2/4/5.1/7.1-channel You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. Support for S/PDIF Out |
| כרטיס רשת קווי | Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| מודול תקשורת אלחוטית | ללא |
| חיבורים פנימיים | 1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector 1x CPU fan header 1x CPU fan/water cooling pump header 3x system fan headers 1x system fan/water cooling pump header 3x addressable RGB Gen2 LED strip headers 1x RGB LED strip header 3x M.2 Socket 3 connectors 4x SATA 6Gb/s connectors 1x front panel header 1x front panel audio header 1x S/PDIF Out header 1x USB Type-C® header, with USB 3.2 Gen 2 support 1x USB 3.2 Gen 1 header 2x USB 2.0/1.1 headers 1x Trusted Platform Module header (For the GC-TPM2.0 SPI V2 module only) 1x serial port header 1x Q-Flash Plus button 1x reset jumper 1x Clear CMOS jumper |
| חיבורים ויציאות | 1x USB 3.2 Gen 2 Type-A port (red) 2x USB 3.2 Gen 1 ports 5x USB 2.0/1.1 ports 1x DisplayPort* 1x HDMI port* 1x RJ-45 port 6x audio jacks Actual support may vary by CPU* |
| BIOS | 1x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| תכונות ייחודיות | Support for GIGABYTE Control Center (GCC) Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. Support for Q-Flash Support for Q-Flash Plus Support for Smart Backup |
| תוכנות מצורפות | Norton® Internet Security (OEM version) |
| תצורה | ATX Form Factor; 30.5cm x 24.4cm |
