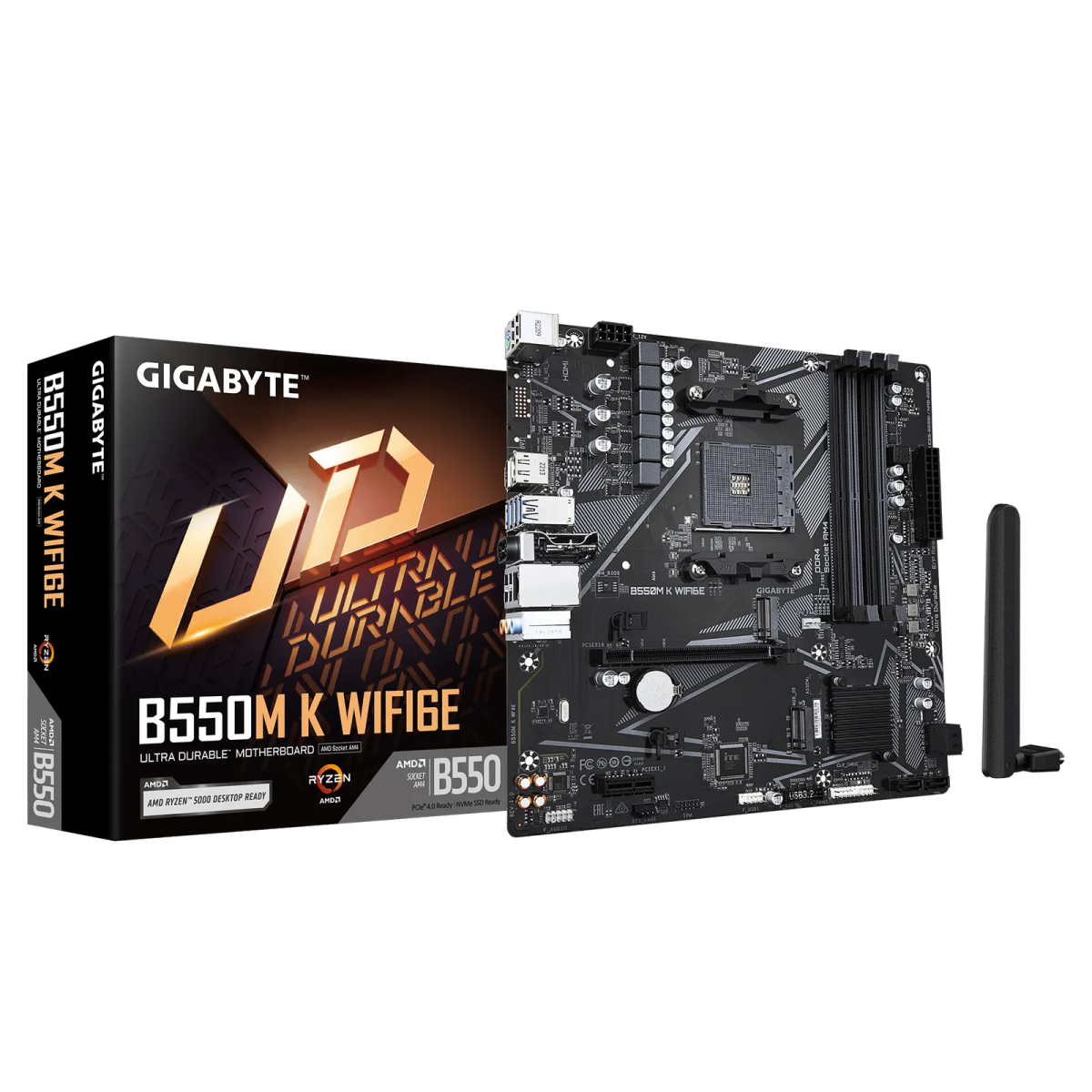

לוח אם – Gigabyte B550M K WIFI6E Micro-ATX AM4 DDR4 - צבע שחור
חדש
מק"ט: B550M K WF6E
לוח אם איכותי מבית Gigabyte, בעל תושבת AM4, ערכת שבבים B550, תאימות לזכרונות DDR4 ובעל יציאות תצוגה של HDMI ,DisplayPort.
₪450.00כולל מע"מ
במלאיפריסת תשלומים
₪450.00 לחודש
עד 1 תשלומים ללא ריבית
מפרט טכני
| תקופת אחריות | 3 שנים על ידי היבואן הרשמי |
| יצרן לוח אם | Gigabyte |
| תמיכה במעבדים | :AMD Socket AM4, support for AMD Ryzen™ 5000 G-Series Processors AMD Ryzen™ 5000 Series Processors AMD Ryzen™ 4000 G-Series Processors AMD Ryzen™ 3000 G-Series Processors AMD Ryzen™ 3000 Series Processors (Go to GIGABYTE's website for the latest CPU support list) |
| תמיכה בזיכרונות | 4x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory Support for DDR4 4733(O.C.) / 4600(O.C.) / 4400(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C) / 3400(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MT/s memory modules Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information) |
| גרפיקה מובנית | Integrated Graphics Processor with AMD Radeon™ Graphics support - 1 x DisplayPort, supporting a maximum resolution of 5120x2880@60 Hz Support for DisplayPort 1.4 version, HDCP 2.3, and HDR* - 1x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz Support for HDMI 2.1 version, HDCP 2.3, and HDR* (Graphics specifications may vary depending on CPU support) Maximum shared memory of 16 GB |
| חריצי הרחבה | :1x PCI Express x16 slot, integrated in the CPU - AMD Ryzen™ 5000 Series/3000 Series Processors support PCIe 4.0 x16 mode - AMD Ryzen™ 5000 G-Series/4000 G-Series/3000 G-Series Processors support PCIe 3.0 x16 mode The PCIEX16 slot can only support a graphics card or an NVMe SSD. 1x PCI Express x1 slot, integrated in the Chipset: - Supporting PCIe 3.0 x1 mode |
| USB | :CPU - 4x USB 3.2 Gen 1 ports on the back panel :Chipset - 2x USB 3.2 Gen 1 ports available through the internal USB header - 6x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header) |
| ממשק אחסון | 1x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2280 SSDs - AMD Ryzen™ 5000 Series/3000 Series Processors support SATA and PCIe 4.0 x4/x2 SSDs - AMD Ryzen™ 5000 G-Series/4000 G-Series/3000 G-Series Processors support SATA and PCIe 3.0 x4/x2 SSDs 1x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 2280 SSDs - Supporting PCIe 3.0 x2 SSDs 4x SATA 6Gb/s connectors, integrated in the Chipset: - Support for RAID 0, RAID 1, and RAID 10 |
| שמע | Realtek® Audio CODEC High Definition Audio 2/4/5.1/7.1-channel You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings |
| כרטיס רשת קווי | Realtek® GbE LAN chip (1 Gbps/100 Mbps/10 Mbps) |
| מודול תקשורת אלחוטית | MediaTek Wi-Fi 6E MT7902 - WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands - BLUETOOTH 5.3 - Support for 11ax 160MHz wireless standard (Actual data rate may vary depending on environment and equipment.) Bluetooth version may change with updates. See the Wi-Fi chip vendor’s website for details |
| חיבורים פנימיים | 1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector 1x CPU fan header 1x system fan header 2x M.2 Socket 3 connectors 4x SATA 6Gb/s connectors 1x front panel header 1x front panel audio header 1x USB 3.2 Gen 1 header 1x USB 2.0/1.1 header 1x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only) 1x Clear CMOS jumper |
| חיבורים ויציאות | 1x PS/2 keyboard/mouse port 1x DisplayPort* 1x HDMI port* 4x USB 3.2 Gen 1 ports 4x USB 2.0/1.1 ports 1x RJ-45 port 2x antenna connectors (1T1R) 3x audio jacks Actual support may vary by CPU* |
| BIOS | 1x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| תכונות ייחודיות | Support for APP Center Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. - @BIOS - EasyTune - Smart Backup - System Information Viewer Support for Q-Flash |
| תוכנות מצורפות | Norton® Internet Security (OEM version) |
| תצורה | Micro ATX Form Factor; 24.4cm x 24.4cm |
