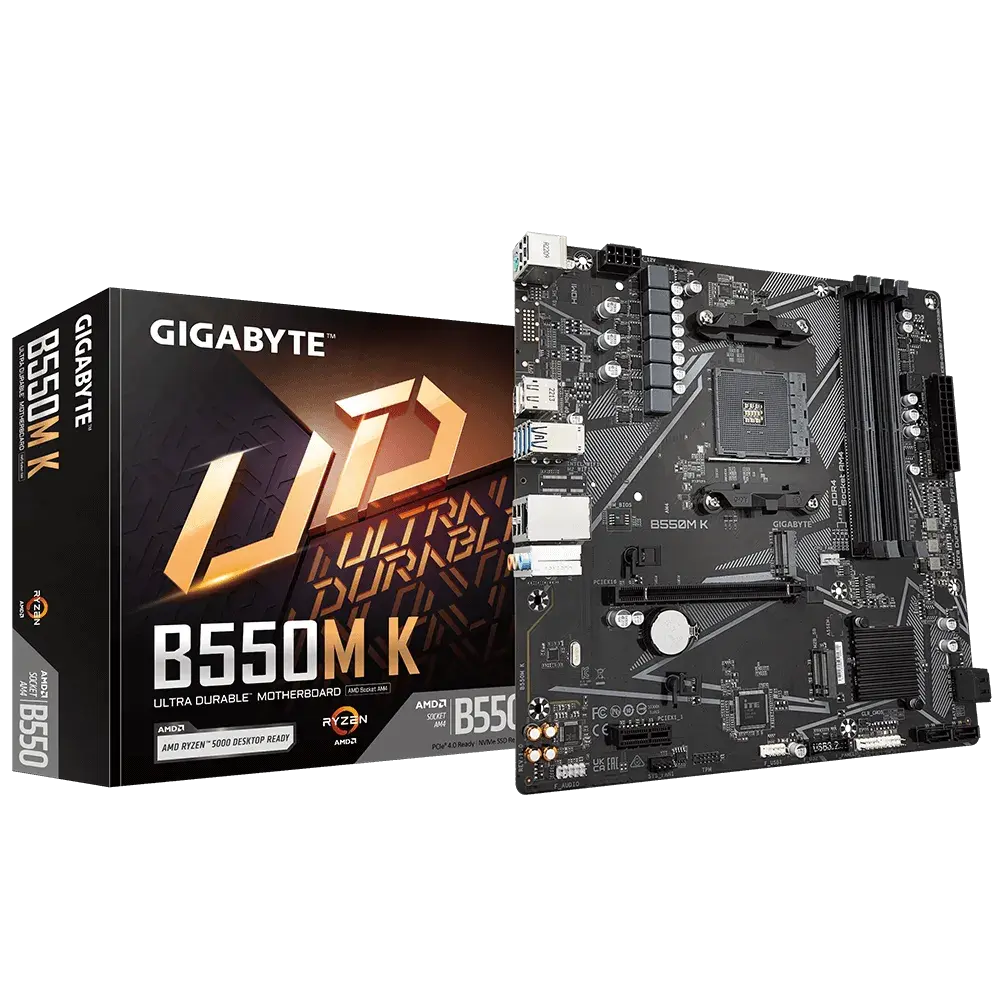

לוח אם – Gigabyte B550M K Micro-ATX AM4 DDR4 - צבע שחור
חדש
מק"ט: B550M K
לוח אם איכותי מבית Gigabyte, בעל תושבת AM4, ערכת שבבים B550M, תאימות לזיכרונות DDR4 ובעל יציאות תצוגה של HDMI ,DisplayPort.
₪370.00כולל מע"מ
במלאיפריסת תשלומים
₪370.00 לחודש
עד 1 תשלומים ללא ריבית
מפרט טכני
| תקופת אחריות | 3 שנים על ידי היבואן הרשמי |
| יצרן לוח אם | Gigabyte |
| תמיכה במעבדים | AMD Socket AM4, support for: AMD Ryzen™ 5000 Series/ Ryzen™ 5000 G-Series/ Ryzen™ 4000 G-Series and Ryzen™ 3000 and Ryzen™ 3000 G-Series Processors |
| תמיכה בזיכרונות | 4x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory Support for DDR4 4733(O.C.) / 4600(O.C.) / 4400(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C) / 3400(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules* ECC memory (ECC mode) support varies by CPU* Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information) |
| גרפיקה מובנית | :Integrated Graphics Processor with AMD Radeon™ Graphics support 1x DisplayPort, supporting a maximum resolution of 5120×2880@60 Hz .Support for DisplayPort 1.4 version, HDCP 2.3, and HDR* 1x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz .Support for HDMI 2.1 version, HDCP 2.3, and HDR* Maximum shared memory of 16 GB |
| חריצי הרחבה | :1x PCI Express x16 slot, integrated in the CPU AMD Ryzen™ 5000 Series*/3000 Series Processors support PCIe 4.0 x16 mode .Actual support may vary by AMD CPU's specification* AMD Ryzen™ 5000 G-Series/4000 G-Series/3000 G-Series Processors support PCIe 3.0 x16 mode :1x PCI Express x1 slot, integrated in the Chipset Supporting PCIe 3.0 x1 mode |
| USB | :CPU 4x USB 3.2 Gen 1 ports on the back panel :Chipset 2x USB 3.2 Gen 1 ports available through the internal USB header 6x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header) |
| ממשק אחסון | :1x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2280 SSDs AMD Ryzen™ 5000 Series/3000 Series Processors support SATA and PCIe 4.0 x4/x2 SSDs AMD Ryzen™ 5000 G-Series/4000 G-Series/3000 G-Series Processors support SATA and PCIe 3.0 x4/x2 SSDs :1x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 2280 SSDs Supporting PCIe 3.0 x2 SSDs :4x SATA 6Gb/s connectors, integrated in the Chipset Support for RAID 0, RAID 1, and RAID 10 |
| שמע | Realtek® Audio CODEC High Definition Audio 2/4/5.1/7.1-channel .You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings* |
| כרטיס רשת קווי | Realtek® GbE LAN chip (1 Gbps/100 Mbps/10 Mbps) |
| מודול תקשורת אלחוטית | ללא |
| חיבורים פנימיים | 1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector 1x CPU fan header 1x system fan header 2x M.2 Socket 3 connectors 4x SATA 6Gb/s connectors 1x front panel header 1x front panel audio header 1x USB 3.2 Gen 1 header 1x USB 2.0/1.1 header 1x Trusted Platform Module (TPM) header (2×6 pin, for the GC-TPM2.0_S module only) 1x Clear CMOS jumper |
| חיבורים ויציאות | 1x PS/2 keyboard/mouse port 1x DisplayPort 1x HDMI port 4x USB 3.2 Gen 1 ports 4x USB 2.0/1.1 ports 1x RJ-45 port 3x audio jacks |
| BIOS | 1x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| תכונות ייחודיות | Support for APP Center .Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications* @BIOS EasyTune Smart Backup System Information Viewer Support for Q-Flash |
| תוכנות מצורפות | Norton® Internet Security (OEM version) LAN bandwidth management software |
| תצורה | Micro ATX Form Factor; 24.4cm x 24.4cm |
