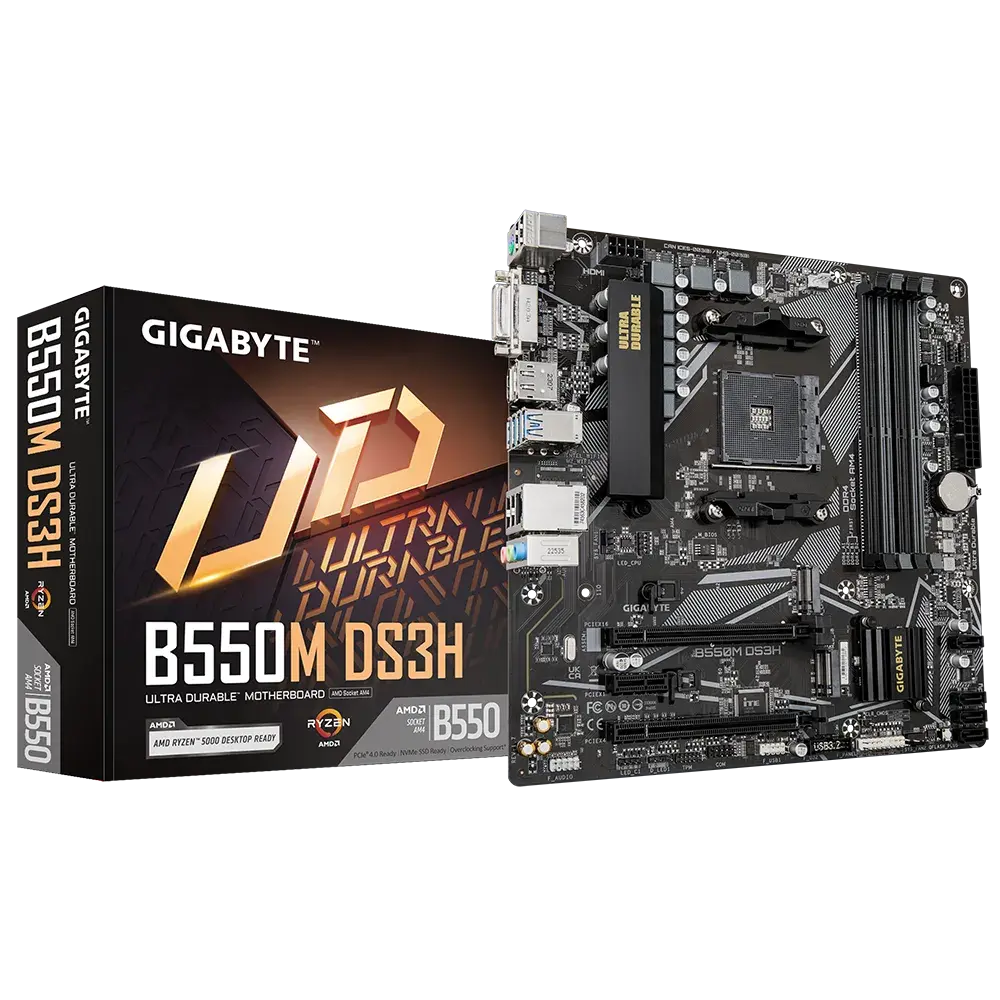

לוח אם – Gigabyte B550M DS3H Micro-ATX AM4 DDR4 - צבע שחור
חדש
מק"ט: B550M DS3H 1.7
לוח אם איכותי מבית Gigabyte, בעל תושבת AM4, ערכת שבבים B550, תאימות לזיכרונות DDR4 ובעל יציאות תצוגה של HDMI ,DVI-D.
₪359.00כולל מע"מ
אזל במלאיפריסת תשלומים
₪359.00 לחודש
עד 1 תשלומים ללא ריבית
מפרט טכני
| תקופת אחריות | 3 שנים על ידי היבואן הרשמי |
| יצרן לוח אם | Gigabyte |
| תמיכה במעבדים | AMD Socket AM4, support for: AMD Ryzen™ 5000 Series/ Ryzen™ 5000 G-Series/ Ryzen™ 4000 G-Series and Ryzen™ 3000 and Ryzen™ 3000 G-Series Processors (Please refer "CPU Support List" for more information) לא תומך מעבדים 3200 ו 3400 |
| תמיכה בזיכרונות | 4x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory Support for DDR4 4733(O.C.) / 4600(O.C.) / 4400(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C) / 3400(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules* ECC memory (ECC mode) support varies by CPU* Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules (Please refer "Memory Support List" for more information) |
| גרפיקה מובנית | :Integrated Graphics Processor 1x DVI-D port, supporting a maximum resolution of 1920×1200@60 Hz The DVI-D port does not support D-Sub connection by adapter* 1x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz Support for HDMI 2.1 version, HDCP 2.3, and HDR* Maximum shared memory of 16 GB |
| חריצי הרחבה | 1x PCI Express x16 slot (PCIEX16), integrated in the CPU AMD Ryzen™ 5000 Series* and Ryzen™ 3000 Series Processors support PCIe 4.0 x16 mode .Actual support may vary by AMD CPU's specification* AMD Ryzen™ Ryzen™ 5000 G-Series and Ryzen™ 4000 G-Series Processors support PCIe 3.0 x16 mode .For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot* 1x PCI Express x16 slot (PCIEX4), integrated in the Chipset Supporting PCIe 3.0 x4 mode 1x PCI Express x1 slot (PCIEX1), integrated in the Chipset Supporting PCIe 3.0 x1 mode |
| USB | :CPU 4x USB 3.2 Gen 1 ports on the back panel :Chipset 2x USB 3.2 Gen 1 ports available through the internal USB header 6x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header) |
| ממשק אחסון | 1x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2242/2260/2280/22110 SSDs AMD Ryzen™ 5000 Series and Ryzen™ 3000 Series Processors support SATA and PCIe 4.0 x4/x2 SSDs AMD Ryzen™ Ryzen™ 5000 G-Series and Ryzen™ 4000 G-Series Processors support SATA and PCIe 3.0 x4/x2 SSDs 1x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 2242/2260/2280 SSDs Supporting SATA and PCIe 3.0 x2 SSDs 4x SATA 6Gb/s connectors, integrated in the Chipset Support for RAID 0, RAID 1, and RAID 10 |
| שמע | Realtek® Audio CODEC High Definition Audio 2/4/5.1/7.1-channel To configure 7.1-channel audio, you need to open the audio software and select Device advanced settings > Playback Device to change the default setting first. Please visit GIGABYTE's website for details on configuring the audio software |
| כרטיס רשת קווי | Realtek® GbE LAN chip (10/100/1000 Mbit) |
| מודול תקשורת אלחוטית | ללא |
| חיבורים פנימיים | 1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector 1x CPU fan header 2x system fan headers 2x addressable LED strip headers 2x RGB LED strip headers 1x CPU cooler LED strip/RGB LED strip header 2x M.2 Socket 3 connectors 4x SATA 6Gb/s connectors 1x front panel header 1x front panel audio header 1x USB 3.2 Gen 1 header 1x USB 2.0/1.1 header 1x Trusted Platform Module (TPM) header (2×6 pin, for the GC-TPM2.0_S module only) 1x serial port header 1x Clear CMOS jumper 1x Q-Flash Plus button .All fan headers are subject to support AIO_Pump, Pump and high performance fan with the capability of delivering up to 2A/12V @ 24W* |
| חיבורים ויציאות | 1x PS/2 keyboard/mouse port 1x DVI-D port 1x HDMI port 4x USB 3.2 Gen 1 ports 4x USB 2.0/1.1 ports 1x RJ-45 port 3x audio jacks |
| BIOS | 1x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| תכונות ייחודיות | Support for APP Center .Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications* @BIOS EasyTune ON/OFF Charge RGB Fusion Smart Backup System Information Viewer Support for Q-Flash Plus Support for Q-Flash Support for Xpress Install |
| תוכנות מצורפות | Norton® Internet Security (OEM version) LAN bandwidth management software |
| תצורה | Micro ATX Form Factor; 24.4cm x 24.4cm |
