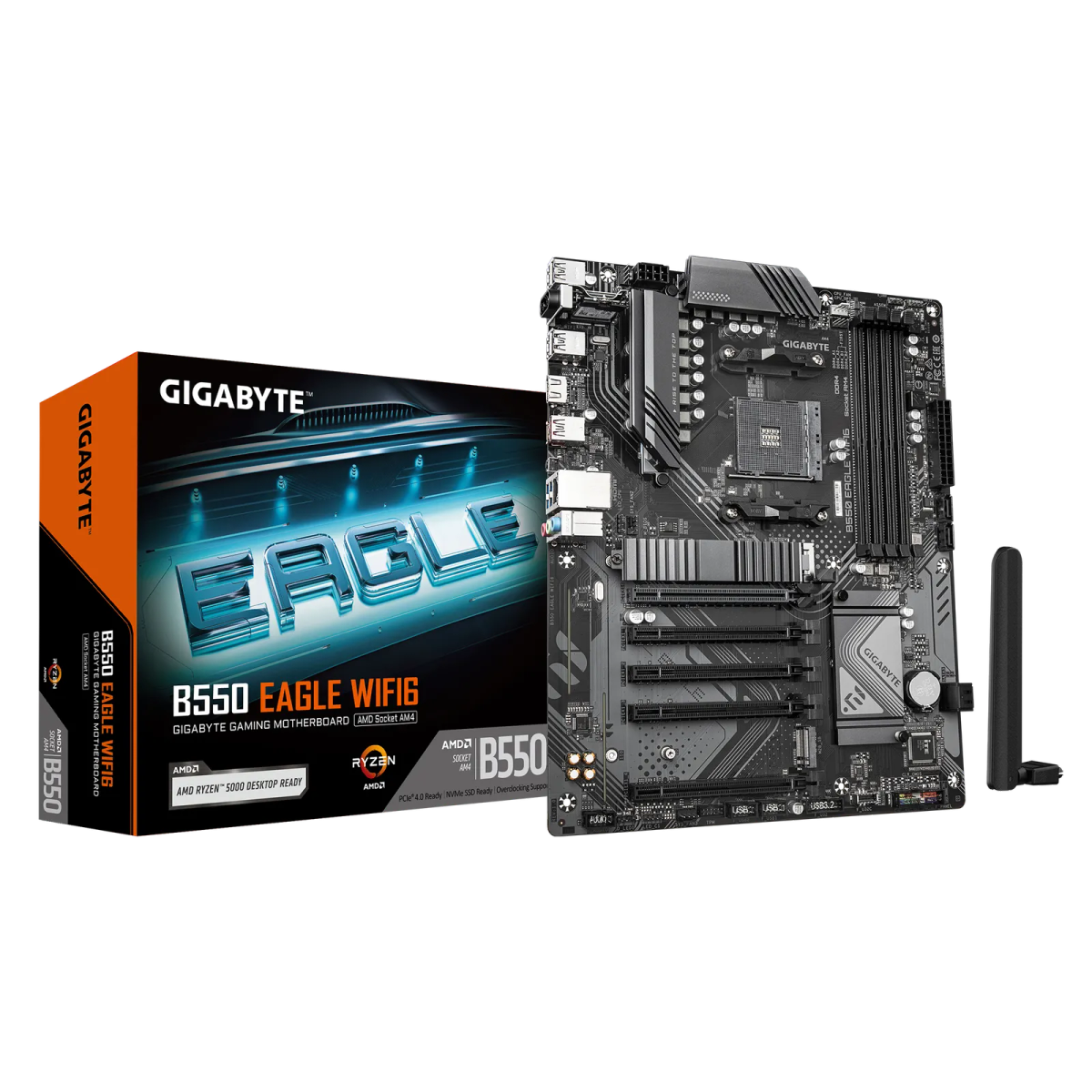

לוח אם – Gigabyte B550 EAGLE WIFI6 ATX AM4 DDR4 - צבע שחור
חדש
מק"ט: B550 EAGLE WIFI6
לוח אם איכותי מבית Gigabyte, בעל תושבת AM4, ערכת שבבים B550, תאימות לזיכרונות DDR4 ובעל יציאת תצוגה של HDMI.
₪530.00כולל מע"מ
במלאיפריסת תשלומים
₪530.00 לחודש
עד 1 תשלומים ללא ריבית
מפרט טכני
| תקופת אחריות | 3 שנים על ידי היבואן הרשמי |
| יצרן לוח אם | Gigabyte |
| תמיכה במעבדים | :AMD Socket AM4, support for AMD Ryzen™ 5000 G-Series Processors AMD Ryzen™ 5000 Series Processors AMD Ryzen™ 4000 G-Series Processors AMD Ryzen™ 3000 G-Series Processors AMD Ryzen™ 3000 Series Processors (Go to GIGABYTE's website for the latest CPU support list) |
| תמיכה בזיכרונות | 4x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory Support for DDR4 3200/2933/2667/2400/2133 MT/s memory modules Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information) |
| גרפיקה מובנית | :Integrated Graphics Processor with AMD Radeon™ Graphics support 1x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz .Support for HDMI 2.1 version, HDCP 2.3, and HDR* .Support for native HDMI 2.1 TMDS compatible ports** (Graphics specifications may vary depending on CPU support) Maximum shared memory of 16 GB |
| חריצי הרחבה | :1x PCI Express x16 slot (PCIEX16), integrated in the CPU AMD Ryzen™ 5000/3000 Series Processors support PCIe 4.0 x16 mode AMD Ryzen™ 5000 G/4000 G/3000 G Series Processors support PCIe 3.0×16 mode .The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot* :Chipset 4x PCI Express x16 slots, supporting PCIe 3.0 and running at x1(PCIEX1_1, PCIEX1_2, PCIEX1_3, PCIEX1_4) |
| USB | :CPU AMD Ryzen™ 5000/3000 Series Processors support one USB 3.2 Gen 2 Type-A port (red) on the back panel – AMD Ryzen™ 5000 G/4000 G/3000 G-Series Processors support one USB 3.2 Gen 1 port (red) on the back panel – 1x USB Type-C® port on the back panel, with USB 3.2 Gen 1 support 2x USB 3.2 Gen 1 ports on the back panel :Chipset 1x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header 2x USB 3.2 Gen 1 ports available through the internal USB header 4x USB 2.0/1.1 ports available through the internal USB headers :Chipset+USB 2.0 Hub 4x USB 2.0/1.1 ports on the back panel |
| ממשק אחסון | :1x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs AMD Ryzen™ 5000/3000 Series Processors support SATA and PCIe 4.0×4/x2 SSDs AMD Ryzen™ 5000 G/4000 G/3000 G Series Processors support SATA and PCIe 3.0 x4/x2 SSDs 1x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 22110/2280 PCIe 3.0 x4/x2 SSDs 4x SATA 6Gb/s connectors RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices RAID 0, RAID 1, and RAID 10 support for SATA storage devices |
| שמע | Realtek® Audio CODEC High Definition Audio 2/4/5.1/7.1-channel .You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings* |
| כרטיס רשת קווי | Realtek® GbE LAN chip (1 Gbps/100 Gbps/10 Mbps) |
| מודול תקשורת אלחוטית | Realtek® Wi-Fi 6 RTL8851BE WIFI a, b, g, n, ac, ax, supporting 2.4/5 GHz carrier frequency bands – BLUETOOTH 5.3 – Support for 11ax 80MHz wireless standard – (Actual data rate may vary depending on environment and equipment) |
| חיבורים פנימיים | 1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector 1x CPU fan header 1x CPU fan/water cooling pump header 3x system fan headers 2x addressable LED strip headers 2x RGB LED strip headers 1x CPU cooler LED strip/RGB LED strip header 2x M.2 Socket 3 connectors 4x SATA 6Gb/s connectors 1x front panel header 1x front panel audio header 1x USB Type-C® header, with USB 3.2 Gen 1 support 1x USB 3.2 Gen 1 header 2x USB 2.0/1.1 headers 1x Trusted Platform Module (TPM) header (2×6 pin, for the GC-TPM2.0_S module only) 1x Clear CMOS jumper |
| חיבורים ויציאות | 4x USB 2.0/1.1 ports 2x antenna connectors (1T1R) 1x HDMI port (Note) 1x USB 3.2 Gen 2 Type-A (Note)/USB 3.2 Gen 1 port (red) 1x USB Type-C® port, with USB 3.2 Gen 1 support 1x Q-Flash Plus button 1x RJ-45 port 2x USB 3.2 Gen 1 ports 3x audio jacks (Note) Actual support may vary by CPU |
| BIOS | 1x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| תכונות ייחודיות | Support for APP Center .Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications* @BIOS EasyTune RGB Fusion Smart Backup System Information Viewer Support for Q-Flash Plus Support for Q-Flash |
| תוכנות מצורפות | Norton® Internet Security (OEM version) LAN bandwidth management software |
| תצורה | ATX Form Factor; 30.5cm x 24.4cm |
