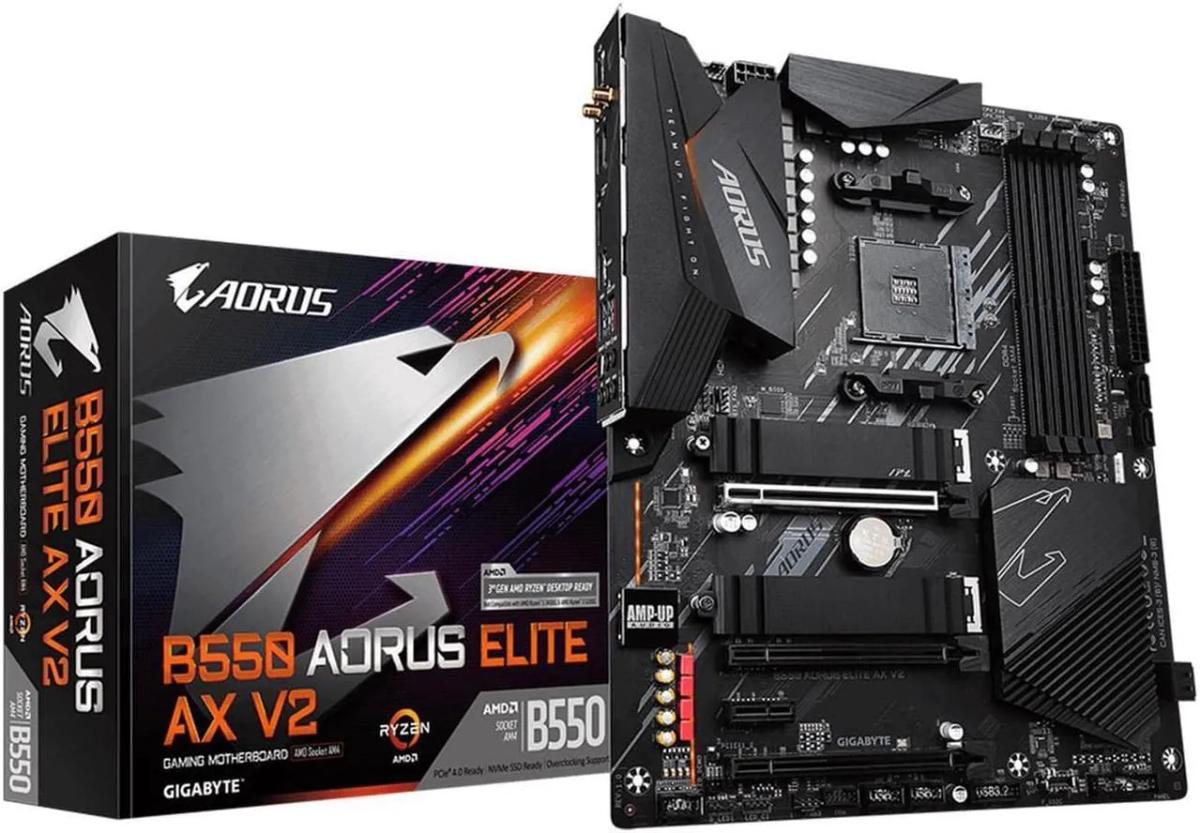

לוח אם – Gigabyte B550 AORUS ELITE AX V2 ATX AM4 DDR4 - צבע שחור
חדש
מק"ט: B550 AORUS ELITE AX V2
לוח אם איכותי מבית Gigabyte, בעל תושבת AM4, ערכת שבבים B550, תאימות לזיכרונות DDR4 ובעל יציאות תצוגה של HDMI ,DisplayPort.
₪665.00כולל מע"מ
אזל במלאיפריסת תשלומים
₪665.00 לחודש
עד 1 תשלומים ללא ריבית
מפרט טכני
| תקופת אחריות | 3 שנים על ידי היבואן הרשמי |
| יצרן לוח אם | Gigabyte |
| תמיכה במעבדים | AMD Socket AM4, support for: AMD Ryzen™ 5000 Series/ Ryzen™ 5000 G-Series/ Ryzen™ 4000 G-Series, Ryzen™ 3000 Series and Ryzen™ 3000 G-Series Processors (Please refer "CPU Support List" for more information) |
| תמיכה בזיכרונות | 4x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory Support for DDR4 4733(O.C.) / 4600(O.C.) / 4400(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C) / 3400(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules* ECC memory (ECC mode) support varies by CPU* Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules (Please refer "Memory Support List" for more information) |
| גרפיקה מובנית | :Integrated Graphics Processor 1x DisplayPort, supporting a maximum resolution of 5120×2880@60 Hz Support for DisplayPort 1.4 version, HDCP 2.3, and HDR* 1x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz Support for HDMI 2.1 version, HDCP 2.3, and HDR* Maximum shared memory of 16 GB |
| חריצי הרחבה | :1x PCI Express x16 slot (PCIEX16), integrated in the CPU AMD Ryzen™ 5000 Series* and Ryzen™ 3000 Series Processors support PCIe 4.0 x16 mode Actual support may vary by AMD CPU's specification* AMD Ryzen™ 5000 G-Series/4000 G-Series/3000 G-Series Processors support PCIe 3.0 x16 mode For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot* :1x PCI Express x16 slot (PCIEX2), integrated in the Chipset Supporting PCIe 3.0 x2 mode :1x PCI Express x16 slot (PCIEX1_2), integrated in the Chipset Supporting PCIe 3.0 x1 mode :1x PCI Express x1 slot (PCIEX1_1), integrated in the Chipset Supporting PCIe 3.0 x1 mode |
| USB | :CPU AMD Ryzen™ 5000 Series/3000 Series Processors support two USB 3.2 Gen 2 Type-A ports (red) on the back panel AMD Ryzen™ 5000 G-Series/4000 G-Series/3000 G-Series Processors support two USB 3.2 Gen 1 ports (red) on the back panel 2x USB 3.2 Gen 1 ports on the back panel :Chipset 1x USB Type-C™ port with USB 3.2 Gen 1 support, available through the internal USB header 1x USB 3.2 Gen 1 port on the back panel 2x USB 3.2 Gen 1 ports available through the internal USB header 2x USB 2.0/1.1 ports on the back panel :Chipset+USB 2.0 Hub 4x USB 2.0/1.1 ports available through the internal USB headers |
| ממשק אחסון | :1x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2242/2260/2280/22110 SSDs AMD Ryzen™ 5000 Series/3000 Series Processors support SATA and PCIe 4.0 x4/x2 SSDs AMD Ryzen™ 5000 G-Series/4000 G-Series/3000 G-Series Processors support SATA and PCIe 3.0 x4/x2 SSDs :1x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 2242/2260/2280/22110 SSDs Supporting SATA and PCIe 3.0 x4/x2 SSDs :4x SATA 6Gb/s connectors, integrated in the Chipset Support for RAID 0, RAID 1, and RAID 10 |
| שמע | Realtek® Audio CODEC High Definition Audio 2/4/5.1/7.1-channel Support for S/PDIF Out |
| כרטיס רשת קווי | Realtek® 2.5GbE LAN chip (2.5 Gbit/1 Gbit/100 Mbit) |
| מודול תקשורת אלחוטית | Realtek® Wi-Fi 6E RTL8852CE (For PCB rev. 1.4, 1.5) WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands BLUETOOTH 5.2 Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate (Actual data rate may vary depending on environment and equipment) |
| חיבורים פנימיים | 1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector 2x M.2 Socket 3 connectors 4x SATA 6Gb/s connectors 1x CPU fan header 1x water cooling CPU fan header 3x system fan headers 1x CPU cooler LED strip/RGB LED strip header 2x addressable LED strip headers 2x RGB LED strip headers 1x front panel header 1x front panel audio header 1x USB Type-C™ port, with USB 3.2 Gen 1 support 1x USB 3.2 Gen 1 header 2x USB 2.0/1.1 headers 1x Trusted Platform Module (TPM) header (2×6 pin, for the GC-TPM2.0_S module only) 1x Clear CMOS jumper .All fan headers are subject to support AIO_Pump, Pump and high performance fan with the capability of delivering up to 2A/12V @ 24W* |
| חיבורים ויציאות | 1x DisplayPort 1x HDMI port 2x SMA antenna connectors (2T2R) 2x USB 3.2 Gen 2 Type-A*/USB 3.2 Gen 1 ports (red) .For AMD Ryzen™ 5000 Series/3000 Series Processors only* 3x USB 3.2 Gen 1 ports 2x USB 2.0/1.1 ports 1x Q-Flash Plus button 1x RJ-45 port 1x optical S/PDIF Out connector 5x audio jacks |
| BIOS | 1x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| תכונות ייחודיות | Support for APP Center .Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications* @BIOS EasyTune RGB Fusion Smart Backup System Information Viewer Support for Q-Flash Plus Support for Q-Flash |
| תוכנות מצורפות | Norton® Internet Security (OEM version) LAN bandwidth management software |
| תצורה | ATX Form Factor; 30.5cm x 24.4cm |
