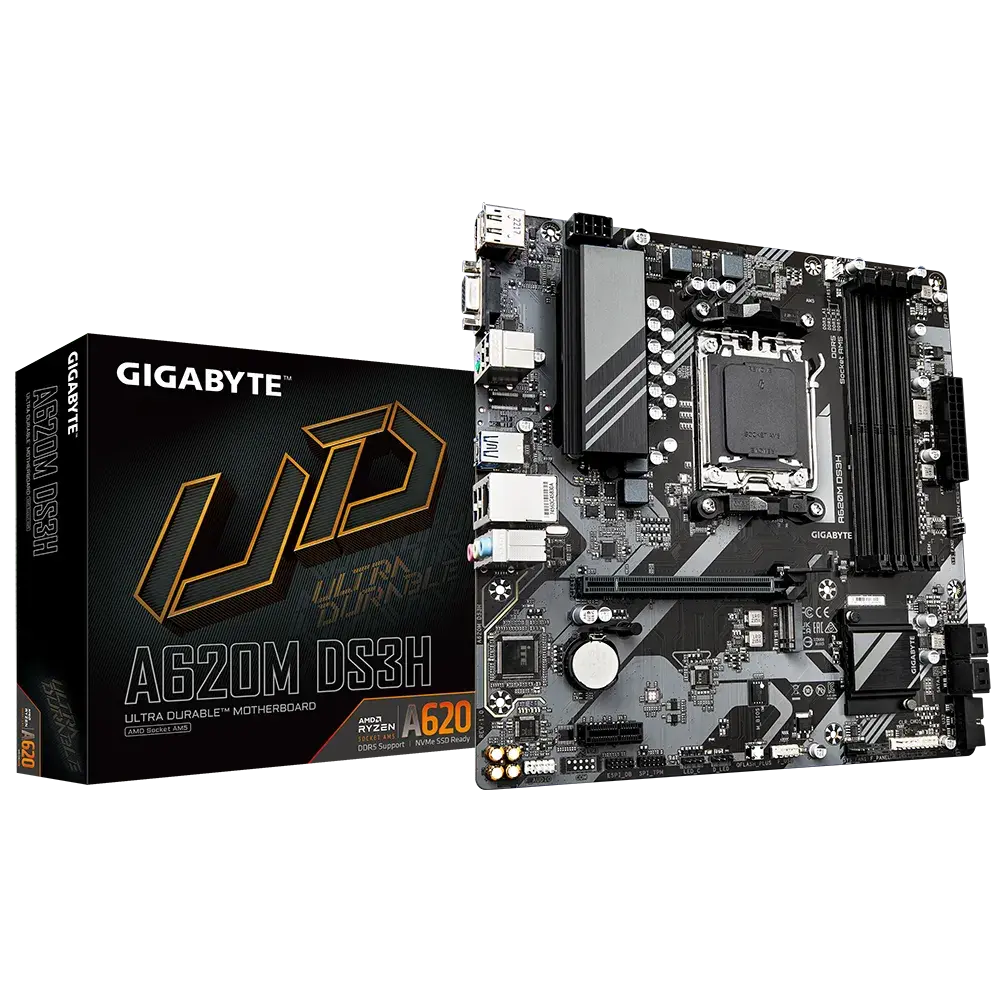

לוח אם – Gigabyte A620M DS3H Micro-ATX AM5 DDR5 - צבע שחור
חדש
מק"ט: A620M DS3H
לוח אם איכותי מבית Gigabyte, בעל תושבת AM5, ערכת שבבים A620, תאימות לזכרונות DDR5 ובעל יציאות תצוגה של VGA, HDMI ,DisplayPort.
₪399.00כולל מע"מ
במלאיפריסת תשלומים
₪399.00 לחודש
עד 1 תשלומים ללא ריבית
מפרט טכני
| תקופת אחריות | 3 שנים על ידי היבואן הרשמי |
| יצרן לוח אם | Gigabyte |
| תמיכה במעבדים | :AMD Socket AM5, support for AMD Ryzen™ 7000 / Ryzen™ 8000 / Ryzen™ 9000 Series Processors (Please refer "CPU Support List" for more information) |
| תמיכה בזיכרונות | Support for DDR5 8000(OC)/ 7800(OC)/ 7600(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5600(OC)/ 5200/ 4800 MT/s memory modules 4x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory Dual channel memory architecture Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information) |
| גרפיקה מובנית | :Integrated Graphics Processor 1x DisplayPort, supporting a maximum resolution of 3840×2160@144 Hz .Support for DisplayPort 1.4 version* 1x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz .Support for HDMI 2.1 version and HDCP 2.3* .Support for native HDMI 2.1 TMDS compatible ports* 1x D-Sub port, supporting a maximum resolution of 1920×1200@60 Hz Support for up to triple-display at the same time (Graphics specifications may vary depending on CPU support) |
| חריצי הרחבה | :1x PCI Express x16 slot (PCIEX16), integrated in the CPU AMD Ryzen™ 7000 Series Processors support PCIe 4.0 x16 mode – AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode – AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode – .The PCIEX16 slot can only support a graphics card or an NVMe SSD* :Chipset 1x PCI Express x1 slot, supporting PCIe 3.0 and running at x1 (PCIEX1) |
| USB | :CPU 1x USB Type-C® port on the back panel, with USB 3.2 Gen 1 support 1x USB 3.2 Gen 1 port on the back panel 1x USB 2.0/1.1 port on the back panel :Chipset 2x USB 3.2 Gen 1 ports available through the internal USB header 5x USB 2.0/1.1 ports (3 ports on the back panel, 2 ports available through the internal USB header) |
| ממשק אחסון | :1x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2580/2280 SSDs AMD Ryzen™ 7000 Series Processors support PCIe 4.0 x4/x2 SSDs AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs 4x SATA 6Gb/s connectors RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices RAID 0, RAID 1, and RAID 10 support for SATA storage devices |
| שמע | Realtek® Audio CODEC High Definition Audio 2/4/5.1/7.1-channel .You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings* |
| כרטיס רשת קווי | Realtek® GbE LAN chip (1 Gbps/100 Mbps/10 Mbps) |
| מודול תקשורת אלחוטית | ללא |
| חיבורים פנימיים | 1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector 1x CPU fan header 2x system fan headers 1x addressable LED strip header(D_LED1) 1x addressable LED strip header(D_LED2) 1x RGB LED strip header 1x M.2 Socket 3 connector 4x SATA 6Gb/s connectors 1x front panel header 1x front panel audio header 1x USB 3.2 Gen 1 header 1x USB 2.0/1.1 header 1x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 / GC-TPM2.0 SPI V2 module only) 1x Clear CMOS jumper |
| חיבורים ויציאות | 1x PS/2 keyboard/mouse port 1x USB Type-C® port, with USB 3.2 Gen 1 support 1x USB 3.2 Gen 1 port 4x USB 2.0/1.1 ports 1x HDMI port 1x DisplayPort 1x D-Sub port 1x RJ-45 port 3x audio jacks |
| BIOS | 1x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| תכונות ייחודיות | Support for GIGABYTE Control Center (GCC) .Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications* Support for Q-Flash Support for Q-Flash Plus |
| תוכנות מצורפות | Norton® Internet Security (OEM version) LAN bandwidth management software |
| תצורה | Micro ATX Form Factor; 24.4cm x 24.4cm |
