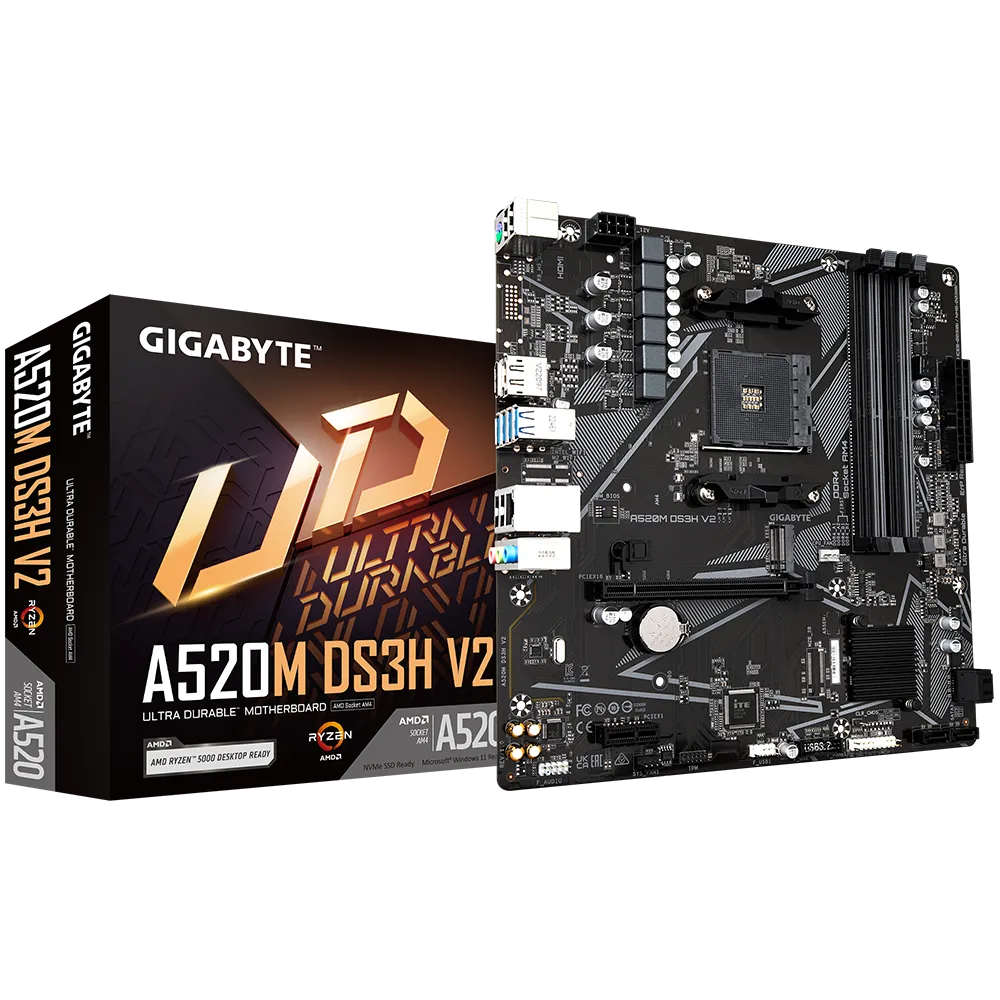

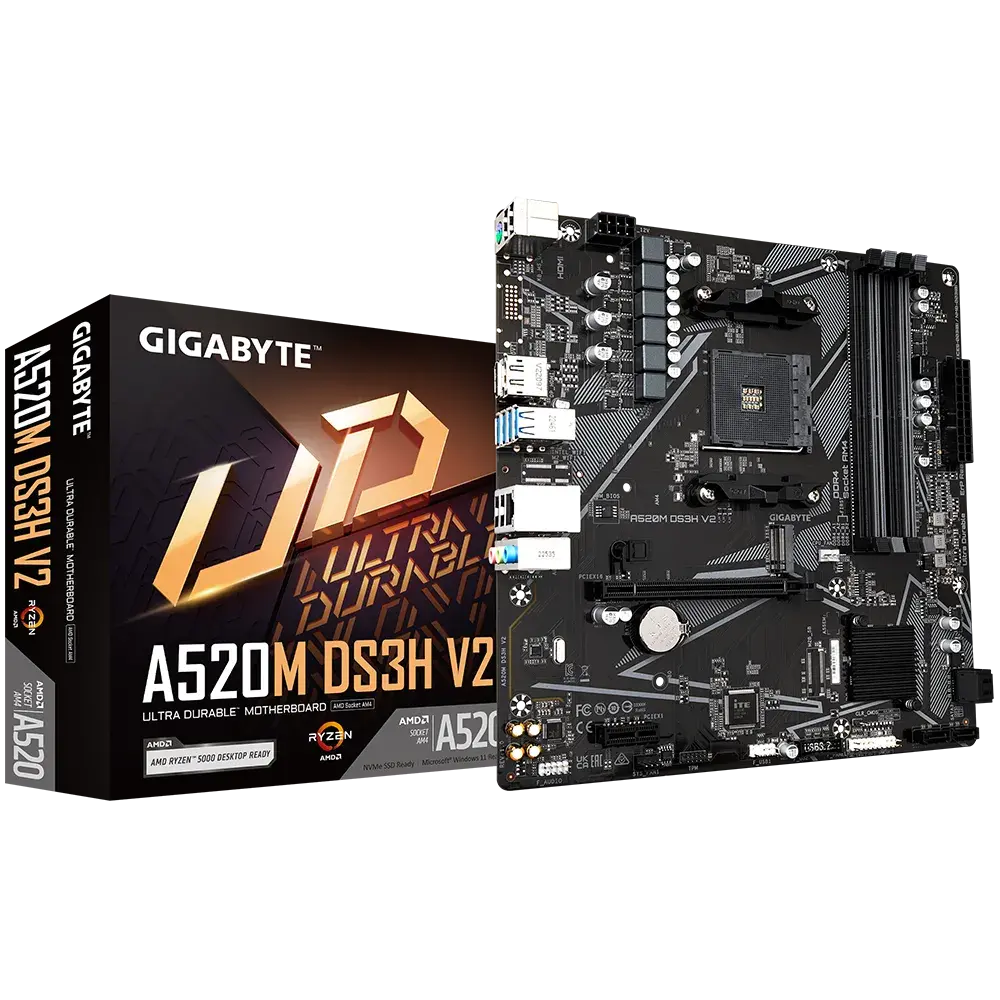

לוח אם – Gigabyte A520M DS3H V2 Micro-ATX AM4 DDR4 - צבע שחור
חדש
מק"ט: A520M DS3H V2 1.0
לוח אם איכותי מבית Gigabyte, בעל תושבת AM4, ערכת שבבים A520, תאימות לזיכרונות DDR4 ובעל יציאות תצוגה של HDMI ,DisplayPort.
₪305.00כולל מע"מ
במלאיפריסת תשלומים
₪305.00 לחודש
עד 1 תשלומים ללא ריבית
מפרט טכני
| תקופת אחריות | 3 שנים על ידי היבואן הרשמי |
| יצרן לוח אם | Gigabyte |
| תמיכה במעבדים | AMD Socket AM4, support for: AMD Ryzen™ 5000 Series/ Ryzen™ 5000 G-Series/ Ryzen™ 4000 G-Series and Ryzen™ 3000 and Ryzen™ 3000 G-Series Processors (Please refer "CPU Support List" for more information) |
| תמיכה בזיכרונות | 4x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory Support for DDR4 4733(O.C.) / 4600(O.C.) / 4400(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C) / 3400(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules (Please refer "Memory Support List" for more information) |
| גרפיקה מובנית | :Integrated Graphics Processor 1x DisplayPort, supporting a maximum resolution of 5120x2880@60 Hz Support for DisplayPort 1.4 version, HDCP 2.3, and HDR* 1x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz Support for HDMI 2.1 version, HDCP 2.3, and HDR* Maximum shared memory of 16 GB |
| חריצי הרחבה | :1x PCI Express x16 slot, integrated in the CPU Supporting PCIe 3.0 x16 mode :1x PCI Express x1 slot, integrated in the Chipset Supporting PCIe 3.0 x1 mode |
| USB | :CPU 4x USB 3.2 Gen 1 ports on the back panel :Chipset 2x USB 3.2 Gen 1 ports available through the internal USB header 6x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header) |
| ממשק אחסון | 1x M.2 connector, integrated in the CPU, supporting Socket 3, M key, type 2280 SSDs Supporting SATA and PCIe 3.0 x4/x2 SSDs :4x SATA 6Gb/s connectors, integrated in the Chipset Supporting for RAID 0, RAID 1, and RAID 10 |
| שמע | Realtek® Audio CODEC High Definition Audio 2/4/5.1/7.1-channel You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings |
| כרטיס רשת קווי | Realtek® GbE LAN chip (1 Gbps/100 Mbps) |
| חיבורים פנימיים | 1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector 1x CPU fan header 1x system fan header 1x M.2 Socket 3 connector 4x SATA 6Gb/s connectors 1x front panel header 1x front panel audio header 1x USB 3.2 Gen 1 header 1x USB 2.0/1.1 header 1x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only) 1x Clear CMOS jumper |
| חיבורים ויציאות | 1x PS/2 keyboard/mouse port 1x DisplayPort 1x HDMI port 4x USB 3.2 Gen 1 ports 2x USB 2.0/1.1 ports 1x RJ-45 port 3x audio jacks |
| BIOS | 1x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| תכונות ייחודיות | Support for APP Center Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. @BIOS EasyTune Smart Backup System Information Viewer Support for Q-Flash Support for Xpress Install |
| תוכנות מצורפות | Norton® Internet Security (OEM version) LAN bandwidth management software |
| תצורה | Micro ATX Form Factor; 24.4cm x 24.4cm |
