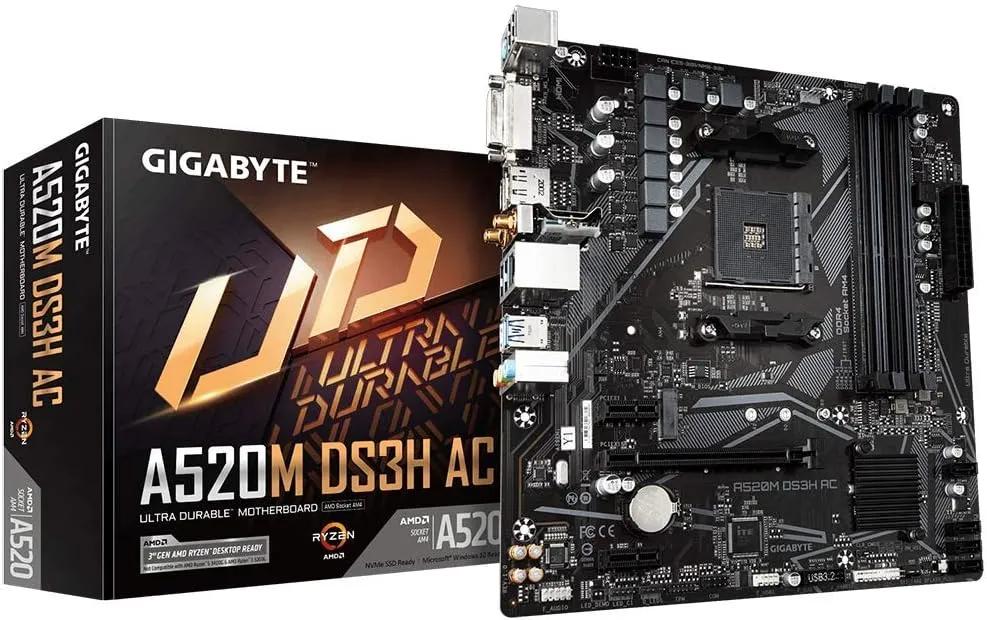

לוח אם – Gigabyte A520M DS3H AC WIFI Micro-ATX AM4 DDR4 - צבע שחור
חדש
מק"ט: A520M DS3H AC 1.4
לוח אם איכותי מבית Gigabyte, בעל תושבת AM4, ערכת שבבים A520, תאימות לזכרונות DDR4 ובעל יציאות תצוגה של HDMI ,DisplayPort.
₪359.00כולל מע"מ
במלאיפריסת תשלומים
₪359.00 לחודש
עד 1 תשלומים ללא ריבית
מפרט טכני
| תקופת אחריות | 3 שנים על ידי היבואן הרשמי |
| יצרן לוח אם | Gigabyte |
| תמיכה במעבדים | AMD Socket AM4, support for: AMD Ryzen™ 5000 Series/ Ryzen™ 5000 G-Series/ Ryzen™ 4000 G-Series and Ryzen™ 3000 and Ryzen™ 3000 G-Series Processors (Please refer "CPU Support List" for more information) |
| תמיכה בזיכרונות | 4x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory AMD Ryzen™ 5000 G-series / Ryzen™ 5000 Series/ 3rd Generation AMD Ryzen™ processors: Support for DDR4 4400(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules :3rd Gen AMD Ryzen™ with Radeon™ Graphics processors Support for DDR4 4733(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules (Please refer "Memory Support List" for more information) |
| גרפיקה מובנית | :Integrated Graphics Processor 1x DVI-D port, supporting a maximum resolution of 1920×1200@60 Hz The DVI-D port does not support D-Sub connection by adapter* 1x DisplayPort, supporting a maximum resolution of 5120×2880@60 Hz Support for DisplayPort 1.4 version, HDCP 2.3, and HDR* 1x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz Support for HDMI 2.1 version, HDCP 2.3, and HDR* Support for up to 3 displays at the same time Maximum shared memory of 16 GB |
| חריצי הרחבה | :CPU 1x PCI Express x16 slot, supporting PCIe 3.0 and running at x16 :Chipset 2x PCI Express x1 slots, supporting PCIe 3.0 (PCIEX1_1, PCIEX1_2) |
| USB | :CPU 4x USB 3.2 Gen 1 ports on the back panel :Chipset 2x USB 3.2 Gen 1 ports available through the internal USB header 4x USB 2.0/1.1 ports (2 ports on the back panel, 2 ports available through the internal USB header) |
| ממשק אחסון | :CPU 1x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe 3.0 x4/x2 SSD support) :Chipset 4x SATA 6Gb/s connectors Support for RAID 0, RAID 1, and RAID 10 |
| שמע | Realtek® Audio CODEC High Definition Audio 2/4/5.1/7.1-channel To configure 7.1-channel audio, you need to open the audio software and select Device advanced settings > Playback Device to change the default setting first. Please visit GIGABYTE's website for details on configuring the audio software |
| כרטיס רשת קווי | Realtek® GbE LAN chip (1 Gbps/100 Mbps) |
| מודול תקשורת אלחוטית | Intel® Dual Band Wireless-AC 3168 (For PCB rev. 1.0, 1.2, 1.3) WIFI 802.11a, b, g, n, ac, supporting 2.4/5 GHz Dual-Band BLUETOOTH 4.2 Support for 11ac wireless standard Intel® Wireless-AC 9260 (For PCB rev. 1.1) WIFI 802.11a, b, g, n, ac, supporting 2.4/5 GHz Dual-Band BLUETOOTH 5.1 Support for 11ac 160MHz wireless standard AzureWave Wi-Fi AW-CB304NF (Realtek® RTL8821CE) (For PCB rev. 1.4) WIFI 802.11a, b, g, n, ac, supporting 2.4/5 GHz Dual-Band BLUETOOTH 5.0 Support for 11ac wireless standard (Actual data rate may vary depending on environment and equipment) |
| חיבורים פנימיים | 1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector 1x CPU fan header 2x system fan headers 1x addressable LED strip header 1x RGB LED strip header 1x M.2 Socket 3 connector 4x SATA 6Gb/s connectors 1x front panel header 1x front panel audio header 1x USB 3.2 Gen 1 header 1x USB 2.0/1.1 header 1x Trusted Platform Module (TPM) header (2×6 pin, for the GC-TPM2.0_S module only) 1x serial port header 1x Clear CMOS jumper 1x Q-Flash Plus button All fan headers are subject to support AIO_Pump, Pump and high performance fan with the capability of delivering up to 2A/12V @ 24W* |
| חיבורים ויציאות | 1x PS/2 keyboard/mouse port 1x DVI-D port 1x DisplayPort 1x HDMI port 2x SMA antenna connectors (1T1R) 4x USB 3.2 Gen 1 ports 2x USB 2.0/1.1 ports 1x RJ-45 port 3x audio jacks |
| BIOS | 1x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| תכונות ייחודיות | Support for APP Center Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications* @BIOS EasyTune RGB Fusion Smart Backup System Information Viewer Support for Q-Flash Plus Support for Q-Flash |
| תוכנות מצורפות | Norton® Internet Security (OEM version) LAN bandwidth management software |
| תצורה | Micro ATX Form Factor; 24.4cm x 24.4cm |
