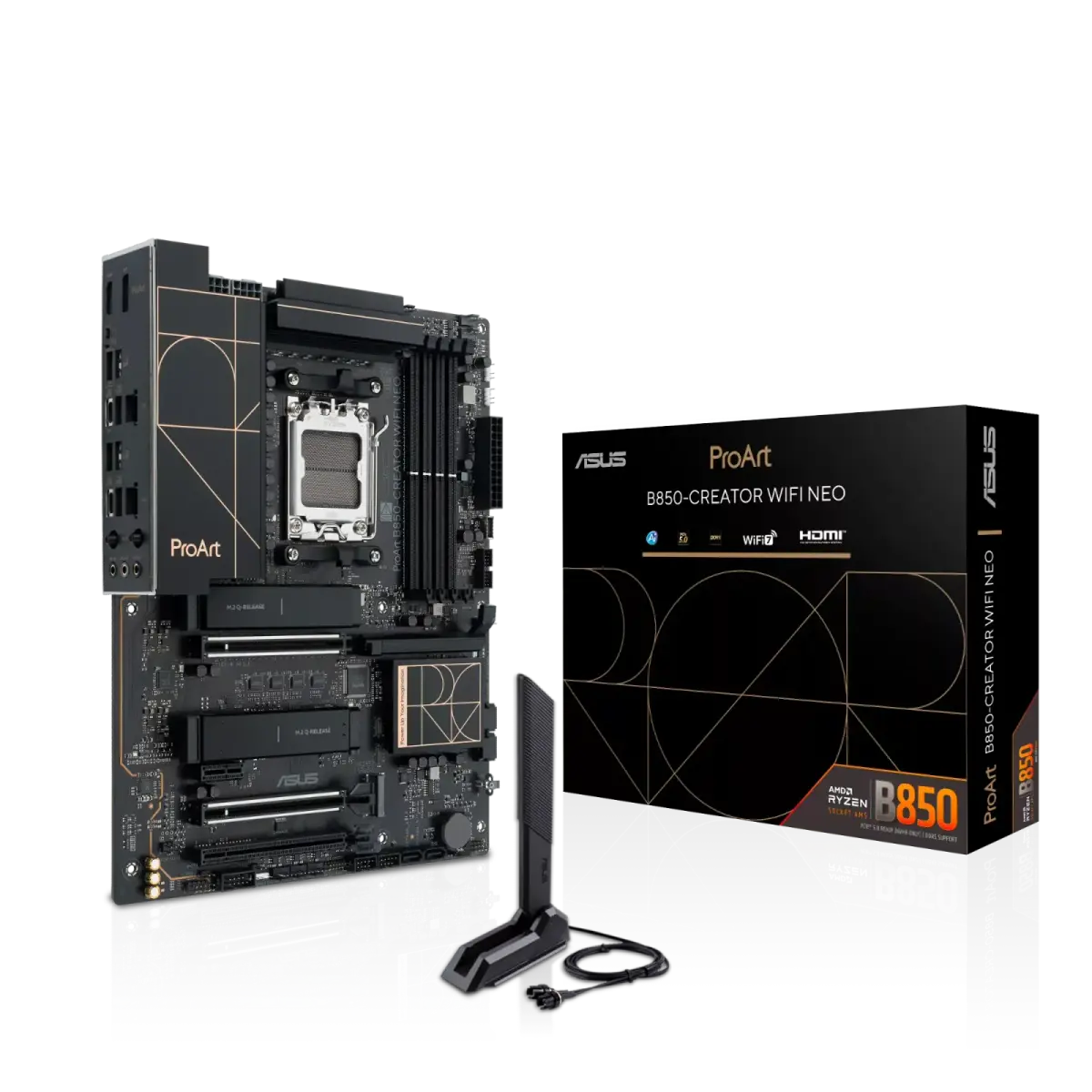

לוח אם – ASUS ProArt B850-CREATOR WIFI NEO ATX AM5 DDR5 - צבע שחור
חדש
מק"ט: 90MB1P60-M0EAY0
לוח אם איכותי מבית Asus, בעל תושבת AM5, ערכת שבבים B850, תאימות לזכרונות DDR5 ובעל יציאות תצוגה של HDMI ,DisplayPort.
₪1,355.00כולל מע"מ
במלאיפריסת תשלומים
₪1,355.00 לחודש
עד 3 תשלומים ללא ריבית
מפרט טכני
| תקופת אחריות | 3 שנים על ידי היבואן הרשמי |
| יצרן לוח אם | Asus |
| תמיכה במעבדים | AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors and AMD EPYC™ 4005 Series Processors* Supports up to AMD 170W CPU Refer to https://www.asus.com/support/download-center/ for CPU support list |
| תמיכה בזיכרונות | 4x DIMM slots, max. 256GB, DDR5 Supports up to 8400+(OC)/8200+(OC) MT/s with Ryzen™ 9000 Series Processors, 9000+(OC)/8600+(OC) MT/s with Ryzen™ 8000 Series Processors, 8000+(OC)/8000+(OC) MT/s Ryzen™ 7000 Series Processors, ECC and Non-ECC, Un-buffered DIMM* Supports up to 5600MT/s with AMD EPYC™ 4005 Series Processors, ECC and Non-ECC Un-buffered DIMM* Dual channel memory architecture Supports AMD Extended Profiles for Overclocking (EXPO™) ASUS Enhanced Memory Profile (AEMP) Non-ECC, un-buffered DDR5 memory supports On-Die ECC function. Max Manual Overclocking: Achievable with advanced BIOS configuration and potentially specialized hardware. Results may vary according to system components. XMP/EXPO/AEMP Profiles: Rated memory module speeds require a BIOS performance profile setting. Results may vary according to system components and can be impacted when four DIMM slots are used. Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/download-center/. Adjustments will be made based on the specifications of mass-produced memory products available on the market |
| גרפיקה מובנית | 1x DisplayPort** 1x HDMI™ port*** 1x USB 10Gbps port (USB Type-C®) supports DisplayPort video output** Available only on processors featuring integrated graphics. Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications. Supports max. 8K@30Hz as specified in DisplayPort 1.4. Supports 4K@60Hz as specified in HDMI 2.1. While installing the operating system, please ensure that your monitor is connected to the HDMI port on the back I/O panel or to a discrete graphics card |
| חריצי הרחבה | AMD Ryzen™ 9000 & 7000 Series Desktop Processors and AMD EPYC™ 4005 Series Processors* 2x PCIe 5.0 x16 slots (supports x16 or x8/x8 modes)*** AMD Ryzen™ 8000 Series Desktop Processors 1x PCIe 4.0 x16 slot (supports x8/x4 mode)** AMD B850 Chipset 1x PCIe 4.0 x16 slot (supports x4 mode)**** 1x PCIe 4.0 x1 slots Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/). Specifications vary by CPU types When you use both PCIEX16(G5)_1 and PCIE16(G5)_2, they will run at x8 each The PCIEX16(G4) shares bandwidth with M.2_3. The PCIEX16(G4) will be disabled when M.2_3 runs. - To ensure compatibility of the device installed, please refer to https://www.asus.com/support/download-center/ for the list of supported peripherals |
| USB | Rear USB (Total 8 ports) 2x USB 10Gbps ports (1 x Type-C® +1 x Type-C® + Alt mode) 2x USB 10Gbps ports (2 x Type-A) 4x USB 2.0 ports (4 x Type-A) Front USB (Total 7 ports) 1x USB 20Gbps connector (supports USB Type-C® with up to 30W PD/QC4+)** 1x USB 5Gbps header supports 2 additional USB 5Gbps ports 2x USB 2.0 headers support 4 additional USB 2.0 ports USB Type-C® output (USB Type-C Current): max. 5V/3A. USB Type-C® power delivery output: 5V/9V max. 3A, 12V max 2.5A, 15V max. 2A |
| ממשק אחסון | Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports* AMD Ryzen™ 7000 & 9000 Series Desktop Processors and AMD EPYC™ 4005 Series Processors* M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) AMD Ryzen™ 8000 Series Desktop Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4/x2 mode) AMD B850 Chipset M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)* 4x SATA 6Gb/s ports The PCIEX16(G4) shares bandwidth with M.2_3. The PCIEX16(G4) will be disabled when M.2_3 runs AMD RAIDXpert2 Technology Ryzen™ 9000 & 8000 & 7000 Series Processors: RAID 0/1/5/10 |
| שמע | Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC* - Impedance sense for front and rear headphone outputs - Internal audio Amplifier to enhance the highest quality sound for headphone and speakers - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in) - Supports up to 32-Bit/192 kHz playback* Audio Features - Premium audio capacitors - Dedicated audio PCB layers - Unique de-pop circuit Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio. A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output. Once an EPYC CPU is installed, the onboard audio function will be disabled |
| כרטיס רשת קווי | 2x Realtek 5Gb Ethernet ASUS LANGuard |
| מודול תקשורת אלחוטית | Wi-Fi 7 (Realtek® RTL8922AE) 2x2 Wi-Fi 7* (802.11be) Supports 2.4/5/6GHz frequency band** Supports Wi-Fi 7 160MHz bandwidth Bluetooth® (suppports LE Audio)*** Wi-Fi features may vary depending on the operating system For Windows 11, Wi-Fi 7 will require 24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only supports Wi-Fi 6E. For Windows 10, only Wi-Fi 6 is supported. Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries. The Bluetooth® version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications |
| חיבורים פנימיים | :Fan and Cooling Related 1x 4-pin CPU Fan header 1x 4-pin CPU OPT Fan header 1x 4-pin AIO Pump header 4x 4-pin Chassis Fan headers :Power Related 1x 24-pin Main Power connector 2x 8-pin +12V CPU Power connector :Storage Related 3x M.2 slots (Key M) 4x SATA 6Gb/s ports :USB 1x USB 20Gbps connector (supports USB Type-C® with up to 30W PD/QC4+) 1x USB 5Gbps header supports 2 additional USB 5Gbps ports 2x USB 2.0 headers support 4 additional USB 2.0 ports :Miscellaneous 3x Addressable RGB Gen2 headers 1x Clear CMOS header 1x Chassis Intrusion header 1x COM Port header 1x Front Panel Audio header (F_AUDIO) 1x SPI TPM header (14-1 pin) 1x 10-1 pin Front Panel System header 1x Thunderbolt™ (USB4®) header 1x Thermal Sensor header |
| חיבורים ויציאות | 2x USB 10Gbps ports (1 x Type-C® + 1 x Type-C® with Alt mode) 2x USB 10Gbps ports (2 x Type-A) 4x USB 2.0 ports (4 x Type-A) 1x DisplayPort 1x HDMI™ port 1x Wi-Fi module 2x Realtek 5Gb Ethernet ports 3x Audio jacks 1x BIOS FlashBack™ button |
| BIOS | 64MB (512Mb) Flash ROM, UEFI AMI BIOS |
| תכונות ייחודיות | ASUS 5X PROTECTION III - DIGI+ VRM (- Digital power design with DrMOS) - ESD Guards - LANGuard - Overvoltage protection - SafeSlot - Stainless-steel back I/O ASUS Q-Design - M.2 Q-Latch - M.2 Q-Release - M.2 Q-Slide - PCIe Slot Q-Release (with PCIe SafeSlot) - Q-Antenna - Q-Connector - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot ASUS Thermal Solution - M.2 heatsink backplate - VRM heatsink design ASUS EZ DIY - BIOS FlashBack™ button - BIOS FlashBack™ LED - ProCool - Pre-mounted I/O shield - SafeSlot - SafeDIMM Aura Sync - Addressable RGB Gen2 headers Bespoke Motherboard Design & Business Focused Features - 24/7 reliability - Overcurrent protection Front Panel USB 20Gbps with Quick Charge 4+ Support - Support: up to 30W fast charging and USB Wattage Watcher - Output: 5V/9V max. 3A, 12V max 2.5A, 15V max2.0A - Compatible with PD3.0 |
| תוכנות מצורפות | ASUS Exclusive Software Armoury Crate - Aura Creator - Aura Sync - Fan Xpert 4 (with AI Cooling II) - MLO Wizard ASUS DriverHub - ASUS MB Manager - ASUS AI Advisor - ASUS CPU-Z -ASUS GlideX -ProArt Creator Hub -CreatonFirst -USB Wattage Watcher -TurboV Core Adobe Creative Cloud (Free Trial)** Norton 360 Deluxe (60 Days Free Trial) WinRAR (40 Days Free Trial) UEFI BIOS Integrated WiFi Driver Support AI Cache Boost ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash - ASUS UEFI BIOS EZ Mode For more software features, please visit the asus support site or refer to www.asus.com/support for additional information. For detailed information on the supported models and restricted regions for this redemption offer, please refer to https://www.asus.com/content/asus-offers-adobe-creative-cloud/ |
| אביזרים כלולים | :Cables 2x SATA 6Gb/s cables :Miscellaneous 1x ASUS WiFi Q-Antenna 1x Q-connector 1x M.2 Q-Slide package (2IN1) 1x Rubber package for M.2 (2IN1) 1x Screw for M.2 Q-Latch(1IN1) 1x ProArt accessory bag :Documentation 1x ACC Express activation key card 1x Quick start guide |
| תצורה | ATX Form Factor 12inch x 9.6 inch ( 30.5 cm x 24.4 cm ) |
