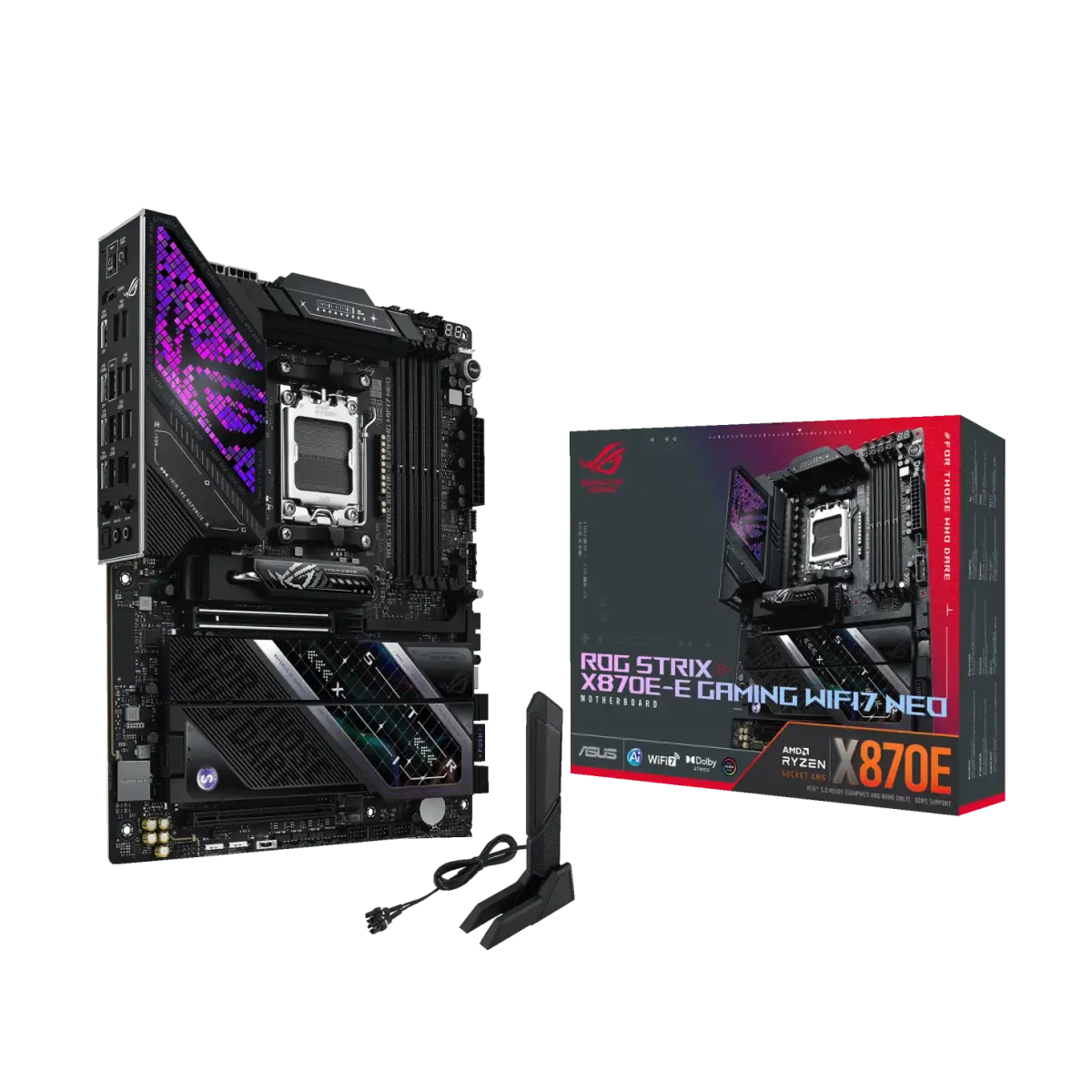

לוח אם – ASUS ROG STRIX X870E-E GAMING WIFI7 NEO ATX AM5 DDR5 - צבע שחור
חדש
מק"ט: 90MB1P20-M0EAY0
לוח אם איכותי מבית Asus, בעל תושבת AM5, ערכת שבבים X870, תאימות לזכרונות DDR5 ובעל יציאת תצוגה של HDMI.
₪2,540.00כולל מע"מ
במלאיפריסת תשלומים
₪2,540.00 לחודש
עד 6 תשלומים ללא ריבית
מפרט טכני
| תקופת אחריות | 3 שנים על ידי היבואן הרשמי |
| יצרן לוח אם | Asus |
| תמיכה במעבדים | AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors* Refer to https://www.asus.com/support/download-center/ for CPU support list |
| תמיכה בזיכרונות | 4x DIMM slots, max. 256GB, DDR5 Supports up to 8600+MT/s(OC)**/8200+MT/s(OC)*** with Ryzen™ 9000 Series Processors, 9600+MT/s(OC)**/9000+MT/s(OC)*** with Ryzen™ 8000 Series Processors, 8000+MT/s(OC)**/8000+MT/s(OC)*** with Ryzen™ 7000 Series Processors, ECC and Non-ECC Un-buffered DIMM* Dual channel memory architecture Supports AMD Extended Profiles for Overclocking (EXPO™) Supports DIMM Fit and DIMM Fit Pro NitroPath DRAM Technology ASUS Enhanced Memory Profile (AEMP) Non-ECC, un-buffered DDR5 memory supports On-Die ECC function. Max Manual Overclocking: Achievable with advanced BIOS configuration and potentially specialized hardware. Passed AIDA64 memory benchmark at this frequency, verifying read/write bandwidth. Results may vary according to system components. EXPO/AEMP Profiles: Rated memory module speeds require setting the BIOS performance profile. Results may vary according to system components and can be impacted when four DIMM slots are used. For XMP/EXPO/AEMP profile settings, please visit https://rog.asus.com/support/faq/1042256/. Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/download-center/. Adjustments will be made based on the specifications of mass-produced memory products available on the market |
| גרפיקה מובנית | 1x HDMI™ port** 2x USB4® (40Gbps) ports support USB Type-C® display outputs*** Please refer to AMD CPU specifications. Supports 4K@60Hz as specified in HDMI 2.1. Supports max. 4K@60Hz as specified in DisplayPort 1.4a While installing the operating system, please ensure that your monitor is connected to the HDMI port on the back I/O panel or to a discrete graphics card |
| חריצי הרחבה | AMD Ryzen™ 9000 & 7000 Series Desktop Processors* 1x PCIe 5.0 x16 slot (supports x16 mode) AMD Ryzen™ 8700 & 8600 & 8400 Series Desktop Processors* 1x PCIe 4.0 x16 slots (supports x8 mode) AMD Ryzen™ 8500 & 8300 Series Desktop Processors* 1x PCIe 4.0 x16 slots (supports x4 mode) AMD X870E Chipset 1x PCIe 4.0 x16 slot (supports x4 mode) Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/). Specifications vary by CPU types. - To ensure compatibility of the device installed, please refer to https://www.asus.com/support/download-center/ for the list of supported peripherals |
| USB | Rear USB (Total 13 ports) 2x USB4® (40Gbps) ports(2 x USB Type-C®) 1x USB 10Gbps port (1 x USB Type-C® with up to 30W PD/PPS Fast-charge)** 10x USB 10Gbps ports (9 x Type-A + 1 x USB Type-C®) Front USB (Total 12 ports) 2x USB 20Gbps connector (supports USB Type-C®) 2x USB 5Gbps headers support additional 4 USB 5Gbps ports 3x USB 2.0 headers support additional 6 USB 2.0 ports USB Type-C® power delivery output: 5V/3A USB Type-C® power delivery output: 5V/9V max. 3A, 12V max 2.5A, 15V max. 2.0A |
| ממשק אחסון | Total supports 5 x M.2 slots and 4 x SATA 6Gb/s ports AMD Ryzen™ 9000 & 7000 Series Desktop Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)** AMD Ryzen™ 8700 & 8600 & 8400 Series Desktop Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)** AMD Ryzen™ 8500 & 8300 Series Desktop Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280 (Not supports) AMD X870E Chipset M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)*** M.2_4 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) M.2_5 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) 4x SATA 6Gb/s ports Specifications vary by CPU types. USB 40Gbps Type-C ports on the back panel and M.2_2 slot share the bandwidth. Both run at x2 when a device is installed in the M2_2 slot. You can switch M2_2 to x4 in the BIOS, but this will disable the USB 40Gbps Type-C ports. M.2_3 shares bandwidth with PCIEX16(G4). When a M.2 drive is installed on M.2_3, PCIEX16(G4) will be disabled AMD RAIDXpert2 Technology Ryzen™ 9000 & 8000 & 7000 Series Processors: RAID 0/1/5/10 |
| שמע | ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080* - Impedance sense for front and rear headphone outputs - Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking - High quality 120 dB SNR stereo playback output and 110 dB SNR recording input - Supports up to 32-Bit/384 kHz playback on front panel Audio Features - Audio Shielding - Savitech SV3H712 AMP - Gold-plated audio jacks - Rear optical S/PDIF out port - Premium audio capacitors - Audio cover Supports LHDC, high-definition bluetooth audio codec, transmission with up to 400 kbps bitrate and 24-bit/192 kHz sampling rate.** The LINE OUT port on the rear panel does not support spatial audio. If you wish to use spatial audio, make sure to connect your audio output device to the audio jack on the front panel of your chassis or use a USB interface audio device To enable LHDC please use a earbuds or Headset that supports LHDC codec, Please refer to the LHDC website for models that support LHDC https://lhdc.co/en/products/2 |
| כרטיס רשת קווי | 1x Realtek® 5Gb Ethernet ASUS LANGuard |
| מודול תקשורת אלחוטית | Wi-Fi 7 (MediaTek MT7927) 2x2 Wi-Fi 7* (802.11be) Supports 2.4/5/6GHz frequency band** Supports Wi-Fi 7 320MHz bandwidth Bluetooth® (suppports LE Audio)*** Wi-Fi features may vary depending on the operating system For Windows 11, Wi-Fi 7 will require 24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only support Wi-Fi 6E For Windows 10, please note that no driver is available, refer to the Wi-Fi chipset vendor's website for details. Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries The Bluetooth® version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications |
| חיבורים פנימיים | :Fan and Cooling Related 1x 4-pin CPU Fan header(s) 1x 4-pin CPU OPT Fan header(s) 1x 4-pin AIO Pump header(s) 5x 4-pin Chassis Fan header(s) 1x AIO Q-Connector :Power Related 1x 24-pin Main Power connector 2x 8-pin +12V CPU Power connector :Storage Related 5x M.2 slots (Key M) 4x SATA 6Gb/s ports :USB 2x USB 20Gbps connector (supports USB Type-C®) 2x USB 5Gbps headers support additional 4 USB 5Gbps ports 3x USB 2.0 headers support additional 6 USB 2.0 ports :Miscellaneous 3x Addressable RGB Gen 2 header(s) 1x Alteration PCIe mode switch 1x Chassis Intrusion header 1x CPU Over voltage jumper 1x Front Panel Audio header (F_AUDIO) 1x Start button 1x 10-1 pin Front Panel System header 1x Thermal Sensor header |
| חיבורים ויציאות | 2x USB4® (40Gbps) (2 x USB Type-C® with DP Alt mode) 11x USB 10Gbps port(s) (9 x Type-A + 1 x USB Type-C® + 1 x USB Type-C® with up to 30W PD/PPS Fast-charge) 1x HDMI™ port 1x Wi-Fi module 1x Realtek® 5Gb Ethernet port 2x Audio jacks 1x Optical S/PDIF out port 1x BIOS FlashBack™ button 1x Clear CMOS button |
| BIOS | 64MB (512Mb) Flash ROM, UEFI AMI BIOS |
| תכונות ייחודיות | Asynchronous Clock Extreme Engine Digi+ - 5K Black metallic capacitors ASUS Q-Design - M.2 Q-Latch - M.2 Q-Release - M.2 Q-Slide - PCIe Slot Q-Release - Q-Antenna - Q-Code - Q-Dashboard - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) ASUS Thermal Solution - M.2 heatsink backplate - M.2 heatsink - VRM heatsink design ASUS EZ DIY - BIOS FlashBack™ button - BIOS FlashBack™ LED - Clear CMOS button - Dual DIMM clips - ProCool II - Pre-mounted I/O shield - SafeSlot - SafeDIMM Aura Sync -Addressable RGB Gen 2 header(s) |
| תוכנות מצורפות | ROG Exclusive Software - ROG CPU-Z - Dolby Atmos - Polymo Lighting ASUS Exclusive Software Armoury Crate - Aura Creator - Aura Sync - Fan Xpert 4 (with AI Cooling II) - GameFirst - WiFi Q-Antenna - MLO Wizard ASUS DriverHub - ASUS MB Manager - ASUS AI Advisor - AIDA64 Extreme (60 days free trial) - HWiNFO - ASUS GlideX - USB Wattage Watcher - TurboV Core - Norton 360 for Gamers (60 Days Free Trial) - WinRAR (40 Days Free Trial) Adobe Creative Cloud (Free Trial)** UEFI BIOS Integrated WiFi Driver Support AI Overclocking Guide AI Cache Boost ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode - ASUS MyHotkey FlexKey For more software features, please visit the asus support site or refer to www.asus.com/support for additional information. For detailed information on the supported models and restricted regions for this redemption offer, please refer to https://www.asus.com/content/asus-offers-adobe-creative-cloud/ |
| אביזרים כלולים | :Cables 2x SATA 6Gb/s cables :Additional Cooling Kit 1x DDR5 fan holder 1x Screw package for cooling kit 1x ROG assistant fan (60mm) :Miscellaneous 1x ASUS WiFi Q-Antenna 1x Cable ties package 1x M.2 Q-Latch package(s) 1x M.2 Q-Slide package 1x ROG key chain 1x ROG Strix stickers 1x ROG Strix thank you card 5x M.2 rubber package(s) :Documentation 1x Quick start guide |
| תצורה | ATX Form Factor 12inch x 9.6 inch ( 30.5 cm x 24.4 cm ) |
