ראשי / רכיבי חומרה / לוחות אם / לוח אם – ASUS ROG STRIX B850-A GAMING WIFI7 NEO ATX AM5 DDR5 - צבע לבן

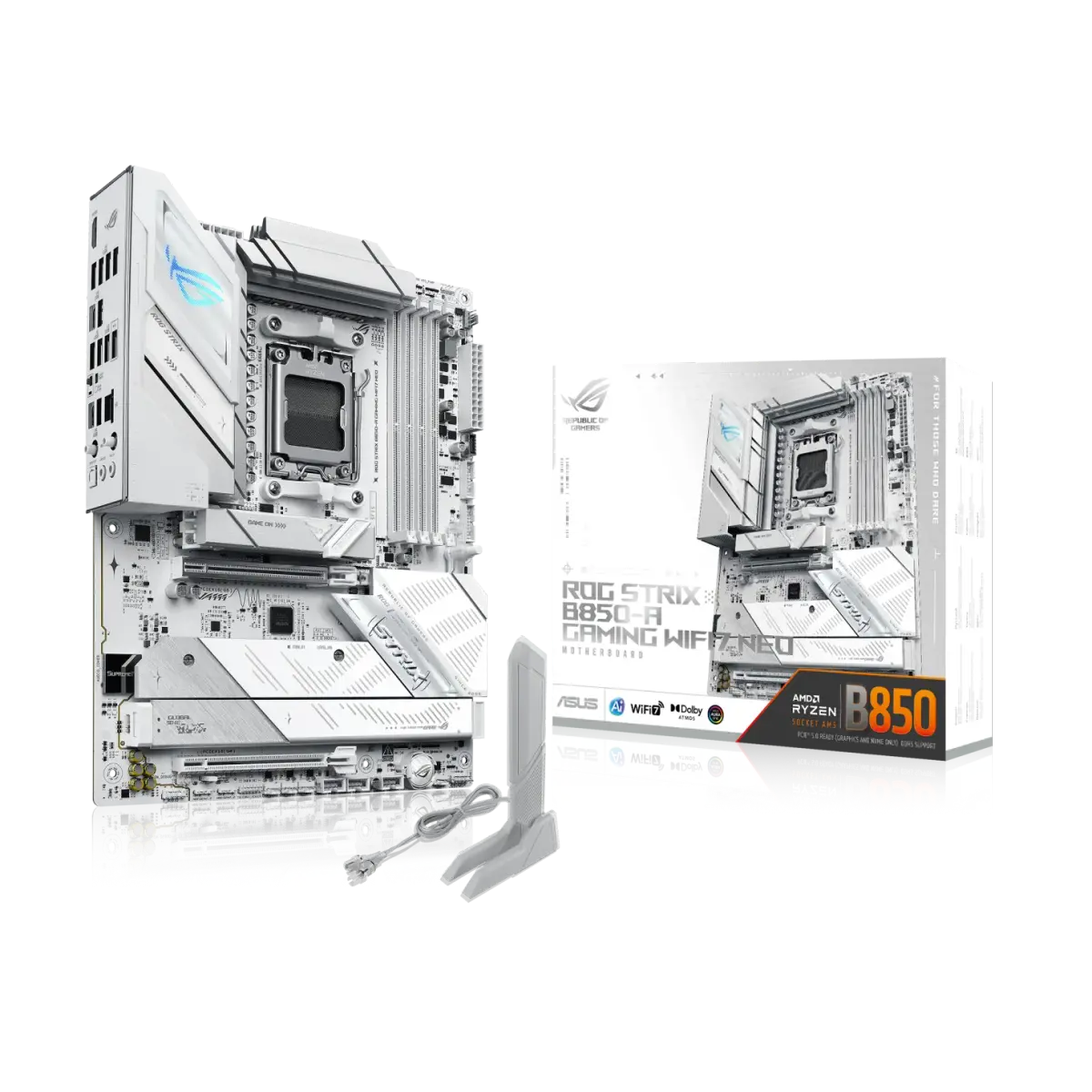

לוח אם – ASUS ROG STRIX B850-A GAMING WIFI7 NEO ATX AM5 DDR5 - צבע לבן
חדש
מק"ט: 90MB1P10-M0EAY0
לוח אם איכותי מבית Asus, בעל תושבת AM5, ערכת שבבים B850, תאימות לזכרונות DDR5 ובעל יציאת תצוגה של HDMI.
₪1,429.00כולל מע"מ
במלאיפריסת תשלומים
₪1,429.00 לחודש
עד 3 תשלומים ללא ריבית
מפרט טכני
| תקופת אחריות | 3 שנים על ידי היבואן הרשמי |
| יצרן לוח אם | Asus |
| תמיכה במעבדים | AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors* Refer to https://www.asus.com/support/download-center/ for CPU support list |
| תמיכה בזיכרונות | 4x DIMM slots, max. 256GB, DDR5 Supports up to 8400+MT/s(OC)**/8200+MT/s(OC)*** with Ryzen™ 9000 Series Processors, 9000+MT/s(OC)**/8600+MT/s(OC)*** with Ryzen™ 8000 Series Processors, 8000+MT/s(OC)**/8000+MT/s(OC)*** with Ryzen™ 7000 Series Processors, ECC and Non-ECC Un-buffered DIMM* Dual channel memory architecture Supports AMD Extended Profiles for Overclocking (EXPO™) ASUS Enhanced Memory Profile (AEMP) Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/download-center/. Adjustments will be made based on the specifications of mass-produced memory products available on the market Non-ECC, un-buffered DDR5 memory supports On-Die ECC function Max Manual Overclocking: Achievable with advanced BIOS configuration and potentially specialized hardware. Passed AIDA64 memory benchmark at this frequency, verifying read/write bandwidth. Results may vary according to system components XMP/EXPO/AEMP Profiles: Rated memory module speeds require setting the BIOS performance profile. Results may vary according to system components and can be impacted when four DIMM slots are used. For XMP/EXPO/AEMP profile settings, please visit https://www.asus.com/support/faq/1042256/ |
| גרפיקה מובנית | 1x HDMI™ port** Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications Supports 4K@60Hz as specified in HDMI 2.1 VGA resolution support depends on processors' or graphic cards' resolution |
| חריצי הרחבה | AMD Ryzen™ 9000 & 7000 Series Desktop Processors* 1x PCIe 5.0 x16 slot (supports x16 mode) AMD Ryzen™ 8700 & 8600 & 8400 Series Desktop Processors* 1x PCIe 5.0 x16 slot (supports PCIe 4.0 x8 mode) AMD Ryzen™ 8500 & 8300 Series Desktop Processors* 1x PCIe 5.0 x16 slot (supports PCIe 4.0 x4 mode) AMD B850 Chipset 1x PCIe 4.0 x16 slot (supports x4/x2 mode) Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/). Specifications vary by CPU types. - To ensure compatibility of the device installed, please refer to https://www.asus.com/support/download-center/ for the list of supported peripherals |
| USB | Rear USB (Total 12 ports) 4x USB 10Gbps port(s) (2 x Type-A + 2 x USB Type-C®) 6x USB 5Gbps port(s) (6 x Type-A) 2x USB 2.0 port(s) (2 x Type-A) Front USB (Total 11 ports) 1x USB 20Gbps connector (1 x USB Type-C®) 2x USB 5Gbps header(s) support(s) 4 additional USB 5Gbps ports 3x USB 2.0 header(s) support(s) 6 additional USB 2.0 ports USB Type-C® output (USB Type-C Current): max. 5V/3A |
| ממשק אחסון | Total supports 4 x M.2 slots and 2 x SATA 6Gb/s ports AMD Ryzen™ 9000 & 7000 Series Desktop Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) AMD Ryzen™ 8700 & 8600 & 8400 Series Desktop Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) AMD Ryzen™ 8500 & 8300 Series Desktop Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x2 mode) AMD B850 Chipset M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4/x2 mode)* M.2_4 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) 2x SATA 6Gb/s ports The M.2_3 slot shares bandwidth with the PCIEX16(G4) slot. When either the PCIEX16(G4) or M.2_3 slot is occupied, the slot runs at PCIe 4.0 x4 mode. When both slots are occupied, each runs at PCIe 4.0x2 mode. You can enter the BIOS to adjust the default settings as required AMD RAIDXpert2 Technology Ryzen™ 9000 & 8000 & 7000 Series Processors: RAID 0/1/5/10 |
| שמע | ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080* - Impedance sense for front and rear headphone outputs - Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking - High quality 120 dB SNR stereo playback output and 110 dB SNR recording input - Supports up to 32-Bit/384 kHz playback on front panel Audio Features - SupremeFX Shielding Technology - Savitech SV3H712 AMP - Rear optical S/PDIF out port - Premium audio capacitors - Dedicated audio PCB layers - Audio cover A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output. The LINE OUT port on the rear panel does not support spatial audio. If you wish to use spatial audio, make sure to connect your audio output device to the audio jack on the front panel of your chassis or use a USB interface audio device |
| כרטיס רשת קווי | 1x Realtek® 5Gb Ethernet ASUS LANGuard |
| מודול תקשורת אלחוטית | Wi-Fi 7 (MediaTek MT7925) 2x2 Wi-Fi 7* (802.11be) Supports 2.4/5/6GHz frequency band** Supports Wi-Fi 7 160MHz bandwidth Bluetooth® v5.4 (support LE Audio)*** Wi-Fi features may vary depending on the operating system For Windows 11, Wi-Fi 7 will require 24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only support Wi-Fi 6E. For Windows 10, please note that no driver is available, please refer to the Wi-Fi chipset vendor's website for details. Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries. The Bluetooth® version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications |
| חיבורים פנימיים | :Fan and Cooling Related 1x 4-pin CPU Fan header 1x 4-pin CPU OPT Fan header 1x 4-pin AIO Pump header 4x 4-pin Chassis Fan headers :Power Related 1x 24-pin Main Power connector 2x 8-pin +12V CPU Power connector :Storage Related 4x M.2 slots (Key M) 2x SATA 6Gb/s ports :USB 1x USB 20Gbps connector (supports USB Type-C® ) 2x USB 5Gbps headers support 4 additional USB 5Gbps ports 3x USB 2.0 headers support 6 additional USB 2.0 ports :Miscellaneous 3x Addressable RGB Gen 2 headers 1x CPU Over voltage jumper 1x Front Panel Audio header (F_AUDIO) 1x Start button 1x 10-1 pin Front Panel System header 1x Thunderbolt™ (USB4®) header |
| חיבורים ויציאות | 4x USB 10Gbps port(s) (2 x Type-A + 2 x USB Type-C®) 6x USB 5Gbps port(s) (6 x Type-A) 2x USB 2.0 port(s) (2 x Type-A) 1x HDMI™ port 1x Wi-Fi module 1x Realtek® 5Gb Ethernet port 2x Audio jacks 1x Optical S/PDIF out port 1x BIOS FlashBack™ button 1x Clear CMOS button |
| BIOS | 64MB (512Mb) Flash ROM, UEFI AMI BIOS |
| תכונות ייחודיות | Asynchronous Clock Extreme Engine Digi+ -5K Black metallic capacitors ASUS Q-Design - M.2 Q-Latch - M.2 Q-Release - M.2 Q-Slide - PCIe Slot Q-Release - Q-Antenna - Q-Dashboard - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot ASUS Thermal Solution - M.2 heatsink backplate - M.2 heatsink - VRM heatsink design ASUS EZ DIY - BIOS FlashBack™ button - BIOS FlashBack™ LED - Clear CMOS button - ProCool - Pre-mounted I/O shield - SafeSlot Aura Sync - Addressable RGB Gen 2 headers |
| תוכנות מצורפות | ROG Exclusive Software - ROG CPU-Z - Dolby Atmos ASUS Exclusive Software Armoury Crate - Aura Creator - Aura Sync - Fan Xpert 4 (with AI Cooling II) - GameFirst - WiFi Q-Antenna - MLO Wizard ASUS DriverHub - ASUS MB Manager - ASUS AI Advisor - AIDA64 Extreme (60 days free trial) - HWiNFO - ASUS GlideX - TurboV Core - Adobe Creative Cloud (Free Trial)** - Norton 360 for Gamers (60 Days Free Trial) - WinRAR (40 Days Free Trial) UEFI BIOS AI Overclocking Guide AI Cache Boost Integrated WiFi Driver Support ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash - ASUS UEFI BIOS EZ Mode - ASUS MyHotkey For more software features, please visit the asus support site or refer to www.asus.com/support for additional information. For detailed information on the supported models and restricted regions for this redemption offer, please refer to https://www.asus.com/content/asus-offers-adobe-creative-cloud/ |
| אביזרים כלולים | :Cables 2x SATA 6Gb/s cables :Miscellaneous 1x ASUS WiFi Q-Antenna 1x M.2 Q-Latch package 1x M.2 Q-Slide package 1x ROG key chain 1x ROG Strix stickers 4x M.2 rubbers :Documentation 1x Quick start guide |
| תצורה | ATX Form Factor 12inch x 9.6 inch ( 30.5 cm x 24.4 cm ) |
