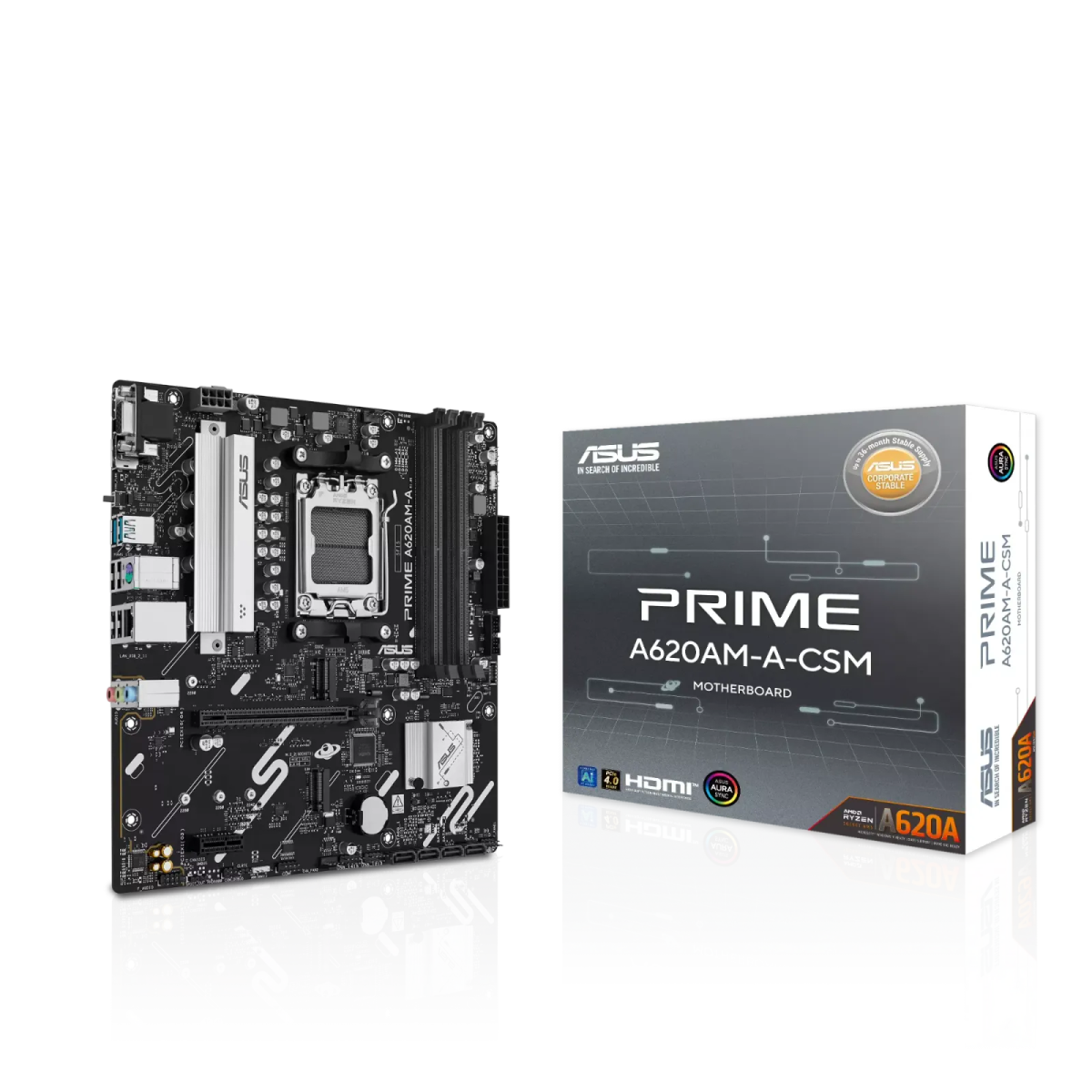

לוח אם – ASUS PRIME A620AM-A-CSM Micro-ATX AM5 DDR5 - צבע שחור
חדש
מק"ט: 90MB1MY0-M0EAYC
לוח אם איכותי מבית Asus, בעל תושבת AM5, ערכת שבבים A620, תאימות לזכרונות DDR5 ובעל יציאות HDMI ,VGA DisplayPort.
₪570.00כולל מע"מ
במלאיפריסת תשלומים
₪570.00 לחודש
עד 1 תשלומים ללא ריבית
מפרט טכני
| תקופת אחריות | 3 שנים על ידי היבואן הרשמי |
| יצרן לוח אם | Asus |
| תמיכה במעבדים | AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors* Supports up to AMD 170W CPU Refer to https://www.asus.com/support/download-center/ for CPU support list |
| תמיכה בזיכרונות | 4x DIMM slots, max. 256GB, DDR5 Supports up to 7600+MT/s(OC) with Ryzen™ 9000 & 8000 & 7000 Series Processors ECC and Non-ECC Un-buffered DIMM* Dual channel memory architecture Supports AMD Extended Profiles for Overclocking (EXPO™) ASUS Enhanced Memory Profile (AEMP) Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/download-center/. Adjustments will be made based on the specifications of mass-produced memory products available on the market. Non-ECC, un-buffered DDR5 memory supports On-Die ECC function |
| גרפיקה מובנית | 1x DisplayPort** 1x VGA port 1x HDMI™ port*** Graphics specifications may vary between CPU types Please refer to AMD CPU specifications. Supports max. 8K@30Hz as specified in DisplayPort 1.4** Supports 4K@60Hz as specified in HDMI 2.1*** |
| חריצי הרחבה | AMD Ryzen™ 9000 & 7000 Series Desktop Processors* 1x PCIe 4.0 x16 slot (supports x16 mode) AMD Ryzen™ 8000 Series Desktop Processors 1x PCIe 4.0 x16 slot (supports x8/x4 mode)** AMD A620A Chipset 1x PCIe 3.0 x1 slot Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/). .Specifications vary by CPU types** - To ensure compatibility of the device installed, please refer to https://www.asus.com/support/download-center/ for the list of supported peripherals |
| USB | :Rear USB (Total 6 ports) 2x USB 10Gbps ports (2 x Type-A) 4x USB 2.0 ports (4 x Type-A) :Front USB (Total 7 ports) 1x USB 5Gbps connector (supports USB Type-C®) 1x USB 5Gbps header supports 2 additional USB 5Gbps ports 2x USB 2.0 headers support 4 additional USB 2.0 ports USB Type-C® power delivery output: max. 5V/3A* |
| ממשק אחסון | Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports AMD Ryzen™ 9000 & 7000 Series Desktop Processors M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) AMD Ryzen™ 8000 Series Desktop Processors M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4/x2 mode)* AMD A620A Chipset 4x SATA 6Gb/s ports Specifications vary by CPU types* :RAID Support AMD RAIDXpert2 Technology* Ryzen™ 9000 Series Processors: RAID 0/1/5/10 Ryzen™ 8000 Series Processors: RAID 0/1 Ryzen™ 7000 Series Processors: RAID 0/1/10 Specifications vary by CPU types* |
| שמע | Realtek 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback Audio Features - Audio Shielding - Premium audio capacitors - Dedicated audio PCB layers A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output |
| כרטיס רשת קווי | 1x Realtek 1Gb Ethernet ASUS LANGuard |
| מודול תקשורת אלחוטית | ללא |
| חיבורים פנימיים | :I/O ConnectorsFan and Cooling Related 1x 4-pin CPU Fan header 2x 4-pin Chassis Fan headers :Power Related 1x 24-pin Main Power connector 1x 8-pin +12V CPU Power connector :Storage Related 2x M.2 slots (Key M) 4x SATA 6Gb/s ports :USB 1x USB 5Gbps connector (supports USB Type-C® ) 1x USB 5Gbps header supports 2 additional USB 5Gbps ports 2x USB 2.0 headers support 4 additional USB 2.0 ports :Miscellaneous 3x Addressable RGB Gen 2 headers 1x Clear CMOS header 1x COM Port header 1x Front Panel Audio header (F_AUDIO) 1x S/PDIF Out header 1x SPI TPM header (14-1 pin) 1x 10-1 pin Front Panel System header |
| חיבורים ויציאות | 2x USB 10Gbps ports (2 x Type-A) 4x USB 2.0 ports (4 x Type-A) 1x DisplayPort 1x VGA port 1x HDMI™ port 1x Realtek 1Gb Ethernet port 3x Audio jacks 1x BIOS FlashBack™ button 1x PS/2 keyboard/mouse combo port |
| BIOS | 256Mb Flash ROM, UEFI AMI BIOS |
| תכונות ייחודיות | ASUS 5X PROTECTION III - DIGI+ VRM - LANGuard - Overvoltage protection - SafeSlot Core - Stainless-steel back I/O ASUS Q-Design - Q-DIMM - Q-LED Core - Q-Slot ASUS Thermal Solution - VRM heatsink design ASUS EZ DIY - BIOS FlashBack™ button - BIOS FlashBack™ LED Aura Sync - Addressable RGB Gen 2 headers |
| תוכנות מצורפות | ASUS Exclusive Software Armoury Crate - Aura Creator - Aura Sync - FAN Xpert 2+ ASUS DriverHub - ASUS CPU-Z Norton 360 Deluxe (60 Days Free Trial) WinRAR (40 Days Free Trial) UEFI BIOS AI Cache Boost ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode For more software features, please visit the asus support site or refer to www.asus.com/support for additional information |
| אביזרים כלולים | :Cables 2x SATA 6Gb/s cables :Miscellaneous 1x I/O shield 1x Screw package for M.2 SSD :Documentation 1x ACC Express activation key card 1x Quick start guide |
| תצורה | Windows 11, Windows 10 64-bit |
