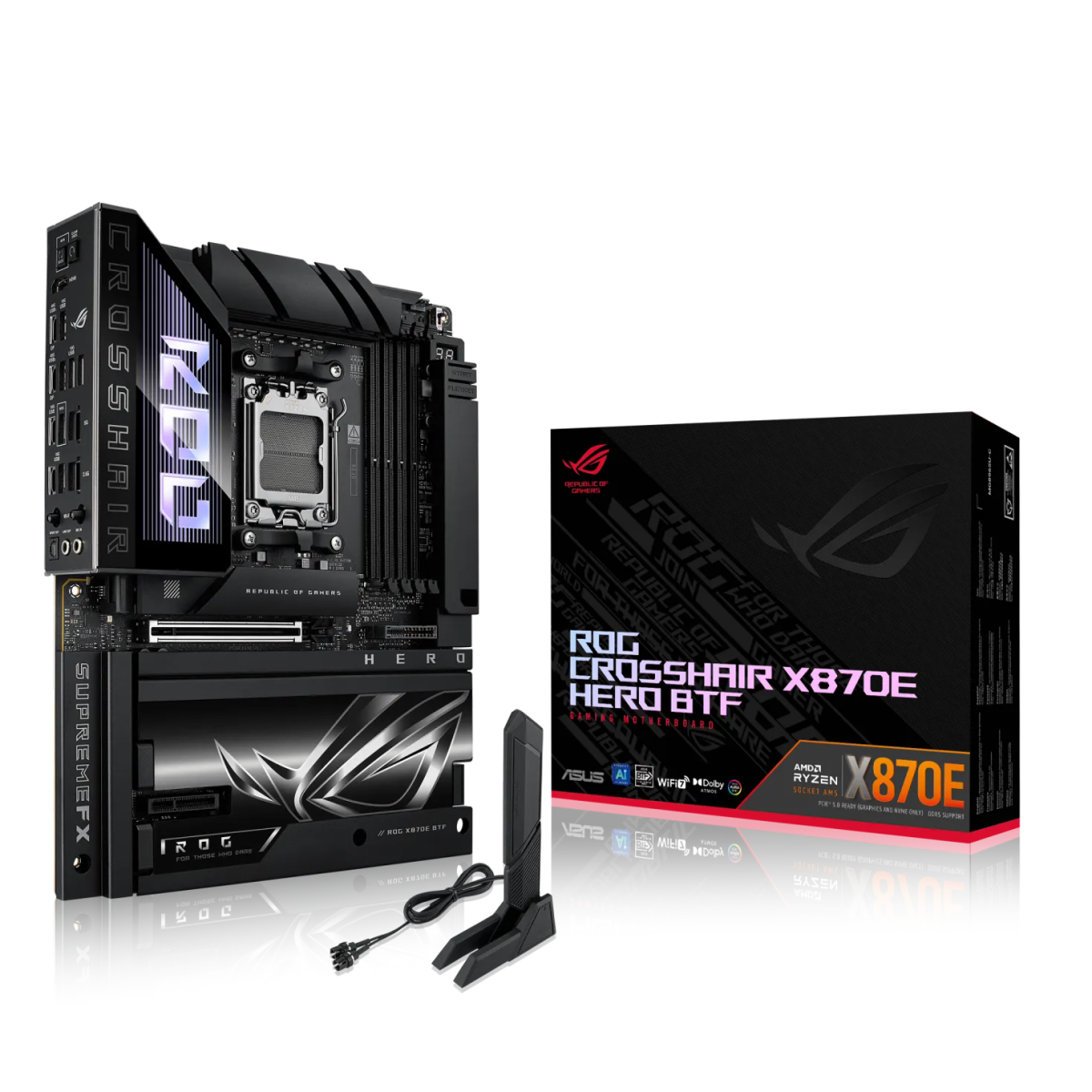

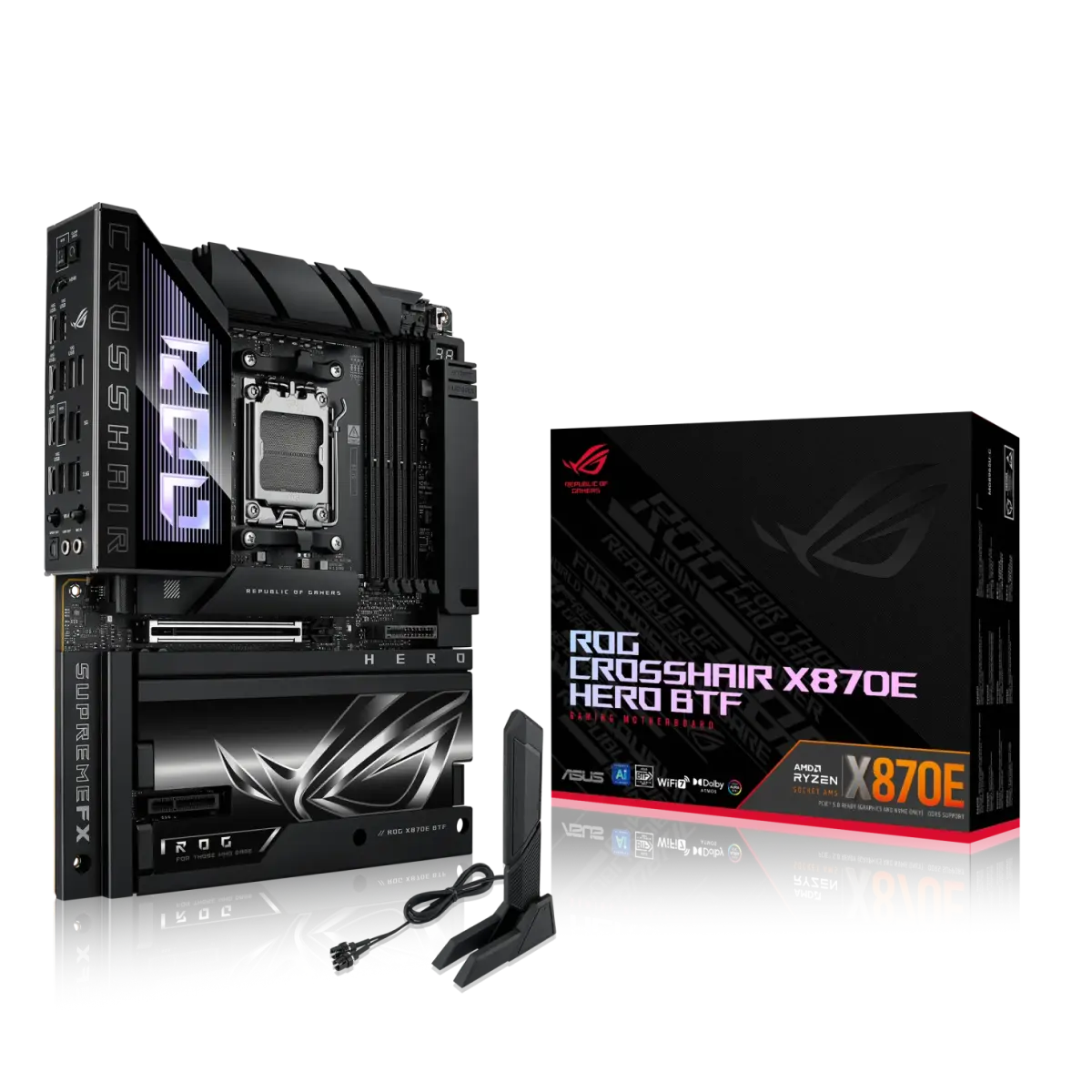

לוח אם – ASUS ROG CROSSHAIR X870E HERO BTF ATX AM5 DDR5 - צבע שחור
חדש
מק"ט: 90MB1MX0-M0EAY0
לוח אם איכותי מבית Asus, בעל תושבת AM5, ערכת שבבים X870, תאימות לזכרונות DDR5 ובעל יציאת תצוגה של HDMI, USB Type-C.
משלוח חינם לבית הלקוח
₪3,070.00כולל מע"מ
במלאיפריסת תשלומים
₪3,070.00 לחודש
עד 7 תשלומים ללא ריבית
מפרט טכני
| תקופת אחריות | 3 שנים על ידי היבואן הרשמי |
| יצרן לוח אם | Asus |
| תמיכה במעבדים | AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors* Refer to https://www.asus.com/support/download-center/ for CPU support list |
| תמיכה בזיכרונות | 4x DIMM slots, max.256GB, DDR5 Supports up to 8200MT/s(OC) with Ryzen™ 9000 Series Processors+ 8600MT/s(OC) with Ryzen™ 8000 Series Processors+ 8000MT/s(OC) with Ryzen™ 7000 Series Processors+ ECC and Non-ECC, Un-buffered Memory* Dual channel memory architecture Supports AMD Extended Profiles for Overclocking (EXPO™) Supports DIMM Fit and DIMM Fit Pro NitroPath DRAM Technology ASUS Enhanced Memory Profile (AEMP) Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/download-center/. Non-ECC, un-buffered DDR5 memory supports On-Die ECC function |
| גרפיקה מובנית | 1x HDMI™ port* 2x USB4® (40Gbps) ports support USB Type-C® display outputs** Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications. VGA resolution support depends on processors' or graphic cards' resolution. Supports 4K@60Hz as specified in HDMI 2.1* Supports max. 4K@60Hz as specified in DisplayPort 1.4a** |
| חריצי הרחבה | AMD Ryzen™ 9000 & 7000 Series Desktop Processors* 1x PCIe 5.0 x16 slots with Q-Release Slim (supports x16 or x8/x4/x4 modes**) When M.2_2 is enabled, PCIEX16_1 will run x8 mode, and M.2_3 will run x4. AMD Ryzen™ 8700 & 8600 & 8400 Series Desktop Processors* 1x PCIe 4.0 x16 slots with Q-Release Slim (Total bandwidth for x8) AMD Ryzen™ 8500 & 8300 Series Desktop Processors* 1x PCIe 4.0 x16 slot with Q-Release Slim (Total bandwidth for x4) Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/). - To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported :AMD X870E Chipset 1x PCIe 4.0 x4 slot |
| USB | :Rear USB (Total 10 ports) 2x USB4® (40Gbps) ports (2 x USB Type-C®) 8x USB 10Gbps ports (6 x Type-A + 2 x USB Type-C®) :Front USB (Total 10 ports) 2x USB 20Gbps connector (supports USB Type-C®) 2x USB 5Gbps headers support 4 additional USB 5Gbps ports 2x USB 2.0 headers support 4 additional USB 2.0 ports USB Type-C® power delivery output: max. 5V/3A |
| ממשק אחסון | Supports 5 x M.2 slots and 4 x SATA 6Gb/s ports* :AMD Ryzen™ 9000 & 7000 Series Desktop Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) :AMD Ryzen™ 8000 Series Desktop Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280 (Not supports) M.2_3 slot (Key M), type 2242/2260/2280 (Not supports) :AMD X870E Chipset M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) M.2_5 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) 4x SATA 6Gb/s ports When M.2_2 is enabled, PCIEX16_1 will run x8 mode, and M.2_3 will run x4 :RAID Support AMD RAIDXpert2 Technology* Ryzen™ 9000 Series Processors: RAID 0/1/5/10 Ryzen™ 8000 Series Processors: RAID 0/1 Ryzen™ 7000 Series Processors: RAID 0/1/10 Specifications vary by CPU types* |
| שמע | ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4082* - Impedance sense for front and rear headphone outputs - Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking - High quality 120 dB SNR stereo playback output and 110 dB SNR recording input - Supports up to 32-Bit/384 kHz playback on front panel Audio Features - SupremeFX Shielding Technology - ESS® ES9219 QUAD DAC - Gold-plated audio jacks - Rear optical S/PDIF out port - Premium audio capacitors A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output. The LINE OUT port on the rear panel does not support spatial audio. If you wish to use spatial audio, make sure to connect your audio output device to the audio jack on the front panel of your chassis or use a USB interface audio device |
| כרטיס רשת קווי | 1x Intel® 2.5Gb Ethernet 1x Realtek 5Gb Ethernet ASUS LANGuard |
| מודול תקשורת אלחוטית | Wi-Fi 7 (MediaTek MT7927) 2x2 Wi-Fi 7* (802.11be) Supports 2.4/5/6GHz frequency band** Supports Wi-Fi 7 320MHz bandwidth Bluetooth® v5.4*** Wi-Fi features may vary depending on the operating system For Windows 11, Wi-Fi 7 will require 24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only support Wi-Fi 6E. For Windows 10, please note that no driver is available, refer to the Wi-Fi chipset vendor's website for details. Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries. The Bluetooth® version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications |
| חיבורים פנימיים | :Fan and Cooling Related 1x 4-pin CPU Fan header 1x 4-pin CPU OPT Fan header 1x 4-pin AIO Pump header 4x 4-pin Chassis Fan headers 1x W_PUMP+ header :Power Related 1x 24-pin Main Power connector 2x 8-pin +12V CPU Power connector 1x Graphics card high power slot 1x 12V-2X6 Auxiliary power connector :Storage Related 5x M.2 slots (Key M) 4x SATA 6Gb/s ports :USB 2x USB 20Gbps connectors (support USB Type-C® ) 2x USB 5Gbps headers support 4 additional USB 5Gbps ports 2x USB 2.0 headers support 4 additional USB 2.0 ports :Miscellaneous 3x Addressable Gen2 headers 1x Alteration PCIe mode switch 1x FlexKey button 1x Front Panel Audio header (F_AUDIO) 1x Start button 1x 10-1 pin System Panel header 1x Thermal Sensor header |
| חיבורים ויציאות | 2x USB4® (40Gbps) ports (2 x USB Type-C®) 8x USB 10Gbps ports (6 x Type-A + 2 x USB Type-C®) 1x HDMI™ port 1x Wi-Fi module 1x Intel® 2.5Gb Ethernet port 1x Realtek 5Gb Ethernet port 2x Gold-plated audio jacks 1x Optical S/PDIF out port 1x BIOS FlashBack™ button 1x Clear CMOS button |
| BIOS | 256Mb Flash ROM, UEFI AMI BIOS |
| תכונות ייחודיות | Extreme OC Kit - FlexKey button - Start button Extreme Engine Digi+ - 10K Black metallic capacitors - MicroFine alloy choke ASUS Q-Design - M.2 Q-Latch - M.2 Q-Release - M.2 Q-Slide - Q-Release Slim (with PCIe SafeSlot) - Q-Antenna - Q-Code - Q-Connector - Q-Dashboard - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot ASUS Thermal Solution - M.2 heatsink backplate - M.2 heatsink - VRM heatsink design - Metal backplate ASUS EZ DIY - Backplate - BIOS FlashBack™ button - Clear CMOS button - ProCool II - Pre-mounted I/O shield - SafeSlot - SafeDIMM Aura Sync - Addressable Gen2 header(s) |
| תוכנות מצורפות | ROG Exclusive Software - ROG CPU-Z - Dolby Atmos - Internet Security (1-year full version) - Polymo Lighting II ASUS Exclusive Software Armoury Crate - AIDA64 Extreme (1 year full version) - Aura Creator - Aura Sync - Fan Xpert 4 (with AI Cooling II) - GameFirst - HWiNFO ASUS AI Advisor ASUS DriverHub ASUS GlideX TurboV Core WinRAR (40 Days Free Trial) Adobe Creative Cloud (Free Trial) UEFI BIOS AI Overclocking Guide ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode - ASUS MyHotkey FlexKey |
| אביזרים כלולים | :Cables 1x ARGB RGB extension cable 4x SATA 6Gb/s cables :Miscellaneous 1x ASUS WiFi Q-Antenna 1x Q-connector 2x M.2 Q-Latch package 3x M.2 Q-Slide package 5x M.2 rubber package 1x ROG stickers 1x ROG thank you card 1x ROG Bottle Opener :Installation Media 1x USB drive with utilities and drivers :Documentation 1x Quick start guide |
| תצורה | ATX Form Factor 12inch x 9.6 inch ( 30.5 cm x 24.4 cm ) |
