ראשי / רכיבי חומרה / לוחות אם / לוח אם – ASUS TUF GAMING B850M-PLUS II Micro-ATX AM5 DDR5 - צבע שחור

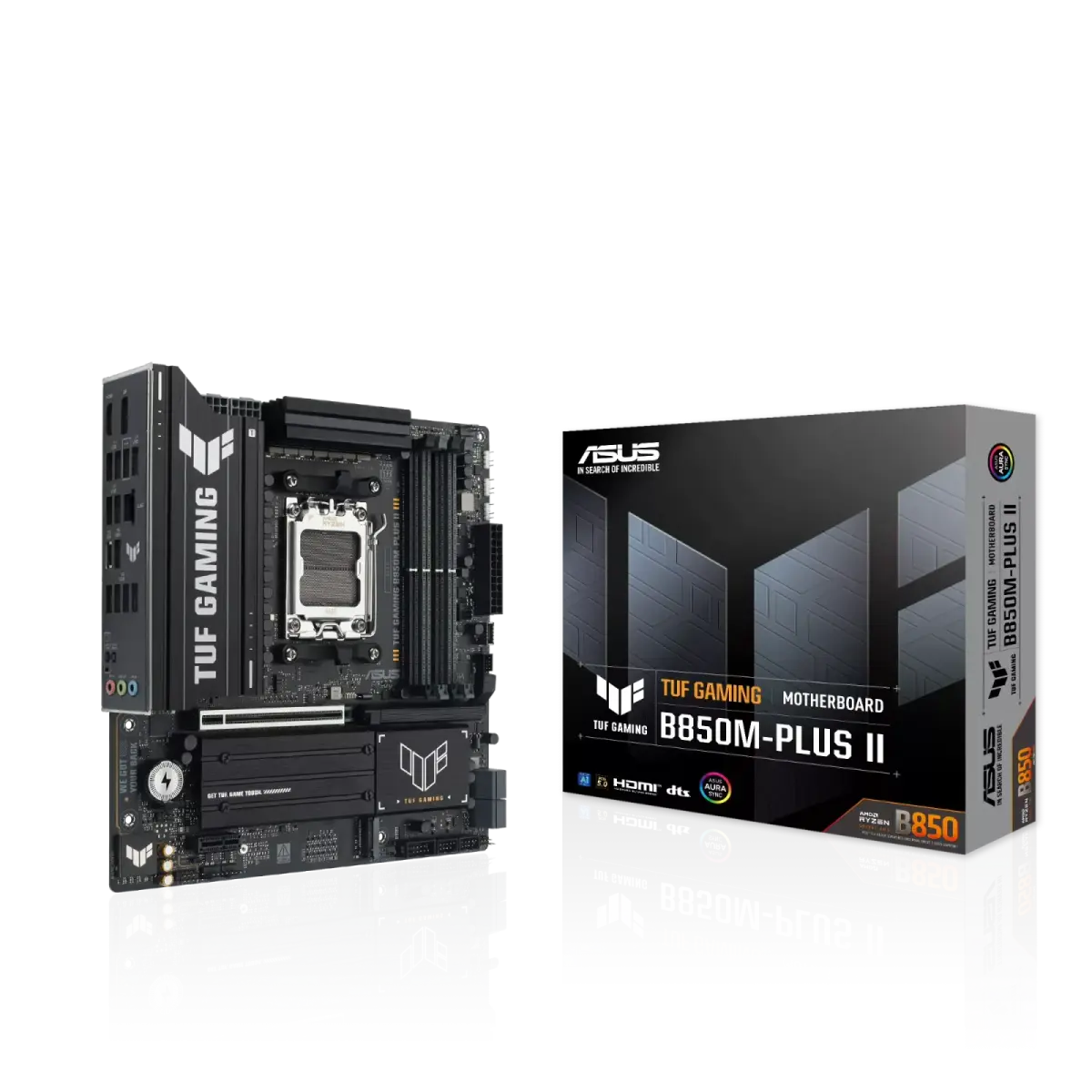

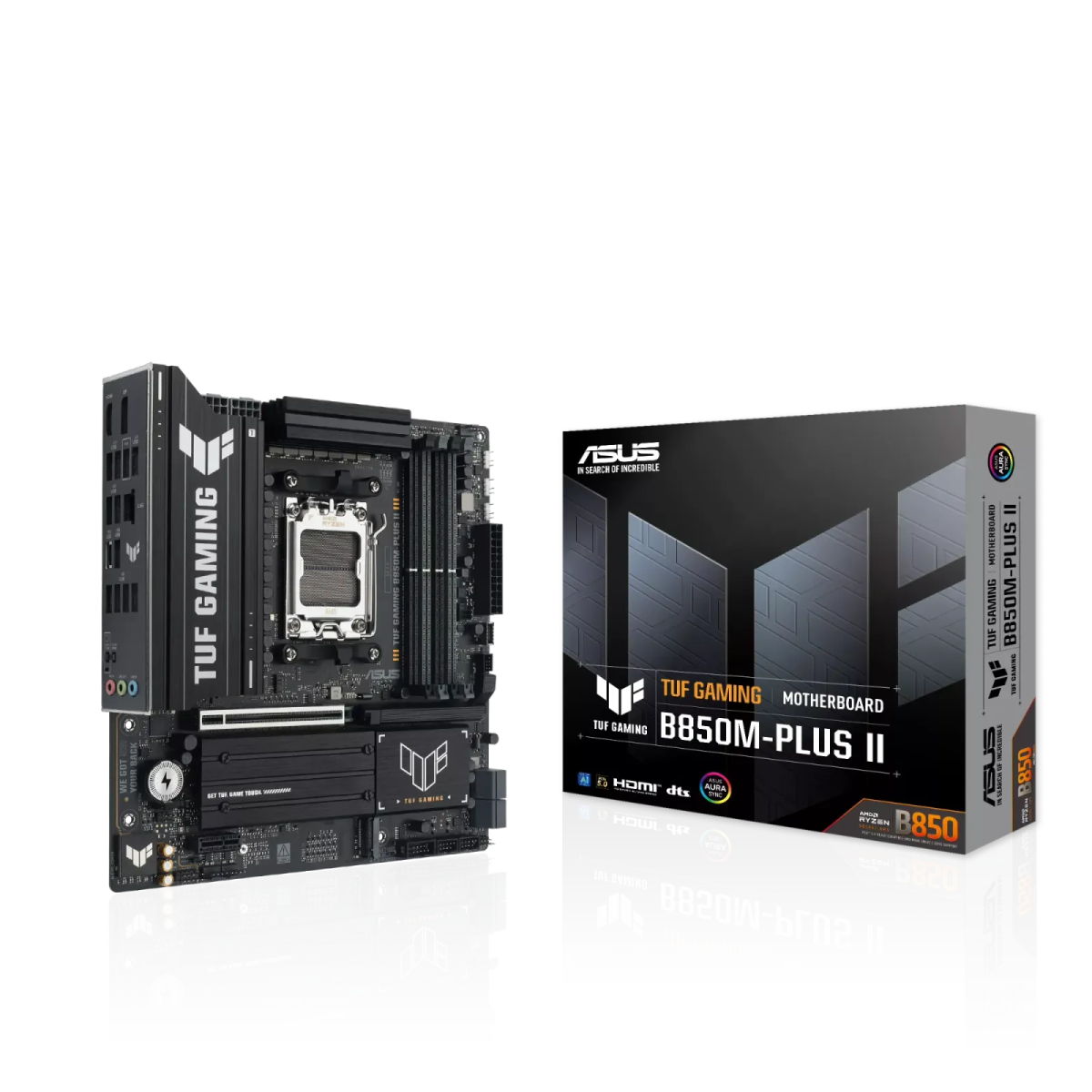

לוח אם – ASUS TUF GAMING B850M-PLUS II Micro-ATX AM5 DDR5 - צבע שחור
חדש
מק"ט: 90MB1MT0-M0EAY0
לוח אם איכותי מבית Asus, בעל תושבת AM5, ערכת שבבים B850, תאימות לזכרונות DDR5 ובעל יציאות HDMI ,DisplayPort.
₪1,059.00כולל מע"מ
במלאיפריסת תשלומים
₪1,059.00 לחודש
עד 2 תשלומים ללא ריבית
מפרט טכני
| תקופת אחריות | 3 שנים על ידי היבואן הרשמי |
| יצרן לוח אם | Asus |
| תמיכה במעבדים | AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors* Refer to https://www.asus.com/support/download-center/ for CPU support list |
| תמיכה בזיכרונות | 4x DIMM slots, max. 256GB, DDR5 Supports up to 8000+MT/s (OC) with Ryzen™ 9000 & 8000 & 7000 Series Processors, ECC and Non-ECC Un-buffered DIMM* Dual channel memory architecture Supports AMD Extended Profiles for Overclocking (EXPO™) ASUS Enhanced Memory Profile (AEMP) * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/download-center/. Adjustments will be made based on the specifications of mass-produced memory products available on the market. Non-ECC, un-buffered DDR5 memory supports On-Die ECC function |
| גרפיקה מובנית | 1x DisplayPort** 1x HDMI™ port*** Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications. Supports max. 8K@30Hz as specified in DisplayPort 1.4** Supports 4K@60Hz as specified in HDMI 2.1*** |
| חריצי הרחבה | :AMD Ryzen™ 9000 & 7000 Series Desktop Processors* 1x PCIe 5.0 x16 slot (supports x16 mode) :AMD Ryzen™ 8000 Series Desktop Processors 1x PCIe 4.0 x16 slot (supports x8/x4 mode)** :AMD B850 Chipset 1x PCIe 4.0 x1 slot Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/). Specifications vary by CPU types** - To ensure compatibility of the device installed, please refer to https://www.asus.com/support/download-center/ for the list of supported peripherals |
| USB | :Rear USB (Total 12 ports) 1x USB 20Gbps port (1 x USB Type-C®) 3x USB 10Gbps ports (3 x Type-A) 4x USB 5Gbps ports (4 x Type-A) 4x USB 2.0 ports (4 x Type-A) :Front USB (Total 7 ports) 1x USB 10Gbps connector (supports USB Type-C®) 1x USB 5Gbps header supports 2 additional USB 5Gbps ports 2x USB 2.0 headers support 4 additional USB 2.0 ports USB Type-C® power delivery output: max. 5V/3A* |
| ממשק אחסון | Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports* :AMD Ryzen™ 9000 & 7000 Series Desktop Processors M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) :AMD Ryzen™ 8000 Series Desktop Processors M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4/x2 mode)* :AMD B850 Chipset M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) 4x SATA 6Gb/s ports Specifications vary by CPU types* :RAID Support AMD RAIDXpert2 Technology* Ryzen™ 9000 Series Processors: RAID 0/1/5/10 Ryzen™ 8000 Series Processors: RAID 0/1 Ryzen™ 7000 Series Processors: RAID 0/1/10 Specifications vary by CPU types* |
| שמע | Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC - Impedance sense for front and rear headphone outputs - Internal audio Amplifier to enhance the highest quality sound for headphone and speakers - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in) - Supports up to 32-Bit/192 kHz playback* Audio Features - Audio Shielding - Premium audio capacitors - Dedicated audio PCB layers - Audio cover - Unique de-pop circuit Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio |
| כרטיס רשת קווי | 1x Realtek 2.5Gb Ethernet TUF LANGuard |
| מודול תקשורת אלחוטית | ללא |
| חיבורים פנימיים | :Fan and Cooling Related 1x 4-pin CPU Fan header 1x 4-pin CPU OPT Fan header 1x 4-pin AIO Pump header 3x 4-pin Chassis Fan headers :Power Related 1x 24-pin Main Power connector 2x 8-pin +12V CPU Power connectors :Storage Related 3x M.2 slots (Key M) 4x SATA 6Gb/s ports :USB 1x USB 10Gbps connector (supports USB Type-C® ) 1x USB 5Gbps header supports 2 additional USB 5Gbps ports 2x USB 2.0 headers support 4 additional USB 2.0 ports :Miscellaneous 3x Addressable RGB Gen 2 headers 1x Chassis Intrusion header 1x COM Port header 1x Front Panel Audio header (F_AUDIO) 1x 10-1 pin Front Panel System header |
| חיבורים ויציאות | 1x USB 20Gbps port (1 x USB Type-C®) 3x USB 10Gbps ports (3 x Type-A) 4x USB 5Gbps ports (4 x Type-A) 4x USB 2.0 ports (4 x Type-A) 1x DisplayPort 1x HDMI™ port 1x Realtek 2.5Gb Ethernet port 3x Audio jacks 1x BIOS FlashBack™ button 1x Clear CMOS button |
| BIOS | 256Mb Flash ROM, UEFI AMI BIOS |
| תכונות ייחודיות | ASUS TUF PROTECTION - DIGI+ VRM (- Digital power design with DrMOS) - ESD Guards - TUF LANGuard - Overvoltage protection - SafeSlot - Stainless-steel back I/O ASUS Q-Design - M.2 Q-Latch - PCIe Slot Q-Release - Q-Dashboard - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) ASUS Thermal Solution - M.2 heatsink - VRM heatsink design ASUS EZ DIY - BIOS FlashBack™ button - BIOS FlashBack™ LED - ProCool - Pre-mounted I/O shield - SafeDIMM Aura Sync - Addressable RGB Gen 2 headers |
| תוכנות מצורפות | ASUS Exclusive Software Armoury Crate - Aura Creator - Aura Sync - Fan Xpert 2+ ASUS AI Advisor ASUS DriverHub - TUF GAMING CPU-Z TurboV Core DTS Audio Processing Adobe Creative Cloud (Free Trial)** Norton 360 for Gamers (60 Days Free Trial) WinRAR (40 Days Free Trial) UEFI BIOS AI Cache Boost ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode - ASUS MyHotkey For more software features, please visit the asus support site or refer to www.asus.com/support for additional information. For detailed information on the supported models and restricted regions for this redemption offer, please refer to https://www.asus.com/content/asus-offers-adobe-creative-cloud/ |
| אביזרים כלולים | :Cables 2x SATA 6Gb/s cables :Miscellaneous 1x TUF GAMING sticker 1x M.2 rubber package 1x Screw package for M.2 SSD :Documentation 1x Quick start guide |
| תצורה | micro-ATX Form Factor 9.6inch x 9.6 inch (24.4 cm x 24.4 cm) |
