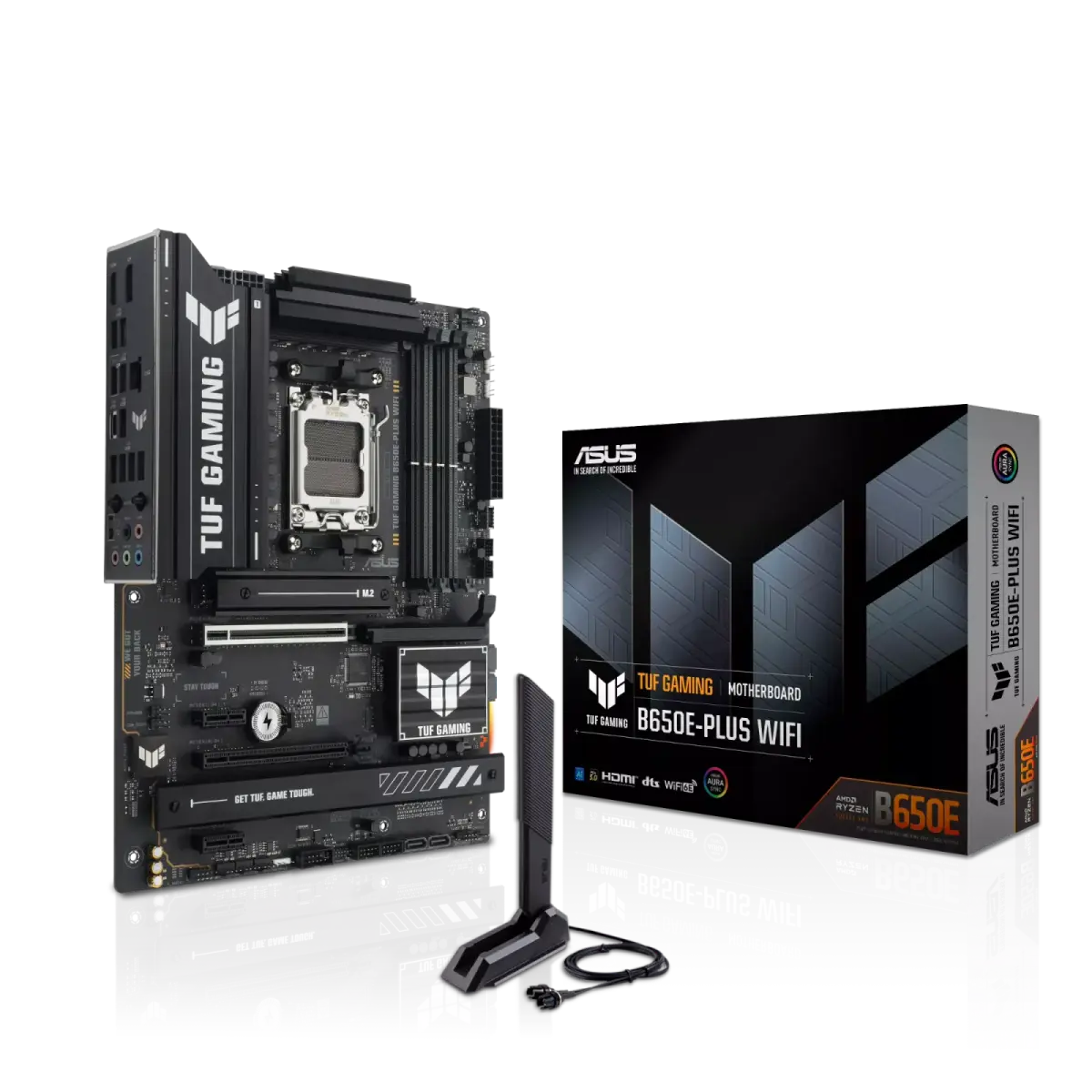

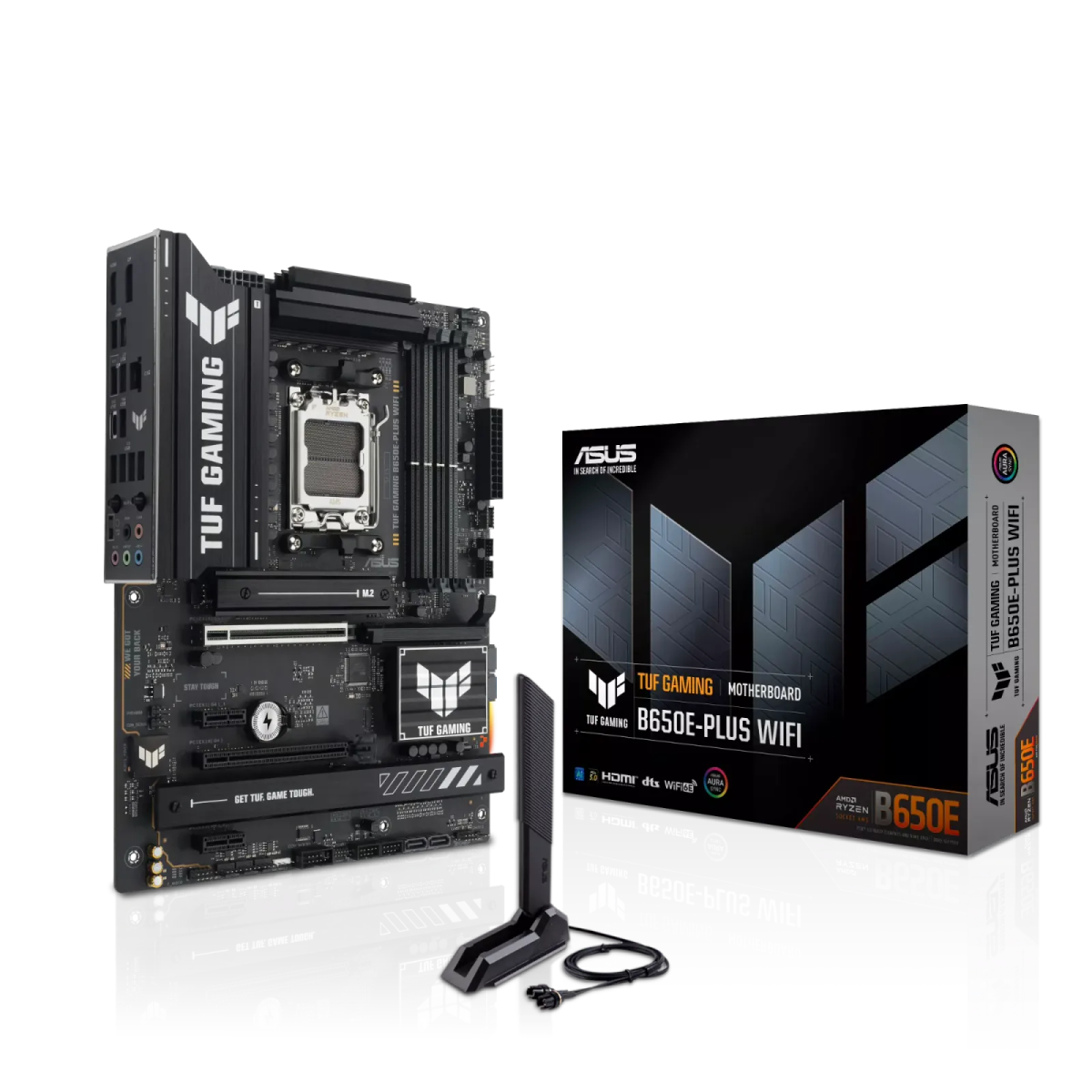

לוח אם – ASUS TUF GAMING B650E-PLUS WIFI ATX AM5 DDR5 - צבע שחור
חדש
מק"ט: 90MB1M20-M0EAY0
לוח אם איכותי מבית Asus, בעל תושבת AM5, ערכת שבבים B650, תאימות לזכרונות DDR5 ובעל יציאות HDMI ,DisplayPort.
₪985.00כולל מע"מ
במלאיפריסת תשלומים
₪985.00 לחודש
עד 2 תשלומים ללא ריבית
מפרט טכני
| תקופת אחריות | 3 שנים על ידי היבואן הרשמי |
| יצרן לוח אם | Asus |
| תמיכה במעבדים | AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors* .Refer to https://www.asus.com/support/download-center/ for CPU support list* |
| תמיכה בזיכרונות | 4x DIMM slots, max. 256GB, DDR5 Supports up to 8000+MT/s (OC) with Ryzen™ 9000 & 8000 & 7000 Series Processors, ECC and Non-ECC Un-buffered DIMM* Dual channel memory architecture Supports AMD Extended Profiles for Overclocking (EXPO™) ASUS Enhanced Memory Profile (AEMP) Adjustments will be made based on the specifications of mass-produced memory products available on the market* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/download-center/. Non-ECC, un-buffered DDR5 memory supports On-Die ECC function* |
| גרפיקה מובנית | 1x DisplayPort** 1x HDMI™ port*** Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications* Supports max. 8K@30Hz as specified in DisplayPort 1.4** Supports 4K@60Hz as specified in HDMI 2.1*** |
| חריצי הרחבה | :AMD Ryzen™ 9000 & 7000 Series Desktop Processors* 1x PCIe 5.0 x16 slot (supports x16 mode) :AMD Ryzen™ 8000 Series Desktop Processors 1x PCIe 4.0 x16 slot (supports x8/x4 mode)** :AMD B650 Chipset 1x PCIe 4.0 x16 slot (supports x4 mode)*** 2x PCIe 4.0 x1 slots Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/)* Specifications vary by CPU types** The PCIEX16(G4) shares bandwidth with M.2_3. The PCIEX16(G4) will be disabled when M.2_3 runs*** To ensure compatibility of the device installed, please refer to https://www.asus.com/support/download-center/ for the list of supported peripherals |
| USB | :Rear USB (Total 10 ports) 1x USB 20Gbps port (1 x USB Type-C®) 3x USB 10Gbps ports (3 x Type-A) 6x USB 2.0 ports (6 x Type-A) :Front USB (Total 7 ports) 1x USB 10Gbps connector (supports USB Type-C®) 1x USB 5Gbps header supports 2 additional USB 5Gbps ports 2x USB 2.0 headers support 4 additional USB 2.0 ports USB Type-C® power delivery output: max. 5V/3A* |
| ממשק אחסון | Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports AMD Ryzen™ 9000 & 7000 Series Desktop Processors M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) AMD Ryzen™ 8000 Series Desktop Processors M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4/x2 mode)* AMD B650 Chipset M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)** 4x SATA 6Gb/s ports Specifications vary by CPU types* The PCIEX16(G4) shares bandwidth with M.2_3. The PCIEX16(G4) will be disabled when M.2_3 runs** AMD RAIDXpert2 Technology Ryzen™ 9000 Series Processors: RAID 0/1/5/10 Ryzen™ 8000 Series Processors: RAID 0/1 Ryzen™ 7000 Series Processors: RAID 0/1/10 |
| שמע | Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC – Impedance sense for front and rear headphone outputs – Internal audio Amplifier to enhance the highest quality sound for headphone and speakers – Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking – High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in) – Supports up to 32-Bit/192 kHz playback* Audio Features – Audio Shielding – Premium audio capacitors – Dedicated audio PCB layers – Audio cover – Unique de-pop circuit Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio |
| כרטיס רשת קווי | 1x Realtek 2.5Gb Ethernet TUF LANGuard |
| מודול תקשורת אלחוטית | Wi-Fi 6E 2×2 Wi-Fi 6E (802.11ax) Supports 2.4/5/6GHz frequency band* Bluetooth® v5.3** WiFi 6E 6GHz regulatory may vary between countries, supported only in Windows 11 or later* The Bluetooth® version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications** |
| חיבורים פנימיים | :Fan and Cooling Related 1x 4-pin CPU Fan header 1x 4-pin CPU OPT Fan header 1x 4-pin AIO Pump header 4x 4-pin Chassis Fan headers :Power Related 1x 24-pin Main Power connector 2x 8-pin +12V CPU Power connectors :Storage Related 3x M.2 slots (Key M) 4x SATA 6Gb/s ports :USB 1x USB 10Gbps connector (supports USB Type-C® ) 1x USB 5Gbps header supports 2 additional USB 5Gbps ports 2x USB 2.0 headers support 4 additional USB 2.0 ports :Miscellaneous 3x Addressable Gen 2 headers 1x Clear CMOS header 1x Chassis Intrusion header 1x COM Port header 1x Front Panel Audio header (F_AUDIO) 1x 10-1 pin Front System Panel header 1x Thunderbolt™ (USB4®) header |
| חיבורים ויציאות | 1x USB 20Gbps port (1 x USB Type-C®) 3x USB 10Gbps ports (3 x Type-A) 6x USB 2.0 ports (6 x Type-A) 1x DisplayPort 1x HDMI™ port 1x Wi-Fi module 1x Realtek 2.5Gb Ethernet port 5x Audio jacks 1x BIOS FlashBack™ button |
| BIOS | 256Mb Flash ROM, UEFI AMI BIOS |
| תכונות ייחודיות | ASUS TUF PROTECTION – DIGI+ VRM (- Digital power design with DrMOS) – ESD Guards – TUF LANGuard – Overvoltage protection – SafeSlot – Stainless-steel back I/O ASUS Q-Design – M.2 Q-Latch – PCIe Slot Q-Release – Q-Antenna – Q-DIMM – Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) ASUS Thermal Solution – M.2 heatsink – VRM heatsink design ASUS EZ DIY – BIOS FlashBack™ button – BIOS FlashBack™ LED – ProCool – Pre-mounted I/O shield – SafeDIMM Aura Sync – Addressable Gen 2 headers |
| תוכנות מצורפות | ASUS Exclusive Software Armoury Crate – Aura Creator – Aura Sync – Fan Xpert 4 – Two-Way AI Noise Cancelation AI Suite 3 – TurboV EVO – DIGI+ VRM – PC Cleaner ASUS DriverHub TUF GAMING CPU-Z DTS Audio Processing Adobe Creative Cloud (Free Trial) Norton 360 for Gamers (60 Days Free Trial) WinRAR (40 Days Free Trial) UEFI BIOS ASUS EZ DIY – ASUS CrashFree BIOS 3 – ASUS EZ Flash 3 – ASUS UEFI BIOS EZ Mode |
| אביזרים כלולים | :Cables 2x SATA 6Gb/s cables :Miscellaneous 1x ASUS WiFi Q-Antenna 1x TUF GAMING sticker 2x M.2 rubber packages :Documentation 1x Quick start guide |
| תצורה | ATX Form Factor 12inch x 9.6 inch ( 30.5 cm x 24.4 cm ) |
