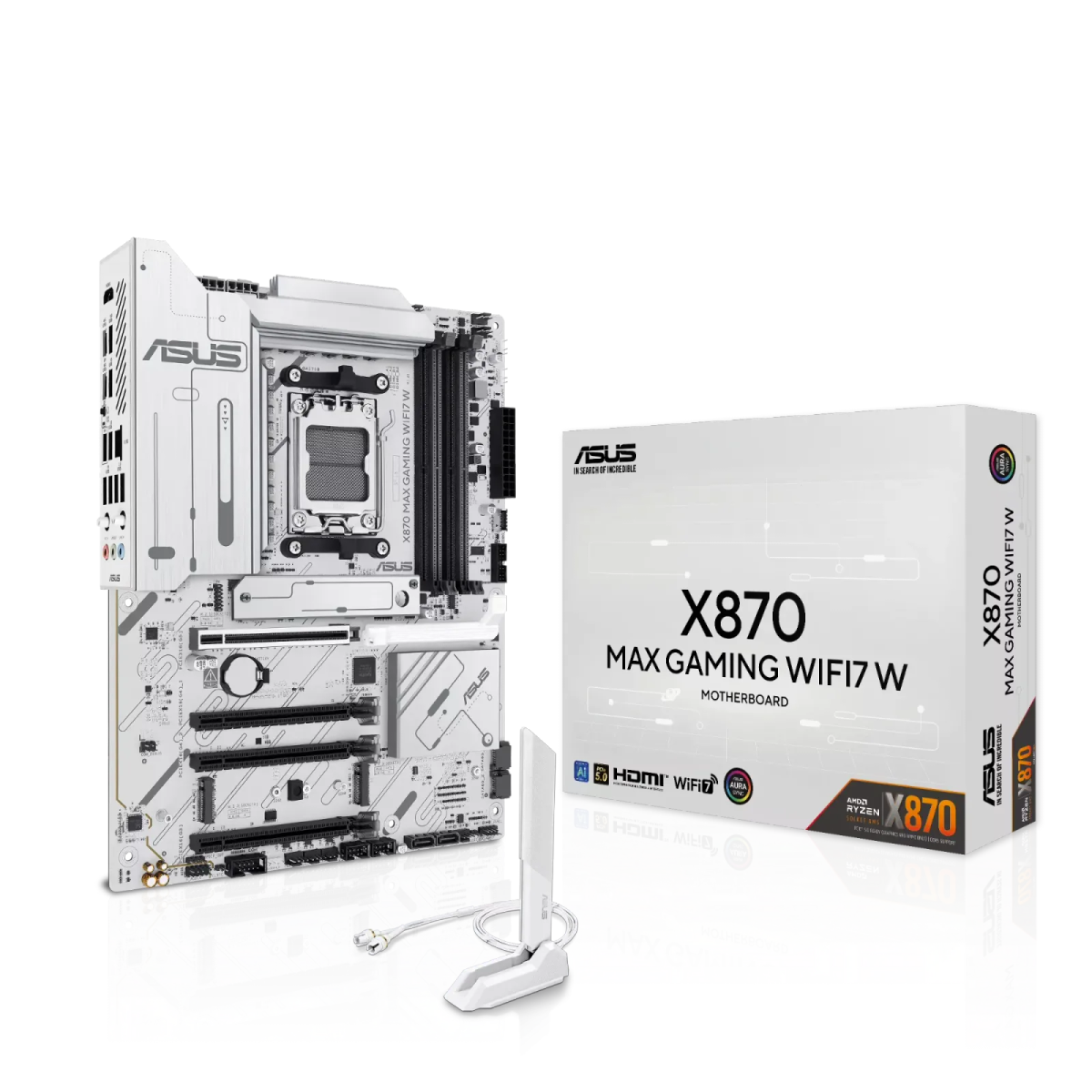

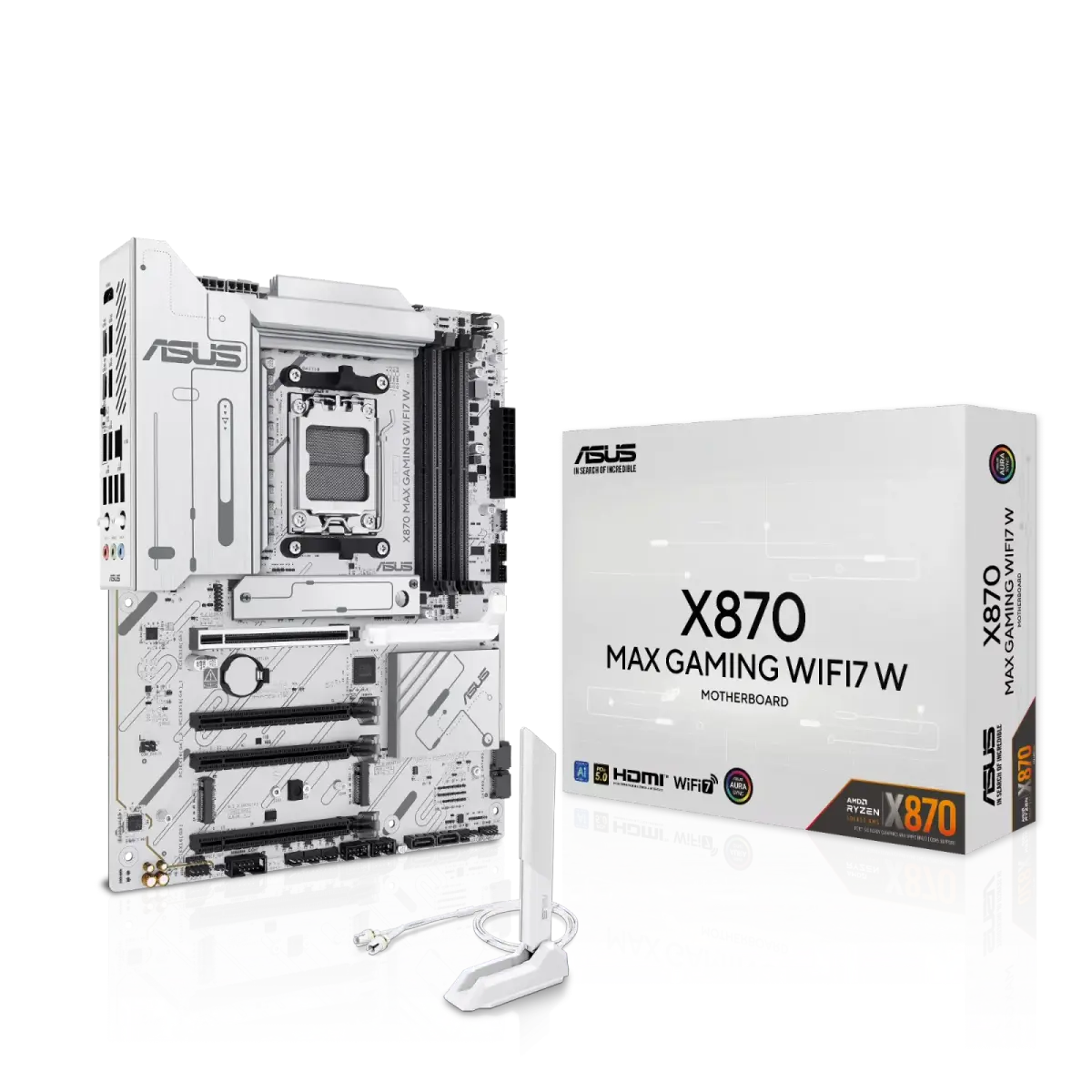

לוח אם – ASUS X870 MAX GAMING WIFI7 W ATX AM5 DDR5 – צבע לבן
חדש
מק"ט: 90MB1LZ0-M0EAY0
לוח אם איכותי מבית Asus, בעל תושבת AM5, ערכת שבבים X870, תאימות לזכרונות DDR5 ובעל יציאת תצוגה של HDMI.
₪1,359.00כולל מע"מ
במלאיפריסת תשלומים
₪1,359.00 לחודש
עד 3 תשלומים ללא ריבית
מפרט טכני
| תקופת אחריות | 3 שנים על ידי היבואן הרשמי |
| יצרן לוח אם | Asus |
| תמיכה במעבדים | AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors* Refer to https://www.asus.com/support/download-center/ for CPU support list* |
| תמיכה בזיכרונות | 4x DIMM slots, max. 256GB, DDR5 Supports up to 8000+MT/s(OC) with Ryzen™ 9000 & 8000 & 7000 Series Processors ECC and Non-ECC, Un-buffered DIMM* Dual channel memory architecture Supports AMD Extended Profiles for Overclocking (EXPO™) ASUS Enhanced Memory Profile (AEMP) Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/download-center/. Adjustments will be made based on the specifications of mass-produced memory products available on the market Non-ECC, un-buffered DDR5 memory supports On-Die ECC function* |
| גרפיקה מובנית | 1x HDMI™ port** 2x USB4® (40Gbps) ports support USB Type-C® display outputs*** Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications* Supports 4K@60Hz as specified in HDMI 2.1** Supports max. 4K@60Hz as specified in DisplayPort 1.4a*** VGA resolution support depends on processors' or graphic cards' resolution*** |
| חריצי הרחבה | AMD Ryzen™ 9000 & 7000 Series Desktop Processors* 1x PCIe 5.0 x16 slot (supports x16 mode) AMD Ryzen™ 8000 Series Desktop Processors 1x PCIe 4.0 x16 slot (supports x8/x4 mode)** AMD X870 Chipset 2x PCIe 4.0 x16 slots (support x1 mode) 1x PCIe 3.0 x16 slot (supports x1 mode)*** Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/)* Specifications vary by CPU types** PCIEX16(G3) slot shares bandwidth with SATA6G_3 and SATA6G_4 ports. Both SATA ports will be disabled when PCIEX16(G3) slot is running. You can enter the BIOS to adjust the default Settings as required To ensure compatibility of the device installed, please refer to https://www.asus.com/support/download-center/ for the list of supported peripherals |
| USB | Rear USB (Total 10 ports) 2x USB4® (40Gbps) ports (2 x USB Type-C®) 1x USB 10Gbps port (1 x Type-A) 3x USB 5Gbps ports (3 x Type-A) 4x USB 2.0 ports (4 x Type-A) Front USB (Total 7 ports) 1x USB 20Gbps connector (supports USB Type-C®) 1x USB 5Gbps header supports 2 additional USB 5Gbps ports 2x USB 2.0 headers support 4 additional USB 2.0 ports USB Type-C® power delivery output: max. 5V/3A* |
| ממשק אחסון | Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports* AMD Ryzen™ 9000 & 7000 Series Desktop Processors M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) AMD Ryzen™ 8000 Series Desktop Processors M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4/x2 mode)** AMD X870 Chipset M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) 4x SATA 6Gb/s ports 2 x USB4® (40Gbps) ports share bandwidth with M.2_2 slot. The M.2_2 slot will be disabled when either of the two USB4® (40Gbps) ports is running. You can enter the BIOS to adjust th default Settings as required The PCIEX16(G3) slot shares bandwidth with the SATA6G_3 and SATA6G_4 ports. Both SATA ports will be disabled when the PCIEX16(G3) slot is running. You can enter the BIOS to adjust the default Settings as required. Specifications vary by CPU types** AMD RAIDXpert2 Technology* Ryzen™ 9000 Series Processors: RAID 0/1/5/10 Ryzen™ 8000 Series Processors: RAID 0/1 Ryzen™ 7000 Series Processors: RAID 0/1/10 Specifications vary by CPU types* |
| שמע | Realtek 7.1 Surround Sound High Definition Audio CODEC* – Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking – Supports up to 24-Bit/192 kHz playback :Audio Features – Audio Shielding – Premium audio capacitors – Dedicated audio PCB layers A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output* |
| כרטיס רשת קווי | 1x Realtek 2.5Gb Ethernet ASUS LANGuard |
| מודול תקשורת אלחוטית | Wi-Fi 7* 2×2 Wi-Fi 7 (802.11be) Supports 2.4/5/6GHz frequency band** Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate. Bluetooth® v5.4*** Wi-Fi features may vary depending on the operating system* For Windows 11, Wi-Fi 7 will require 24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only supports Wi-Fi 6E For Windows 10, only Wi-Fi 6 is supported Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries** The Bluetooth® version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications*** |
| חיבורים פנימיים | :Fan and Cooling Related 1x 4-pin CPU Fan header 1x 4-pin CPU OPT Fan header 1x 4-pin AIO Pump header 4x 4-pin Chassis Fan headers :Power Related 1x 24-pin Main Power connector 2x 8-pin +12V CPU Power connectors :Storage Related 3x M.2 slots (Key M) 4x SATA 6Gb/s ports :USB 1x USB 20Gbps connector (supports USB Type-C®) 1x USB 5Gbps header supports 2 additional USB 5Gbps ports 2x USB 2.0 headers support 4 additional USB 2.0 ports :Miscellaneous 3x Addressable RGB Gen 2 headers 1x Clear CMOS header 1x Chassis Intrusion header 1x COM Port header 1x Front Panel Audio header (F_AUDIO) 1x S/PDIF Out header 1x SPI TPM header (14-1 pin) 1x 10-1 pin System Panel header |
| חיבורים ויציאות | 2x USB4® (40Gbps) ports (2 x USB Type-C®) 1x USB 10Gbps port (1 x Type-A) 3x USB 5Gbps ports (3 x Type-A) 4x USB 2.0 ports (4 x Type-A) 1x HDMI™ port 1x Wi-Fi module 1x Realtek 2.5Gb Ethernet port 3x Audio jacks 1x BIOS FlashBack™ button |
| BIOS | 256Mb Flash ROM, UEFI AMI BIOS |
| תכונות ייחודיות | ASUS 5X PROTECTION III – DIGI+ VRM (- Digital power design with DrMOS) – LANGuard – Overvoltage protection – SafeSlot – Stainless-steel back I/O ASUS Q-Design – PCIe Slot Q-Release – Q-Antenna – Q-Dashboard – Q-DIMM – Q-LED Core – Q-Slot ASUS Thermal Solution – Flexible M.2 heatsink – VRM heatsink design ASUS EZ DIY – BIOS FlashBack™ button – BIOS FlashBack™ LED – ProCool – Pre-mounted I/O shield – SafeSlot Aura Sync – Addressable RGB Gen 2 headers |
| תוכנות מצורפות | ASUS Exclusive Software Armoury Crate – Aura Creator – Aura Sync – Fan Xpert 4 with AI Cooling II ASUS AI Advisor ASUS DriverHub ASUS GlideX TurboV Core ASUS CPU-Z Norton 360 Deluxe (60 Days Free Trial) WinRAR (40 Days Free Trial) UEFI BIOS ASUS EZ DIY – ASUS CrashFree BIOS 3 – ASUS EZ Flash 3 – ASUS UEFI BIOS EZ Mode – ASUS MyHotkey |
| אביזרים כלולים | :Cables 2x SATA 6Gb/s cables :Miscellaneous 1x ASUS WiFi Q-Antenna 1x M.2 rubber package 1x Screw package for M.2 SSD :Documentation 1x Quick start guide |
| תצורה | ATX Form Factor 12inch x 9.6 inch ( 30.5 cm x 24.4 cm ) |
