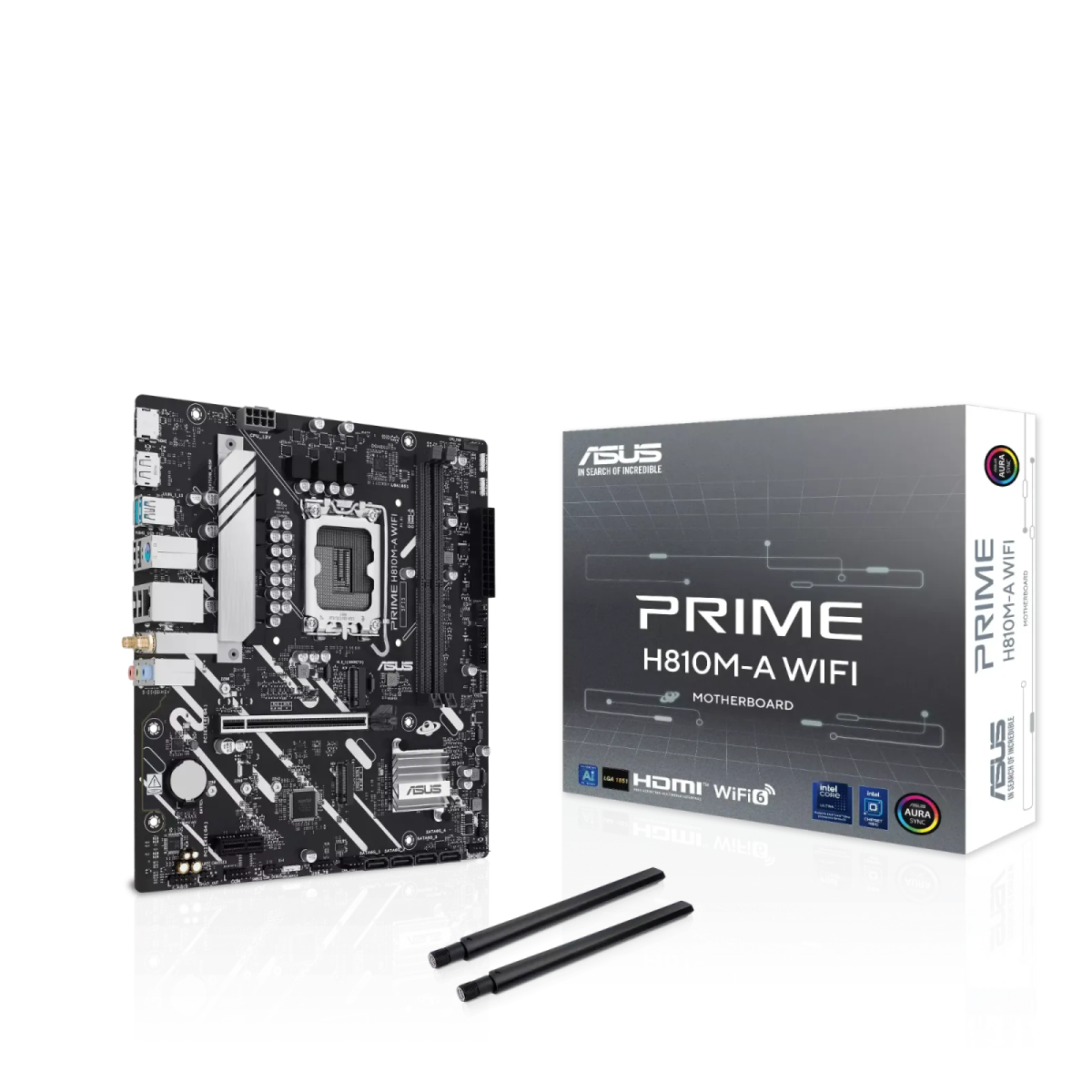

לוח אם – ASUS PRIME H810M-A WIFI Micro-ATX LGA1851 DDR5 - צבע שחור
חדש
מק"ט: 90MB1KJ0-M0EAY0
לוח אם איכותי מבית Asus, בעל תושבת LGA1851, ערכת שבבים H810, תאימות לזכרונות DDR5 ובעל יציאות תצוגה של HDMI ,DisplayPort.
₪585.00כולל מע"מ
במלאיפריסת תשלומים
₪585.00 לחודש
עד 1 תשלומים ללא ריבית
מפרט טכני
| תקופת אחריות | 3 שנים על ידי היבואן הרשמי |
| יצרן לוח אם | Asus |
| תמיכה במעבדים | Support Intel® Core™ Ultra Processors (Series 2) , LGA1851 Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0** Refer to https://www.asus.com/support/download-center/ for CPU support list* Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types* |
| תמיכה בזיכרונות | 2x DIMM slots, max. 128GB, DDR5 Supports up to 6400MT/s, Non-ECC, Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)* Dual channel memory architecture DIMM Fit Supports Intel® Extreme Memory Profile (XMP) memory module ASUS Enhanced Memory Profile II (AEMP II) Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/download-center/. Adjustments will be made based on the specifications of mass-produced memory products available on the market Non-ECC, un-buffered DDR5 memory supports On-Die ECC function** |
| גרפיקה מובנית | 1x DisplayPort** 1x HDMI™ port*** Graphics specifications may vary between CPU types. Please refer to http://www.intel.com for any updates* Supports max. 4K@60Hz as specified in DisplayPort 1.4** Supports 4K@60Hz as specified in HDMI 2.1*** VGA resolution support depends on processors' or graphic cards' resolution**** |
| חריצי הרחבה | Intel® Core™ Ultra Processors (Series 2) 1x PCIe 4.0 x16 slot Intel® H810 Chipset 1x PCIe 4.0 x1 slot To ensure compatibility of the device installed, please refer to https://www.asus.com/support/download-center/ for the list of supported peripherals |
| USB | Rear USB (Total 6 ports) 2x USB 10Gbps ports (2 x Type-A) 4x USB 2.0 ports (4 x Type-A) Front USB (Total 5 ports) 1x USB 5Gbps connector (supports USB Type-C®)* 1x USB 5Gbps header supports 2 additional USB 5Gbps ports 1x USB 2.0 header supports 2 additional USB 2.0 ports USB Type-C® power delivery output: max. 5V/3A* USB_E1 port, USB_E2 port, USB_E3 port and USB_E4 port share the bandwidth** |
| ממשק אחסון | Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports Intel® H810 Chipset M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x2 mode) 4x SATA 6Gb/s ports |
| שמע | Realtek 7.1 Surround Sound High Definition Audio CODEC* – Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking – Supports up to 24-Bit/192 kHz playback :Audio Features – Audio Shielding – Premium audio capacitors – Dedicated audio PCB layers A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output* |
| כרטיס רשת קווי | 1x Intel® 1Gb Ethernet port* ASUS LANGuard With Intel® I219V LAN, Wake-on-LAN is not supported in S5 after the system transitions from G3* |
| מודול תקשורת אלחוטית | Wi-Fi 6 1×1 Wi-Fi 6 (802.11ax) Supports 2.4/5GHz frequency band Bluetooth® v5.3* The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications* |
| חיבורים פנימיים | :Fan and Cooling Related 1x 4-pin CPU Fan header 2x 4-pin Chassis Fan headers :Power Related 1x 24-pin Main Power connector 1x 8-pin +12V CPU Power connector :Storage Related 2x M.2 slots (Key M) 4x SATA 6Gb/s ports :USB 1x USB 5Gbps connector (supports USB Type-C® ) 1x USB 5Gbps header supports 2 additional USB 5Gbps ports 1x USB 2.0 header supports 2 additional USB 2.0 ports :Miscellaneous 3x Addressable Gen2 headers 1x Clear CMOS header 1x COM Port header 1x Front Panel Audio header (F_AUDIO) 1x S/PDIF Out header 1x SPI TPM header (14-1 pin) 1x 10-1 pin Front Panel System header |
| חיבורים ויציאות | 2x USB 10Gbps ports (2 x Type-A) 4x USB 2.0 ports (4 x Type-A) 1x DisplayPort 1x HDMI™ port 1x Wi-Fi module 1x Intel® 1Gb Ethernet port 3x Audio jacks 1x PS/2 keyboard/mouse combo port |
| BIOS | (128+128) 256Mb Flash ROM, UEFI AMI BIOS |
| תכונות ייחודיות | ASUS 5X PROTECTION III – DIGI+ VRM – LANGuard – Overvoltage protection – SafeSlot Core+ – Stainless-steel back I/O ASUS Q-Design – Q-DIMM – Q-Dashboard – Q-LED Core – Q-Slot ASUS Thermal Solution – VRM heatsink design Aura Sync – Addressable Gen 2 headers |
| תוכנות מצורפות | ASUS Exclusive Software Armoury Crate – Aura Creator – Aura Sync – Fan Xpert 2+ – Power Saving ASUS DriverHub ASUS GlideX ASUS CPU-Z Norton 360 Deluxe (60 Days Free Trial) WinRAR (40 Days Free Trial) UEFI BIOS ASUS EZ DIY – ASUS CrashFree BIOS 3 – ASUS EZ Flash – ASUS UEFI BIOS EZ Mode – ASUS MyHotkey |
| אביזרים כלולים | :Cables 2x SATA 6Gb/s cables :Miscellaneous 1x ASUS Wi-Fi moving antenna 1x I/O shield 1x Screw package for M.2 SSD :Documentation 1x Quick start guide |
| תצורה | micro-ATX Form Factor 9.6inch x 8.75 inch (24.4 cm x 22.2 cm) |
