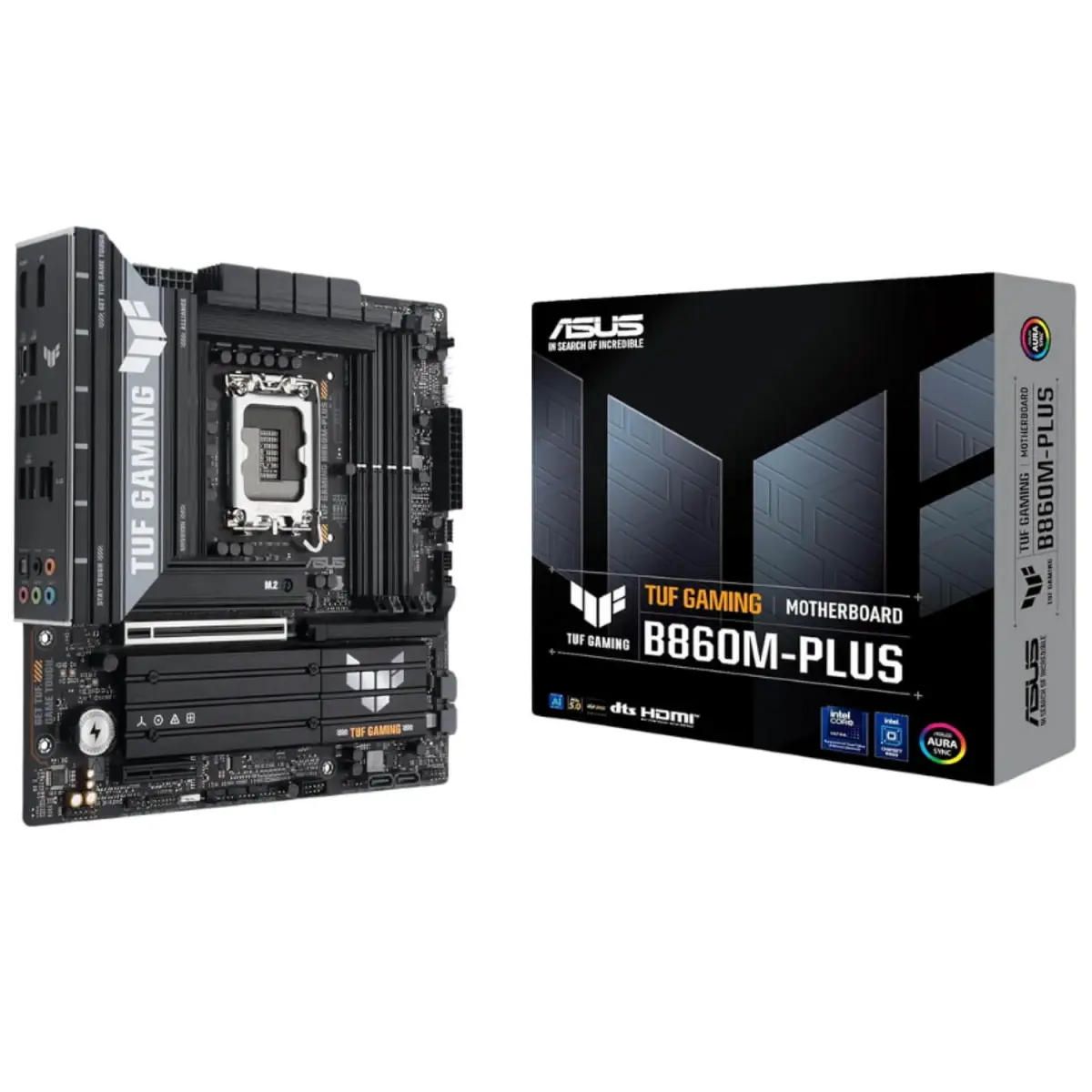

לוח אם – ASUS TUF GAMING B860M-PLUS Micro-ATX LGA1851 DDR5 - צבע שחור
חדש
מק"ט: 90MB1JW0-M0EAY0
לוח אם איכותי מבית Asus, בעל תושבת LGA1851, ערכת שבבים B860, תאימות לזכרונות DDR5 ובעל יציאות תצוגה של HDMI ,DisplayPort.
₪910.00כולל מע"מ
במלאיפריסת תשלומים
₪910.00 לחודש
עד 2 תשלומים ללא ריבית
מפרט טכני
| תקופת אחריות | 3 שנים על ידי היבואן הרשמי |
| יצרן לוח אם | Asus |
| תמיכה במעבדים | Support Intel® Core™ Ultra Processors (Series 2) , LGA1851* Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0** Refer to https://www.asus.com/support/download-center/ for CPU support list. Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types |
| תמיכה בזיכרונות | 4x DIMM slots, max. 256GB, DDR5 Support up to 8800+MT/s (OC), Non-ECC,Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)* Dual Channel Memory Architecture DIMM Fit Supports Intel® Extreme Memory Profile (XMP) memory module ASUS Enhanced Memory Profile III(AEMPIII) Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/download-center/. Non-ECC, un-buffered DDR5 memory supports On-Die ECC function |
| גרפיקה מובנית | 1x DisplayPort** 1x HDMI™ port*** 1x USB 20Gbps port (USB Type-C®) supports DisplayPort video output** Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates. .Supports max. 4K@60Hz as specified in DisplayPort 1.4 ***Supports 4K@60Hz as specified in HDMI 2.1. VGA resolution support depends on processors' or graphic cards' resolution. While installing the operating system, please ensure that your monitor is connected to the HDMI port on the back I/O panel or to a discrete graphics card |
| חריצי הרחבה | :Intel® CoreTM Ultra Processors(Series 2)* 1x PCIe 5.0 x16 slot :Intel® B860 Chipset 1x PCIe 4.0 x4 slot - To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals |
| USB | :Rear USB (Total 8 ports) 1x USB 20Gbps port (1 x USB Type-C®) 2x USB 10Gbps port (2 x Type-A) 4x USB 5Gbps ports (4 x Type-A) 1x USB 2.0 ports (1 x Type-A) :Front USB (Total 8 ports) 1x USB 10Gbps connector (supports USB Type-C®) 1x USB 5Gbps header supports 2 additional USB 5Gbps ports 1x USB 2.0 headers support 2 additional USB 2.0 ports USB Type-C® power delivery output: max. 5V/3A* |
| ממשק אחסון | :Supports 3 x M.2 slots and 4 x SATA 6Gb/s ports* Intel® CoreTM Ultra Processors(Series 2)* M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode) :Intel® B860 Chipset M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) 4x SATA 6Gb/s ports Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10 |
| שמע | Realtek 7.1 Surround Sound High Definition Audio CODEC - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback Audio Features - Audio Shielding - Rear optical S/PDIF out port - Premium audio capacitors - Dedicated audio PCB layers |
| כרטיס רשת קווי | 1x Realtek 2.5Gb Ethernet TUF LANGuard |
| מודול תקשורת אלחוטית | ללא |
| חיבורים פנימיים | :I/O Connectors Fan and Cooling related 1x 4-pin CPU Fan header 1x 4-pin CPU OPT Fan header 1x 4-pin AIO Pump header 3x 4-pin Chassis Fan headers :Power related 1x 24-pin Main Power connector 2x 8-pin +12V Power connectors :Storage related 3x M.2 slots (Key M) 4x SATA 6Gb/s ports :USB 1x USB 10Gbps connector (supports USB Type-C® ) 1x USB 5Gbps header supports 2 additional USB 5Gbps ports 1x USB 2.0 header supports 2 additional USB 2.0 ports :Miscellaneous 3x Addressable Gen 2 headers 1x Clear CMOS header 1x Chassis Intrusion header 1x Front panel audio header (F_AUDIO) 1x 10-1 pin Front System Panel header 1x Thunderbolt™ (USB4®) header |
| חיבורים ויציאות | 1x USB 20Gbps port (1 x USB Type-C® with DP Alt mode) 2x USB 10Gbps port (2 x Type-A) 4x USB 5Gbps ports (4 x Type-A) 1x USB 2.0 port (1 x Type-A) 1x DisplayPort 1x HDMI™ port 1x Realtek 2.5Gb Ethernet port 5x Audio jacks 1x Optical S/PDIF out port |
| BIOS | 2x 128 Mb Flash ROM, UEFI AMI BIOS |
| תכונות ייחודיות | ASUS TUF PROTECTION - DIGI+ VRM (- Digital power design with DrMOS) - ESD Guards - TUF LANGuard - Overvoltage Protection - SafeSlot - Stainless-Steel Back I/O ASUS Q-Design - M.2 Q-Latch - PCIe Slot Q-Release - Q-Dashboard - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) ASUS Thermal Solution - M.2 heatsinks - VRM heatsink design ASUS EZ DIY - CPU Socket lever protector - ProCool - Pre-mounted I/O shield - SafeDIMM AURA Sync - Addressable Gen 2 headers |
| תוכנות מצורפות | ASUS Exclusive Software Armoury Crate - AURA Creator - AURA Sync - Fan Xpert 2+ - Power Saving ASUS DriverHub TurboV Core TUF GAMING CPU-Z DTS Audio Processing Norton 360 for Gamers (60 Days Free Trial) WinRAR (40 Days Free Trial) UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash - ASUS UEFI BIOS EZ Mode - ASUS MyHotkey NPU Boost |
| אביזרים כלולים | :Cables 2x SATA 6Gb/s cables :Miscellaneous 2x M.2 Rubber Packages 1x TUF Gaming sticker 1x Screw package for M.2 SSD :Documentation 1x Quick start guide |
| תצורה | mATX Form Factor 9.6inch x 9.6 inch ( 24.4 cm x 24.4 cm ) |
