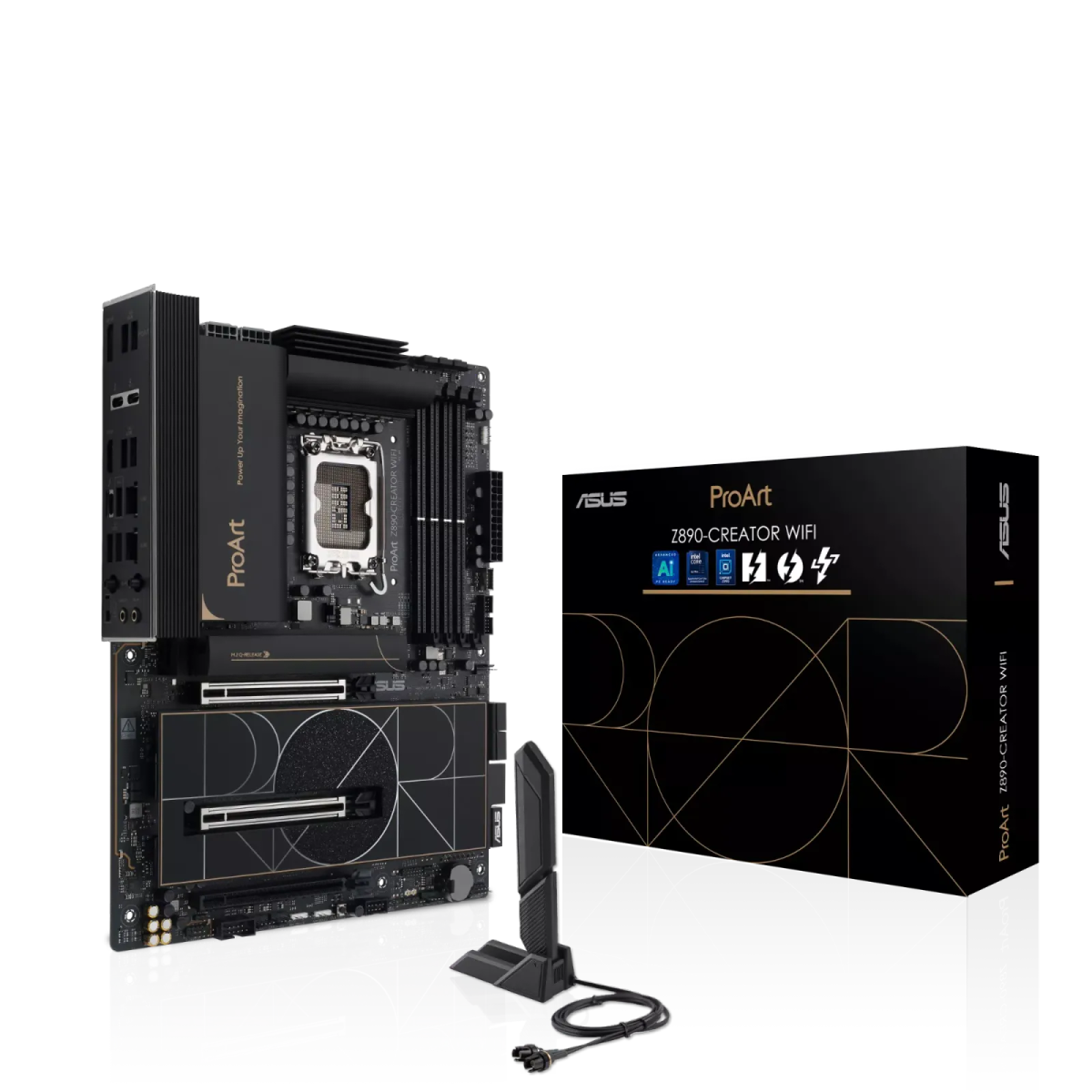

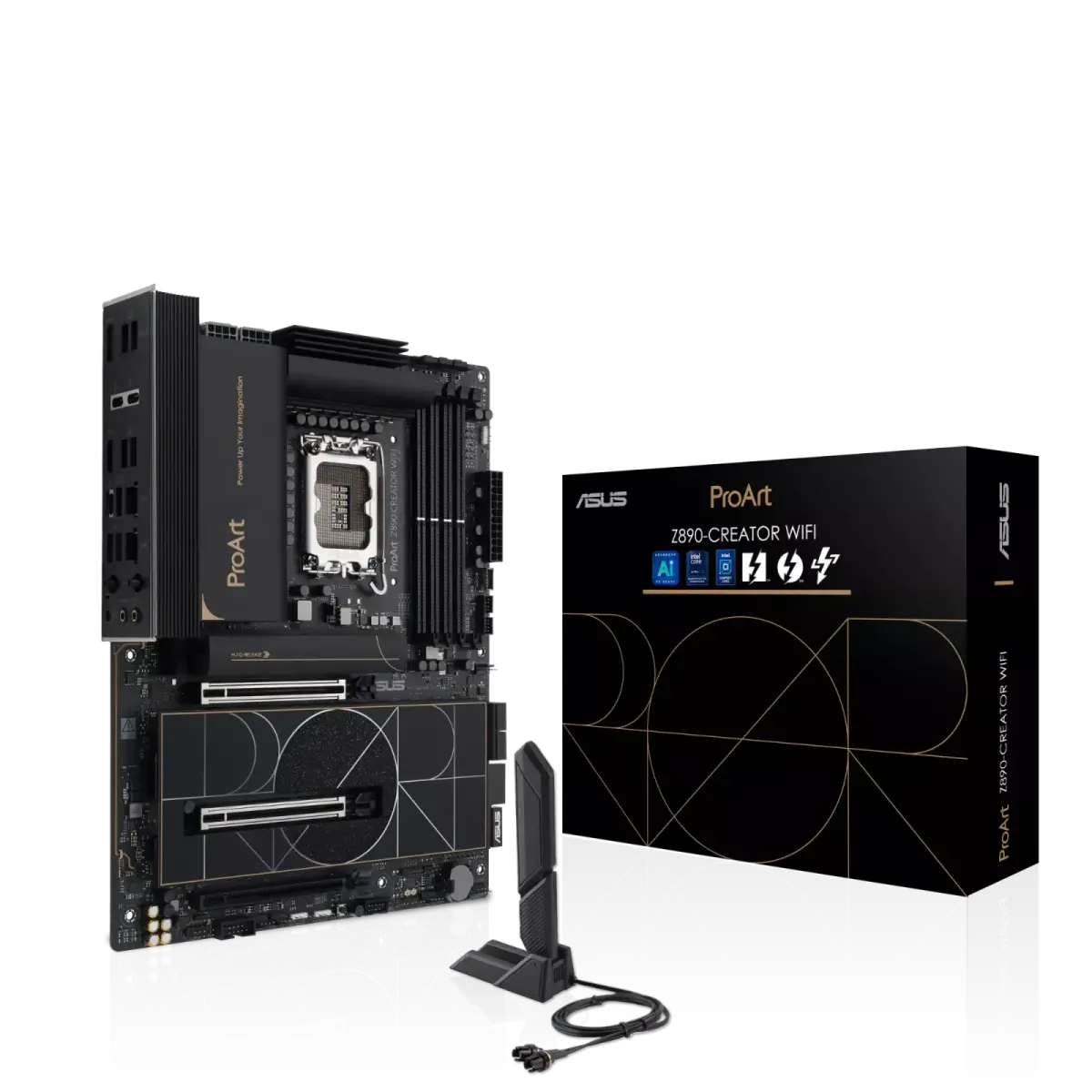

לוח אם – ASUS ProArt Z890 CREATOR WIFI ATX LGA1851 DDR5 - צבע שחור
חדש
מק"ט: 90MB1JD0-M0EAY0
לוח אם איכותי מבית Asus, בעל תושבת LGA1851, ערכת שבבים Z890, תאימות לזכרונות DDR5 ובעל יציאות תצוגה של HDMI ,DisplayPort.
₪2,435.00כולל מע"מ
במלאיפריסת תשלומים
₪2,435.00 לחודש
עד 6 תשלומים ללא ריבית
מפרט טכני
| תקופת אחריות | 3 שנים על ידי היבואן הרשמי |
| יצרן לוח אם | Asus |
| תמיכה במעבדים | Support Intel® Core™ Ultra Processors (Series 2), LGA1851 Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0** Refer to https://www.asus.com/support/download-center/ for CPU support list* Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types** |
| תמיכה בזיכרונות | 4x DIMM slots, max. 256GB, DDR5 Support up to 9066+MT/s (OC), Non-ECC, Un-buffered and Clocked Unbuffered DIMM (CUDIMM)* Dual channel memory architecture Supports Intel® Extreme Memory Profile (XMP) memory module ASUS Enhanced Memory Profile III (AEMP III) Support DIMM Fit Support DIMM Flex Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/download-center/. Non-ECC, un-buffered DDR5 memory supports On-Die ECC function** |
| גרפיקה מובנית | 1x HDMI™ port** 2x Intel® Thunderbolt™ 5 ports (USB Type-C®) support DisplayPort and Thunderbolt™ video outputs*** 1x Intel® Thunderbolt™ 4 ports (USB Type-C®) support DisplayPort and Thunderbolt™ video outputs**** Graphics specifications may vary between CPU types. Please refer to http://www.intel.com for any updates* Supports 4K@60Hz as specified in HDMI 2.1** Supports up to 2 x 8K@60HZ (DSC mode) + 1 x 4K@60HZ monitors with DP in*** Supports up to 1 x 8K@60HZ (DSC mode) + 1 x 4K@60HZ monitors without DP in*** For resolution support please check DisplayPort 2.1 specs. ThunderboltTM 5 bandwidth is limited by DisplayPort™ 2.1 with up to 77.4 Gbit/s. We recommend chain-connecting the monitors using verified Thunderbolt™ cables In ThunderboltTM 4 mode, supports up to 8K@60Hz x1 with DSC, maximum total bandwidth up to 23.8Gbps, for resolution support please check DisplayPort 2.1 specs. In DP alt mode, supports up to UHBR20.When the ThunderboltTM 5 port is used to output two displays via integrated graphics, the Thunderbolt 4 port on the motherboard will not be able to output any display While installing the operating system, please ensure that your monitor is connected to the HDMI port on the back I/O panel or to a discrete graphics card***** |
| חריצי הרחבה | Intel® Core™ Ultra Processors (Series 2)* 2x PCIe 5.0 x16 slots (supports x16 or x8/x8 modes) Intel® Z890 Chipset 1x PCIe 4.0 x16 slot (supports x4 mode)* Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/)* To ensure compatibility of the device installed, please refer to https://www.asus.com/support/download-center/ for the list of supported peripherals |
| USB | :Rear USB (Total 10 ports) 2x Thunderbolt™ 5 ports (2 x USB Type-C®) 1x USB4 / Thunderbolt™ port (1 x USB Type-C®) 6x USB 10Gbps ports (6 x Type-A ) 1x USB 2.0 port (1 x Type-A ) :Front USB (Total 5 ports) 1x USB 20Gbps (supports USB Type-C®) 1x USB 5Gbps header supports 2 additional USB 5Gbps ports 1x USB 2.0 header supports 2 additional USB 2.0 ports USB Type-C® power delivery output: max. 5V/3A |
| ממשק אחסון | Total supports 5 x M.2 slots and 4 x SATA 6Gb/s ports* :Intel® Core™ Ultra Processors (Series 2) * M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) :Intel® Z890 Chipset M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 modes) M.2_5 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)** 4x SATA 6Gb/s ports Intel® Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10, M.2 slot from CPU only supports RAID 0/1/5* M.2_5 slot shares bandwidth with PCIe 4.0 x16 slot. When M.2_5 slot is operating, PCIe 4.0 x16 slot will be disabled** |
| שמע | Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC* – Impedance sense for front and rear headphone outputs – Internal audio Amplifier to enhance the highest quality sound for headphone and speakers – Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking – High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in) – Supports up to 32-Bit/192 kHz playback*Audio Features – Gold-plated audio jacks – Premium audio capacitors – Dedicated audio PCB layers Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output** |
| כרטיס רשת קווי | 1x Marvell® AQtion 10Gb Ethernet 1x Intel® 2.5Gb Ethernet ASUS LANGuard |
| מודול תקשורת אלחוטית | Wi-Fi 7* 2×2 Wi-Fi 7 (802.11be) Supports 2.4/5/6GHz frequency band** Support Wi-Fi 7 320MHz bandwidth, up to 5.8Gbps transfer rate Bluetooth® v5.4*** Wi-Fi features may vary depending on the operating system* For Windows 11, Wi-Fi 7 will require 24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only supports Wi-Fi 6E .For Windows 10, only Wi-Fi 6 is supported Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries** The Bluetooth® version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications*** |
| חיבורים פנימיים | :Fan and Cooling Related 1x 4-pin CPU Fan header 1x 4-pin CPU OPT Fan header 1x 4-pin AIO Pump header 5x 4-pin Chassis Fan headers :Power Related 1x 24-pin Main Power connector 2x 8-pin +12V CPU Power connector :Storage Related 5x M.2 slots (Key M) 4x SATA 6Gb/s ports :USB 1x USB 20Gbps connector (supports USB Type-C® ) 1x USB 5Gbps header supports 2 additional USB 5Gbps ports 1x USB 2.0 header supports 2 additional USB 2.0 ports :Miscellaneous 3x Addressable Gen2 headers 1x Clear CMOS button 1x COM Port header 1x CPU Over voltage jumper 1x Chassis Intrusion header 1x Front Panel Audio header (F_AUDIO) 1x SPI TPM header (14-1 pin) 1x 10-1 pin Front System Panel header 1x Thermal Sensor header |
| חיבורים ויציאות | 2x Thunderbolt™ 5 USB Type-C® ports 1x USB4 / Thunderbolt™ Type-C®port 6x USB 10Gbps ports (6 x Type-A) 1x USB 2.0 port (1 x Type-A) 1x DisplayPort (Input only) 1x HDMI™ port 1x Wi-Fi module1 x Marvell® AQtion 10Gb Ethernet port 1x Intel® 2.5Gb Ethernet port 2x Gold-plated audio jacks 1x BIOS FlashBack™ button |
| BIOS | 256Mb Flash ROM, UEFI AMI BIOS |
| תכונות ייחודיות | ASUS 5X PROTECTION III – DIGI+ VRM (- Digital power design with DrMOS) – ESD Guards – LANGuard – Overvoltage protection – SafeSlot – Stainless-steel back I/O ASUS Q-Design – M.2 Q-Latch – M.2 Q-Release – M.2 Q-Slide – Q-Release Slim (with PCIe SafeSlot) – Q-Antenna – Q-Connector – Q-Dashboard – Q-DIMM – Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) ASUS Thermal Solution – M.2 heatsink backplate – M.2 heatsink – VRM heatsink design ASUS EZ DIY – BIOS FlashBack™ button – BIOS FlashBack™ LED – Box headers – Clear CMOS button – CPU Socket lever protector – ProCool II – Pre-mounted I/O shield – SafeDIMM Aura Sync – Addressable Gen2 headers Bespoke Motherboard Design & Business Focused Features – 24/7 reliability – Overcurrent protection |
| תוכנות מצורפות | ASUS Exclusive Software Armoury Crate – Aura Creator – Aura Sync – Fan Xpert 4 – Power Saving ASUS Driver Hub ASUS GlideX ASUS CPU-Z CreationFirst ProArt Creator Hub TurboV Core Thunderbolt™ Share Adobe Creative Cloud (Free Trial) Norton 360 Deluxe (60 Days Free Trial) WinRAR (40 Days Free Trial) UEFI BIOS AI Overclocking Guide ASUS EZ DIY – ASUS CrashFree BIOS 3 – ASUS EZ Flash – ASUS UEFI BIOS EZ Mode – ASUS MyHotkey NPU Boost |
| אביזרים כלולים | :Cables 2x SATA 6Gb/s cables :Miscellaneous 1x ASUS WiFi Q-Antenna 1x Q-connector 2x M.2 Q-Latch packages 2x M.2 rubber packages 1x ProArt accessory bag :Documentation 1x ACC Express activation key card 1x Quick start guide |
| תצורה | ATX Form Factor 12inch x 9.6 inch ( 30.5 cm x 24.4 cm ) |
