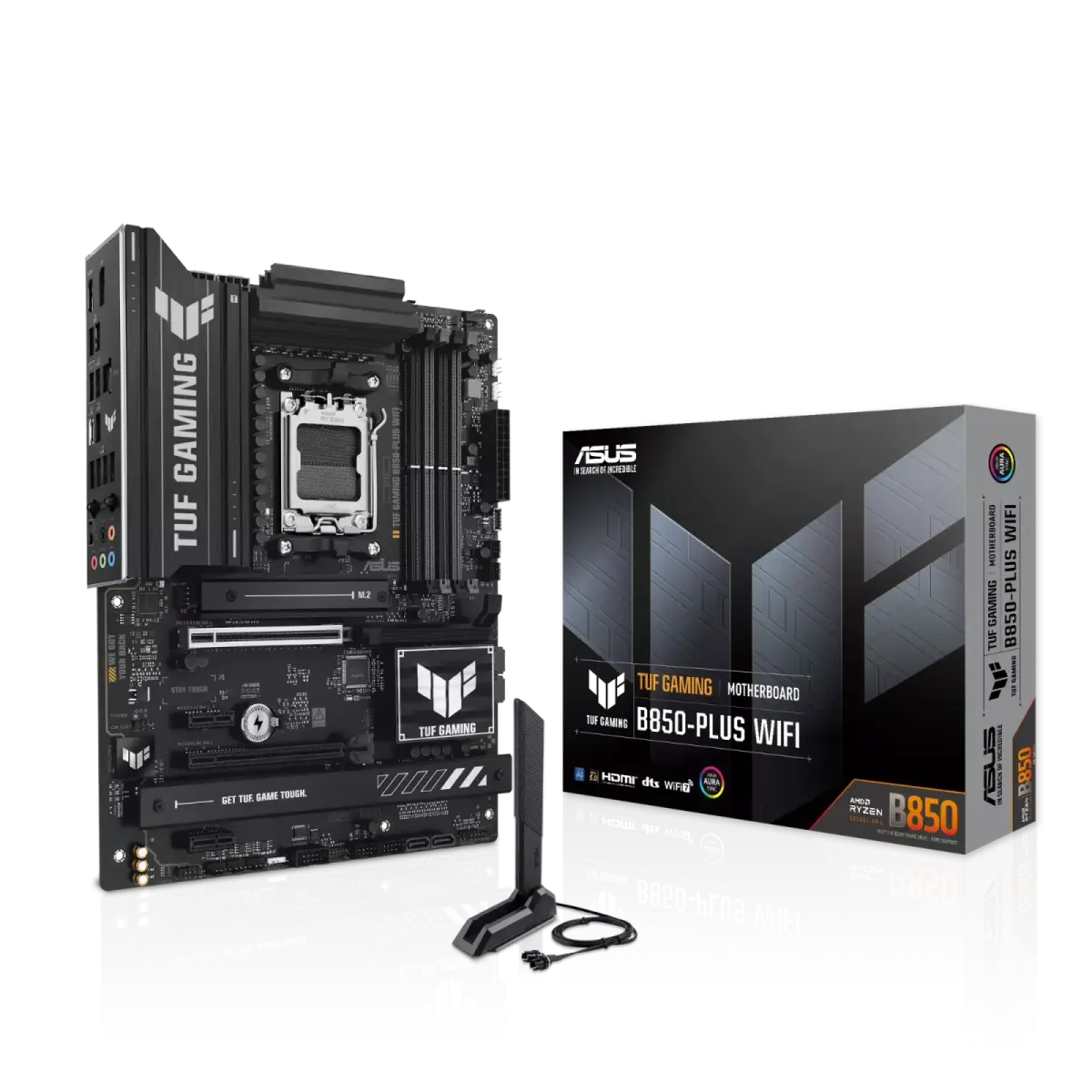

לוח אם – ASUS TUF GAMING B850-PLUS WIFI ATX AM5 DDR5 - צבע שחור
חדש
מק"ט: 90MB1J30-M0EAY0
לוח אם איכותי מבית Asus, בעל תושבת AM5, ערכת שבבים B850, תאימות לזכרונות DDR5 ובעל יציאות HDMI ,DisplayPort.
₪1,190.00כולל מע"מ
במלאיפריסת תשלומים
₪1,190.00 לחודש
עד 2 תשלומים ללא ריבית
מפרט טכני
| תקופת אחריות | 3 שנים על ידי היבואן הרשמי |
| יצרן לוח אם | Asus |
| תמיכה במעבדים | AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors* Refer to https://www.asus.com/support/download-center/ for CPU support list |
| תמיכה בזיכרונות | 4x DIMM slots, max. 256GB, DDR5 Supports up to 8000+MT/s (OC) with Ryzen™ 9000 & 8000 & 7000 Series Processors, ECC and Non-ECC Un-buffered DIMM* Dual channel memory architecture Supports AMD Extended Profiles for Overclocking (EXPO™) ASUS Enhanced Memory Profile (AEMP) Adjustments will be made based on the specifications of mass-produced memory products available on the market. Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/download-center/. Non-ECC, un-buffered DDR5 memory supports On-Die ECC function |
| גרפיקה מובנית | 1x DisplayPort** 1x HDMI™ port*** Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications. Supports max. 8K@30Hz as specified in DisplayPort 1.4. Supports 4K@60Hz as specified in HDMI 2.1 |
| חריצי הרחבה | AMD Ryzen™ 9000 & 7000 Series Desktop Processors* 1x PCIe 5.0 x16 slot (supports x16 mode) AMD Ryzen™ 8000 Series Desktop Processors 1x PCIe 4.0 x16 slot (supports x8/x4 mode)** AMD B850 Chipset 1x PCIe 4.0 x16 slot (supports x4 mode)*** 2x PCIe 4.0 x1 slots Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/). Specifications vary by CPU types. The PCIEX16(G4) shares bandwidth with M.2_3. The PCIEX16(G4) will be disabled when M.2_3 runs. - To ensure compatibility of the device installed, please refer to https://www.asus.com/support/download-center/ for the list of supported peripherals |
| USB | Rear USB (Total 10 ports) 1x USB 20Gbps port (1 x USB Type-C®) 3x USB 10Gbps ports (3 x Type-A) 4x USB 5Gbps ports (4 x Type-A) 2x USB 2.0 ports (2 x Type-A) Front USB (Total 7 ports) 1x USB 10Gbps connector (supports USB Type-C®) 1x USB 5Gbps header supports 2 additional USB 5Gbps ports 2x USB 2.0 headers support 4 additional USB 2.0 ports USB Type-C® power delivery output: max. 5V/3A |
| ממשק אחסון | Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports AMD Ryzen™ 9000 & 7000 Series Desktop Processors M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) AMD Ryzen™ 8000 Series Desktop Processors M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4/x2 mode)* AMD B850 Chipset M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)** 4x SATA 6Gb/s ports Specifications vary by CPU types The PCIEX16(G4) shares bandwidth with M.2_3. The PCIEX16(G4) will be disabled when M.2_3 runs AMD RAIDXpert2 Technology Ryzen™ 9000 Series Processors: RAID 0/1/5/10 Ryzen™ 8000 Series Processors: RAID 0/1 Ryzen™ 7000 Series Processors: RAID 0/1/10 |
| שמע | Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC - Impedance sense for front and rear headphone outputs - Internal audio Amplifier to enhance the highest quality sound for headphone and speakers - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in) - Supports up to 32-Bit/192 kHz playback* Audio Features - Audio Shielding - Premium audio capacitors - Dedicated audio PCB layers - Audio cover - Unique de-pop circuit Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio |
| כרטיס רשת קווי | 1x Realtek 2.5Gb Ethernet TUF LANGuard |
| מודול תקשורת אלחוטית | Wi-Fi 7* 2x2 Wi-Fi 7 (802.11be) Supports 2.4/5/6GHz frequency band** Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate Bluetooth® v5.4*** Wi-Fi features may vary depending on the operating system For Windows 11, Wi-Fi 7 will require 24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only support Wi-Fi 6E Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries. The Bluetooth® version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications |
| חיבורים פנימיים | :Fan and Cooling Related 1x 4-pin CPU Fan header 1x 4-pin CPU OPT Fan header 1x 4-pin AIO Pump header 4x 4-pin Chassis Fan headers :Power Related 1x 24-pin Main Power connector 2x 8-pin +12V CPU Power connectors :Storage Related 3x M.2 slots (Key M) 4x SATA 6Gb/s ports :USB 1x USB 10Gbps connector (supports USB Type-C® ) 1x USB 5Gbps header supports 2 additional USB 5Gbps ports 2x USB 2.0 headers support 4 additional USB 2.0 ports :Miscellaneous 3x Addressable Gen 2 headers 1x Clear CMOS header 1x Chassis Intrusion header 1x COM Port header 1x Front Panel Audio header (F_AUDIO) 1x 10-1 pin Front System Panel header 1x Thunderbolt™ (USB4®) header |
| חיבורים ויציאות | 1x USB 20Gbps port (1 x USB Type-C®) 3x USB 10Gbps ports (3 x Type-A) 4x USB 5Gbps ports (4 x Type-A) 2x USB 2.0 ports (2 x Type-A) 1x DisplayPort 1x HDMI™ port 1x Wi-Fi module 1x Realtek 2.5Gb Ethernet port 5x Audio jacks 1x BIOS FlashBack™ button |
| BIOS | 256Mb Flash ROM, UEFI AMI BIOS |
| תכונות ייחודיות | ASUS TUF PROTECTION - DIGI+ VRM (- Digital power design with DrMOS) - ESD Guards - TUF LANGuard - Overvoltage protection - SafeSlot - Stainless-steel back I/O ASUS Q-Design - M.2 Q-Latch - PCIe Slot Q-Release - Q-Antenna - Q-Dashboard - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot ASUS Thermal Solution - M.2 heatsink - VRM heatsink design ASUS EZ DIY - BIOS FlashBack™ button - BIOS FlashBack™ LED - ProCool - Pre-mounted I/O shield - SafeDIMM Aura Sync - Addressable Gen 2 headers |
| תוכנות מצורפות | ASUS Exclusive Software Armoury Crate - Aura Creator - Aura Sync - Fan Xpert 4 - Power Saving ASUS DriverHub ASUS GlideX TurboV Core TUF GAMING CPU-Z DTS Audio Processing Norton 360 for Gamers (60 Days Free Trial) WinRAR (40 Days Free Trial) UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode - ASUS MyHotkey |
| אביזרים כלולים | :Cables 2x SATA 6Gb/s cables :Miscellaneous 1x ASUS WiFi Q-Antenna 1x TUF GAMING sticker 2x M.2 rubber packages :Documentation 1x Quick start guide |
| תצורה | ATX Form Factor 12inch x 9.6 inch ( 30.5 cm x 24.4 cm ) |
