ראשי / רכיבי חומרה / לוחות אם / לוח אם – ASUS ROG STRIX Z890-E GAMING WIFI ATX LGA1851 DDR5 - צבע שחור

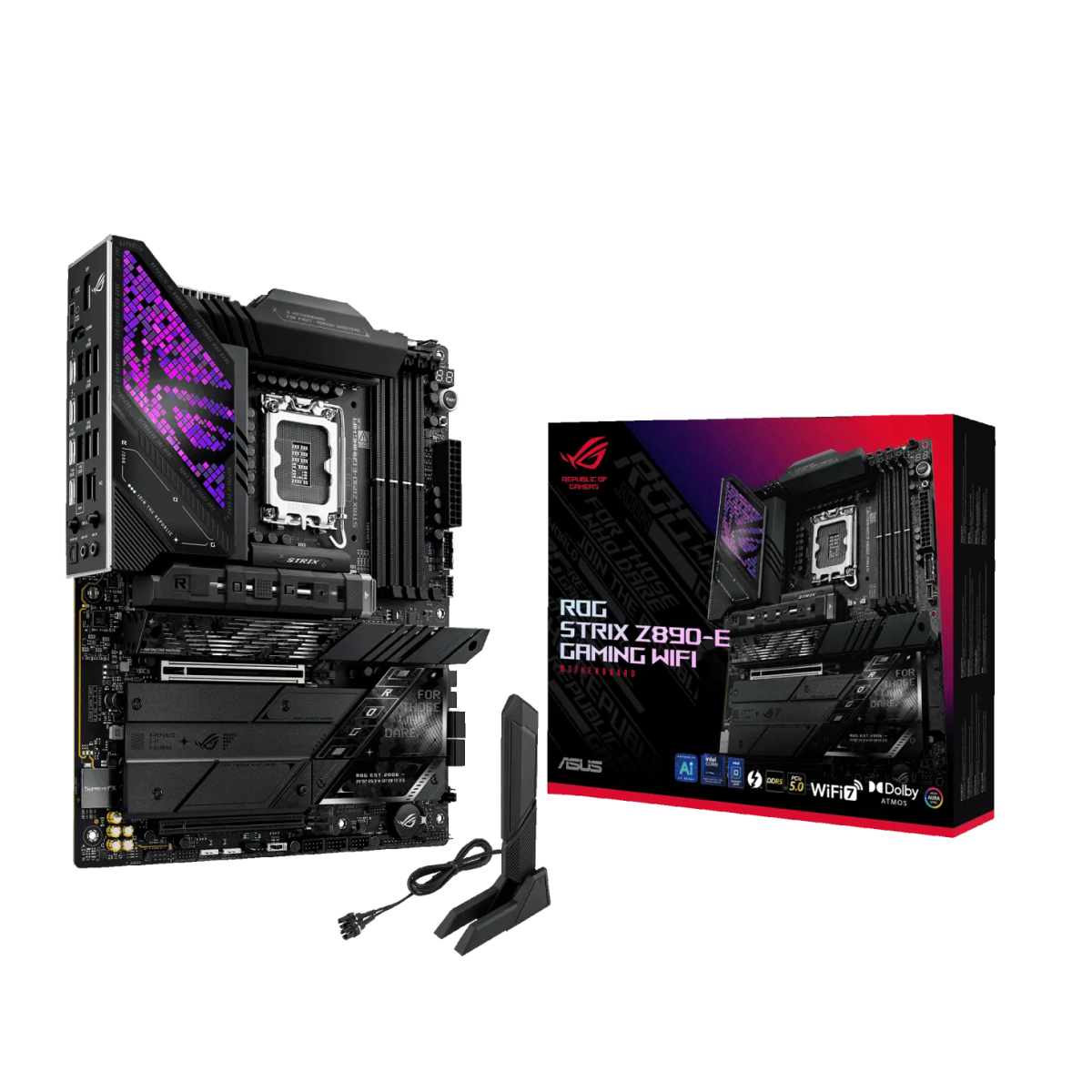

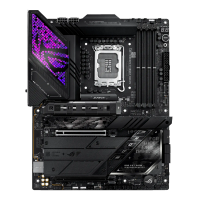

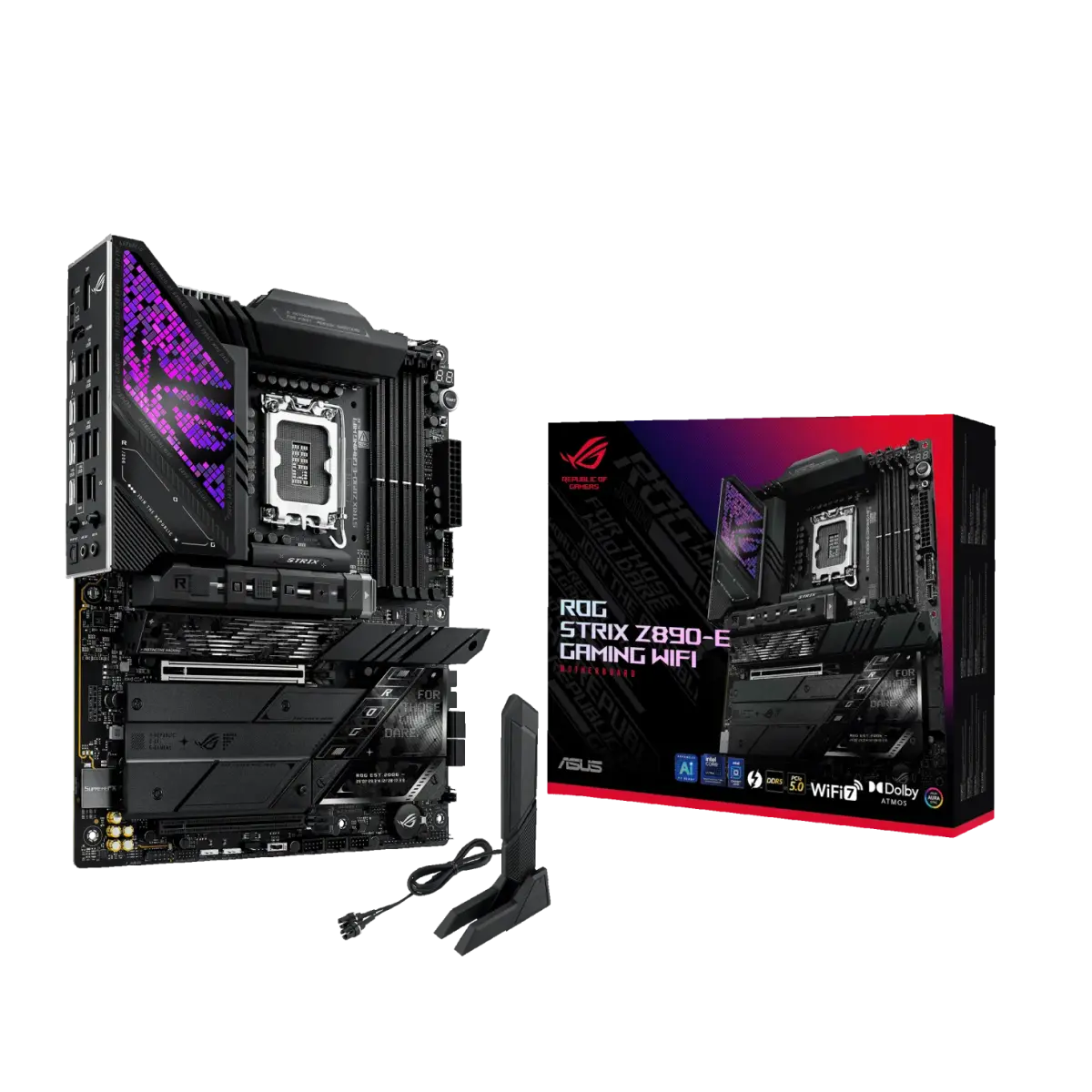

לוח אם – ASUS ROG STRIX Z890-E GAMING WIFI ATX LGA1851 DDR5 - צבע שחור
חדש
מק"ט: 90MB1IM0-M0EAY0
לוח אם איכותי מבית Asus, בעל תושבת LGA1851, ערכת שבבים Z890, תאימות לזכרונות DDR5 ובעל יציאות תצוגה של HDMI ,DisplayPort.
₪2,325.00כולל מע"מ
במלאיפריסת תשלומים
₪2,325.00 לחודש
עד 5 תשלומים ללא ריבית
מפרט טכני
| תקופת אחריות | 3 שנים על ידי היבואן הרשמי |
| יצרן לוח אם | Asus |
| תמיכה במעבדים | Intel® Socket LGA1851 for Intel® Core™ Ultra Processors(Series 2) Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0** Refer to https://www.asus.com/support/download-center/ for CPU support list* Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types** |
| תמיכה בזיכרונות | 4x DIMM slots, max. 256GB, DDR5 Support up to 9200+MT/s (OC), Non-ECC, Clocked Unbuffered DIMM (CUDIMM)* Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP) memory module Supports DIMM Flex NitroPath DRAM Technology DIMM Fit ASUS Enhanced Memory Profile III (AEMP III) Adjustments will be made based on the specifications of mass-produced memory products available on the market* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/download-center/. Non-ECC, Un-buffered DDR5 Memory supports On-Die ECC function* |
| גרפיקה מובנית | 1x DisplayPort** 1x HDMI® port*** 2x Intel® Thunderbolt™ 4 support DisplayPort and Thunderbolt™ video outputs**** Graphics specifications may vary between CPU types. Please refer to http://www.intel.com for any updates* Supports max. 8K@60Hz as specified in DisplayPort 1.4** Supports max. 8K@60Hz as specified in HDMI 2.1*** In ThunderboltTM 4 mode, supports up to 8K@60Hz x1 with DSC or 4K@60Hz x 2, maximum total bandwidth up to 23.8Gbps or 16Gbps/16Gbps, for resolution support please check DisplayPort 2.1 specs**** In DP alt mode, Only one USB Type-C® port supports up to UHBR20 at a time***** VGA resolution support depends on processors' or graphic cards' resolution****** While installing the operating system, please ensure that your monitor is connected to the HDMI port on the back I/O panel or to a discrete graphics card******* |
| חריצי הרחבה | :Intel® Core™ Ultra Processors(Series 2)* 1x PCIe 5.0 x16 slot (supports x16 or x8/x4/x4 modes) :Intel® Z890 Chipset 1x PCIe 4.0 x16 slot (supports x4 mode) Please check PCIe bifurcation table in support site (https://www.asus.com/support/FAQ/1037507/)* To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals |
| USB | :Rear USB (Total 14 ports) 2x Thunderbolt™ 4 (2 x USB Type-C®) 9x USB 10Gbps ports (7 x Type-A + 1 x USB Type-C®* + 1 x USB Type-C® with up to 30W PD Fast-charge)** 3x USB 5Gbps ports (3 x Type-A) :Front USB (Total 11 ports) 1x USB 20Gbps connector (supports USB Type-C®) 2x USB 5Gbps headers support additional 4 USB 5Gbps ports 3x USB 2.0 headers support additional 6 USB 2.0 ports USB Type-C® power delivery output: 5V/3A* USB Type-C® power delivery output: 5V/9V max. 3A, 12V max 2.5A, 15V max. 2A** |
| ממשק אחסון | Total supports 7 x M.2 slots and 4 x SATA 6Gb/s ports* :Intel® Core™ Ultra Processors(Series 2)* M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)** M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)** :Intel® Z890 Chipset M.2_5 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) M.2_6 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) M.2_7 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes) 4x SATA 6Gb/s ports Intel® Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10, M.2 slot from CPU only supports RAID 0/1/5* M.2_3 & M.2_4 slots share bandwidth with PCIEX16(G5). When M.2_3 & M.2_4 are occupied with SSD devices, PCIEX16(G5) will run x8 only** |
| שמע | ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080* – Impedance sense for front and rear headphone outputs – Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking – High quality 120 dB SNR stereo playback output and 110 dB SNR recording input – Supports up to 32-Bit/384 kHz playback on front panel Audio Features – Audio Shielding – Savitech SV3H712 AMP – Gold-plated audio jacks – Rear optical S/PDIF out port – Premium audio capacitors – Audio cover A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output* The LINE OUT port on the rear panel does not support spatial audio. If you wish to use spatial audio, make sure to connect your audio output device to the audio jack on the front panel of your chassis or use a USB interface audio device |
| כרטיס רשת קווי | 1x Realtek 5Gb Ethernet ASUS LANGuard |
| מודול תקשורת אלחוטית | *Wi-Fi 7 2×2 Wi-Fi 7 (802.11be) Supports 2.4/5/6GHz frequency band** Support Wi-Fi 7 320MHz bandwidth, up to 5.8Gbps transfer rate Bluetooth® v5.4*** Wi-Fi features may vary depending on the operating system* For Windows 11, Wi-Fi 7 will require 24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only supports Wi-Fi 6E For Windows 10, only Wi-Fi 6 is supported Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries** The Bluetooth® version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications*** |
| חיבורים פנימיים | 2x Thunderbolt™ 4 (2 x USB Type-C®) 9x USB 10Gbps ports (7 x Type-A + 1 x USB Type-C® + 1 x USB Type-C® with up to 30W PD Fast-charge) 3x USB 5Gbps ports (3 x Type-A) 1x DisplayPort 1x HDMI® port 1x Wi-Fi Module 1x Realtek 5Gb Ethernet 2x Gold-plated audio jacks 1x Optical S/PDIF out port 1x BIOS FlashBack™ button 1x Clear CMOS button |
| חיבורים ויציאות | :Fan and Cooling related 1x 4-pin CPU Fan header 1x 4-pin CPU OPT Fan header 1x 4-pin AIO Pump header 5x 4-pin Chassis Fan headers :Power related 1x 24-pin Main Power connector 2x 8-pin +12V CPU Power connectors :Storage related 7x M.2 slots (Key M) 4x SATA 6Gb/s ports :USB 1x USB 20Gbps connector (supports USB Type-C®) 2x USB 5Gbps headers support additional 4 USB 5Gbps ports 3x USB 2.0 headers support additional 6 USB 2.0 ports :Miscellaneous 3x Addressable Gen2 headers 1x Chassis Intrusion header 1x CPU Over Voltage jumper 1x FlexKey button 1x Front Panel Audio header (F_AUDIO) 1x Start button 1x 10-1 pin System Panel header 1x Alteration PCIe mode switch 1x Thermal Sensor header 1x Thunderbolt™ (USB4®) header |
| BIOS | 128+128 256Mb Flash ROM, UEFI AMI BIOS |
| תכונות ייחודיות | Extreme Engine Digi+ – 5K Black Metallic Capacitors ASUS Q-Design – M.2 Q-Latch – M.2 Q-Release – M.2 Q-Slide – PCIe Slot Q-Release Slim (with PCIe SafeSlot) – Q-Antenna – Q-Code – Q-Dashboard – Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) – Q-Slot ASUS Thermal Solution – M.2 heatsinks – M.2 heatsink backplate – VRM heatsink design ASUS EZ DIY – BIOS FlashBack™ button – BIOS FlashBack™ LED – Clear CMOS button – ProCool II – Pre-mounted I/O shield – SafeSlot – SafeDIMM Aura Sync – Addressable Gen2 headers |
| תוכנות מצורפות | ROG Exclusive Software – ROG CPU-Z – Dolby Atmos ASUS Exclusive Software Armoury Crate – AIDA64 Extreme (60 days free trial) – Aura Creator – Aura Sync – Fan Xpert 4 (with AI Cooling II) – GameFirst – HWiNFO – Power Saving ASUS Driver Hub ASUS GlideX TurboV Core USB Wattage Watcher Adobe Creative Cloud (Free Trial) Norton 360 for Gamers (60 Days Free Trial) WinRAR (40 Days Free Trial) UEFI BIOS AI Overclocking Guide ASUS EZ DIY – ASUS CrashFree BIOS 3 – ASUS EZ Flash – ASUS UEFI BIOS EZ Mode – ASUS MyHotkey NPU Boost FlexKey |
| אביזרים כלולים | :Cables 2x SATA 6Gb/s cables :Additional Cooling Kit 1x Thermal pad for M.2 22110 :Miscellaneous 1x ASUS Wi-Fi Q-Antenna 1x Cable ties pack 1x M.2 Q-Latch package 2x M.2 Q-Slides 1x ROG key chain 1x ROG Strix stickers 7x M.2 Rubbers :Documentation 1x Quick start guide |
| תצורה | ATX Form Factor 12inch x 9.6 inch ( 30.5 cm x 24.4 cm ) |
