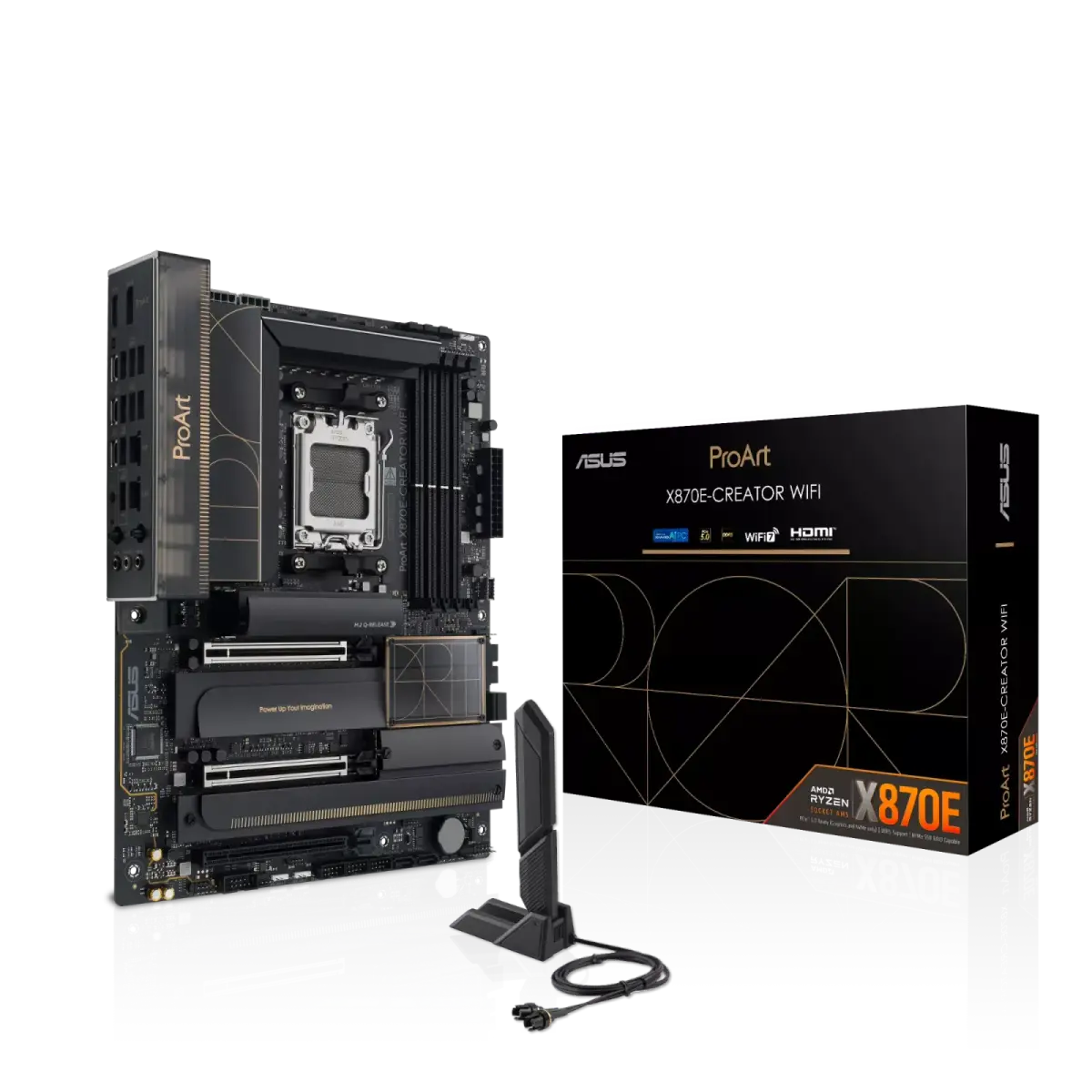

לוח אם – ASUS ProArt X870E-CREATOR WIFI ATX AM5 DDR5 - צבע שחור
חדש
מק"ט: 90MB1IG0-M0EAY0
לוח אם איכותי מבית Asus, בעל תושבת AM5, ערכת שבבים X870, תאימות לזכרונות DDR5 ובעל יציאות תצוגה של HDMI ,DisplayPort.
₪2,225.00כולל מע"מ
במלאיפריסת תשלומים
₪2,225.00 לחודש
עד 5 תשלומים ללא ריבית
מפרט טכני
| תקופת אחריות | 3 שנים על ידי היבואן הרשמי |
| יצרן לוח אם | Asus |
| תמיכה במעבדים | AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors* Refer to www.asus.com for CPU support list* |
| תמיכה בזיכרונות | 4x DIMM slots, max. 256GB, DDR5 Support up to 8000+MT/s(OC) with Ryzen™ 9000 Series Processors, 8000+MT/s(OC) with Ryzen™ 8000 Series Processors, 8000+MT/s(OC) with Ryzen™ 7000 Series Processors, ECC and Non-ECC Un-buffered DIMM Dual Channel Memory Architecture Supports AMD Extended Profiles for Overclocking (EXPO™) ASUS Enhanced Memory Profile (AEMP) Adjustments will be made based on the specifications of mass-produced memory products available on the market. Supported memory types, data rate(Speed), and number of DRAM module vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list. Non-ECC, Un-buffered DDR5 Memory supports On-Die ECC function |
| גרפיקה מובנית | 1x HDMI™ port** 2 x USB4® (40Gbps) ports support USB Type-C® display outputs*** Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications. Supports 4K@60Hz as specified in HDMI 2.1. Supports max. 8K@60Hz as specified in DisplayPort 1.4. VGA resolution support depends on processors' or graphic cards' resolution |
| חריצי הרחבה | AMD Ryzen™ 9000 & 7000 Series Desktop Processors* 2x PCIe 5.0 x16 slots with Q-Release Slim (supports x16 or x8/x8** or x8/x4/x4 modes***) AMD Ryzen™ 8700 & 8600 & 8400 Series Desktop Processors* 1x PCIe 4.0 x16 slots with Q-Release Slim (only supports PCIEX16(G5)_1 & total bandwidth of x8, PCIEX16(G5)_2 will be disabled) AMD Ryzen™ 8500 & 8300 Series Desktop Processors* 1x PCIe 4.0 x16 slots with Q-Release Slim (only supports PCIEX16(G5)_1 & total bandwidth of x4, PCIEX16(G5)_2 will be disabled) AMD X870E Chipset 1x PCIe 4.0 x16 slot (supports x4 mode) Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/). When you use both PCIEX16(G5)_1 and PCIEX16(G5)_2, they will run at x8 each. PCIEX16(G5)_2 shares bandwidth with M.2_2 slot. When M.2_2 is enabled, PCIEX16(G5)_1 will run x8, and PCIEX16(G5)_2 will run at x4. - To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals |
| USB | Rear USB (Total 11 ports) 2x USB4® (40Gbps) port(s) (2 x USB Type-C®) 1x USB 20Gbps port(s) (1 x USB Type-C®) 7x USB 10Gbps port(s) (7 x Type-A) 1x USB 2.0 port (1 x Type-A) Front USB (Total 9 ports) 1x USB 20Gbps connector (supports USB Type-C® with up to 30W PD/QC4+)** 1x USB 5Gbps header(s) support(s) 2 additional USB 5Gbps ports 3x USB 2.0 headers support 6 additional USB 2.0 ports USB Type-C® power delivery output: max. 5V/3.0A" USB Type-C® power delivery output: 5V/9V max. 3.0A, 12V max 2.5A, 15V max. 2.0A |
| ממשק אחסון | Total supports 4 x M.2 slots and 4 x SATA 6Gb/s ports AMD Ryzen™ 9000 & 7000 Series Desktop Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)* AMD Ryzen™ 8000 Series Desktop Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) M.2_2 slot is not supported AMD X870E Chipset M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) M.2_4 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports PCIEX16(G5)_2 slot shares bandwidth with M.2_2. AMD RAIDXpert2 Technology Ryzen™ 7000 series processors: PCIe RAID 0/1/10 Ryzen™ 8000 series processors: PCIe RAID 0/1 Ryzen™ 9000 series processors: PCIe RAID 0/1/5/10 X870/B850/X670/B650/A620 chipset: SATA RAID 0/1/10 |
| שמע | Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC* - Impedance sense for front and rear headphone outputs - Internal audio Amplifier to enhance the highest quality sound for headphone and speakers - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in) - Supports up to 32-Bit/192 kHz playback* Audio Features - Audio Shielding - Premium audio capacitors - Dedicated audio PCB layers - Unique de-pop circuit Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio. A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output |
| כרטיס רשת קווי | 1x Marvell® AQtion 10Gb Ethernet 1x Intel® 2.5Gb Ethernet ASUS LANGuard |
| מודול תקשורת אלחוטית | Wi-Fi 7 (Qualcomm QCNCM865 or MediaTek MT7927)* 2x2 Wi-Fi 7** (802.11be) Supports 2.4/5/6GHz frequency band*** Supports Wi-Fi 7 320MHz bandwidth Bluetooth® v5.4**** The actual Wi-Fi module that comes with this motherboard may vary, please refer to the label on the product for more details Wi-Fi features may vary depending on the operating system For Windows 11, Wi-Fi 7 will require 24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only support Wi-Fi 6E For Windows 10, please note that no driver is available, refer to the Wi-Fi chipset vendor's website for details. Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries The Bluetooth® version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications |
| חיבורים פנימיים | :Fan and Cooling related 1x 4-pin CPU Fan header 1x 4-pin CPU OPT Fan header 1x 4-pin AIO Pump header 5x 4-pin Chassis Fan headers :Power related 1x 24-pin Main Power connector 2x 8-pin +12V CPU Power connector :Storage related 4x M.2 slots (Key M) 4x SATA 6Gb/s ports :USB 1x USB 20Gbps connector (supports USB Type-C® with up to 30W PD/QC4+) 1x USB 5Gbps header(s) support(s) 2 additional USB 5Gbps ports 3x USB 2.0 headers support 6 additional USB 2.0 ports :Miscellaneous 3x Addressable Gen 2 headers 1x Chassis Intrusion header 1x COM Port header 1x CPU Over Voltage jumper 1x Front Panel Audio header (F_AUDIO) 1x 10-1 pin System Panel header 1x Thermal Sensor header |
| חיבורים ויציאות | 2x USB4® (40Gbps) port(s) (2 x USB Type-C®) 1x USB 20Gbps port (1 x USB Type-C®) 7x USB 10Gbps ports (7 x Type-A) 1x USB 2.0 port (1 x Type-A) 1x DisplayPort (Input only) 1x HDMITM port 1x Wi-Fi Module 1x Marvell® AQtion 10Gb Ethernet 1x Intel® 2.5Gb Ethernet 3x Audio jacks 1x BIOS FlashBack™ button 1x Clear CMOS button |
| BIOS | 256Mb Flash ROM, UEFI AMI BIOS |
| תכונות ייחודיות | ASUS 5X PROTECTION III - DIGI+ VRM (- Digital power design) - Enhanced DRAM Overcurrent Protection - ESD Guards - LANGuard - Overvoltage Protection - Safeslot - Stainless-Steel Back I/O ASUS Q-Design - M.2 Q-Latch - M.2 Q-Release - M.2 Q-Slide - PCIe Slot Q-Release Slim (with PCIe SafeSlot) - Q-Antenna - Q-Connector - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot ASUS Thermal Solution - M.2 heatsink backplate - M.2 heatsinks - VRM heatsink design ASUS EZ DIY - BIOS FlashBack™ button - BIOS FlashBack™ LED - ProCool - Pre-mounted I/O shield - SafeSlot - SafeDIMM AURA Sync - Addressable Gen 2 headers Bespoke Motherboard Design & Business Focused Features - 24/7 Reliability - Overcurrent Protection Front Panel USB 20Gbps with Quick Charge 4+ Support - Support: up to 30W fast charging and USB Wattage Watcher - Output: 5V/9V max. 3.0A, 12V max 2.5A, 15V max2.0A - Compatible with PD3.0 |
| תוכנות מצורפות | ASUS Exclusive Software Armoury Crate - Aura Creator - Aura Sync - Fan Xpert 4 with AI Cooling II - Power Saving ASUS DriverHub ASUS GlideX USB Wattage Watcher TurboV Core ASUS CPU-Z ProArt Creator Hub CreationFirst Adobe Creative Cloud (Free Trial) Norton 360 Deluxe (60 Days Free Trial) WinRAR (40 Days Free Trial) UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode FlexKey |
| אביזרים כלולים | :Cables 1x DisplayPort cable 4x SATA 6Gb/s cables :Additional Cooling Kit 1x Thermal pad for M.2 22110 :Miscellaneous 1x ASUS WiFi Q-Antenna 1x Q-connector 1x M.2 Q-Latch package 1x M.2 Q-Latch Q-Slide package for M.2 backplate 2x Rubber Packages for M.2 1x ProArt Gift Item :Documentation 1x Quick start guide 1x ACC Express Activation Key Card |
| תצורה | ATX Form Factor 12inch x 9.6 inch ( 30.5 cm x 24.4 cm ) |
