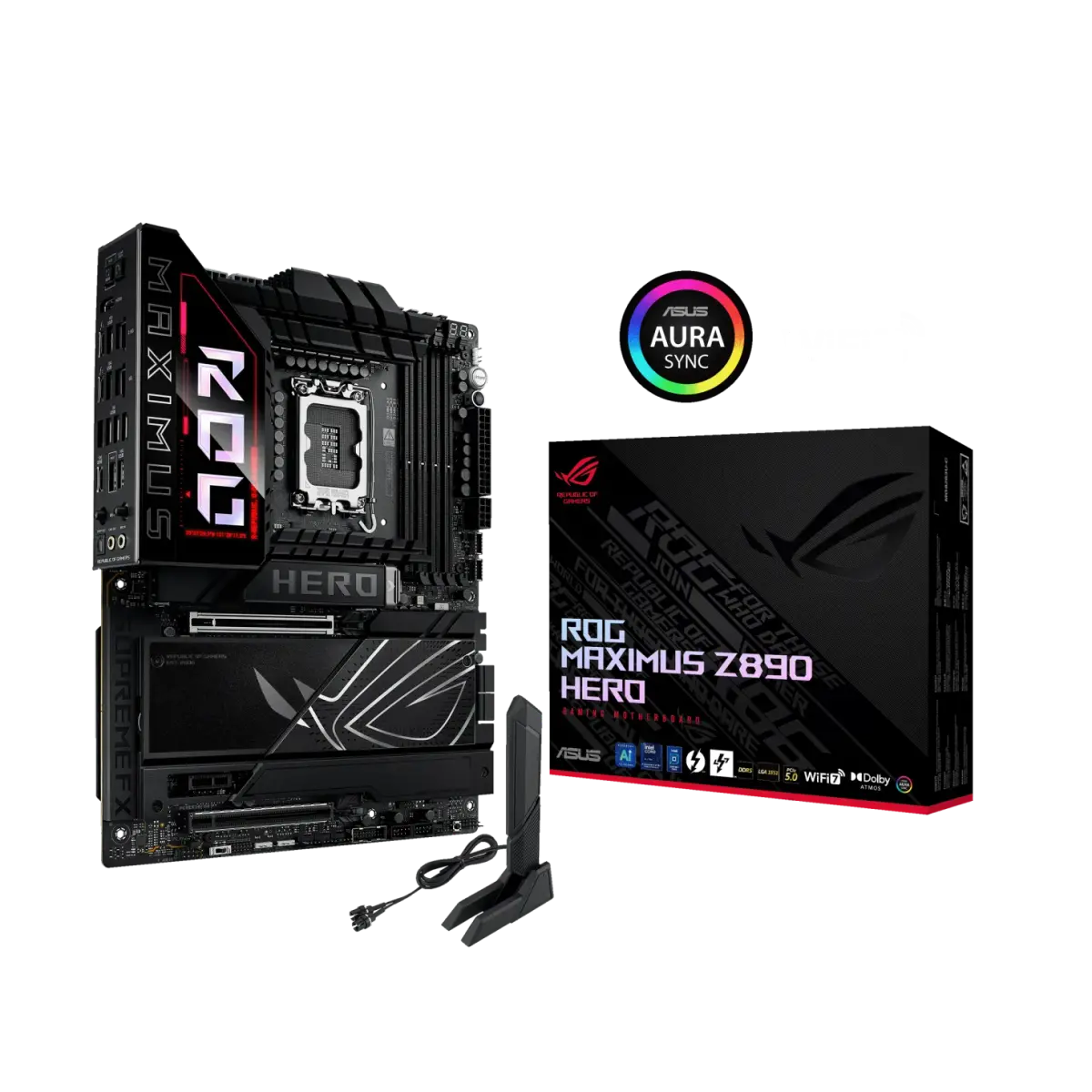

לוח אם – ASUS ROG MAXIMUS Z890 HERO ATX LGA1851 DDR5 - צבע שחור
חדש
מק"ט: 90MB1ID0-M0EAY0
לוח אם איכותי מבית Asus, בעל תושבת LGA1851, ערכת שבבים Z890 תאימות לזכרונות DDR5 ובעל יציאות תצוגה של HDMI.
משלוח חינם לבית הלקוח
₪3,140.00כולל מע"מ
במלאיפריסת תשלומים
₪3,140.00 לחודש
עד 7 תשלומים ללא ריבית
מפרט טכני
| תקופת אחריות | 3 שנים על ידי היבואן הרשמי |
| יצרן לוח אם | Asus |
| תמיכה במעבדים | Support Intel® Core™ Ultra Processors (Series 2) , LGA1851* Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0** Refer to https://www.asus.com/support/download-center/ for CPU support list. Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types |
| תמיכה בזיכרונות | 4x DIMM slots, max. 256GB, DDR5 Support up to 9200+MT/s (OC), Non-ECC, Un-buffered, Clocked Unbuffered DIMM (CUDIMM)* Dual channel memory architecture Supports Intel® Extreme Memory Profile (XMP) memory module Supports DIMM Flex NitroPath DRAM Technology DIMM FIT ASUS Enhanced Memory Profile III (AEMP III) Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/download-center/. Non-ECC, un-buffered DDR5 memory supports On-Die ECC function |
| גרפיקה מובנית | 1x HDMI™ port** 2x Intel® Thunderbolt™ 4 ports (USB Type-C®) support DisplayPort and Thunderbolt™ video outputs*** Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates Supports max. 8K@60Hz with DSC as specified in HDMI 2.1. In Thunderbolt™ 4 mode, supports up to 8K@60Hz x1 with DSC or 4K@60Hz x2, maximum total bandwidth up to 23.8Gbps or 16Gbps/16Gbps, for resolution support please check DisplayPort 2.1 specs. In DP alt mode, Only one USB Type-C® port supports up to UHBR20 at a time. VGA resolution support depends on processors' or graphic cards' resolution. While installing the operating system, please ensure that your monitor is connected to the HDMI port on the back I/O panel or to a discrete graphics card |
| חריצי הרחבה | :Intel® Core™ Ultra Processors (Series 2)* 1x PCIe 5.0 x16 slot (supports x16 or x8/x4/x4 modes)** :Intel® Z890 Chipset 1x PCIe 4.0 x16 slot (supports x4 mode) 1x PCIe 4.0 x1 slot Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/). When M.2_3 or M.2_4 is enabled, PCIEX16(G5) will run x8 only. - To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals |
| USB | :Rear USB (Total 11 ports) 2x Thunderbolt™ 4 ports (2 x USB Type-C®) 5x USB 10Gbps ports (4 x Type-A + 1 x USB Type-C®) 4x USB 5Gbps ports (4 x Type-A) :Front USB (Total 10 ports) 1x USB 20Gbps connector (supports USB Type-C® with up to 60W PD/QC4+)** 1x USB 10Gbps connector (supports USB Type-C®) 2x USB 5Gbps headers support 4 additional USB 5Gbps ports 2x USB 2.0 headers support 4 additional USB 2.0 ports USB Type-C® power delivery output: max. 5V/3A USB Type-C® power delivery output: 5/9/15/20V max. 3A, PPS:3.3–21V max. 3A |
| ממשק אחסון | Supports up to 6 x M.2 slots and 1 x SlimSAS connector and 4 x SATA 6Gb/s ports* Intel® Core™ Ultra Processors (Series 2) * M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)** M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) Intel® Z890 Chipset M.2_5 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) M.2_6 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) 4x SATA 6Gb/s ports SlimSAS connector supports PCIe 4.0 x4 mode or up to4 SATA devices via an adapter cable. The cable is purchased separately. Intel® Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10, M.2 slot from CPU only supports RAID 0/1/5 When M.2_3 or M.2_4 is enabled, PCIEX16(G5) will run x8 only |
| שמע | ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4082* - Impedance sense for front and rear headphone outputs - Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking - High quality 120 dB SNR stereo playback output and 110 dB SNR recording input - Supports up to 32-Bit/384 kHz playback on front panel" Audio Features - SupremeFX Shielding Technology - ESS® ES9219 QUAD DAC - Gold-plated audio jacks - Rear optical S/PDIF out port - Premium audio capacitors The LINE OUT port on the rear panel does not support spatial audio. If you wish to use spatial audio, make sure to connect your audio output device to the audio jack on the front panel of your chassis or use a USB interface audio device |
| כרטיס רשת קווי | 1x Intel® 2.5Gb Ethernet 1x Realtek 5Gb Ethernet ASUS LANGuard |
| מודול תקשורת אלחוטית | Wi-Fi 7* 2x2 Wi-Fi 7 (802.11be) Supports 2.4/5/6GHz frequency band** Supports Wi-Fi 7 320MHz bandwidth, up to 5.8Gbps transfer rate. Bluetooth® v5.4*** Wi-Fi features may vary depending on the operating system For Windows 11, Wi-Fi 7 will require 24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only supports Wi-Fi 6E. For Windows 10, only Wi-Fi 6 is supported. Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries. The Bluetooth® version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications |
| חיבורים פנימיים | :Fan and Cooling Related 1x 4-pin CPU Fan header 1x 4-pin CPU OPT Fan header 1x 4-pin AIO Pump header 4x 4-pin Chassis Fan headers 1x W_PUMP+ headers :Power Related 1x 24-pin Main Power connector 2x 8-pin +12V CPU Power connectors 1x 8-pin PCIe Power connector :Storage Related 6x M.2 slots (Key M) 4x SATA 6Gb/s ports 1x SlimSAS connector :USB 1x USB 20Gbps connector (supports USB Type-C® ) 1x USB 10Gps connector (supports USB Type-C® ) 2x USB 5Gbps headers support 4 additional USB 5Gbps ports 2x USB 2.0 headers support 4 additional USB 2.0 ports :Miscellaneous 3x Addressable Gen 2 headers 1x Alteration PCIe mode switch 1x FlexKey button 1x Front Panel Audio header (F_AUDIO) 1x ReTry button 1x Start button 1x 10-1 pin System Panel header 1x Thermal Sensor header 1x Thunderbolt™ (USB4®) header* The Thunderbolt™ card can only be used when installed to the PCIEX16(G4) slot. Ensure to install your Thunderbolt™ card to the PCIEX16(G4) slot |
| חיבורים ויציאות | 2x Thunderbolt™ 4 USB Type-C® ports 5x USB 10Gbps ports (4 x Type-A + 1 x USB Type-C®) 4x USB 5Gbps ports (4 x Type-A) 1x HDMI™ port 1x Wi-Fi module 1x Intel® 2.5Gb Ethernet port 1x Realtek 5Gb Ethernet port 2x Gold-plated audio jacks 1x Optical S/PDIF out port 1x BIOS FlashBack™ button 1x Clear CMOS button |
| BIOS | 256Mb Flash ROM, UEFI AMI BIOS |
| תכונות ייחודיות | Extreme OC Kit - FlexKey button - ReTry button - Start button Extreme Engine Digi+ - 10K Black metallic capacitors - MicroFine alloy choke ASUS Q-Design - M.2 Q-Latch - M.2 Q-Release - M.2 Q-Slide - Q-Release Slim (with PCIe SafeSlot) - Q-Antenna - Q-Code - Q-Connector - Q-Dashboard - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot ASUS Thermal Solution - M.2 heatsink backplate - M.2 heatsink - Metal backplate - VRM heatsink design ASUS EZ DIY - Backplate - BIOS FlashBack™ button - Clear CMOS button - CPU Socket lever protector - ProCool II - Pre-mounted I/O shield - SafeSlot - SafeDIMM Aura Sync - Addressable Gen 2 header(s) ROG M.2 PowerBoost Front Panel USB 20Gbps with Quick Charge 4+ Support - Support: up to 60W fast charging and USB Wattage Watcher* - Output: 5/9/15/20V max. 3A, PPS:3.3–21V max. 3A - Compatible with PD3.0 and PPS To support 60W, please install the power cable to the 8-pin PCIe power connector or else only 27W will be supported |
| תוכנות מצורפות | ROG Exclusive Software - ROG CPU-Z - Dolby Atmos - Polymo Lighting II - Internet Security (1-year full version) ASUS Exclusive Software Armoury Crate - AIDA64 Extreme (1 year full version) - Aura Creator - Aura Sync - Fan Xpert 4 (with AI Cooling II) - GameFirst - Power Saving - Hwinfo ASUS AI Advisor ASUS DriverHub ASUS GlideX Thunderbolt™ Share USB Wattage Watcher TurboV Core Adobe Creative Cloud (Free Trial) WinRAR (40 Days Free Trial) UEFI BIOS NPU Boost AI Overclocking Guide ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash - ASUS UEFI BIOS EZ Mode - ASUS MyHotkey FlexKey |
| אביזרים כלולים | :Cables 1x ARGB RGB extension cable 4x SATA 6Gb/s cables :Additional Cooling Kit 1x DDR5 fan holder 1x Thermal pad for M.2 22110 :Miscellaneous 1x ASUS WiFi Q-Antenna 1x Q-connector 1x M.2 Q-Latch package 3x M.2 Q-Slide packages 1x ROG stickers 6x M.2 rubber packages 1x ROG thank you card 1x ROG Bottle Opener :Installation Media 1x USB drive with utilities and drivers :Documentation 1x Quick start guide |
| תצורה | ATX Form Factor 12inch x 9.6 inch ( 30.5 cm x 24.4 cm ) |
