ראשי / רכיבי חומרה / לוחות אם / לוח אם – ASUS ROG STRIX Z890-I GAMING WIFI Mini-ITX LGA1851 DDR5 - צבע שחור

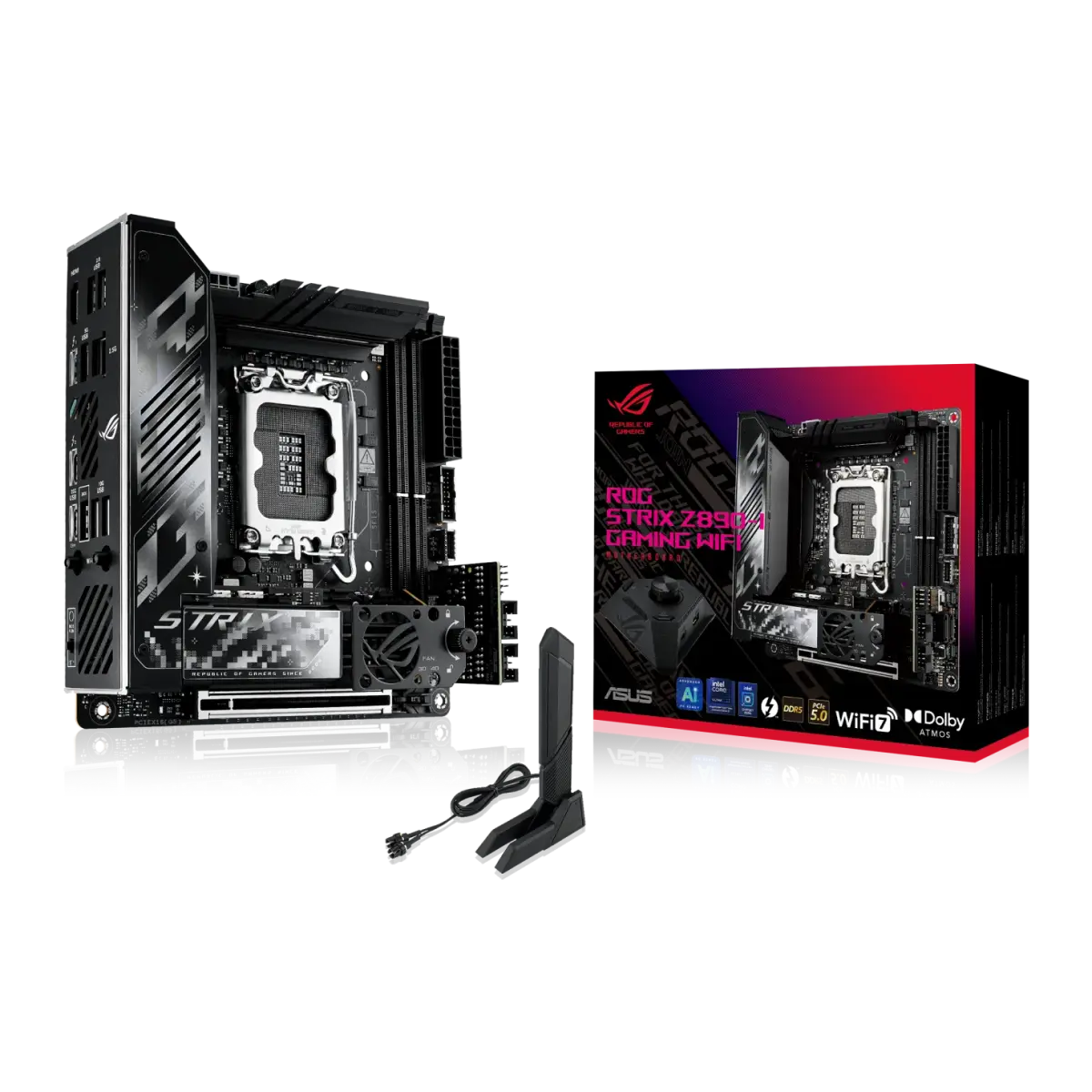

לוח אם – ASUS ROG STRIX Z890-I GAMING WIFI Mini-ITX LGA1851 DDR5 - צבע שחור
חדש
מק"ט: 90MB1IC0-M0EAY1
לוח אם איכותי מבית Asus, בעל תושבת LGA1851, ערכת שבבים Z890, תאימות לזכרונות DDR5 ובעל יציאת תצוגה של HDMI.
₪1,930.00כולל מע"מ
במלאיפריסת תשלומים
₪1,930.00 לחודש
עד 4 תשלומים ללא ריבית
מפרט טכני
| תקופת אחריות | 3 שנים על ידי היבואן הרשמי |
| יצרן לוח אם | Asus |
| תמיכה במעבדים | Support Intel® Core™ Ultra Processors (Series 2)* Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0** Refer to https://www.asus.com/support/download-center/ for CPU support list. Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types |
| תמיכה בזיכרונות | 2x DIMM slots, max. 128GB, DDR5 Support up to 9200+MT/s (OC), Non-ECC, Un-buffered, Clocked Unbuffered DIMM (CUDIMM)* Dual channel memory architecture DIMM Fit Supports Intel® Extreme Memory Profile (XMP) memory module Supports DIMM Flex ASUS Enhanced Memory Profile III (AEMP III) Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/download-center/. Non-ECC, un-buffered DDR5 memory supports On-Die ECC function |
| גרפיקה מובנית | 1x HDMI™ port** 2x Intel® Thunderbolt™ 4 ports (USB Type-C®) support DisplayPort and Thunderbolt™ video outputs Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates. Supports 4K@60Hz as specified in HDMI 2.1. In Thunderbolt™ 4 mode, supports up to 8K@60Hz x1 with DSC or 4K@60Hz x 2, maximum total bandwidth up to 23.8Gbps or 16Gbps/16Gbps, for resolution support please check DisplayPort 2.1 specs. In DP alt mode, Only one USB Type-C® port supports up to UHBR20 at a time. VGA resolution support depends on processors' or graphic cards' resolution. While installing the operating system, please ensure that your monitor is connected to the HDMI port on the back I/O panel or to a discrete graphics card |
| חריצי הרחבה | Intel® Core™ Ultra Processors(Series 2)* 1x PCIe 5.0 x16 slot (supports x16 mode) Please check the PCIe bifurcation table* on the support site (https://www.asus.com/support/FAQ/1037507/) - To ensure compatibility of the device installed, please refer to https://www.asus.com/support/download-center/ for the list of supported peripherals |
| USB | :Rear USB (Total 9 ports) 2x Thunderbolt™ 4 (2 x USB Type-C®) 1x USB 20Gbps port (1 x USB Type-C®) 3x USB 10Gbps ports (3 x Type-A) 1x USB 5Gbps port (1 x Type-A) 2x USB 2.0 ports (2 x Type-A) :Front USB (Total 3 ports) 1x USB 20Gbps connector (supports USB Type-C®) 1x USB 5Gbps header supports 2 additional USB 5Gbps ports :ROG STRIX HIVE II (Total 2 ports) 2x USB 10Gbps ports ( 1 x USB Type-C®+ 1 x Type-A) :ROG FPS Card (Total 3 ports) 2x USB 2.0 headers support additional 3 USB 2.0 ports USB Type-C® power delivery output: max* 5V/3A |
| ממשק אחסון | Total Supports 2 x M.2 slots and 2 x SATA 6Gb/s ports* Intel® Core™ Ultra Processors(Series 2)** M.2_1 slot (Key M), type 2230/2242/2260/2280 (supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2230/2242/2260/2280 (supports PCIe 5.0 x4 mode) 2 x SATA 6Gb/s ports*** Intel® Rapid Storage Technology supports* PCIe RAID 0/1, SATA RAID 0/1. M.2_2 slot shares bandwidth with** PCIEX16(G5). When M.2_2 slot is occupied with SSD device, PCIEX16(G5) will run x8 only. Install ROG FPS Card to support 2 x*** SATA 6Gb/s ports |
| שמע | ROG Strix Hive II Audio Features - ROG Hyper-Grounding Technology - ESS® SABRE9260Q DAC - Silver-plated audio jacks - Dedicated audio PCB layers All audio functions on ROG STRIX Z890-I* GAMING WIFI are supported through the ROG STRIX HIVE II |
| כרטיס רשת קווי | 1x Intel® 2.5Gb Ethernet ASUS LANGuard |
| מודול תקשורת אלחוטית | Wi-Fi 7* 2x2 Wi-Fi 7 (802.11be) Supports 2.4/5/6GHz frequency band** Supports Wi-Fi 7 320MHz bandwidth, up to 5.8Gbps transfer rate. Bluetooth® v5.4*** Wi-Fi features may vary depending on the operating system For Windows 11, Wi-Fi 7 will require 24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only supports Wi-Fi 6E. For Windows 10, only Wi-Fi 6 is supported. Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries. The Bluetooth® version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications |
| חיבורים פנימיים | :Fan and Cooling Related 1x 4-pin CPU Fan header 1x 4-pin AIO Pump header 1x 4-pin Chassis Fan header 1x Extra Flow Fan header :Power Related 1x 24-pin Main Power connector 1x 8-pin +12V CPU Power connector :Storage Related 2x M.2 slots (Key M) :USB 1x USB 20Gbps connector (supports USB Type-C®) 1x USB 5Gbps header supports 2 additional USB 5Gbps ports :Miscellaneous 2x Addressable Gen 2 headers 1x 2-pin Power Button header 1x Thermal Sensor header 2x USB Type-C® connectors to install ROG FPS card ROG FPS card 2x SATA 6Gb/s ports 1x CPU Over Voltage jumper 1x Clear CMOS header 1x Front Panel header 1x Alteration PCIe Mode switch 2x USB 2.0 headers support 3 additional USB 2.0 ports |
| חיבורים ויציאות | 2x Thunderbolt™ 4 (2 x USB Type-C®) 1x USB 20Gbps port (1 x USB Type-C®) 3x USB 10Gbps ports (3 x Type-A) 1x USB 5Gbps port (1 x Type-A) 2x USB 2.0 ports (2 x Type-A) 1x HDMI™ port 1x Wi-Fi module 1x Intel® 2.5Gb Ethernet port 1x BIOS FlashBack™ button |
| BIOS | 256Mb Flash ROM, UEFI AMI BIOS |
| תכונות ייחודיות | Extreme Engine Digi+ - 5K Black metallic capacitors ASUS Q-Design - M.2 Q-Release Duo - PCIe Slot Q-Release Slim (with PCIe SafeSlot) - Q-Antenna - Q-Dashboard - Q-DIMM - Q-Slot ASUS Thermal Solution - M.2 heatsink backplate - M.2 heatsink - VRM heatsink design - Fan bracket ASUS EZ DIY - BIOS FlashBack™ button - BIOS FlashBack™ LED - CPU Socket lever protector - ProCool II - Pre-mounted I/O shield - SafeDIMM - Backplate Aura Sync - Addressable Gen 2 headers ROG STRIX HIVE II 1x USB Type-C® connects to motherboard 2x USB 10Gbps ports ( 1 x USB Type-C®+ 1 x Type-A) 1x Headphone jack with mic in 1x FlexKey button 1x Power button 1x Volume control knob with mute button Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) |
| תוכנות מצורפות | ROG Exclusive Software - ROG CPU-Z - Dolby Atmos ASUS Exclusive Software Armoury Crate - Aura Creator - Aura Sync - Fan Xpert 4 (with AI Cooling II) - GameFirst - Power Saving HWiNFO AIDA64 Extreme (60 days free trial) ASUS AI Advisor ASUS Driver Hub ASUS GlideX Adobe Creative Cloud (Free Trial) Norton 360 for Gamers (60 Days Free Trial) WinRAR (40 Days Free Trial) UEFI BIOS AI Overclocking Guide ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash - ASUS UEFI BIOS EZ Mode - ASUS MyHotkey NPU Boost |
| אביזרים כלולים | :Cables 1x ROG USB2.0 splitter cable 2x SATA 6Gb/s cables 1x Panel Cable :ROG FPS Card 1x ROG FPS Card :ROG STRIX HIVE II 1x ROG STRIX HIVE II 1x USB Type-C® power connection cable :Miscellaneous 1x ASUS WiFi Q-Antenna 1x Cable ties package 1x ROG key chain 1x ROG Strix stickers :Documentation 1x Quick start guide |
| תצורה | Mini-ITX Form Factor 6.7 inch x 6.7 inch (17 cm x 17 cm) |
