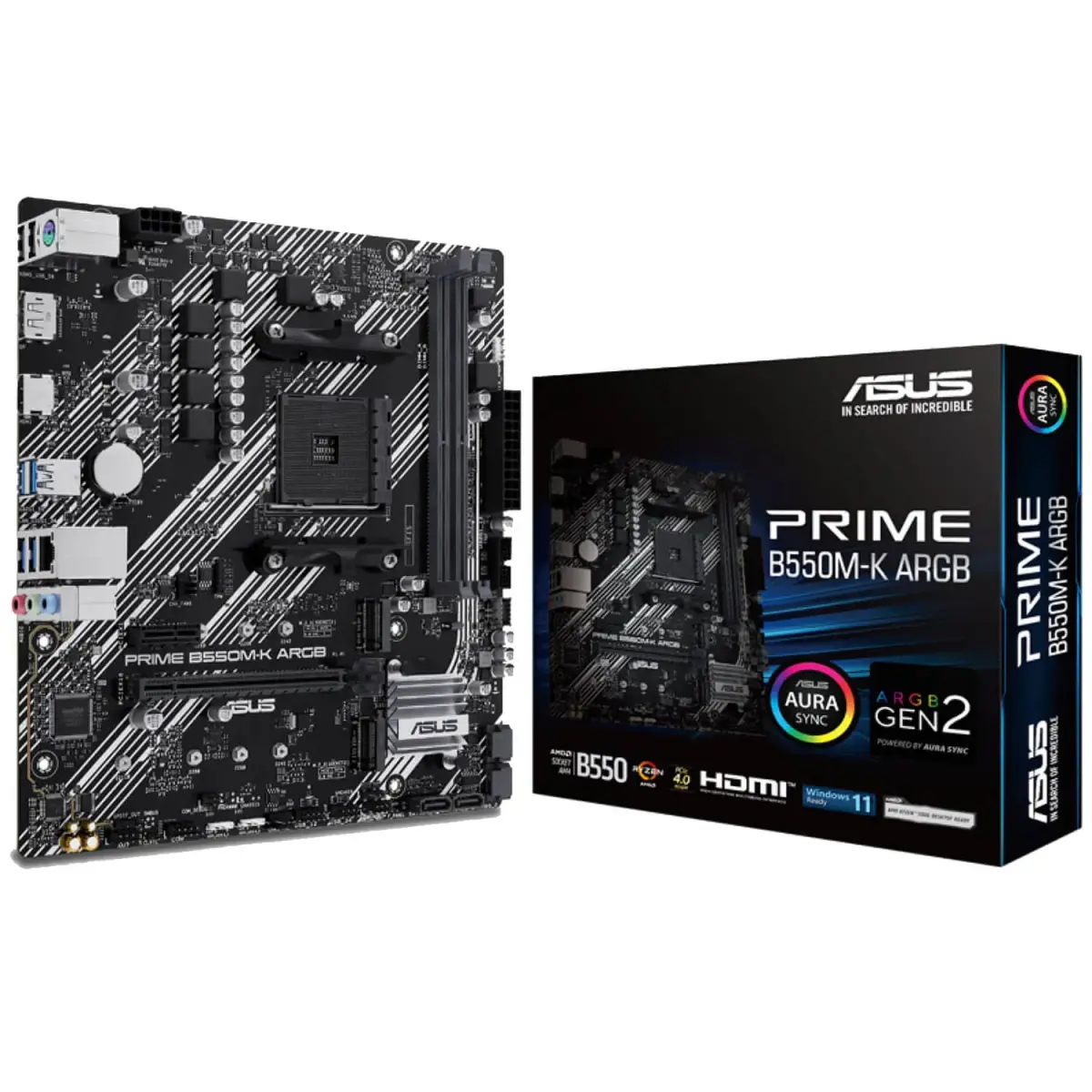

לוח אם – ASUS PRIME B550M-K ARGB Micro-ATX AM4 DDR4 - צבע שחור
חדש
מק"ט: 90MB1GC0-M0EAY0
לוח אם איכותי מבית Asus, בעל תושבת AM4, ערכת שבבים B550, תאימות לזיכרונות DDR4 ובעל יציאות HDMI ,DisplayPort.
₪385.00כולל מע"מ
במלאיפריסת תשלומים
₪385.00 לחודש
עד 1 תשלומים ללא ריבית
מפרט טכני
| תקופת אחריות | 3 שנים על ידי היבואן הרשמי |
| יצרן לוח אם | Asus |
| תמיכה במעבדים | AMD Socket AM4 for AMD Ryzen™ 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series Desktop Processors* Refer to www.asus.com for CPU support list* |
| תמיכה בזיכרונות | 2x DIMM slots, Max. 64GB, DDR4 5100(OC)/4866(OC)/4600(OC)/4466(OC)/4400(OC)/4333(OC)/4266(OC)/4200(OC)/4133(OC)/4000(OC)/3866(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133, Un-buffered Memory Dual Channel Memory Architecture ECC memory (ECC mode) support varies by CPU. Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/ |
| גרפיקה מובנית | 1x DisplayPort** 1x HDMI™ port*** Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications. Supports max. 4K@60Hz as specified in DisplayPort 1.4. Supports 4K@60Hz as specified in HDMI 2.1 |
| חריצי הרחבה | AMD Ryzen™ 5000 Series/ 3000 Series Desktop Processors 1x PCIe 4.0 x16 slot (supports x16 mode) AMD Ryzen™ 5000 G-Series/ 4000 G-Series Desktop Processors 1x PCIe 3.0 x16 slot (supports x16 mode) AMD B550 Chipset 1x PCIe 3.0 x1 slot Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/). - To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals |
| USB | Rear USB (Total 6 ports) 4x USB 3.2 Gen 1 (5G) ports (4 x Type-A) 2x USB 2.0 ports (2 x Type-A) Front USB (Total 7 ports) 1x USB 3.2 Gen 1 (5G) connector (supports USB Type-C®) 1x USB 3.2 Gen 1 (5G) header supports 2 additional US 3.2 Gen 1 ports 2x USB 2.0 headers support 4 additional USB 2.0 ports |
| ממשק אחסון | Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports* AMD Ryzen™ 5000 Series/ 3000 Series Desktop Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes) AMD Ryzen™ 5000 G-Series/ 4000 G-Series Desktop Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes) AMD B550 Chipset M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 & SATA modes) 4 x SATA 6Gb/s ports AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/10 and SATA RAID 0/1/10 |
| שמע | Realtek 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback Audio Features - Audio Shielding - Premium audio capacitors - Dedicated audio PCB layers A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output |
| כרטיס רשת קווי | 1x Realtek 1Gb Ethernet |
| חיבורים פנימיים | :Fan and Cooling related 1x 4-pin CPU Fan header 2x 4-pin Chassis Fan headers :Power related 1x 24-pin Main Power connector 1x 8-pin +12V Power connector :Storage related 2x M.2 slots (Key M) 4x SATA 6Gb/s ports :USB 1x USB 3.2 Gen 1 (5G) connector (supports USB Type-C® ) 1x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports 2x USB 2.0 headers support 4 additional USB 2.0 ports :Miscellaneous 3x Addressable Gen 2 headers 1x Clear CMOS header 1x COM Port header 1x Front Panel Audio header (AAFP) 1x S/PDIF Out header 1x Speaker header 1x SPI TPM header (14-1 pin) 1x 10-1 pin System Panel header |
| חיבורים ויציאות | 4x USB 3.2 Gen 1 (5G) ports (4 x Type-A) 2x USB 2.0 ports (2 x Type-A) 1x DisplayPort 1x HDMI™ port 1x Realtek 1Gb Ethernet port 3x Audio jacks 1x PS/2 Keyboard/Mouse combo port |
| BIOS | 128Mb Flash ROM, UEFI AMI BIOS |
| תכונות ייחודיות | ASUS 5X PROTECTION III - DIGI+ VRM - LANGuard - Overvoltage Protection - SafeSlot Core - Stainless-Steel Back I/O ASUS Q-Design - Q-DIMM - Q-LED Core - Q-Slot ASUS Thermal Solution - Aluminum heatsink design Aura Sync - Addressable Gen 2 headers |
| תוכנות מצורפות | ASUS Exclusive Software Armoury Crate - Aura Creator - Aura Sync AI Suite 3 - Performance And Power Saving Utility TurboV EVO EPU DIGI+ VRM Fan Xpert 2+ - EZ update ASUS CPU-Z Norton 360 Deluxe (60 Days Free Trial) WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode |
| אביזרים כלולים | :Cables 2x SATA 6Gb/s cables :Miscellaneous 1x I/O Shield 1x Screw package for M.2 SSD :Documentation 1x User guide |
| תצורה | micro-ATX Form Factor 9.6inch x 8.7 inch ( 24.4 cm x 22.1 cm ) |
