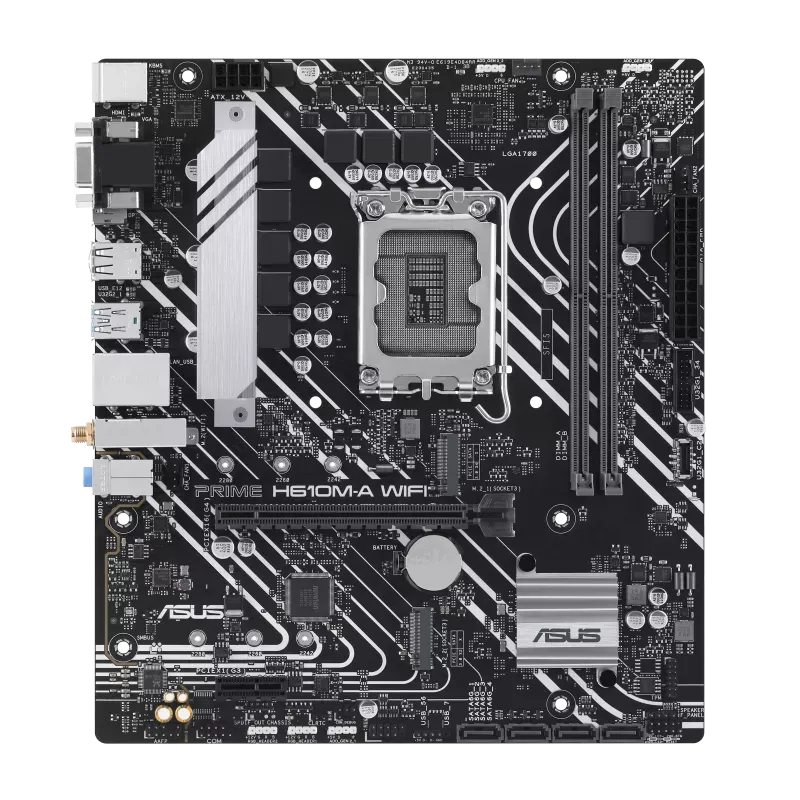

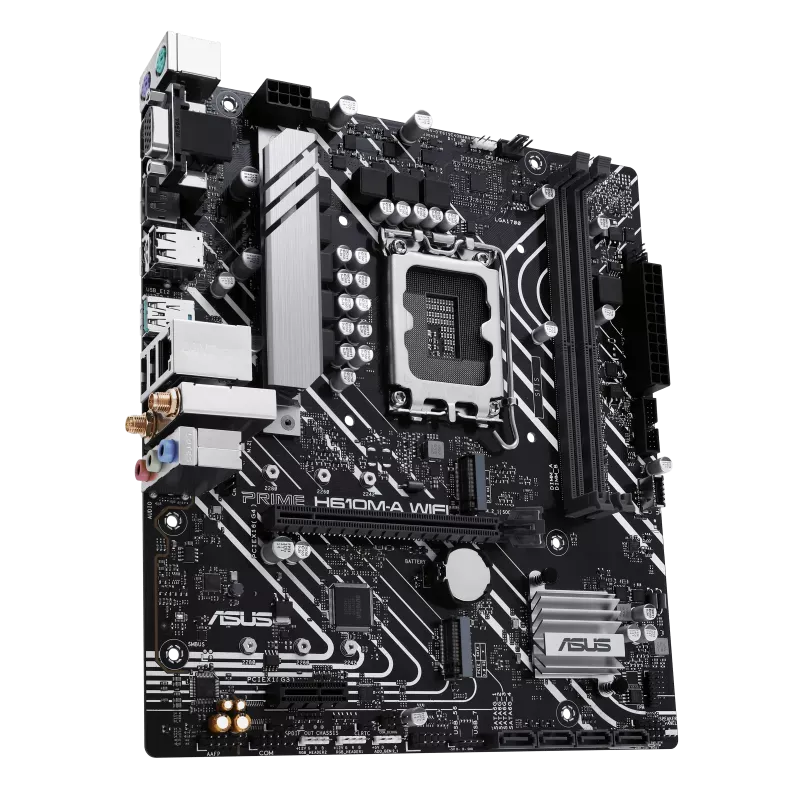

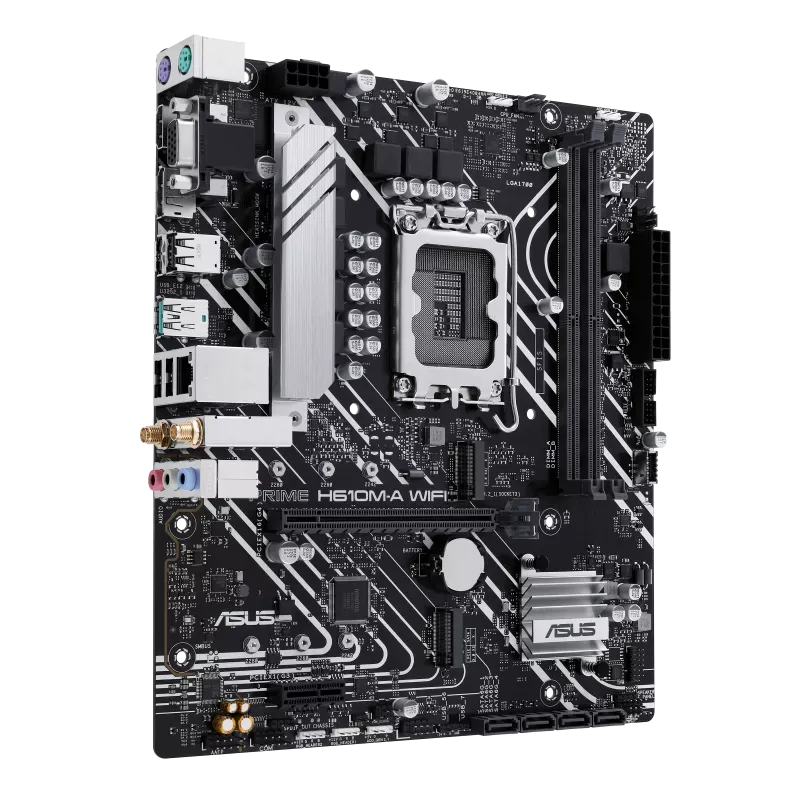

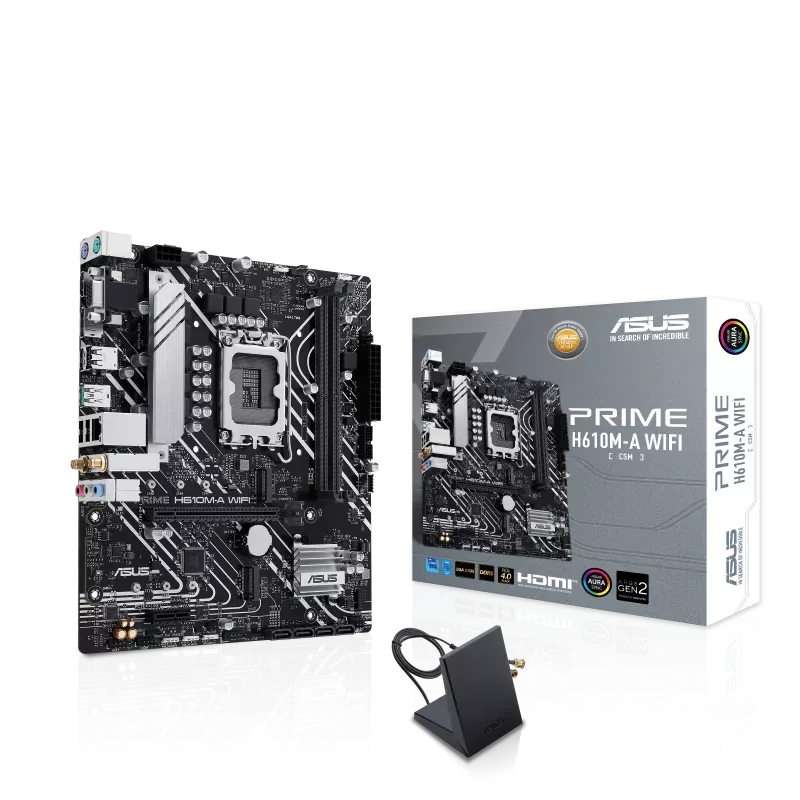

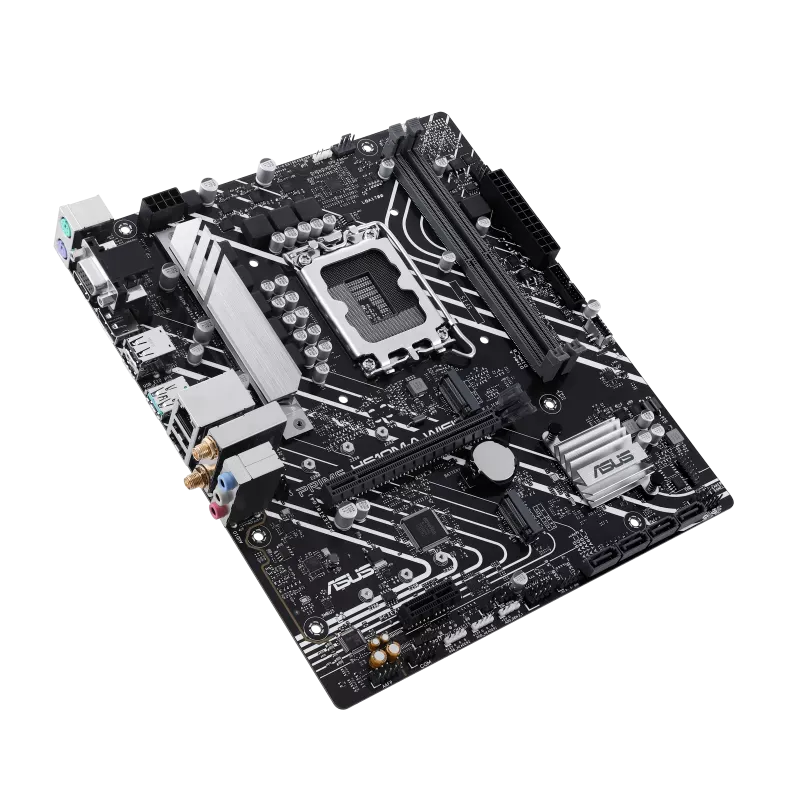

לוח אם – ASUS PRIME H610M-A WIFI Micro-ATX LGA1700 DDR5
חדש
מק"ט: 90MB1G00-M0EAY0
לוח אם איכותי מבית Asus, בעל תושבת LGA1700, ערכת שבבים H610, תאימות לזכרונות DDR5 ובעל יציאות HDMI ,VGA DisplayPort.
₪535.00כולל מע"מ
במלאיפריסת תשלומים
₪535.00 לחודש
עד 1 תשלומים ללא ריבית
מפרט טכני
| תקופת אחריות | 3 שנים על ידי היבואן הרשמי |
| יצרן לוח אם | Asus |
| תמיכה במעבדים | Intel® Socket LGA1700 for Intel® Core™ 14th & 13th Gen Processors, Intel® Core™ 12th Gen, Pentium® Gold and Celeron® Processors* Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0** .Refer to http://www.asus.com for CPU support list* .Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types** |
| תמיכה בזיכרונות | 2x DIMM slots, Max. 96GB, DDR5 5600/5400/5200/5000/4800 Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP) Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/ Non-ECC, un-buffered DDR5 memory supports On-Die ECC function |
| גרפיקה מובנית | 1x DisplayPort** 1x VGA port 1x HDMITM port*** .Graphics specifications may vary between CPU types. Please refer to http://www.intel.com for any updates* .Supports max. 4K@60Hz as specified in DisplayPort 1.4** .Supports 4K@60Hz as specified in HDMI 2.1*** |
| חריצי הרחבה | Intel® Core™ Processors (14th & 13th & 12th Gen)* 1x PCIe 4.0 x16 slot Intel® H610 Chipset 1x PCIe 3.0 x1 slot .To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals |
| USB | Rear USB (Total 5 ports) 1x USB 3.2 Gen 2 (10G) port (1 x Type-A) 4x USB 2.0 ports (4 x Type-A) Front USB (Total 6 ports) 1x USB 3.2 Gen 1 (5G) connector (supports USB Type-C®) 1x USB 3.2 Gen 1(5G) header supports additional 2 USB 3.2 Gen 1 ports 1x USB 2.0 header supports 1 USB 2.0 port 1x USB 2.0 header supports additional 2 USB 2.0 ports |
| ממשק אחסון | Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports Intel® H610 Chipset M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x2 mode) 4x SATA 6Gb/s ports |
| שמע | Realtek 7.1 Surround Sound High Definition Audio CODEC* Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking – Supports up to 24-Bit/192 kHz playback – Audio Features Audio Shielding – Premium audio capacitors – Dedicated audio PCB layers – .A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output* |
| כרטיס רשת קווי | 1x Intel® 1Gb Ethernet ASUS LANGuard |
| מודול תקשורת אלחוטית | Wi-Fi 5 Wi-Fi 5 (802.11 a/b/g/n/ac) Supports 2.4/5GHz frequency band Bluetooth® v5.0* .The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications* |
| חיבורים פנימיים | Fan and Cooling related 1x 4-pin CPU Fan header 2x 4-pin Chassis Fan headers Power related 1x 24-pin Main Power connector 1x 8-pin +12V Power connector Storage related 2x M.2 slots (Key M) 4x SATA 6Gb/s ports USB 1x USB 3.2 Gen 1 (5G) connector (supports USB Type-C®) 1x USB 3.2 Gen 1 (5G) header supports additional 2 USB 3.2 Gen 1 ports 1x USB 2.0 header supports 1 USB 2.0 port 1x USB 2.0 header supports additional 2 USB 2.0 ports Miscellaneous 3x Addressable Gen 2 headers 2x AURA RGB headers 1x Clear CMOS header 1x Front Panel Audio header (AAFP) 1x COM Port header 1x S/PDIF Out header 1x Speaker header 1x SPI TPM header (14-1pin) 1x 10-1 pin System Panel header |

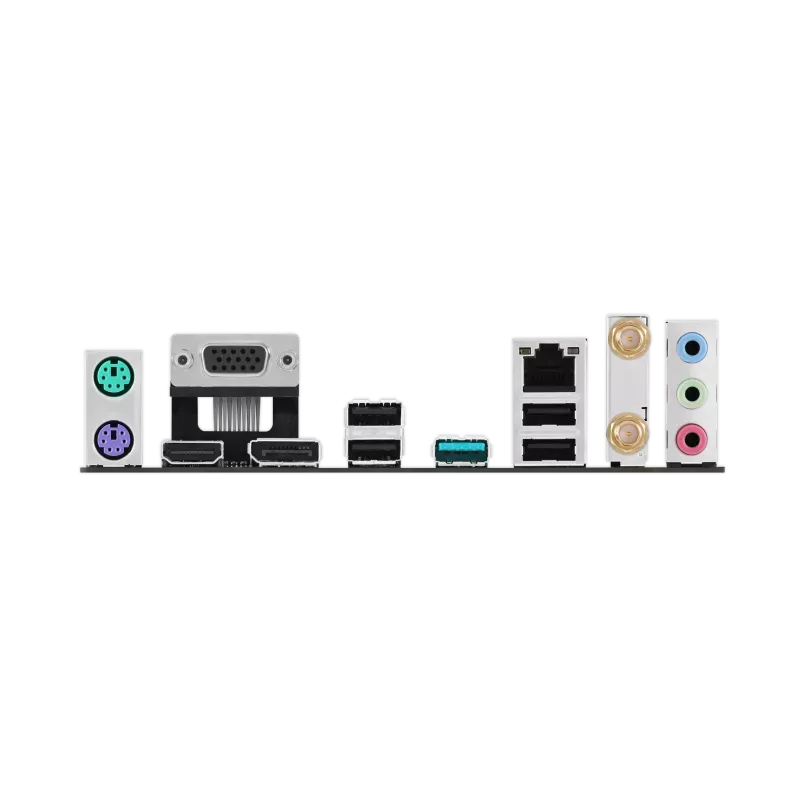

| חיבורים ויציאות | 1x USB 3.2 Gen 2 (10G) port (1 x Type-A) 4x USB 2.0 ports (4 x Type-A) 1x DisplayPort 1x VGA port 1x HDMITM port 1x Wi-Fi Module 1x Intel® 1Gb Ethernet port 3x Audio jacks 1x PS/2 Keyboard (purple) port 1x PS/2 Mouse (green) port |
| BIOS | 128Mb Flash ROM, UEFI AMI BIOS |
| תכונות ייחודיות | ASUS 5X PROTECTION III DIGI+ VRM LANGuard Overvoltage Protection SafeSlot Core Stainless-Steel Back I/O ASUS Q-Design Q-DIMM Q-LED Core Q-Slot ASUS Thermal Solution VRM heatsink design AURA Sync AURA RGB headers Addressable Gen 2 headers |
| תוכנות מצורפות | ASUS Exclusive Software Armoury Crate Aura Creator Aura Sync Fan Xpert 2+ Two-Way AI Noise Cancellation AI Suite 3 Performance And Power Saving Utility TurboV EVO EPU DIGI+ VRM PC Cleaner ASUS CPU-Z Norton 360 for Deluxe (60 Days Free Trial) WinRAR UEFI BIOS ASUS EZ DIY ASUS CrashFree BIOS 3 ASUS EZ Flash 3 ASUS UEFI BIOS EZ Mode |

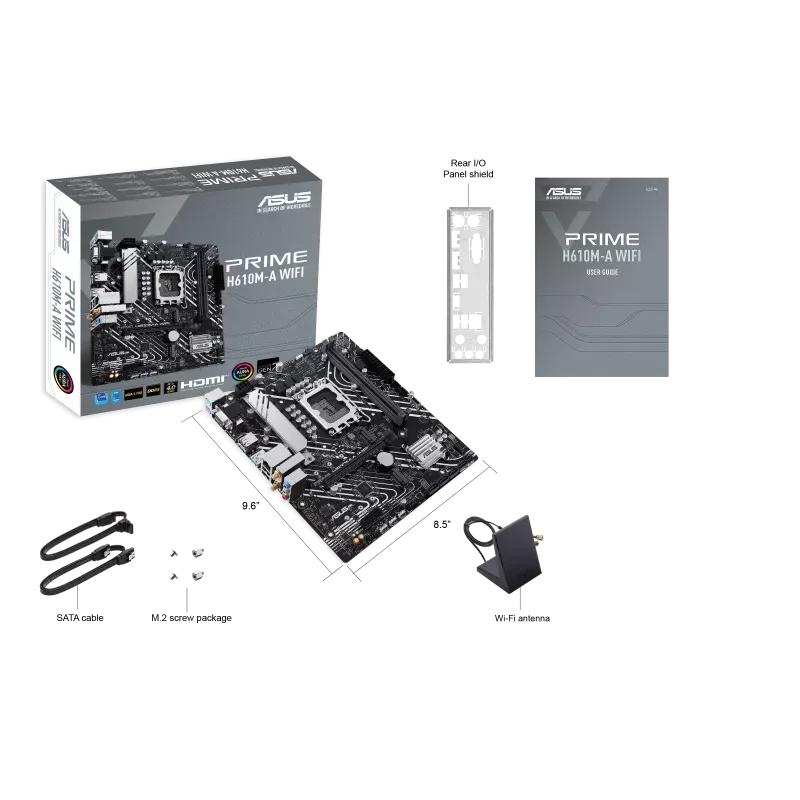

| אביזרים כלולים | Cables 2x SATA 6Gb/s cables Miscellaneous 1x ASUS Wi-Fi moving antennas 1x I/O Shield 1x Screw package for M.2 SSD Documentation 1x User guide |
| תצורה | mATX Form Factor 9.6inch x 8.5inch ( 24.4 cm x 21.6 cm ) |
