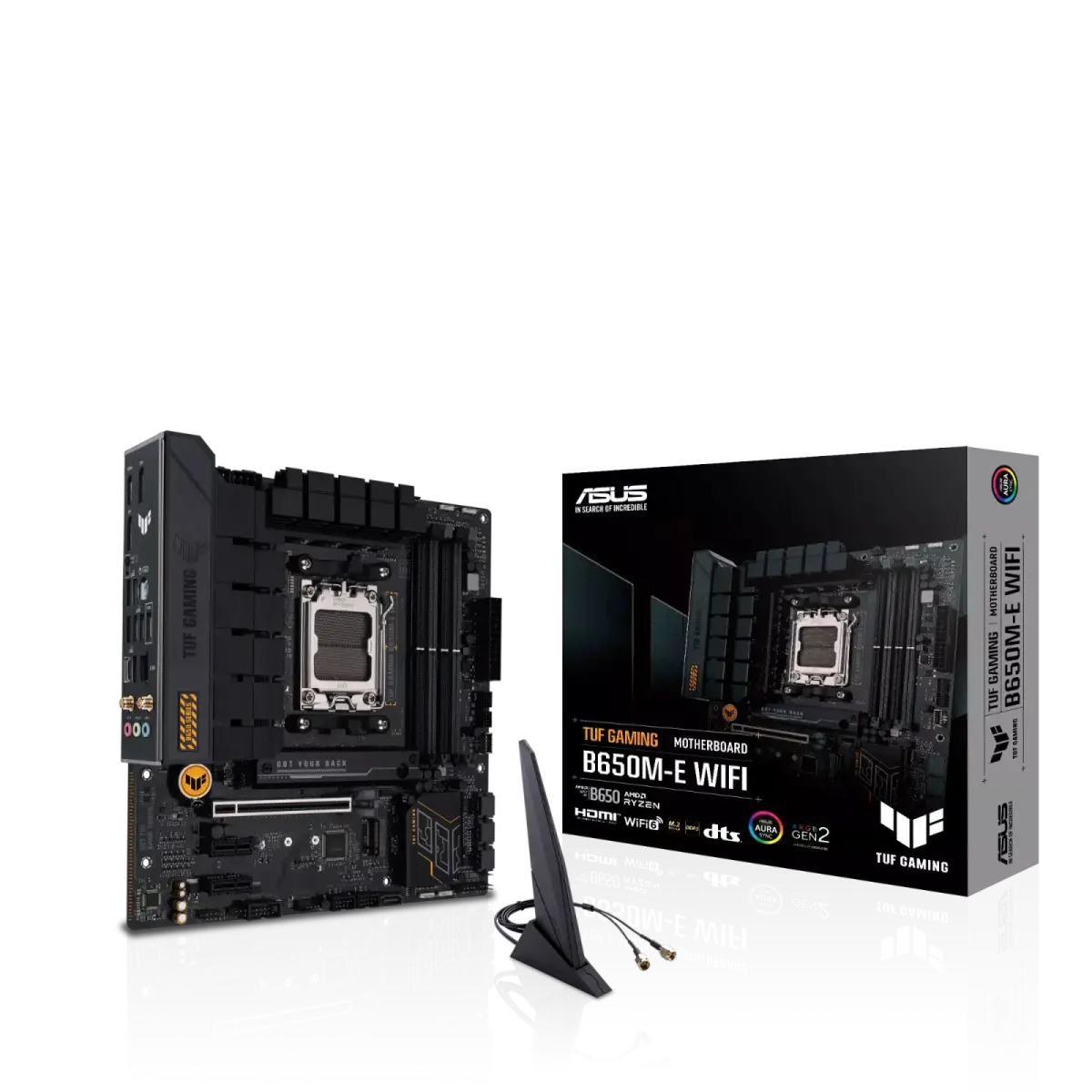

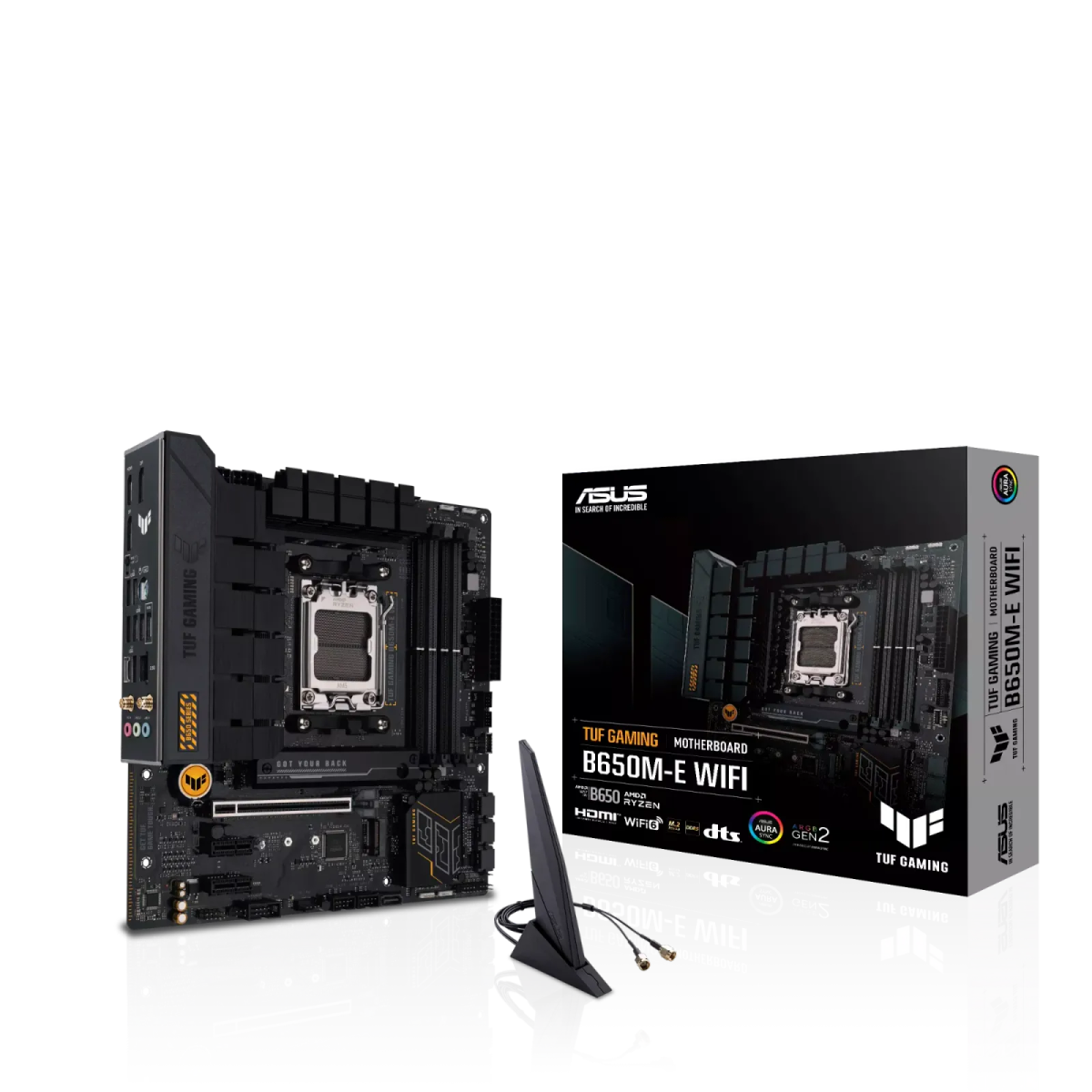

לוח אם – ASUS TUF GAMING B650M-E WIFI Micro-ATX AM5 DDR5 - צבע שחור
חדש
מק"ט: 90MB1FV0-M0EAY0
לוח אם איכותי מבית Asus, בעל תושבת AM5, ערכת שבבים B650, תאימות לזכרונות DDR5 ובעל יציאות HDMI ,DisplayPort.
₪750.00כולל מע"מ
במלאיפריסת תשלומים
₪750.00 לחודש
עד 1 תשלומים ללא ריבית
מפרט טכני
| תקופת אחריות | 3 שנים על ידי היבואן הרשמי |
| יצרן לוח אם | Asus |
| תמיכה במעבדים | AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors* Refer to http://www.asus.com for CPU support list* |
| תמיכה בזיכרונות | x4 DIMM slots, Max. 192GB, DDR5 7600+(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ / 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800 ECC and Non-ECC, Un-buffered Memory Dual Channel Memory Architecture |
| גרפיקה מובנית | 2x DisplayPort** 1x HDMITM port*** Graphics specifications may vary between CPU types Please refer to AMD CPU specifications. Supports max. 8K@60Hz as specified in DisplayPort 1.4** Supports 4K@60Hz as specified in HDMI 2.1*** |
| חריצי הרחבה | AMD Ryzen™ 7000 Series Desktop Processors x1 PCIe 4.0 x16 slot (supports x16 mode) :AMD Ryzen™ 8000 Series Desktop Processors x1 PCIe 4.0 x16 slot (supports x8/x4 mode) :AMD B650 Chipset x2 PCIe 4.0 x1 slots :AMD Ryzen™ 7000 Series Desktop Processors x1 PCIe 4.0 x16 slot AMD B650 Chipset x2 PCIe 4.0 x1 slots |
| USB | :Rear USB (Total 8 ports) 2x USB 3.2 Gen 2 (10G) ports (1 x Type-A + 1 x USB Type-C®) 2x USB 3.2 Gen 1 (5G) ports (2 x Type-A) 4x USB 2.0 ports (4 x Type-A) :Front USB (Total 7 ports) 1x USB 3.2 Gen 1 (5G) connector (supports USB Type-C®) 1x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports 2x USB 2.0 headers support 4 additional USB 2.0 ports |
| ממשק אחסון | Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports :AMD Ryzen™ 7000 Series Desktop Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) :AMD Ryzen™ 8000 Series Desktop Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4/x2 mode) :AMD B650 Chipset x4 SATA 6Gb/s ports AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/10 and SATA RAID 0/1/10 Specifications vary by CPU types Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports :AMD Ryzen™ 7000 Series Desktop Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) :AMD B650 Chipset x4 SATA 6Gb/s ports AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/10 and SATA RAID 0/1/10 |
| שמע | Realtek 7.1 Surround Sound High Definition Audio CODEC* – Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking – Supports up to 24-Bit/192 kHz playback" Audio Features – Audio Shielding – Premium audio capacitors – Dedicated audio PCB layers A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output |
| כרטיס רשת קווי | 1x Realtek 2.5Gb Ethernet TUF LANGuard |
| מודול תקשורת אלחוטית | Wi-Fi 6 1×1 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) Supports 2.4/5GHz frequency band Bluetooth® v5.2* *The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications. Wi-Fi 6 1×1 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) Supports 2.4/5GHz frequency band Bluetooth® v5.2* .The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications* |
| חיבורים פנימיים | :Fan and Cooling related x1 4-pin CPU Fan header x1 4-pin CPU OPT Fan header x1 4-pin AIO Pump header x2 4-pin Chassis Fan headers :Power related x1 24-pin Main Power connector x1 8-pin +12V Power connector x1 4-pin +12V Power connector :Storage related x2 M.2 slots (Key M) x4 SATA 6Gb/s ports :USB x1 USB 3.2 Gen 1 (5G) connector (supports USB Type-C® ) x1 USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports x2 USB 2.0 headers support 4 additional USB 2.0 ports :Miscellaneous x3 Addressable Gen 2 headers x1 Aura RGB header x1 Clear CMOS header x1 COM Port header x1 Front Panel Audio header (AAFP) x1 20-3 pin System Panel header with Chassis intrude function |
| חיבורים ויציאות | x2 USB 3.2 Gen 2 (10G) ports (1 x Type-A + 1 x USB Type-C®) x2 USB 3.2 Gen 1 (5G) ports (2 x Type-A) x4 USB 2.0 ports (4 x Type-A) x2 DisplayPort x1 HDMI™ port x1 Wi-Fi Module x1 Realtek 2.5Gb Ethernet port x3 Audio jacks x1 BIOS FlashBack™ button x1 PS/2 Keyboard/Mouse combo port |
| BIOS | 256Mb Flash ROM, UEFI AMI BIOS |
| תכונות ייחודיות | ASUS TUF PROTECTION DIGI+ VRM (- Digital power design with DrMOS) ESD Guards TUF LANGuard Overvoltage Protection SafeSlot Core+ Stainless-Steel Back I/O ASUS Q-Design M.2 Q-Latch Q-DIMM Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) Q-Slot ASUS Thermal Solution M.2 heatsink VRM heatsink design ASUS EZ DIY BIOS FlashBack™ button BIOS FlashBack™ LED ProCool Pre-mounted I/O shield SafeSlot Core+ SafeDIMM Aura Sync Aura RGB header Addressable Gen 2 headers |
| תוכנות מצורפות | ASUS Exclusive Software Armoury Crate – Aura Creator – Aura Sync – Fan Xpert 2+ – Power Saving – Two-Way AI Noise Cancelation AI Suite 3 – TurboV EVO – DIGI+ VRM – PC Cleaner TUF GAMING CPU-Z DTS Audio Processing MyASUS Norton 360 for Gamers(60 Days Free Trial) WinRAR UEFI BIOS ASUS EZ DIY – ASUS CrashFree BIOS 3 – ASUS EZ Flash 3 – ASUS UEFI BIOS EZ Mode |
| אביזרים כלולים | Cables x2 SATA 6Gb/s cables :Miscellaneous x1 ASUS Wi-Fi moving antennas x1 TUF Gaming sticker x1 M.2 Rubber Package x1 Screw package for M.2 SSD :Documentation x1 TUF Certification card x1 User guide |
| תצורה | micro-ATX Form Factor 9.6inch x 9.6inch (24.4 cm x 24.4 cm) |
