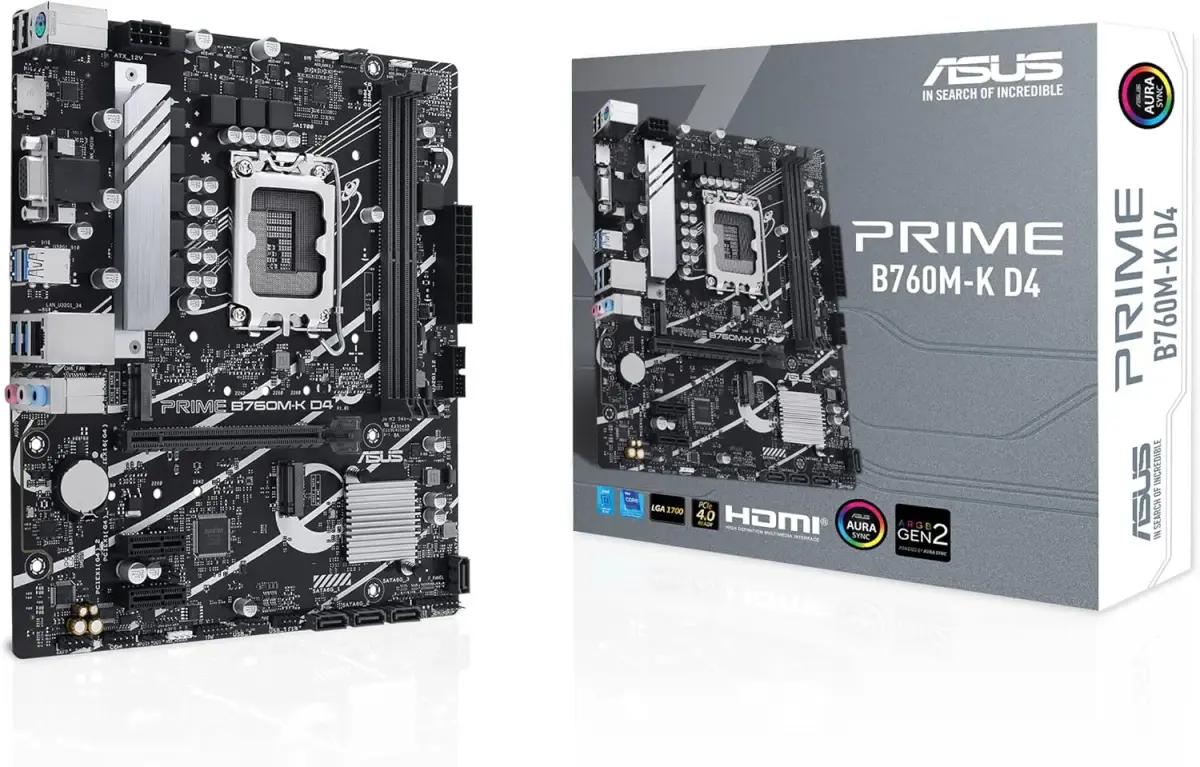

לוח אם – ASUS PRIME B760M-K D4 Micro-ATX LGA1700 DDR4 - צבע שחור
חדש
מק"ט: 90MB1DS0-M1EAY0
לוח אם איכותי מבית Asus, בעל תושבת LGA1700, ערכת שבבים B760, תאימות לזכרונות DDR4 ובעל יציאות תצוגה של HDMI ,VGA.
₪515.00כולל מע"מ
במלאיפריסת תשלומים
₪515.00 לחודש
עד 1 תשלומים ללא ריבית
מפרט טכני
| תקופת אחריות | 3 שנים על ידי היבואן הרשמי |
| יצרן לוח אם | Asus |
| תמיכה במעבדים | Intel® Socket LGA1700 for Intel® Core™ 14th & 13th Gen Processors, Intel® Core™ 12th Gen, Pentium® Gold and Celeron® Processors* Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0** .Refer to http://www.asus.com for CPU support list* .Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types** |
| תמיכה בזיכרונות | 2x DIMM, Max. 64GB, DDR4 5333(OC)/5066(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP) Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/ |
| גרפיקה מובנית | 1x VGA port 1x HDMI® port** .Graphics specifications may vary between CPU types. Please refer to http://www.intel.com for any updates* .Supports 4K@60Hz as specified in HDMI® 2.1** |
| חריצי הרחבה | Intel® Core™ Processors (14th &13th & 12th Gen) 1x PCIe 4.0 x16 slot Intel® B760 Chipset 2x PCIe 4.0 x1 slots Note: To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals |
| USB | Rear USB (Total 6 ports) 4x USB 3.2 Gen 1 ports (4 x Type-A) (2x USB 2.0 ports (2 x Type-A Front USB (Total 5 ports) 1x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports 2x USB 2.0 headers support 3 additional USB 2.0 ports |
| ממשק אחסון | Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports* Intel® Core™ Processors (14th &13th & 12th Gen) M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) Intel® B760 Chipset M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) 4x SATA 6Gb/s ports .Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10* |
| שמע | Realtek 7.1 Surround Sound High Definition Audio CODEC* Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking – Supports up to 24-Bit/192 kHz playback – Audio Features Audio Shielding – Premium audio capacitors – .A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output* |
| כרטיס רשת קווי | 1x Realtek 2.5Gb Ethernet |
| מודול תקשורת אלחוטית | ללא |
| חיבורים פנימיים | :Fan and Cooling related 1x 4-pin CPU Fan header 1x 4-pin Chassis Fan header :Power related 1x 24-pin Main Power connector 1x 8-pin +12V Power connector :Storage related 2x M.2 slots (Key M) 4x SATA 6Gb/s ports :USB 1x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports 2x USB 2.0 headers support 3 additional USB 2.0 ports :Miscellaneous 2x Addressable Gen 2 headers 1x Aura RGB header 1x Clear CMOS header 1x COM Port header 1x Front Panel Audio header (AAFP) 1x S/PDIF Out header 1x Speaker header 1x SPI TPM header (14-1pin) 1x 10-1 pin System Panel header |
| חיבורים ויציאות | 4x USB 3.2 Gen 1 ports (4 x Type-A) 2x USB 2.0 ports (2 x Type-A) 1x VGA port 1x HDMI® port 1x Realtek 2.5Gb Ethernet port 3x Audio jacks 1x PS/2 Keyboard/Mouse combo port |
| BIOS | 128Mb Flash ROM, UEFI AMI BIOS |
| תכונות ייחודיות | ASUS 5X PROTECTION III DIGI+ VRM LANGuard Overvoltage Protection SafeSlot Core Stainless-Steel Back I/O ASUS Q-Design Q-DIMM Q-LED Core Q-Slot ASUS EZ DIY ProCool ASUS Thermal Solution VRM heatsink design Aura Sync Aura RGB header Addressable Gen 2 headers |
| תוכנות מצורפות | ASUS Exclusive Software Armoury Crate Aura Sync Fan Xpert Power Saving AI Suite 3 DIGI+ VRM PC Cleaner ASUS CPU-Z Norton 360 Deluxe (60 Days Free Trial) WinRAR UEFI BIOS ASUS EZ DIY ASUS CrashFree BIOS 3 ASUS EZ Flash 3 ASUS UEFI BIOS EZ Mode |
| אביזרים כלולים | :Cables 2x SATA 6Gb/s cables :Miscellaneous 1x I/O Shield 2x M.2 anchors :Documentation 1x User guide |
| תצורה | mATX Form Factor 9.6inch x 8.3 inch (24.4cm x 21.1cm) |
