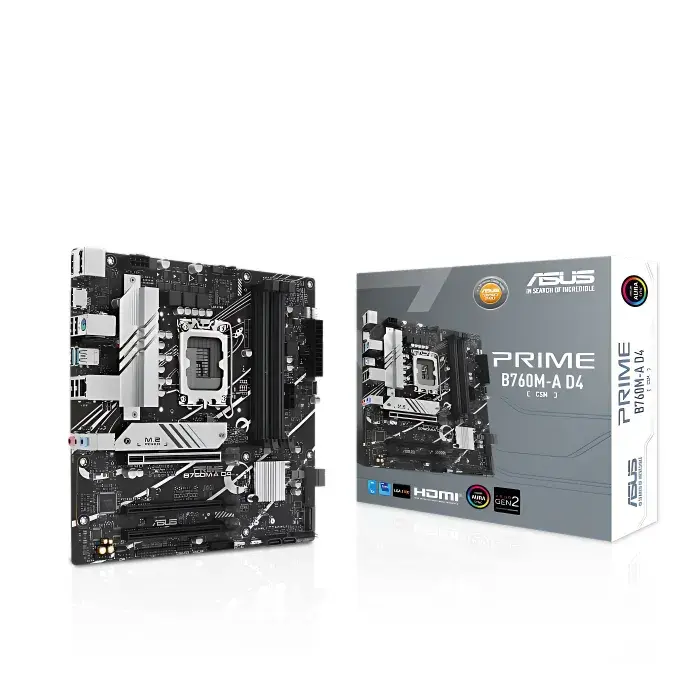

לוח אם – ASUS PRIME B760M-A D4-CSM Micro-ATX LGA1700 DDR4 - צבע שחור
חדש
מק"ט: 90MB1D00-M1EAYC
לוח אם איכותי מבית Asus, בעל תושבת LGA1700, ערכת שבבים B760, תאימות לזכרונות DDR4 ובעל יציאות תצוגה של HDMI ,DisplayPort.
₪579.00כולל מע"מ
במלאיפריסת תשלומים
₪579.00 לחודש
עד 1 תשלומים ללא ריבית
מפרט טכני
| תקופת אחריות | 3 שנים על ידי היבואן הרשמי |
| יצרן לוח אם | Asus |
| תמיכה במעבדים | Intel® Socket LGA1700 for Intel® Core™ 14th & 13th Gen Processors, Intel® Core™ 12th Gen, Pentium® Gold and Celeron® Processors* Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0** .Refer to http://www.asus.com for CPU support list* .Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types** |
| תמיכה בזיכרונות | 4x DIMM, Max. 128GB, DDR4 5333(OC)/5066(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP) OptiMem II Supported memory types, data rate(Speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information refer to http://www.asus.com for memory support list |
| גרפיקה מובנית | 1x DisplayPort** 2x HDMI® ports*** .Graphics specifications may vary between CPU types. Please refer to http://www.intel.com for any updates* .Supports max. 4K@60Hz as specified in DisplayPort 1.4** .Supports 4K@60Hz as specified in HDMI® 2.1*** |
| חריצי הרחבה | Intel® CoreTM Processors (14th & 13th & 12th Gen) 1x PCIe 4.0 x16 slot Intel® B760 Chipset 1x PCIe 4.0 x16 slot (supports x4 mode) 1x PCIe 4.0 x16 slot (supports x1 mode) Note: To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals |
| USB | Rear USB (Total 6 ports) 2x USB 3.2 Gen 2 ports (2 x Type-A ) 4x USB 2.0 ports (4 x Type-A) Front USB (Total 10 ports) 2x USB 3.2 Gen 1 headers support 4 additional USB 3.2 Gen 1 ports 1x USB 3.2 Gen 1 connector (supports USB Type-C®) 2x USB 2.0 headers support 4 additional USB 2.0 ports 1x USB 2.0 header supports 1 additional USB 2.0 port |
| ממשק אחסון | Total supports 2 x M.2 slots and 4x SATA 6Gb/s ports* Intel® CoreTM Processors (14th & 13th & 12th Gen) M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) Intel® B760 Chipset M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) 4x SATA 6Gb/s ports .Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10* |
| שמע | Realtek 7.1 Surround Sound High Definition Audio CODEC* Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking – Supports up to 24-Bit/192 kHz playback – Audio Features Audio Shielding – Premium audio capacitors – Dedicated audio PCB layers – .A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output* |
| כרטיס רשת קווי | 1x Realtek 2.5Gb Ethernet |
| מודול תקשורת אלחוטית | ללא |
| חיבורים פנימיים | :Fan and Cooling related 1x 4-pin CPU Fan header 1x 4-pin CPU OPT Fan header 2x 4-pin Chassis Fan headers :Power related 1x 24-pin Main Power connector 1x 8-pin +12V Power connector :Storage related 2x M.2 slots (Key M) 4x SATA 6Gb/s ports :USB 2x USB 3.2 Gen 1 headers support 4 additional USB 3.2 Gen 1 ports 1x USB 3.2 Gen 1 connector (supports USB Type-C®) 2x USB 2.0 headers support 4 additional USB 2.0 ports 1x USB 2.0 header supports 1 additional USB 2.0 port :Miscellaneous 3x Addressable Gen 2 headers 1x Aura RGB header 1x Clear CMOS header 1x COM Port header 1x Front Panel Audio header (AAFP) 1x LPT header 1x S/PDIF Out header 1x SPI TPM header (14-1pin) 1x 20-3 pin System Panel header with Chassis intrude function |
| חיבורים ויציאות | 2x USB 3.2 Gen 2 ports (2 x Type-A) 4x USB 2.0 ports (4 x Type-A) 1x DisplayPort 2x HDMI® ports 1x Realtek 2.5Gb Ethernet port 3x Audio jacks 1x PS/2 Keyboard/Mouse combo port |
| BIOS | 128Mb Flash ROM, UEFI AMI BIOS |
| תכונות ייחודיות | ASUS 5X PROTECTION III DIGI+ VRM LANGuard Overvoltage Protection SafeSlot Core+ Stainless-Steel Back I/O ASUS Q-Design Q-DIMM Q-LED Core Q-Slot ASUS Thermal Solution M.2 heatsink VRM heatsink design ASUS EZ DIY ProCool Aura Sync Aura RGB header Addressable Gen 2 headers |
| תוכנות מצורפות | ASUS Exclusive Software Armoury Crate Aura Creator Aura Sync Fan Xpert 2+ Power Saving AI Suite 3 Digi+ VRM PC Cleaner ASUS CPU-Z Norton Deluxe (60 Days Free Trial) WinRAR UEFI BIOS ASUS EZ DIY ASUS CrashFree BIOS 3 ASUS EZ Flash 3 ASUS UEFI BIOS EZ Mode |
| אביזרים כלולים | :Cables 2x SATA 6Gb/s cables :Miscellaneous 1x I/O Shield 1x M.2 Rubber Package 1x Screw package for M.2 SSD :Documentation 1x ACC Express Activation Key Card 1x User guide |
| תצורה | mATX Form Factor 9.6inch x 9.6 inch ( 24.4 cm x 24.4 cm ) |
