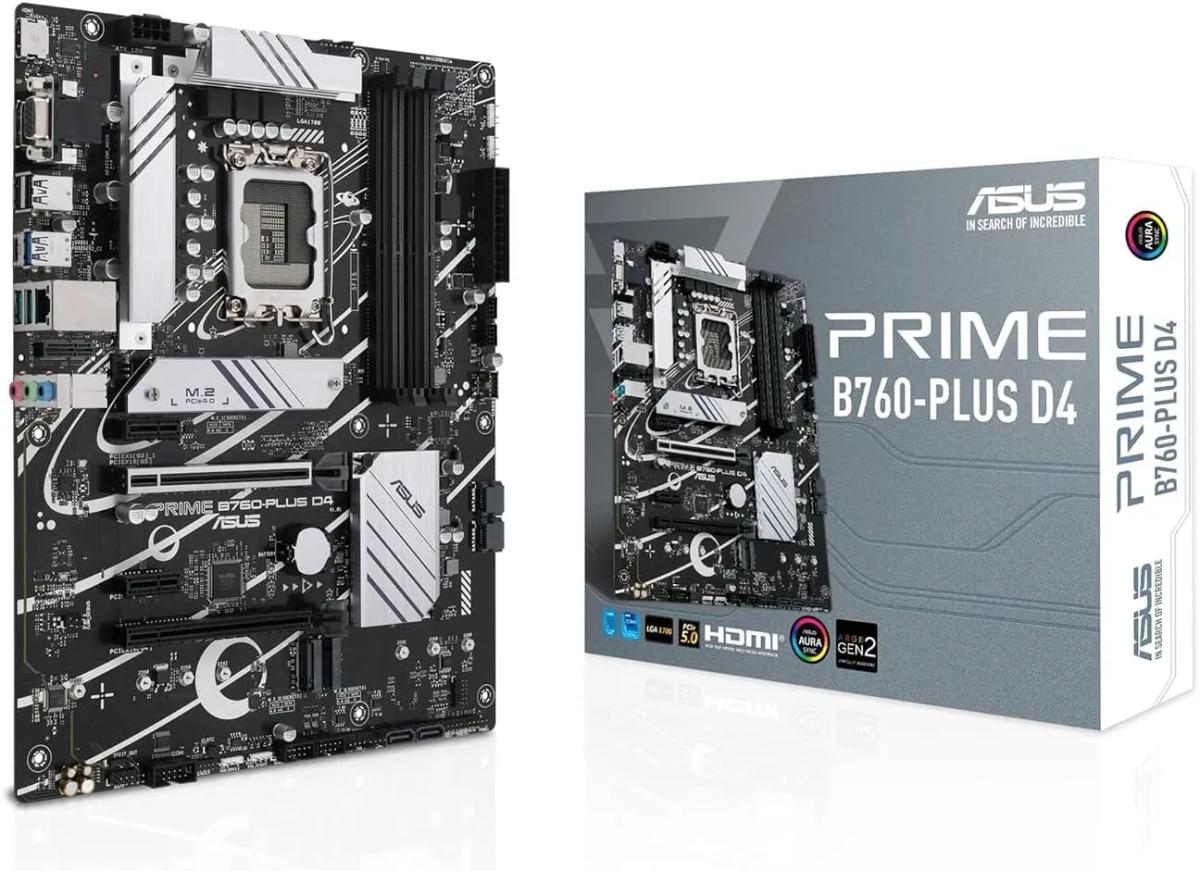

לוח אם – ASUS PRIME B760-PLUS D4 ATX LGA1700 DDR4 - צבע שחור/כסוף
חדש
מק"ט: 90MB1CW0-M1EAY0
לוח אם איכותי מבית Asus, בעל תושבת LGA1700, ערכת שבבים B760, תאימות לזכרונות DDR4 ובעל יציאות תצוגה של HDMI ,DisplayPort ,VGA.
₪679.00כולל מע"מ
במלאיפריסת תשלומים
₪679.00 לחודש
עד 1 תשלומים ללא ריבית
מפרט טכני
| תקופת אחריות | 3 שנים על ידי היבואן הרשמי |
| יצרן לוח אם | Asus |
| תמיכה במעבדים | Intel® Socket LGA1700 for Intel® Core™ 14th & 13th Gen Processors, Intel® Core™ 12th Gen, Pentium® Gold and Celeron® Processors* Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0** Refer to http://www.asus.com for CPU support list* Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types** |
| תמיכה בזיכרונות | 4x DIMM, Max. 128GB, DDR4 5066(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP) OptiMem Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/ |
| גרפיקה מובנית | 1x DisplayPort** 1x VGA port 1x HDMI® port*** Graphics specifications may vary between CPU types. Please refer to http://www.intel.com for any updates* Supports max. 4K@60Hz as specified in DisplayPort 1.4** Supports 4K@60Hz as specified in HDMI® 2.1*** |
| חריצי הרחבה | Intel® Core™ Processors (14th & 13th & 12th Gen) 1x PCIe 5.0 x16 slot Intel® B760 Chipset 1x PCIe 4.0 x16 slot (supports x4 mode) 2x PCIe 3.0 x1 slots Note: To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals |
| USB | Rear USB (Total 6 ports) 1x USB 3.2 Gen 2×2 port (1 x USB Type-C®) 2x USB 3.2 Gen 2 ports (2 x Type-A) 1x USB 3.2 Gen 1 port (1 x Type-A) 2x USB 2.0 ports (2 x Type-A) Front USB (Total 7 ports) 1x USB 3.2 Gen 1 connector (supports USB Type-C®) 1x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports 2x USB 2.0 headers support 4 additional USB 2.0 ports |
| ממשק אחסון | Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports* Intel® Core™ Processors (14th & 13th & 12th Gen) M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) Intel® B760 Chipset M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x2 mode) 4x SATA 6Gb/s ports .Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10* |
| שמע | Realtek 7.1 Surround Sound High Definition Audio CODEC* Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking – Supports up to 24-Bit/192 kHz playback – Audio Features Audio Shielding – Premium audio capacitors – Dedicated audio PCB layers – .A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output* |
| כרטיס רשת קווי | 1x Realtek 2.5Gb Ethernet |
| מודול תקשורת אלחוטית | ללא |
| חיבורים פנימיים | :Fan and Cooling related 1x 4-pin CPU Fan header 1x 4-pin AIO Pump header 3x 4-pin Chassis Fan headers :Power related 1x 24-pin Main Power connector 1x 8-pin +12V Power connector :Storage related 3x M.2 slots (Key M) 4x SATA 6Gb/s ports :USB 1x USB 3.2 Gen 1 connector (supports USB Type-C® ) 1x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports 2x USB 2.0 headers support 4 additional USB 2.0 ports :Miscellaneous 3x Addressable Gen 2 headers 1x Aura RGB header 1x Clear CMOS header 1x COM Port header 1x Front Panel Audio header (AAFP) 1x S/PDIF Out header 1x SPI TPM header (14-1pin) 1x 20-3 pin System Panel header with Chassis intrude function 1x Thunderbolt™ (USB4®) header |
| חיבורים ויציאות | 1x USB 3.2 Gen 2×2 port (1 x USB Type-C®) 2x USB 3.2 Gen 2 ports (2 x Type-A) 1x USB 3.2 Gen 1 port (1 x Type-A) 2x USB 2.0 ports (2 x Type-A) 1x DisplayPort 1x VGA port 1x HDMI® port 1x Vertical M.2 slot (Key E) 1x Realtek 2.5Gb Ethernet port 3x Audio jacks |
| BIOS | 128Mb Flash ROM, UEFI AMI BIOS |
| תכונות ייחודיות | ASUS 5X PROTECTION III DIGI+ VRM LANGuard Overvoltage Protection SafeSlot Core+ Stainless-Steel Back I/O ASUS Q-Design Q-DIMM Q-LED Core Q-Slot ASUS Thermal Solution M.2 heatsink VRM heatsink design ASUS EZ DIY ProCool Aura Sync Aura RGB header Addressable Gen 2 headers |
| תוכנות מצורפות | ASUS Exclusive Software Armoury Crate Aura Creator Aura Sync Fan Xpert 2+ Power Saving AI Suite 3 DIGI+ VRM PC Cleaner ASUS CPU-Z Norton 360 Deluxe (60 Days Free Trial) WinRAR UEFI BIOS ASUS EZ DIY ASUS CrashFree BIOS 3 ASUS EZ Flash 3 ASUS UEFI BIOS EZ Mode |
| אביזרים כלולים | :Cables 2x SATA 6Gb/s cables :Miscellaneous 1x I/O Shield 1x M.2 Rubber Package 2x Screw Packages for M.2 SSD :Documentation 1x User guide |
| תצורה | ATX Form Factor 12inch x 9.6 inch ( 30.5 cm x 24.4 cm ) |
