ראשי / רכיבי חומרה / לוחות אם / לוח אם – ASUS ROG STRIX B760-F GAMING WIFI ATX LGA1700 DDR5 - צבע שחור

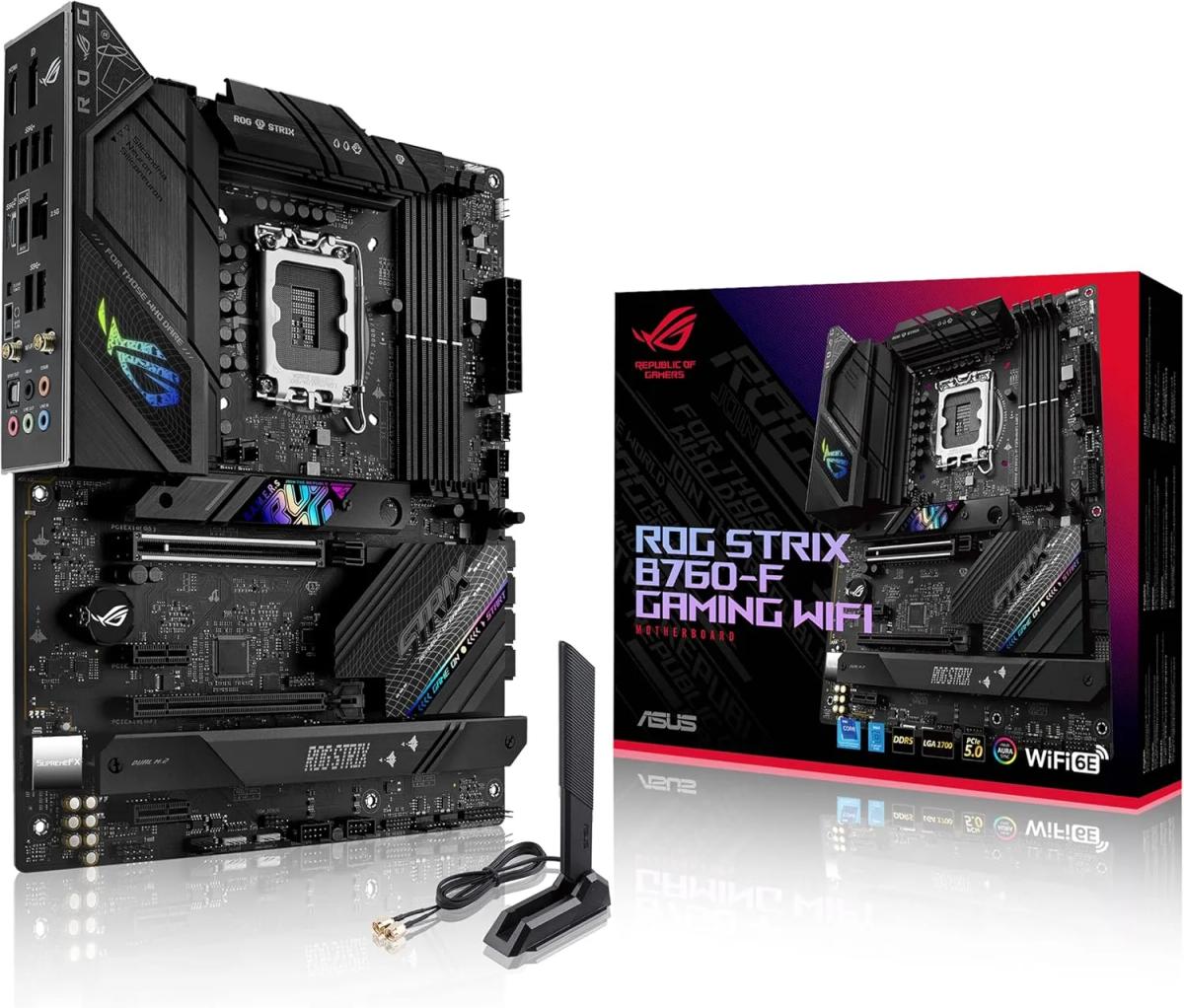

לוח אם – ASUS ROG STRIX B760-F GAMING WIFI ATX LGA1700 DDR5 - צבע שחור
חדש
מק"ט: 90MB1CT0-M1EAY0
לוח אם מבית Asus, בעל תושבת LGA1700, ערכת שבבים B760, תאימות לזכרונות DDR5 ובעל יציאות תצוגה של HDMI ,DisplayPort.
₪1,149.00כולל מע"מ
במלאיפריסת תשלומים
₪1,149.00 לחודש
עד 2 תשלומים ללא ריבית
מפרט טכני
| תקופת אחריות | 3 שנים על ידי היבואן הרשמי |
| יצרן לוח אם | Asus |
| תמיכה במעבדים | Intel® Socket LGA1700 for Intel® Core™ 14th & 13th Gen Processors, Intel® Core™ 12th Gen, Pentium® Gold and Celeron® Processors Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0** Refer to http://www.asus.com for CPU support list* Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types** |
| תמיכה בזיכרונות | 4x DIMM, Max. 192GB, DDR5 7800(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600/5400/5200/5000/4800 MHz Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP) OptiMem II Supported memory types, data rate(Speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information refer to http://www.asus.com for memory support list Non-ECC, un-buffered DDR5 memory supports On-Die ECC function* |
| גרפיקה מובנית | x1 DisplayPort** x1 HDMI® port*** Graphics specifications may vary between CPU types. Please refer to http://www.intel.com for any updates* Supports max. 8K@60Hz as specified in DisplayPort 1.4** Supports 4K@60Hz as specified in HDMI 2.1*** |
| חריצי הרחבה | M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 ) M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 ) x4 SATA 6Gb/s ports Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10* |
| USB | :Rear USB (Total 8 ports) 1x USB 3.2 Gen 2×2 port (1 x USB Type-C®) 1x USB 3.2 Gen 2 port (1 x Type-A) 6x USB 3.2 Gen 1 ports (6 x Type-A) :Front USB (Total 7 ports) 1x USB 3.2 Gen 2 connector 1x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports 2x USB 2.0 headers support 4 additional USB 2.0 ports |
| ממשק אחסון | Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports* Intel® Core™ Processors (14th & 13th & 12th Gen)* M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) Intel® B760 Chipset** M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4) M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4) 4x SATA 6Gb/s ports Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10* |
| שמע | ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080 – Impedance sense for front and rear headphone outputs – Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking – High quality 120 dB SNR stereo playback output and 113 dB SNR recording input – Supports up to 32-Bit/384 kHz playback" :Audio Features – SupremeFX Shielding Technology – Savitech SV3H712 AMP – Rear optical S/PDIF out port – Premium audio capacitors – Audio cover The rear panel Line out port does not support spatial audio. If you wish to use spatial audio make sure to connect your audio output device to the audio jack on the front panel of your chassis* |
| כרטיס רשת קווי | x1 Intel® 2.5Gb Ethernet ASUS LANGuard |
| מודול תקשורת אלחוטית | Wi-Fi 6E 2×2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax) Supports 2.4/5/6GHz frequency band* Bluetooth® v5.3** WiFi 6E 6GHz regulatory may vary between countries* The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications** |
| חיבורים פנימיים | x1 4-pin CPU Fan header x1 4-pin CPU OPT Fan header x1 4-pin AIO Pump header x4 4-pin Chassis Fan headers x1 24-pin Main Power connector x1 8-pin +12V Power connector x1 4-pin +12V Power connector x3 M.2 slots (Key M) x4 SATA 6Gb/s ports x1 USB 3.2 Gen 2 connector (supports USB Type-C® ) x1 USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports x2 USB 2.0 headers support 4 additional USB 2.0 ports x3 Addressable Gen 2 headers x1 Aura RGB header x1 Front Panel Audio header (AAFP) x1 20-3 pin System Panel header with Chassis intrude function x1 Thermal Sensor header x1 Thunderbolt™ (USB4®) header |
| חיבורים ויציאות | x1 USB 3.2 Gen 2×2 port (1 x USB Type-C®) x1 USB 3.2 Gen 2 port (1 x Type-A) x6 USB 3.2 Gen 1 ports (6 x Type-A) x1 DisplayPort x1 HDMI® port x1 Wi-Fi Module x1 Intel® 2.5Gb Ethernet port x5 Audio jacks* x1 Optical S/PDIF out port x1 BIOS FlashBack™ button x1 Clear CMOS button *The rear panel Lime (Line out) port does not support spatial audio. If you wish to use spatial audio make sure to connect your audio output device to the audio jack on the front panel of your chassis |
| BIOS | 256Mb Flash ROM, UEFI AMI BIOS |
| תכונות ייחודיות | 5K Black Metallic Capacitors M.2 Q-Latch PCIe Slot Q-Release Q-DIMM Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) Q-Slot M.2 heatsink VRM heatsink BIOS FlashBack™ button BIOS FlashBack™ LED Clear CMOS button CPU Socket lever protector ProCool Pre-mounted I/O shield SafeSlot SafeDIMM Aura RGB header Addressable Gen 2 headers |
| תוכנות מצורפות | ROG Exclusive Software – GameFirst VI – ROG CPU-Z – Sonic Studio III + Sonic Studio Virtual Mixer + Sonic Suite Companion – Sonic Radar III – DTS® Sound Unbound ASUS Exclusive Software Armoury Crate – AIDA64 Extreme (60 days free trial) – Aura Creator – Aura Sync – Fan Xpert 4 – Power Saving – Two-Way AI Noise Cancellation AI Suite 3 – Performance And Power Saving Utility – DIGI+ VRM – PC Cleaner MyAsus Norton 360 for Gamers WinRAR UEFI BIOS ASUS EZ DIY – ASUS CrashFree BIOS 3 – ASUS EZ Flash 3 – ASUS UEFI BIOS EZ Mode MemTest86 |
| אביזרים כלולים | :Cables 2x SATA 6Gb/s cables :Additional Cooling Kit 1x Thermal pad for M.2 :Miscellaneous 1x ASUS Wi-Fi moving antennas 1x Cable ties package 1x M.2 Q-Latch package 2x M.2 Rubber Package 1x ROG key chain 1x ROG Strix stickers 1x ROG Strix thank you card :Documentation 1x User guide |
| תצורה | ATX Form Factor 12inch x 9.6 inch ( 30.5 cm x 24.4 cm ) |
